The utility model discloses a stainless steel plate's blowing device, which comprises a ground, one side fixed mounting subaerial has the blowing frame, the top at blowing frame top is provided with hoisting machine and constructs, the front of blowing frame is provided with drop feed mechanism, the subaerial front that lies in the blowing frame has been seted up the horizontal vertical silo of going up. This stainless steel plate's blowing device, the utility model discloses a bracket, receive work or material rest, hoisting machine structure, pressure roller, drop feed mechanism, blowing frame, hold up wheel, mounting bracket, horizontal longitudinal feeding trough, dumper, linking arm, depression bar, atress piece, support frame, cross axle, first hydraulic telescoping rod, adjustable shelf, second hydraulic telescoping rod, auxiliary frame, receipts material roller, axle center roller, electric telescopic handle, expansion piece and receiving machine structure's cooperation is used, the utility model discloses a steel sheet blowing device, its can be quick install on the blowing device with the lapping steel sheet of different internal diameters.
Description
Technical Field
The utility model relates to a blowing device specifically is a stainless steel plate's blowing device.
Background
At present, in order to facilitate storage and transportation of steel plates, the steel plates need to be wound into coils in the production and processing process, in the prior art, when the steel plates are used, the coils of the steel plates are placed on rotating rollers of a discharging device to be discharged, the coils of the steel plates are tightly clamped on the rotating rollers, the coils of the steel plates are unfolded under the action of the rotating rollers to form the steel plates, and then the steel plates are processed.
However, according to the conventional stainless steel plate feeding device on the market, if the inner diameter of a coiled steel plate changes, the rotating roller on the feeding device cannot adjust the diameter of the coiled steel plate, so that the production requirement cannot be met, and if the rotating roller on the feeding device is replaced, the labor intensity of operators is increased, and the working efficiency is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a stainless steel plate's blowing device to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a stainless steel plate discharging device comprises a ground, a discharging frame is fixedly mounted on one side of the ground, a hoisting mechanism is arranged above the top of the discharging frame, a discharging mechanism is arranged on the front of the discharging frame, a horizontal longitudinal feeding groove is formed in the front of the discharging frame on the ground, a moving mechanism is arranged at the bottom of the inner wall of the horizontal longitudinal feeding groove, a material conveying vehicle is arranged inside the horizontal longitudinal feeding groove, a supporting frame is fixedly mounted on one side of the discharging frame, a transverse shaft is movably mounted on the supporting frame, a stress block is welded on the outer wall of the transverse shaft, a pressing rod is fixedly mounted at one end of the front of the transverse shaft, a pressure roller is arranged at one end of the pressing rod, a movable frame is fixedly mounted on one side of the supporting frame close to the discharging frame, a first hydraulic telescopic rod is movably mounted on the supporting frame, and the driving end of the first hydraulic telescopic rod is movably connected with one side of the bottom of the stress block, the subaerial fixed mounting has the bracket, the inside of bracket is provided with the second hydraulic stretching pole, one side that the bracket is close to the blowing frame is rotated and is installed the linking arm, the top that the bracket is close to blowing frame one side is rotated and is installed the mounting bracket, one side at mounting bracket top is provided with the lifting wheel, subaerial opposite side is provided with receiving agencies.
As a further aspect of the present invention: drop feed mechanism includes the axle center roller, and the axle center roller rotates with the front of blowing frame to be connected, inlay on the outer wall of axle center roller and install a plurality of electric telescopic handle, electric telescopic handle's drive end fixed mounting has the expansion piece.
As a further aspect of the present invention: the receiving mechanism comprises a receiving frame, the receiving frame is fixedly mounted on the other side of the ground, a receiving roller is arranged on one side of the top of the receiving frame, an auxiliary frame is fixedly mounted on the other side of the top of the receiving frame, an auxiliary roller is arranged at the top of the auxiliary frame, a threaded roller shaft is arranged below one side of the auxiliary frame, an induction frame is mounted on one side of the receiving frame, and a paper inductor is mounted at one end of the induction frame.
As a further aspect of the present invention: and left-handed threads are arranged on one side of the outer wall of the threaded roller shaft, and right-handed threads are arranged on the other side of the outer wall of the threaded roller shaft.
As a further aspect of the present invention: the inner surface of the expansion block is matched with the axis roller, and the inner surface of the expansion block can be attached to the axis roller.
As a further aspect of the present invention: the upper surface of the supporting wheel can be tightly attached to the lower surface of the axis roller, the lower surface of the pressure roller can be tightly attached to the upper surface of the axis roller, and drivers are arranged on the material discharging mechanism, the hoisting mechanism and the material receiving mechanism.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a bracket, receive work or material rest, hoisting machine structure, pressure roller, drop feed mechanism, blowing frame, hold up wheel, mounting bracket, horizontal longitudinal feeding trough, fortune skip, linking arm, depression bar, atress piece, support frame, cross axle, first hydraulic telescoping rod, adjustable shelf, second hydraulic telescoping rod, auxiliary frame, receive material roller, axle center roller, electric telescopic handle, expansion piece and receiving machine structure's cooperation and use, the utility model discloses a steel sheet blowing device, its can be quick install on blowing device with the lapping steel sheet of different internal diameters, not only reduced operating personnel's intensity of labour, improved steel sheet blowing device's practicality moreover.
2. This use is used through the cooperation of screw thread formula roller and response frame, and left-handed screw thread and right-handed screw on the screw thread formula roller outer wall carry out a transmission to the paper, make the paper receive one to the power of both sides, and the paper can not be gathered together to the middle part and produce the fold to guarantee the rolling work normal clear of paper, after the rolling is accomplished to the paper simultaneously, the response can be made to the paper inductor on the response frame, makes the instruction, makes whole device stop work, increases the flexibility of whole device.
Drawings

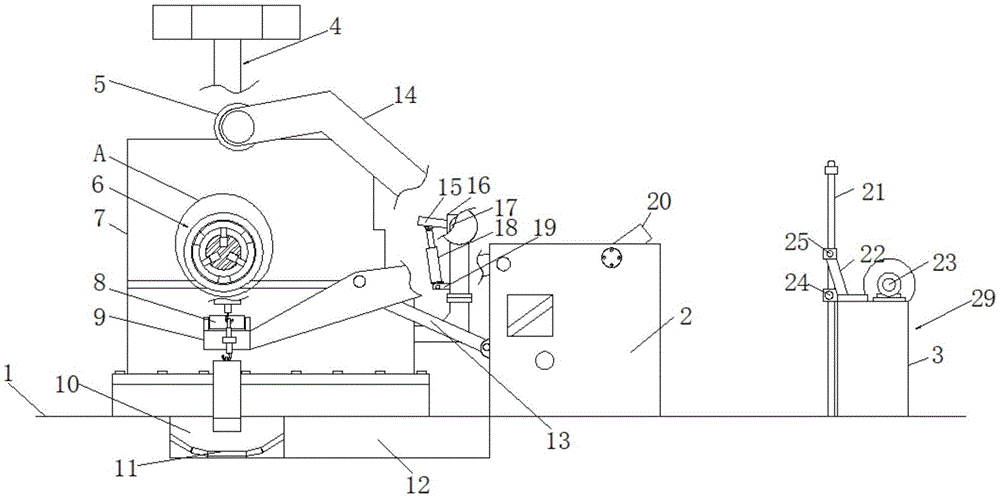

FIG. 1 is a schematic structural view of a stainless steel plate discharging device;
FIG. 2 is a schematic structural view of a threaded roll shaft in a stainless steel plate discharging device;
fig. 3 is an enlarged schematic structural view of a stainless steel plate discharging device at a position a in fig. 1.
In the figure: the device comprises the following components, which are arranged on the ground 1, a bracket 2, a material receiving frame 3, a hoisting mechanism 4, a pressure roller 5, a discharging mechanism 6, a material discharging frame 7, a supporting wheel 8, a mounting frame 9, a horizontal longitudinal feeding groove 10, a material conveying vehicle 11, a horizontal transverse placing groove 12, a connecting arm 13, a pressure rod 14, a stress block 15, a support frame 16, a transverse shaft 17, a first hydraulic telescopic rod 18, a movable frame 19, a second hydraulic telescopic rod 20, an induction frame 21, an auxiliary frame 22, a material receiving roller 23, a threaded roller shaft 24, an auxiliary roller 25, an axis roller 26, an electric telescopic rod 27, an expansion block 28 and a material receiving mechanism 29.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, in the embodiment of the present invention, a stainless steel plate discharging device comprises a ground 1, a discharging frame 7 is fixedly installed on one side of the ground 1, a hoisting mechanism 4 is installed above the top of the discharging frame 7, a discharging mechanism 6 is installed on the front of the discharging frame 7, a horizontal and longitudinal feeding trough 10 is installed on the front of the discharging frame 7 on the ground 1, the horizontal and longitudinal feeding trough 10 is located under the discharging mechanism 6, a moving mechanism is installed at the bottom of the inner wall of the horizontal and longitudinal feeding trough 10, a material transporting vehicle 11 is installed inside the horizontal and longitudinal feeding trough 10, a supporting frame 16 is fixedly installed on one side of the discharging frame 7, a cross shaft 17 is movably installed on the supporting frame 16, a stressed block 15 is welded on the outer wall of the cross shaft 17, a compression bar 14 is fixedly installed at one end of the front of the cross shaft 17, a pressure roller 5 is installed at one end of the compression bar 14, a movable frame 19 is fixedly installed at one side of the supporting frame 16 close to the discharging frame 7, a first hydraulic telescopic rod 18 is movably installed on the supporting frame 16 through a movable frame 19, the driving end of the first hydraulic telescopic rod 18 is movably connected with one side of the bottom of the stress block 15, a bracket 2 is fixedly installed on the ground 1, a second hydraulic telescopic rod 20 is arranged inside the bracket 2, a connecting arm 13 is rotatably installed on one side, close to the material placing frame 7, of the bracket 2, one end of the connecting arm 13 is located inside the bracket 2, an installation frame 9 is rotatably installed above one side, close to the material placing frame 7, of the bracket 2, the center of the installation frame 9 is rotatably connected with the other end of the connecting arm 13, a supporting wheel 8 is arranged on one side of the top of the installation frame 9, the driving end of the second hydraulic telescopic rod 20 is rotatably connected with one end, far away from the installation frame 9, of the connecting arm 13, a material receiving mechanism 29 is arranged on the other side of the ground 1, the material placing mechanism 6 comprises an axis roller 26, and the axis roller 26 is rotatably connected with the front of the material placing frame 7, a plurality of electric telescopic rods 27 are embedded and installed on the outer wall of the axis roller 26, the number of the electric telescopic rods 27 is three, the driving end of each electric telescopic rod 27 is fixedly provided with an expansion block 28, the material receiving mechanism 29 comprises a material receiving frame 3, the material receiving frame 3 is fixedly installed on the other side of the ground 1, one side of the top of the material receiving frame 3 is provided with a material receiving roller 23, the other side of the top of the material receiving frame 3 is fixedly provided with an auxiliary frame 22, the top of the auxiliary frame 22 is provided with an auxiliary roller 25, a threaded roll shaft 24 is arranged below one side of the auxiliary frame 22, one side of the material receiving frame 3 is provided with an induction frame 21, one end of the induction frame 21 is provided with a paper inductor, one side of the outer wall of the threaded roll shaft 24 is provided with a left-handed thread, the other side of the outer wall of the threaded roll shaft 24 is provided with a right-handed thread, the inner surface of the expansion block 28 is matched with the axis roller 26, and the inner surface of the expansion block 28 can be attached to the axis roller 26, the upper surface of the supporting wheel 8 can be tightly attached to the lower surface of the axis roller 26, the lower surface of the pressure roller 5 can be tightly attached to the upper surface of the axis roller 26, and drivers are arranged on the discharging mechanism 6, the hoisting mechanism 4 and the material receiving mechanism 29.
The utility model discloses a theory of operation is:
when the steel coil winding machine is used, when a steel coil needs to be placed, the steel coil is lifted through the lifting mechanism 4 and then placed on the material conveying vehicle 11 inside the horizontal longitudinal feeding groove 10, the material conveying vehicle 11 is driven to move through the moving mechanism arranged at the bottom of the inner wall of the horizontal longitudinal feeding groove 10, the steel coil placed on the material conveying vehicle 11 is directly sleeved on the outer wall of the expansion block 28 through the movement of the material conveying vehicle 11, after the steel coil is sleeved, the three groups of electric telescopic rods 27 are simultaneously started to drive the expansion block 28 to contract or expand, the plurality of expansion blocks 28 form a circular diameter until the diameter of the steel coil is perfectly attached, after the steel coil is fixed, one end of paper on the steel coil is fixed on the material receiving mechanism 29, before the steel coil paper on the material receiving mechanism 29 is wound through the first hydraulic telescopic rod 18, the driving end of the first hydraulic telescopic rod 18 drives the stress block 15 to move, one side of the stress block 15 moves downwards, the other side of the stress block 15 drives the cross shaft 17 to rotate, the rotation of the cross shaft 17 drives the compression rod 14 to rotate, the compression rod 5 moves along with the compression rod 14, the rotation direction of the compression rod 14 around the cross shaft 17 is the same as that of the stress block 15, the direct compression rod 5 is in contact with the steel coil, the edge warping caused by the elasticity of the steel coil is prevented subsequently, the normal operation of the whole discharging process is ensured, the second hydraulic telescopic rod 20 is started simultaneously, the driving end of the second hydraulic telescopic rod 20 drives one end of the connecting arm 13 positioned in the bracket 2 to move downwards, one end of the connecting arm 13 at the connecting part with the mounting bracket 9 drives the mounting bracket 9 to move upwards, the supporting wheel 8 moves along with the mounting bracket 9, the supporting wheel 8 is in contact with the lower surface of the axis roller 26, and the axis roller 26 plays a supporting role, prevent the axle center roller 26 from inclining in the using process, after the position of the pressure roller 5 and the supporting wheel 8 is in place, the material receiving mechanism 29 is started to wind and bundle the paper on the steel coil, the steel plate discharging device of the utility model can rapidly install the rolled steel plates with different inner diameters on the discharging device, not only reduces the labor intensity of the operator, but also improves the practicability of the steel plate discharging device, when the paper on the steel coil is wound, the left-handed thread and the right-handed thread on the outer wall of the thread type roller shaft 24 transmit the paper, so that the paper is forced to two sides, the paper can not gather together to generate folds to ensure the normal winding work of the paper, and simultaneously, when the paper is wound, the paper inductor on the induction frame 21 can induce to give an instruction to stop the whole device, the flexibility of the whole device is increased.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides a blowing device of stainless steel board, includes ground (1), its characterized in that: a discharging frame (7) is fixedly mounted on one side of the ground (1), a hoisting mechanism (4) is arranged above the top of the discharging frame (7), a discharging mechanism (6) is arranged on the front of the discharging frame (7), a horizontal vertical feeding groove (10) is formed in the front of the discharging frame (7) on the ground (1), a moving mechanism is arranged at the bottom of the inner wall of the horizontal vertical feeding groove (10), a material conveying vehicle (11) is arranged in the horizontal vertical feeding groove (10), a support frame (16) is fixedly mounted on one side of the discharging frame (7), a transverse shaft (17) is movably mounted on the support frame (16), a stress block (15) is welded on the outer wall of the transverse shaft (17), a pressing rod (14) is fixedly mounted at the front end of the transverse shaft (17), and a pressure roller (5) is arranged at one end of the pressing rod (14), one side fixed mounting that support frame (16) are close to blowing frame (7) has adjustable shelf (19), support frame (16) have first hydraulic telescoping rod (18) through adjustable shelf (19) movable mounting, and the drive end of first hydraulic telescoping rod (18) and one side swing joint of atress piece (15) bottom, fixed mounting has bracket (2) on ground (1), the inside of bracket (2) is provided with second hydraulic telescoping rod (20), one side rotation that bracket (2) are close to blowing frame (7) is installed linking arm (13), bracket (2) are close to the top rotation of blowing frame (7) one side and are installed mounting bracket (9), one side at mounting bracket (9) top is provided with lifting wheel (8), opposite side on ground (1) is provided with receiving agencies (29).
2. The discharging device of the stainless steel plate as set forth in claim 1, wherein: drop feed mechanism (6) include axle center roller (26), and axle center roller (26) rotate with the front of blowing frame (7) and be connected, inlay on the outer wall of axle center roller (26) and install a plurality of electric telescopic handle (27), electric telescopic handle's (27) drive end fixed mounting has expansion piece (28).
3. The discharging device of the stainless steel plate as set forth in claim 1, wherein: receiving agencies (29) are including receiving work or material rest (3), and receive work or material rest (3) fixed mounting opposite side on ground (1), one side at receiving work or material rest (3) top is provided with receipts material roller (23), the opposite side fixed mounting at receiving work or material rest (3) top has auxiliary frame (22), the top of auxiliary frame (22) is provided with auxiliary roller (25), the below of auxiliary frame (22) one side is provided with screw thread formula roller (24), induction frame (21) is installed to one side of receiving work or material rest (3), the paper inductor is installed to the one end of induction frame (21).
4. The discharging device of the stainless steel plate as set forth in claim 3, wherein: and left-handed threads are arranged on one side of the outer wall of the threaded roll shaft (24), and right-handed threads are arranged on the other side of the outer wall of the threaded roll shaft (24).
5. The discharging device of the stainless steel plate as set forth in claim 2, wherein: the inner surface of the expansion block (28) is matched with the axle center roller (26), and the inner surface of the expansion block (28) can be attached to the axle center roller (26).
6. The discharging device of the stainless steel plate as set forth in claim 1, wherein: the lower surface of axle center roller (26) can be hugged closely to support wheel (8) upper surface, pressure roller (5) lower surface can be hugged closely the upper surface of axle center roller (26), all be provided with the driver on drop feed mechanism (6), hoisting machine structure (4) and receiving agencies (29).
