The utility model discloses a grain slag separator for concrete production relates to concrete processing technology field, including the conveyer belt, the below of conveyer belt is provided with secondary separator, the conveyer belt can be dismantled with secondary separator and be connected, the conveyer belt is the slope form. This water-slag separating device for concrete production, through conveyer belt separation water tank, cooperation setting between separator box and the scraper blade, the problem of separation effect not good easy production jam has been solved, the practicality of device has been improved, the work efficiency of device has been improved, the conveyer belt through the slope form makes the water sediment separate through gravity, it blocks up the net to remain impurity behind the conveyer belt separation water sediment, scrape through the scraper blade, make impurity drop carry out secondary filter in the separator box, the separator box is the net case, avoid making impurity fall into the separator box, produce the jam when having avoided the separation.
Description
Technical Field
The utility model relates to a concrete processing technology field specifically is a water and slag separator is used in concrete production.
Background
In the concrete processing industry, waste water directly discharged in the concrete production process and waste water indirectly generated by flushing various production equipment can be discharged only after being treated professionally. The existing treatment equipment has the advantages that when the material slag doped in the wastewater is separated, a filter screen is easily blocked by large sand stones, long-time continuous filtration cannot be maintained, time is wasted when the material slag is cleaned or replaced, and the treatment efficiency of the wastewater is reduced.
Therefore, it is necessary to provide a water-slag separating device for concrete production to solve the above problems.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
An object of the utility model is to provide a water sediment separator for concrete production to solve the current concrete water sediment separator that proposes among the above-mentioned background art and separate the not good problem that produces the jam easily of effect.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the water-slag separating device for concrete production comprises a conveying belt, wherein a secondary separating device is arranged below the conveying belt, the conveying belt is detachably connected with the secondary separating device, and the conveying belt is inclined;
the secondary separation device comprises a connector, a separation water tank and a separation box, wherein the connector is fixedly connected with the top of the separation water tank, the connector is detachably connected with the conveyor belt, the separation box is located inside the separation water tank, the separation box is a grid box body, the two ends of the separation box are U-shaped handles, the U-shaped handles are connected with the two sides of the separation water tank in a clamping mode, and the separation box is higher than the bottom of the separation water tank.
Preferably, the bottom of separation water tank rotates and is connected with the removal wheel, it has a plurality ofly to remove the wheel, a plurality ofly remove the wheel and arrange along separation water tank's length direction equidistant, one side fixedly connected with outlet pipe of separation water tank.
Preferably, one side of the supporting shaft bracket is in transmission connection with a rotating motor.
Preferably, the connector includes connecting groove, socket and fixed pin, connecting groove is located the inside of connector, the socket link up the connector with support pivot frame, connecting groove's inboard with support pivot frame joint, the fixed pin passes through the socket and can dismantle with the connector and be connected.
Preferably, the conveyer belt is including supporting the pivot frame, scraping pole and scraper blade the both ends of conveyer belt are rotated with the support pivot frame and are connected, the bottom of conveyer belt highly is less than the height of both sides baffle, the conveyer belt is the spill, the bottom of conveyer belt is the filter screen, support one side of pivot frame and scrape pole fixed connection, the bottom and the scraper blade fixed connection of scraping the pole, the scraper blade is located the inside of conveyer belt, the scraper blade is towards the bottom of conveyer belt, the length of scraper blade is the same with the width of conveyer belt.
(III) advantageous effects
Compared with the prior art, the utility model provides a water and slag separator for concrete production possesses following beneficial effect:
1. this water-slag separating device for concrete production, through conveyer belt separation water tank, cooperation setting between separator box and the scraper blade, the problem of separation effect not good easy production jam has been solved, the practicality of device has been improved, the work efficiency of device has been improved, the conveyer belt through the slope form makes the water sediment separate through gravity, it blocks up the net to remain impurity behind the conveyer belt separation water sediment, scrape through the scraper blade, make impurity drop carry out secondary filter in the separator box, the separator box is the net case, avoid making impurity fall into the separator box, produce the jam when having avoided the separation.
2. This water and slag separator for concrete production sets up through the cooperation between separator box, separation water tank, removal wheel, connector and the conveyer belt, has solved the problem that is not convenient for remove the dismantlement, has improved the life-span of device, has improved the maintenance efficiency of device, through detachable separator box and conveyer belt, has further improved clean efficiency and device life-span, utilizes to remove the wheel and makes the device be convenient for remove, utilizes the connector to make conveyer belt and separation water tank convenient to detach install.
Drawings

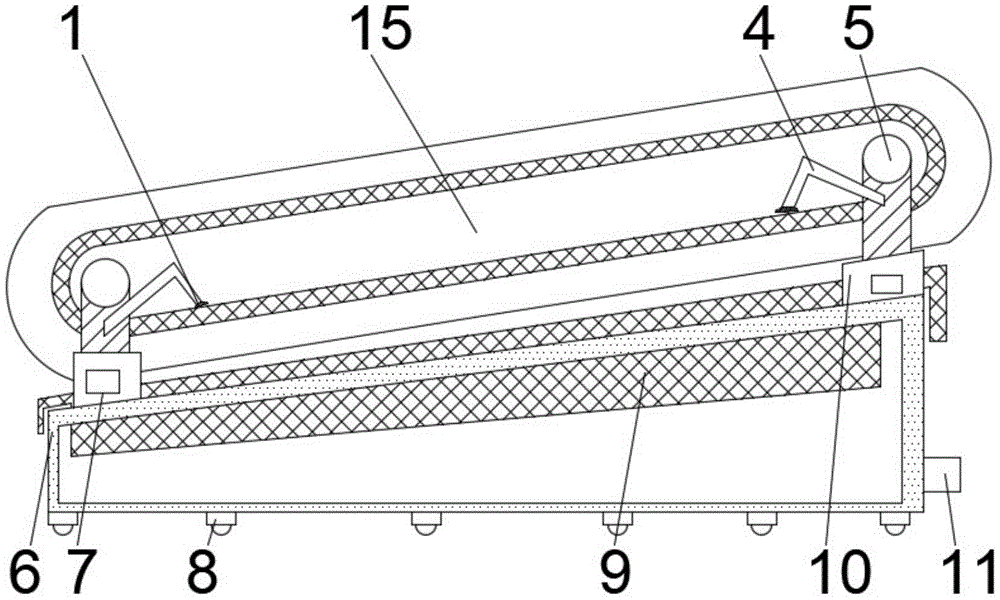

FIG. 1 is a schematic sectional view of the structure of the present invention;
FIG. 2 is a schematic side view of the structure of the present invention;
fig. 3 is a schematic side view of the connector structure of the present invention.
In the figure: 1. a squeegee; 4. a scraping rod; 5. supporting the rotating shaft frame; 6. separating the water tank; 7. a fixing pin; 8. a moving wheel; 9. a separation tank; 10. a connector; 11. a water outlet pipe; 12. rotating the motor; 13. a connecting groove; 14. a socket; 15. and (4) a conveyor belt.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a water-slag separating device for concrete production comprises a conveyor belt 15, a secondary separating device is arranged below the conveyor belt 15, the conveyor belt 15 is detachably connected with the secondary separating device, the conveyor belt 15 is inclined, the conveyor belt 15 comprises a supporting spindle frame 5, a scraping rod 4 and a scraper plate 1, two ends of the conveyor belt 15 are rotatably connected with the supporting spindle frame 5, the bottom end of the conveyor belt 15 is lower than the height of baffles on two sides, the conveyor belt 15 is concave, the bottom end of the conveyor belt 15 is a filter screen, one side of the supporting spindle frame 5 is fixedly connected with the scraping rod 4, one side of the supporting spindle frame 5 is in transmission connection with a rotating motor 12, the bottom end of the scraping rod 4 is fixedly connected with the scraper plate 1, the scraper plate 1 is positioned inside the conveyor belt 15, the scraper plate 1 faces the bottom end of the conveyor belt 15, and the length of the scraper plate 1 is the same as the width of the conveyor belt 15;
the secondary separation device comprises a connector 10, a separation water tank 6 and a separation tank 9, wherein both sides of the top end of the separation water tank 6 are fixedly connected with the connector 10, the connector 10 comprises a connecting groove 13, a socket 14 and a fixed pin 7, the connecting groove 13 is positioned inside the connector 10, the socket 14 penetrates through the connector 10 and a supporting shaft bracket 5, the inner side of the connecting groove 13 is clamped with the supporting shaft bracket 5, the fixed pin 7 is detachably connected with the connector 10 through the socket 14, the bottom end of the separation water tank 6 is rotatably connected with a plurality of movable wheels 8, the movable wheels 8 are arranged at equal intervals along the length direction of the separation water tank 6, one side of the separation water tank 6 is fixedly connected with a water outlet pipe 11, the connector 10 is detachably connected with a conveyor belt 15, the separation tank 9 is positioned inside the separation water tank 6, the separation tank 9 is a grid box body, both ends of the separation tank 9 are U-shaped handles, the U-shaped handles are clamped with both sides of the separation water tank 6, the height of the separation box 9 is higher than the bottom height of the separation water tank 6, firstly, the conveyor belt 15 is driven by the rotating motor 12, then the water slag is led onto the conveyor belt 15, the conveyor belt 15 drives the water slag to move, water flows into the separation water tank 6 through the filter screen, when the conveyor belt 15 rotates to the position below the scraper blade 1, the residual impurities on the upper side are scraped on the conveyor belt 15 through the fixed scraper blade 1 and fall into the separation box 9, secondary filtration is carried out to avoid incomplete water slag separation, the problem that the separation effect is poor and blockage is easy to generate is solved, the practicability of the device is improved, the working efficiency of the device is improved, the water slag is separated through the inclined conveyor belt 15 through gravity, after the water slag is separated by the conveyor belt 15, the impurities block grids are left, the impurities are scraped through the scraper blade 1 and fall into the separation box 9 for secondary filtration, the separation box 9 is a grid box, avoid making impurity fall into separation water tank 6 in, produce the jam when having avoided the separation, when needs are dismantled, extract the fixed pin 7 and can make support pivot frame 5 on the conveyer belt 15 extract, it takes off to drive conveyer belt 15 dismantlement, separator box 9 is hung on separation water tank 6's both sides through the U-shaped handle, only need lift up and can take out, clear up, avoid piling up debris for a long time, the problem of removal dismantlement is not convenient for to have solved, the life-span of device has been improved, the maintenance efficiency of device has been improved, through detachable separator box 9 and conveyer belt 15, further clean efficiency and device life-span have been improved, utilize and remove wheel 8 and make the device be convenient for remove, utilize connector 10 to make conveyer belt 15 and separation water tank 6 convenient to detach installation.
The working principle is as follows: at first conveyer belt 15 drives through rotating motor 12, then make the leading-in conveyer belt 15 of grain sediment on, conveyer belt 15 drives the grain sediment and removes, water flows into separation water tank 6 through the filter screen, when conveyer belt 15 rotates the below of scraper blade 1, scrape on conveyer belt 15 through fixed scraper blade 1, make the remaining impurity of higher authority strike off, fall into separator box 9, carry out secondary filter and avoid the water sediment separation not thorough, when needs are dismantled, extract fixed pin 7 and can make support pivot frame 5 on the conveyer belt 15 extract, it takes off to drive conveyer belt 15 and dismantle, separator box 9 hangs on the both sides of separation water tank 6 through the U-shaped handle, only need lift up and can take out, clear up, avoid piling up debris for a long time.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a water sediment separator for concrete production which characterized in that: the device comprises a conveyor belt (15), wherein a secondary separation device is arranged below the conveyor belt (15), the conveyor belt (15) is detachably connected with the secondary separation device, and the conveyor belt (15) is inclined;
secondary separator includes connector (10), separating tank (6) and separator box (9), the equal fixedly connected with connector (10) in top both sides of separating tank (6), connector (10) can be dismantled with conveyer belt (15) and be connected, separator box (9) are located the inside of separating tank (6), separator box (9) are the net box, the both ends of separator box (9) are the U-shaped handle, the both sides joint of U-shaped handle and separating tank (6), the bottom height that highly is higher than separating tank (6) of separator box (9).
2. The water-slag separating device for concrete production according to claim 1, wherein: the bottom of separation water tank (6) is rotated and is connected with removal wheel (8), it has a plurality ofly to remove wheel (8), a plurality ofly remove wheel (8) and arrange along the length direction of separation water tank (6) equidistant, one side fixedly connected with outlet pipe (11) of separation water tank (6).
3. The water-slag separating device for concrete production according to claim 1, wherein: one side of the supporting rotating shaft frame (5) is connected with a rotating motor (12) in a transmission way.
4. The water-slag separating device for concrete production according to claim 1, wherein: connector (10) are including connecting groove (13), socket (14) and fixed pin (7), connecting groove (13) are located the inside of connector (10), socket (14) link up connector (10) and support pivot frame (5), the inboard of connecting groove (13) with support pivot frame (5) joint, fixed pin (7) can be dismantled with connector (10) through socket (14) and be connected.
5. The water-slag separating device for concrete production according to claim 1, wherein: conveyer belt (15) including supporting pivot frame (5), scraping pole (4) and scraper blade (1) the both ends of conveyer belt (15) with support pivot frame (5) and rotate and be connected, the bottom height of conveyer belt (15) is less than the height of both sides baffle, conveyer belt (15) are the spill, the bottom of conveyer belt (15) is the filter screen, support one side of pivot frame (5) and scrape pole (4) fixed connection, the bottom of scraping pole (4) and scraper blade (1) fixed connection, scraper blade (1) is located the inside of conveyer belt (15), scraper blade (1) is towards the bottom of conveyer belt (15), the length of scraper blade (1) is the same with the width of conveyer belt (15).
