Abstract
The utility model discloses a coiling mechanism is used in weaving, comprising a base plate, the upper end surface of bottom plate is provided with the fixed block, the upper end surface of fixed block is provided with horizontal piece, the upper end surface of horizontal piece is provided with the spout, the upper end surface of spout is provided with the supporting shoe, the side surface of supporting shoe is provided with the rotary rod, the side surface of supporting shoe is provided with first motor, the upper end surface of rotary rod is provided with collects the roller, the lower extreme surface of supporting shoe is provided with the slider, the front end surface of supporting shoe is provided with the recess. A coiling mechanism is used in weaving, simple structure, the function is various, convenient operation has the collection roller of being convenient for to take off, improves collection efficiency, can adsorb the spot on the cloth, can level and smooth the cloth extrusion again, has to absorb the dust on the cloth, promotes the cloth and collects the quality, excellent in use effect.
Description
Technical Field
The utility model relates to a weaving rolling technical field, in particular to coiling mechanism is used in weaving.
Background
Modern textile refers to a multi-scale structure processing technology of fiber or fiber aggregate, ancient Chinese textile and printing and dyeing technology has a very long history, as early as in the original social period, ancient people know to use local materials in order to adapt to climate change, natural resources are used as raw materials for textile and printing and dyeing, and hand textile tools are simple to manufacture, until today, clothes, airbags and curtain carpets in daily life are all products of the textile and printing and dyeing technology, the existing winding device cannot clean up due to the fact that a lot of dust is attached to the cloth in the textile process, the wound cloth is too dirty, and secondly, the winding operation of most of existing equipment is not too good to disassemble, the collection time is wasted, and the cloth is not wound neatly, so that the winding device for textile is provided.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a main aim at provides a coiling mechanism is used in weaving can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a coiling mechanism is used in weaving, includes the bottom plate, the upper end surface of bottom plate is provided with the fixed block, the upper end surface of fixed block is provided with horizontal piece, the upper end surface of horizontal piece is provided with the spout, the upper end surface of spout is provided with the supporting shoe, the side surface of supporting shoe is provided with the rotary rod, the side surface of supporting shoe is provided with first motor, the upper end surface of rotary rod is provided with collects the roller, the lower extreme surface of supporting shoe is provided with the slider, the front end surface of supporting shoe is provided with the recess, the front end surface of recess is provided with the locating pin.
Preferably, be fixed connection between bottom plate and the fixed block, the quantity of fixed block is two, and is the symmetry and arranges, the spout inlays in the upper end surface of horizontal piece, be swing joint between supporting shoe and the rotary rod, be fixed connection between first motor and the supporting shoe, be fixed connection between collection roller and the rotary rod.
By adopting the technical scheme, the following technical effects can be achieved: the textile cloth is collected by a collecting roller.
Preferably, the sliding block is fixedly connected with the supporting block, the supporting block is slidably connected with the transverse block through the sliding groove, the groove is embedded in the outer surface of the front end of the supporting block, the positioning pin is movably connected with the supporting block, a positioning hole is formed in the outer surface of the upper end of the fixing block, and the positioning hole is embedded in the outer surface of the upper end of the fixing block.
By adopting the technical scheme, the following technical effects can be achieved: through spout and slider, can make the supporting shoe slide, the convenient to detach is received and is rolled, is convenient for collect.
Preferably, the outer surface of the upper end of the bottom plate is provided with a supporting plate, the supporting plate is fixedly connected with the bottom plate, the supporting plates are two in number, a connecting plate is arranged between the supporting plate and the fixing block, the connecting plate is fixedly connected with the supporting plate and the fixing block, and the connecting plate is two in number.
By adopting the technical scheme, the following technical effects can be achieved: through the connecting plate, strengthen the connectivity of backup pad and fixed block.
Preferably, the side surface of backup pad is provided with adsorbs the compression roller, adsorb for swing joint between compression roller and the backup pad, the quantity of adsorbing the compression roller is two, the side surface of backup pad is provided with the second motor, be fixed connection between second motor and the backup pad.
By adopting the technical scheme, the following technical effects can be achieved: through adsorbing the compression roller, can adsorb the spot on the cloth, can extrude the cloth again and level.
Preferably, the outer surface of the upper end of the bottom plate is provided with two fixing columns, the fixing columns are fixedly connected with the bottom plate, the two fixing columns are symmetrically arranged, the outer surface of the upper end of each fixing column is provided with a dust collector, and the dust collector is fixedly connected with the fixing columns.
By adopting the technical scheme, the following technical effects can be achieved: and absorbing the dust on the cloth by a dust collector.
Compared with the prior art, the utility model has the advantages that the supporting block can slide on the transverse block by arranging the sliding chute and the sliding block, the collecting roller can be conveniently taken down, the cloth can be conveniently taken down and collected, the supporting block can be fixed on the transverse block by matching the positioning pin in the groove with the positioning hole on the fixing block, the movement can not occur during rolling, the adsorption compression roller is driven by arranging the second motor, the stain on the cloth can be adsorbed, the material can be extruded and leveled, the rolling quality is improved, the dust on the cloth can be absorbed by arranging the dust collector, the fixing block and the supporting plate are connected by the connecting plate, the whole rolling device for textile has the function of enhancing the overall stability, the structure is simple, the functions are various, the operation is convenient, the collecting roller can be conveniently taken down, the collecting efficiency is improved, the stain on the cloth can be adsorbed, the cloth can be extruded to be flat, dust on the cloth can be absorbed, the cloth collecting quality is improved, and the using effect is good.
Drawings

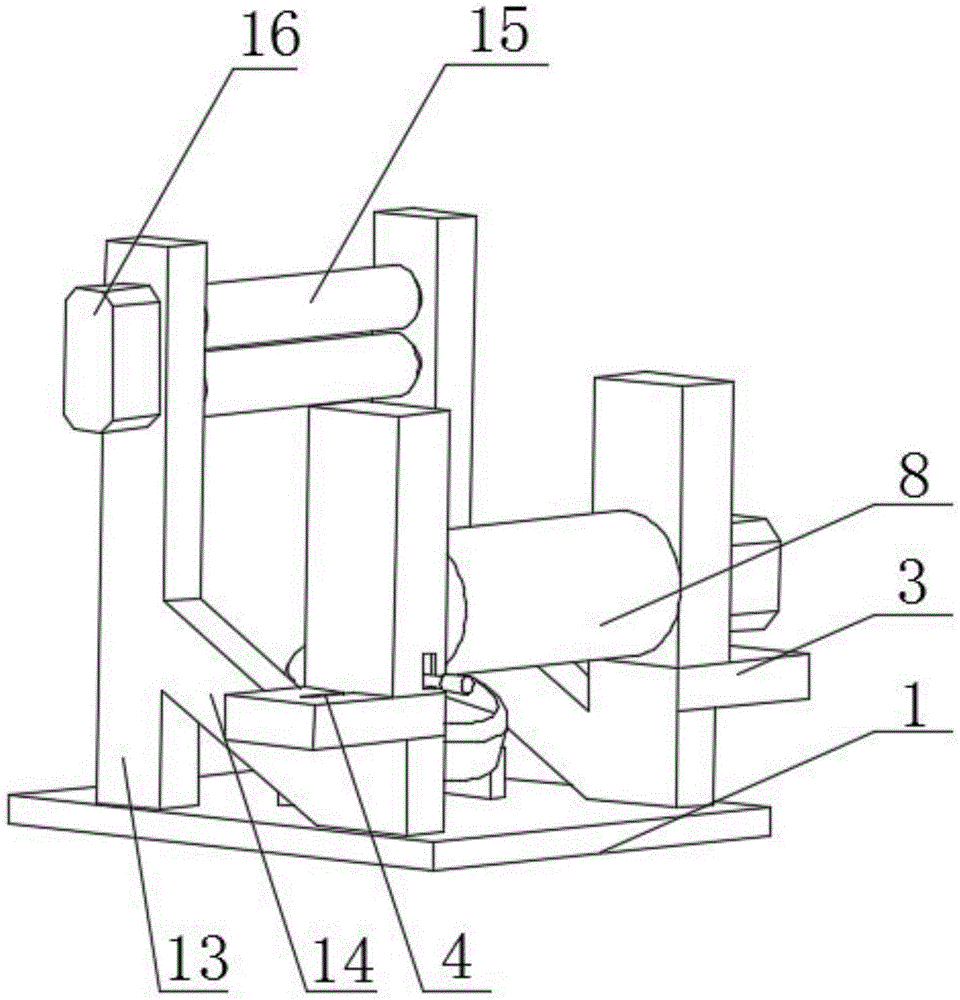

Fig. 1 is a schematic view of the overall structure of a winding device for spinning of the present invention;
FIG. 2 is a front view of the winding device for spinning of the present invention;
FIG. 3 is a top view of the winding device for spinning of the present invention;
fig. 4 is an enlarged view of a in fig. 2 of the winding device for spinning of the present invention.
In the figure: 1. a base plate; 2. a fixed block; 3. a transverse block; 4. a chute; 5. a support block; 6. rotating the rod; 7. a first motor; 8. a collection roller; 9. a slider; 10. a groove; 11. positioning pins; 12. positioning holes; 13. a support plate; 14. a connecting plate; 15. adsorbing the compression roller; 16. a second motor; 17. fixing a column; 18. a dust collector.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
As shown in fig. 1 to 4, a winding device for spinning includes a base plate 1, a fixed block 2 is disposed on an upper end outer surface of the base plate 1, a transverse block 3 is disposed on an upper end outer surface of the fixed block 2, a sliding groove 4 is disposed on an upper end outer surface of the transverse block 3, a supporting block 5 is disposed on an upper end outer surface of the sliding groove 4, a rotating rod 6 is disposed on a side end outer surface of the supporting block 5, a first motor 7 is disposed on a side end outer surface of the supporting block 5, a collecting roller 8 is disposed on an upper end outer surface of the rotating rod 6, a sliding block 9 is disposed on a lower end outer surface of the supporting block 5, a groove 10 is disposed on a front end outer surface of the supporting block 5, and a positioning pin 11 is disposed on a front end outer surface of the groove 10.
Be fixed connection between bottom plate 1 and the fixed block 2, the quantity of fixed block 2 is two, and is the symmetry and arranges, and spout 4 inlays in the upper end surface of horizontal piece 3, is swing joint between supporting shoe 5 and the rotary rod 6, is fixed connection between first motor 7 and the supporting shoe 5, is fixed connection between collection roller 8 and the rotary rod 6, drives collection roller 8 through first motor 7 and rotates and collect the cloth.
Be fixed connection between slider 9 and the supporting shoe 5, be sliding connection through spout 4 and slider 9 between supporting shoe 5 and the horizontal piece 3, recess 10 inlays in the front end surface of supporting shoe 5, be swing joint between locating pin 11 and the supporting shoe 5, the upper end surface of fixed block 2 is provided with locating hole 12, locating hole 12 inlays in the upper end surface of fixed block 2, make supporting shoe 5 can slide on horizontal piece 3 through spout 4 and slider 9, be convenient for take out and collect roller 8, improve collection efficiency.
The upper end surface of bottom plate 1 is provided with backup pad 13, is fixed connection between backup pad 13 and the bottom plate 1, and the quantity of backup pad 13 is two, is provided with connecting plate 14 between backup pad 13 and the fixed block 2, is fixed connection between connecting plate 14 and backup pad 13 and the fixed block 2, and the quantity of connecting plate 14 is two, through connecting plate 14, reinforcing connection stability.
The outer surface of the side end of the supporting plate 13 is provided with the adsorption press roller 15, the adsorption press roller 15 is movably connected with the supporting plate 13, the number of the adsorption press rollers 15 is two, the outer surface of the side end of the supporting plate 13 is provided with the second motor 16, the second motor 16 is fixedly connected with the supporting plate 13, dirt on cloth can be adsorbed by the adsorption press roller 15, the cloth can be extruded and leveled, and the collection quality of the cloth is improved.
The upper end surface of bottom plate 1 is provided with fixed column 17, is fixed connection between fixed column 17 and the bottom plate 1, and the quantity of fixed column 17 is two, and is the symmetry and arranges, and the upper end surface of fixed column 17 is provided with dust catcher 18, is fixed connection between dust catcher 18 and the fixed column 17, through dust catcher 18, has the effect to cloth surface cleaning.
It should be noted that, when the winding device for textile of the present invention is used, the second motor 16 on the supporting plate 13 drives the absorption compression roller 15 to extrude the collected cloth, which can absorb stains on the cloth, and can extrude the material to be flat, thereby improving the winding quality, the dust on the cloth is absorbed by the dust collector 18 at the lower end, the supporting block 5 can slide on the transverse block 3 through the sliding groove 4 at the upper end of the transverse block 3 and the sliding block 9 at the lower end of the supporting block 5, the collecting roller 8 can be conveniently taken down, the cloth can be conveniently taken down and collected, the supporting block 5 can be fixed on the transverse block 3 through the matching of the positioning pin 11 in the groove 10 and the positioning hole 12 on the fixing block 2, the movement can not occur during the winding, the fixing block 2 and the supporting plate 14 are connected through the connecting plate 14, thereby enhancing the overall stability, the whole winding device improves the quality of cloth winding, and plays a role in supporting the whole structure through the bottom plate 1.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a coiling mechanism is used in weaving, includes bottom plate (1), its characterized in that: the utility model discloses a motor, including bottom plate (1), bottom plate, spout (4), supporting shoe (5), the upper end surface of bottom plate (1) is provided with fixed block (2), the upper end surface of fixed block (2) is provided with horizontal piece (3), the upper end surface of horizontal piece (3) is provided with spout (4), the upper end surface of spout (4) is provided with supporting shoe (5), the side surface of supporting shoe (5) is provided with rotary rod (6), the side surface of supporting shoe (5) is provided with first motor (7), the upper end surface of rotary rod (6) is provided with collects roller (8), the lower extreme surface of supporting shoe (5) is provided with slider (9), the front end surface of supporting shoe (5) is provided with recess (10), the front end surface of recess (10) is provided with locating pin (11).
2. A winding device for textile according to claim 1, characterised in that: be fixed connection between bottom plate (1) and fixed block (2), the quantity of fixed block (2) is two, and is the symmetry and arranges, spout (4) inlay in the upper end surface of horizontal piece (3), be swing joint between supporting shoe (5) and rotary rod (6), be fixed connection between first motor (7) and supporting shoe (5), be fixed connection between collection roller (8) and rotary rod (6).
3. A winding device for textile according to claim 1, characterised in that: be fixed connection between slider (9) and supporting shoe (5), be sliding connection through spout (4) and slider (9) between supporting shoe (5) and horizontal piece (3), inlay in the front end surface of supporting shoe (5) recess (10), be swing joint between locating pin (11) and supporting shoe (5), the upper end surface of fixed block (2) is provided with locating hole (12), locating hole (12) inlay in the upper end surface of fixed block (2).
4. A winding device for textile according to claim 1, characterised in that: the utility model discloses a bottom plate, including bottom plate (1), bottom plate (13), be fixed connection between backup pad (13) and bottom plate (1), the quantity of backup pad (13) is two, be provided with connecting plate (14) between backup pad (13) and fixed block (2), be fixed connection between connecting plate (14) and backup pad (13) and fixed block (2), the quantity of connecting plate (14) is two.
5. A winding device for spinning according to claim 4, characterized in that: the utility model discloses a pressure roller, including backup pad (13), the side surface of backup pad (13) is provided with adsorbs compression roller (15), adsorb for swing joint between compression roller (15) and backup pad (13), the quantity of adsorbing compression roller (15) is two, the side surface of backup pad (13) is provided with second motor (16), be fixed connection between second motor (16) and backup pad (13).
6. A winding device for textile according to claim 1, characterised in that: the outer surface of the upper end of the bottom plate (1) is provided with fixing columns (17), the fixing columns (17) are fixedly connected with the bottom plate (1), the number of the fixing columns (17) is two, the fixing columns are symmetrically arranged, the outer surface of the upper end of each fixing column (17) is provided with a dust collector (18), and the dust collectors (18) are fixedly connected with the fixing columns (17).
