CN214567968U

CN214567968U - A categorised accomodating and compressor arrangement for recoverable dry rubbish

Info

Publication number: CN214567968U
Application number: CN202120385811.3U
Authority: CN
Inventors: 陈鸣辉
Original assignee: Chongqing University
Current assignee: Chongqing University
Priority date: 2021-02-20
Filing date: 2021-02-20
Publication date: 2021-11-02
Anticipated expiration: 2031-02-20

Abstract

The utility model relates to the technical field of garbage disposal devices, in particular to a classified storage and compression device for recoverable dry garbage, which comprises a mounting rack, wherein the bottom of the mounting rack is provided with a plurality of garbage cans for containing different types of garbage, the garbage cans are arranged around the central line of the mounting rack, a turnover mechanism is arranged above the garbage cans, a classification mechanism for receiving the garbage which is poured upwards by the turnover mechanism and pouring the garbage into a designated garbage can is arranged between the turnover mechanism and the inlet of the garbage can, and the classification mechanism can rotate around the central line of the mounting rack; the garbage storage rack is characterized in that a compression device used for compressing empty-drum garbage is further arranged above the turnover mechanism, and the turnover mechanism and the compression device are both arranged on the mounting rack. Can compress and classified storage to the recoverable dry rubbish of being put in automatically, solve rubbish can not automatic classification and garbage bin and filled up by empty drum rubbish easily technical problem.

Description

A categorised accomodating and compressor arrangement for recoverable dry rubbish

Technical Field

The utility model relates to a refuse treatment technical field particularly, is a categorised accomodating and compressor arrangement that is used for recoverable dry rubbish.

Background

Garbage classification (english name: Garbage classification) generally refers to a general name of a series of activities that store, release and transport Garbage classification according to a certain rule or standard, and thus convert the Garbage classification into public resources. The classification aims to improve the resource value and the economic value of the garbage, strive for making the best use of things, reduce the garbage treatment capacity and the use of treatment equipment, reduce the treatment cost, reduce the consumption of land resources, and have social, economic, ecological and other benefits.

Present current waste classification mainly judges rubbish and in throwing rubbish into corresponding garbage bin by oneself through the people, need independently look for the garbage bin of differentiateing from a plurality of garbage bins, and is comparatively troublesome, and if the garbage bin is dirty, still can bring the difficulty for discerning the garbage bin.

In some special occasions, especially the occasion that rubbish is empty drum rubbish such as water-jug, beverage bottle, packing carton and express delivery box mostly, if directly throw into the garbage bin will account for the space very much, make the garbage bin just filled up very easily, cause the garbage bin to need often clear up, it is very inconvenient to use.

Disclosure of Invention

In view of this, the utility model aims at providing a categorised accomodating and compressor arrangement for recoverable dry rubbish can compress and classified storage the recoverable dry rubbish of being put in automatically, has solved rubbish and can not automatic classification and garbage bin and is filled up by empty drum rubbish easily technical problem.

In order to achieve the above purpose, the utility model provides a following technical scheme:

the utility model provides a categorised storage and compressor arrangement for recoverable dry rubbish, including the mounting bracket, the mounting bracket bottom is equipped with a plurality of dustbin that are used for splendid attire different types of rubbish, the dustbin sets up around the mounting bracket central line, the dustbin top is equipped with tilting mechanism, be equipped with between tilting mechanism and the dustbin entry be used for receiving the rubbish that tilting mechanism toppled over and poured into appointed dustbin and organize, categorised mechanism can wind the rotation of mounting bracket central line; a compression device for compressing the empty garbage is arranged above the turnover mechanism, and the turnover mechanism and the compression device are both arranged on the mounting frame;

the sorting mechanism further comprises a control assembly for controlling the sorting mechanism to rotate.

Furthermore, tilting mechanism includes first motor and is used for placing the dish of placing of rubbish, it can follow to place the dish first motor output shaft rotates, first motor sets up on the mounting bracket.

Further, place a set both sides and be equipped with the first baffle that is used for preventing the rubbish side and drops.

Further, the sorting mechanism comprises a second motor, a material receiving disc and a mounting and connecting assembly, the material receiving disc can rotate along with an output shaft of the second motor, and the second motor is arranged on the mounting and connecting assembly;

the mounting bracket bottom is equipped with the third motor, transmission connection is equipped with the edge on the third motor output shaft the pivot of mounting bracket central line direction, installation coupling assembling with the pivot is connected and follows thereby the pivot rotates and drives the take-up pan is followed the pivot rotates.

Further, be equipped with the second baffle that is used for preventing the rubbish side from dropping on the take-up pan.

Further, the compression device comprises a pressing plate and a driving device for driving the pressing plate to linearly move up and down to compress the empty garbage, the driving device is arranged on the mounting frame, the pressing plate and the placing plate are oppositely arranged, and a supporting rod for supporting the placing plate when the placing plate is tightly arranged below the placing plate.

Further, the driving device is a telescopic cylinder, the telescopic cylinder comprises a telescopic rod, and the end part of the telescopic rod is fixedly connected with the pressing plate.

Further, the utility model discloses a categorised accomodating and compressor arrangement for recoverable dry rubbish still includes the casing, the mounting bracket sets up inside the casing, be equipped with the feed inlet on the casing, the feed inlet sets up tilting mechanism's corresponding position department.

Furthermore, a garbage outlet is formed in the side wall of the shell, and the geometric dimension of the garbage outlet is larger than that of the garbage can.

Furthermore, a cabinet door matched with the garbage outlet in size is arranged on the garbage outlet, and the cabinet door is in running fit with the side edge of one side of the garbage outlet.

The beneficial effects of the utility model reside in that:

the utility model discloses a categorised accomodating and compressor arrangement for recoverable dry rubbish, only need the rubbish classification that the people was lost for discernment should correspond, rethread control assembly is to sorting mechanism pivoted control, rubbish will be put in corresponding garbage bin automatically, and if the rubbish of losing be the water-jug, the beverage bottle, when empty drum rubbish such as packing carton or express delivery box, can also compress rubbish through compressor arrangement, the air discharge of the rubbish of will empty drum the inside, reduce the occupation space of garbage bin, the rubbish that makes the garbage bin can put is more, be difficult for being filled up.

Drawings

In order to make the purpose, technical scheme and beneficial effect of the utility model clearer, the utility model provides a following figure explains:

FIG. 1 is a general schematic view of an embodiment of the present invention of a sorting, storing and compacting apparatus for recyclable dry waste;

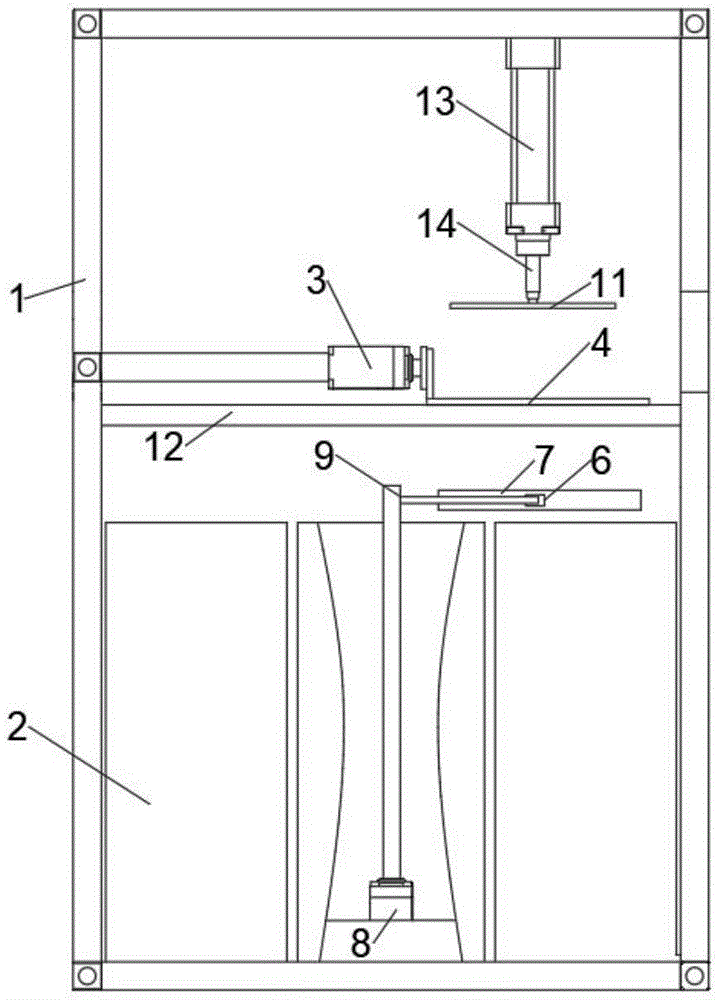

FIG. 2 is a simplified internal structure of an embodiment of the present invention of a sorting, storing and compressing device for recyclable dry waste;

FIG. 3 is a top view of the interior of an embodiment of the present invention of a sorting, storing and compacting apparatus for recyclable dry waste;

FIG. 4 is an internal plan view of an embodiment of the present invention of a sorting, storing and compacting apparatus for recyclable dry waste;

FIG. 5 is a schematic view of a turning mechanism of an embodiment of the present invention for a sorting, storing and compressing device for recycling dry garbage;

FIG. 6 is a schematic view of an embodiment of a sorting mechanism of the present invention for a sorting, storing and compacting apparatus for recyclable dry waste;

FIG. 7 is a schematic view of the transmission connection between the third motor and the take-up reel;

FIG. 8 is a schematic view of a receiving tray of the classification storing and compressing device for recycling dry garbage according to the present invention;

fig. 9 is a schematic view of a compression device.

Description of reference numerals:

1-a mounting frame; 2-a dustbin; 3-a first motor; 4-placing a tray; 5-a first baffle; 6-a second motor; 7-receiving tray; 8-a third motor; 9-a rotating shaft; 10-a second baffle; 11-a platen; 12-a support bar; 13-a telescopic cylinder; 14-a telescopic rod; 15-a housing; 16-a feed inlet; 17-a waste outlet; 18-a cabinet door; 19-voice control means; 20-handle.

Detailed Description

The present invention will be further described with reference to the accompanying drawings and specific embodiments so that those skilled in the art can better understand the present invention and can implement the present invention, but the embodiments are not to be construed as limiting the present invention.

As shown in fig. 2, the internal structure diagram of the embodiment of the present invention relates to a sorting, storing and compressing device for recyclable dry garbage, which comprises a mounting frame 1, wherein a plurality of garbage cans 2 for containing different types of garbage are arranged at the bottom of the mounting frame 1, the garbage cans 2 are arranged around the central line of the mounting frame 1, a turnover mechanism is arranged above the garbage cans 2, a sorting mechanism for receiving the garbage dumped from the turnover mechanism and dumping the garbage into a designated garbage can is arranged between the turnover mechanism and the inlet of the garbage can 2, and the sorting mechanism can rotate around the central line of the mounting frame 1; the turnover mechanism top still is equipped with the compressor arrangement who is used for compressing empty drum rubbish, and turnover mechanism and compressor arrangement all set up on mounting bracket 1. Specifically, in the embodiment, 4 garbage cans 2 are arranged around the central line of the mounting rack 1 and can be used for containing different types of garbage respectively;

the voice control device 19 comprises a voice recognition part and a control component, the control component can adopt a single chip microcomputer and the like, and the voice recognition part of the voice control device 19 is arranged on the shell 15. The voice control device 19 can control the sorting mechanism to throw the garbage into the corresponding garbage can 2 through voice recognition. Of course, other control methods may be used to control the sorting mechanism to sort the garbage, for example, a knob may be provided on the housing 15, and the sorting mechanism may be controlled to place the garbage in the corresponding garbage bin 2 by rotating the knob to point to different types of garbage.

Further, as shown in fig. 5, the turnover mechanism includes a first motor 3 and a placing plate 4 for placing garbage, the placing plate 4 can rotate along with an output shaft of the first motor 3, and the first motor 3 is arranged on the mounting frame 1. Be equipped with clamping device on the 3 output shafts of first motor of this embodiment, clamping device grasps the one side of placing

dish

4, and 3 output shafts of first motor rotate, can drive and place the slope of dish 4, make the rubbish that is located on it fall to take-up (stock) pan 7. In addition, the two sides of the placing plate 4 of the embodiment are provided with first baffles 5 for preventing the side edges of the garbage from falling.

Further, as shown in fig. 2, 6 and 7, the sorting mechanism includes a second motor 6, a take-up pan 7 and a mounting and connecting assembly, the take-up pan 7 can rotate along with an output shaft of the second motor 6, and the second motor 6 is arranged on the mounting and connecting assembly. The bottom of the mounting rack 1 is provided with a third motor 8, an output shaft of the third motor 8 is provided with a rotating shaft 9 along the direction of the central line of the mounting rack 1, and the mounting and connecting assembly is connected with the rotating shaft 9 and rotates along with the rotating shaft 9 so as to drive the material receiving disc 7 to rotate along with the rotating shaft 9. Specifically, coupling assembling includes link and transmission shaft, and the one end of transmission shaft is connected with the transmission of second motor 6, the other end and link normal running fit are equipped with two rectangle fixture blocks on the transmission shaft, be equipped with on take-up (stock) pan 7 two with fixture block matched with rectangle draw-in groove, establish the fixture block card in the draw-in groove, thereby second motor 6 rotates and can drive take-up (stock) pan 7 and rotate and to empty the rubbish on it into dustbin 2 that is located its below. In addition, the receiving tray 7 of the present embodiment is provided with a second baffle 10 for preventing the garbage from falling off from the side edge.

Further, compressor arrangement includes that linear movement carries out the drive arrangement that compresses to empty drum rubbish about clamp plate 11 and the drive clamp plate 11, and drive arrangement sets up on mounting bracket 1, and clamp plate 11 sets up with placing set 4 relatively, places set 4 below and is equipped with the bracing piece 12 that supports placing set 4 when being used for compressing tightly. Specifically, as shown in fig. 9, the driving device of the present embodiment is a telescopic cylinder 13, the telescopic cylinder 13 includes a telescopic rod 14, and an end of the telescopic rod 14 is fixedly connected to the pressing plate 11. The telescopic rod 14 on the telescopic cylinder 13 drives the pressing plate 11 to move downwards, empty drum garbage on the placing plate 4 can be flattened like a water bottle or a paper box, the subsequent treatment is convenient, the supporting rod 12 is further arranged below the placing plate 4, and the placing plate 4 is prevented from deforming under the pressure within a certain range.

Further, as shown in fig. 1, the utility model discloses a categorised accomodating and compressor arrangement for recoverable dry rubbish still includes that the casing still includes casing 15, and mounting bracket 1 sets up inside casing 15, is equipped with feed inlet 16 on casing 15, and feed inlet 16 sets up the corresponding position department at tilting mechanism.

Further, as shown in fig. 1, a garbage outlet 17 is provided on the side wall of the housing 15, the geometric size of the garbage outlet 17 is larger than that of the garbage can 2, a cabinet door 18 matched with the garbage outlet 17 in size is provided on the garbage outlet 17, and the cabinet door 18 is rotatably matched with one side edge of the garbage outlet 17. Specifically, in this embodiment, the dustbin 2 is placed at the bottom of the mounting frame 1, and the garbage disposal personnel can take out the dustbin 2 by opening the cabinet door 18 in the garbage disposal process. In the specific implementation process, the garbage outlet 17 and the cabinet door can be arranged on the peripheral side wall of the shell, so that the garbage can 2 can be taken out conveniently for treatment.

The above-mentioned embodiments are merely preferred embodiments for fully illustrating the present invention, and the scope of the present invention is not limited thereto. Equivalent substitutes or changes made by the technical personnel in the technical field on the basis of the utility model are all within the protection scope of the utility model. The protection scope of the present invention is subject to the claims.

Claims

1. The utility model provides a categorised storage and compressor arrangement for recoverable dry rubbish which characterized in that: the garbage can comprises a mounting rack (1), wherein a plurality of garbage cans (2) used for containing different types of garbage are arranged at the bottom of the mounting rack (1), the garbage cans (2) are arranged around the central line of the mounting rack (1), a turnover mechanism is arranged above the garbage cans (2), a sorting mechanism used for receiving the garbage which is inclined upwards and downwards by the turnover mechanism and pouring the garbage into a designated garbage can is arranged between the turnover mechanism and an inlet of the garbage cans (2), and the sorting mechanism can rotate around the central line of the mounting rack (1); a compression device for compressing the empty garbage is arranged above the turnover mechanism, and the turnover mechanism and the compression device are both arranged on the mounting rack (1);

2. The classified storage and compaction device for recyclable dry waste according to claim 1, characterized in that: the turnover mechanism comprises a first motor (3) and a placing disc (4) used for placing garbage, the placing disc (4) can rotate along with an output shaft of the first motor (3), and the first motor (3) is arranged on the mounting rack (1).

3. The device according to claim 2, characterized in that it comprises: and first baffle plates (5) for preventing the side edges of the garbage from falling are arranged on two sides of the placing plate (4).

4. The classified storage and compaction device for recyclable dry waste according to claim 1, characterized in that: the sorting mechanism comprises a second motor (6), a material receiving disc (7) and a mounting and connecting assembly, the material receiving disc (7) can rotate along with an output shaft of the second motor (6), and the second motor (6) is arranged on the mounting and connecting assembly;

mounting bracket (1) bottom is equipped with third motor (8), transmission connection is equipped with the edge on third motor (8) output shaft pivot (9) of mounting bracket (1) central line direction, installation coupling assembling with pivot (9) are connected and are followed pivot (9) rotate thereby drive take-up (7) are followed pivot (9) rotate.

5. The classified storage and compaction device for recyclable dry waste according to claim 4, characterized in that: and a second baffle (10) for preventing the side edge of the garbage from falling is arranged on the material receiving disc (7).

6. The device according to claim 2, characterized in that it comprises: compression device includes clamp plate (11) and drive linear movement carries out the drive arrangement that compresses to empty drum rubbish about clamp plate (11), drive arrangement sets up on mounting bracket (1), clamp plate (11) with place set (4) and set up relatively, it is equipped with when being used for compressing tightly to place set (4) below is equipped with and supports bracing piece (12) of placing set (4).

7. The classified storage and compaction device for recyclable dry waste according to claim 6, characterized in that: the driving device is a telescopic cylinder (13), the telescopic cylinder (13) comprises a telescopic rod (14), and the end part of the telescopic rod (14) is fixedly connected with the pressing plate (11).

8. The classified storage and compaction device for recyclable dry waste according to claim 1, characterized in that: still include casing (15), mounting bracket (1) sets up inside casing (15), be equipped with feed inlet (16) on casing (15), feed inlet (16) set up tilting mechanism's corresponding position department.

9. The classified storage and compaction device for recyclable dry waste as claimed in claim 8, wherein: be equipped with rubbish outlet (17) on the casing (15) lateral wall, the geometry of rubbish outlet (17) is greater than the geometry of dustbin (2).

10. The classified storage and compaction device for recyclable dry waste as claimed in claim 9, wherein: and a cabinet door (18) matched with the size of the garbage outlet (17) is arranged on the garbage outlet (17), and the cabinet door (18) is in running fit with the side edge of one side of the garbage outlet (17).
