CN214561532U

CN214561532U - Die cutting device for carton production and processing

Info

Publication number: CN214561532U
Application number: CN202120905902.5U
Authority: CN
Inventors: 刘志强
Original assignee: Xuchang Huacai Printing And Packaging Co ltd
Current assignee: Xuchang Huacai Printing And Packaging Co ltd
Priority date: 2021-04-29
Filing date: 2021-04-29
Publication date: 2021-11-02
Anticipated expiration: 2031-04-29

Abstract

The utility model discloses a cutting device is used in carton production and processing, including the casing, the feed inlet has been seted up to one side of casing, and the fixed containing box that is equipped with in inside of casing, the fixed cross cutting subassembly that is equipped with in inside of casing, cross cutting subassembly include two first electric telescopic handle, mount, three cutter, cutting board, two feed rollers and a driving motor, and two first electric telescopic handle are fixed respectively and are set up the top inside the casing, the beneficial effects of the utility model are that: through the feed inlet feeding to cooperate through two feed rolls and carry out the extrusion to the cardboard that gets into and carry, drive mount and cutter through first electric telescopic handle and reciprocate and carry out the cross cutting, cooperate through cutter and cutting board and carry out the cross cutting to the cardboard, place the board through two and fix respectively and set up first driving motor and second driving motor, drive the feed roll through first driving motor and rotate the conveying board, carry out the cross cutting to the cardboard through the cross cutting subassembly.

Description

Die cutting device for carton production and processing

Technical Field

The utility model relates to a cutting device, in particular to cutting device is used in carton production and processing belongs to carton production technical field.

Background

The paper box is the most widely used packing product, and has corrugated paper box, single-layer paper box and the like according to different materials, and has various specifications and models, the common paper box has three layers and five layers, seven layers are used less, each layer is divided into inner paper, corrugated paper, core paper and face paper, the inner paper and the face paper have tea board paper and kraft paper, the core paper uses corrugated paper, the color and the hand feeling of various papers are different, and the papers (color and hand feeling) produced by different manufacturers are different.

The current cutting device for producing partial cartons is relatively poor in cutting efficiency and is mostly manual feeding quick die cutting of not being convenient for, and the excessive cardboard that falls to the cutting is not convenient for clear up and blocks up easily and influence the cutting effect to and the condition such as buckle appears easily when ejection of compact operation.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a cutting device is used in carton production and processing to it is lower to solve the current cutting device cutting efficiency for the production of partial carton that proposes in the above-mentioned background art, stops up the problem that influences the cutting and buckle easily when the ejection of compact easily to the inconvenient clearance of cardboard that cuts off moreover.

In order to achieve the above object, the utility model provides a following technical scheme: a die cutting device for producing and processing cartons comprises a casing, wherein a feed inlet is formed in one side of the casing, a containing box is fixedly arranged in the casing, a die cutting assembly is fixedly arranged in the casing and comprises two first electric telescopic rods, a fixing frame, three cutters, a cutting plate, two feed rollers and a first driving motor, the two first electric telescopic rods are fixedly arranged at the top end of the interior of the casing respectively, the telescopic ends of the two first electric telescopic rods are fixedly connected with the two sides of the top end of the fixing frame respectively, the bottom end of the fixing frame is fixedly connected with the cutters respectively through the three fixing blocks, the three cutters are made of stainless steel materials, the cutting plate is fixedly arranged at the top end of the containing box, the top end of the cutting plate is provided with cutting grooves corresponding to the three cutters respectively, and the top end of the cutting plate is fixedly provided with a rubber pad, the two feeding rollers are respectively and rotatably connected with the two sides in the shell through bearings, the positions of the two feeding rollers correspond to the position of the feeding hole, one end of one of the feeding rollers is fixedly provided with a first belt pulley, one side inside the machine shell is fixedly provided with two placing plates, the first driving motor is fixedly arranged at the top end of one of the placing plates, a transmission shaft of the first driving motor is fixedly provided with a second belt pulley, the second belt pulley is in transmission connection with the first belt pulley through a belt, a switch panel is fixedly arranged on one side of the machine shell, the surface of switch panel is fixed and is equipped with first electric telescopic handle switch and a driving motor switch, two first electric telescopic handle with first driving motor is respectively through a first electric telescopic handle switch and a driving motor switch and power electric connection.

As a preferred technical scheme of the utility model, one side of casing is equipped with the chamber door that corresponds with the containing box, one side of chamber door is articulated through one side of hinge and casing, the opposite side of chamber door passes through the buckle and is connected with one side block of casing, the fixed surface of chamber door is equipped with the handle, the receiver has been placed to the inside of containing box.

As a preferred technical scheme of the utility model, the fixed second electric telescopic handle that is equipped with in inside one side of casing, the flexible end of second electric telescopic handle is fixed and is equipped with first extrusion wheel, the fixed dead lever corresponding with three cutter that is equipped with in inside top of casing, it is three the bottom of dead lever is all fixed and is equipped with the second extrusion wheel, flush mounting plate's fixed surface is equipped with second electric telescopic handle switch, second electric telescopic handle passes through second electric telescopic handle switch and power electric connection.

As an optimal technical scheme of the utility model, the discharge gate has been seted up to the opposite side of casing, one side of the inside of casing is rotated through the bearing and is connected with two discharge rollers corresponding with the discharge gate, two the other end of discharge roller rotates through bearing and the inside opposite side of casing respectively and is connected, one of them the fixed third belt pulley that is equipped with of one end of discharge roller, wherein another place the fixed second driving motor that is equipped with in top of board, the fixed fourth belt pulley that is equipped with of second driving motor's transmission shaft, the fourth belt pulley pass through the belt with third belt pulley transmission is connected, flush mounting plate's fixed surface is equipped with the second driving motor switch, the second driving motor passes through second driving motor switch and power electric connection.

As a preferred technical scheme of the utility model, one side of discharge gate is fixed and is equipped with first play flitch, one side of first play flitch is fixed and is equipped with the second and goes out the flitch, the second goes out the flitch and is the slope form.

As an optimal technical scheme of the utility model, two the surface of feed roll and two the surface of discharge roll all is fixed and is equipped with the silastic-layer.

As an optimized technical scheme of the utility model, the four corners of casing bottom all is fixed and is equipped with the truckle.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model relates to a die cutting device for carton production and processing, feed through the feed inlet, and cooperate through two feed rolls and carry out the extrusion transport to the cardboard that gets into, drive mount and cutter through first electric telescopic handle and reciprocate and carry out the cross cutting, cooperate through cutter and cutting board and carry out the cross cutting to the cardboard, fixedly set up first driving motor and second driving motor respectively through two boards of placing, drive the feed roll through first driving motor and rotate the conveying feed board, carry out the cross cutting to the cardboard through the cross cutting subassembly, it improves the efficiency of carton cross cutting to continue to feed through the feed roll and drive cutter fast cross cutting through first electric telescopic handle, accelerate the production of carton; in the grooving through cutting board top and cutter matched with cross cutting in with the waste material dropping containing box, open the chamber door through the handle, be convenient for with receiver and waste discharge through opening the chamber door, avoid piling up and cause efficiency and the quality that influences the cross cutting such as jam in the casing is inside.

Drawings

Fig. 1 is a schematic structural view of the present invention;

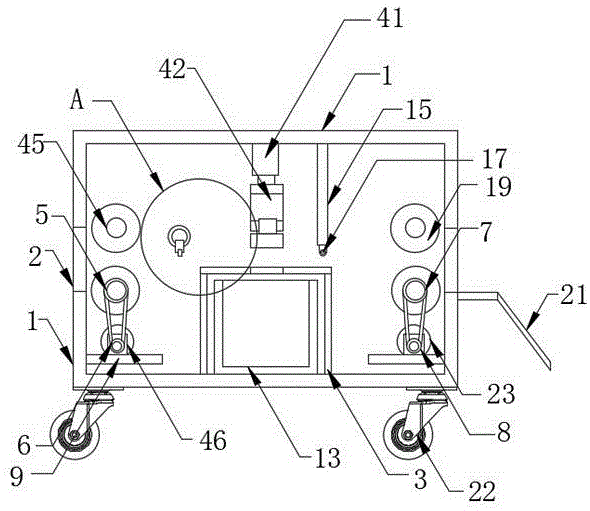

fig. 2 is a schematic sectional structure of the present invention;

fig. 3 is a side sectional view of the present invention;

fig. 4 is an enlarged schematic view of a portion a of fig. 2 according to the present invention.

In the figure: 1. a housing; 2. a feed inlet; 3. a storage box; 4. a die cutting assembly; 41. a first electric telescopic rod; 42. a fixed mount; 43. a cutter; 44. cutting the board; 45. a feed roll; 46. a first drive motor; 5. a first pulley; 6. a second pulley; 7. a third belt pulley; 8. a fourth belt pulley; 9. placing the plate; 10. a switch panel; 11. a box door; 12. a handle; 13. a storage box; 14. a second electric telescopic rod; 15. fixing the rod; 16. a first extrusion wheel; 17. a second extrusion wheel; 18. a discharge port; 19. a discharging roller; 20. a first discharging plate; 21. a second discharge plate; 22. a caster wheel; 23. a second drive motor.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the utility model provides a die cutting device for carton production and processing, which comprises a casing 1, a feed inlet 2 is arranged on one side of the casing 1, feeding is performed through the feed inlet 2, a containing box 3 is fixedly arranged inside the casing 1, a die cutting component 4 is fixedly arranged inside the casing 1, the die cutting component 4 comprises two first electric telescopic rods 41, a fixing frame 42, three cutters 43, a cutting board 44, two feed rollers 45 and a first driving motor 46, the two first electric telescopic rods 41 are respectively and fixedly arranged at the top end inside the casing 1, the fixing frame 42 and the cutters 43 are driven to move up and down through the first electric telescopic rods 41 for die cutting, the telescopic ends of the two first electric telescopic rods 41 are respectively and fixedly connected with the two sides of the top end of the fixing frame 42, the bottom end of the fixing frame 42 is respectively and fixedly connected with the cutters 43 through three fixing blocks, die cutting is performed on a paperboard through the cooperation of the cutters 43 and the cutting board 44, the three cutters 43 are made of stainless steel materials, the cutting plate 44 is fixedly arranged at the top end of the containing box 3, the top end of the cutting plate 44 is respectively provided with a cutting groove corresponding to the three cutters 43, the top end of the cutting plate 44 is fixedly provided with a rubber pad, the two feeding rollers 45 are respectively and rotatably connected with two sides in the shell 1 through bearings, the positions of the two feeding rollers 45 correspond to the positions of the feeding ports 2, the two feeding rollers 45 are matched with each other to extrude and convey the entering paperboard, one end of one feeding roller 45 is fixedly provided with a first belt pulley 5, one side in the shell 1 is fixedly provided with two placing plates 9, the two placing plates 9 are respectively and fixedly provided with a first driving motor 46 and a second driving motor 23, the feeding rollers 45 are driven by the first driving motor 46 to rotate the feeding plates, the first driving motor 46 is fixedly arranged at the top end of one placing plate 9, the fixed second belt pulley 6 that is equipped with of transmission shaft of first driving motor 46, second belt pulley 6 passes through the belt and is connected with the transmission of first belt pulley 5, the fixed flush mounting plate 10 that is equipped with of one side of casing 1, flush mounting plate 10's fixed surface is equipped with first electric telescopic handle switch and first driving motor switch, two first electric telescopic handle 41 and first driving motor 46 are respectively through first electric telescopic handle switch and first driving motor switch and power electric connection, carry out the cross cutting to the cardboard through cutting module 4, it improves the efficiency of carton cross cutting to last to drive cutter 43 fast cross cutting through feeding roller 45 feeding and through first electric telescopic handle 41, accelerate the production of carton.

Preferably, a box door 11 corresponding to the containing box 3 is arranged on one side of the machine shell 1, one side of the box door 11 is hinged with one side of the machine shell 1 through a hinge, the other side of the box door 11 is connected with one side of the machine shell 1 in a clamping mode through a buckle, the containing box 13 and waste materials are conveniently discharged by opening the box door 11, the die cutting efficiency and quality which are affected by blockage and the like caused by accumulation in the machine shell 1 are avoided, a handle 12 is fixedly arranged on the surface of the box door 11, the box door 11 is opened through the handle 12, the containing box 13 is placed in the containing box 3, and the waste materials are dropped into the containing box 13 while die cutting is carried out by matching a cutting groove at the top end of the cutting plate 44 with the cutter 43; a second electric telescopic rod 14 is fixedly arranged on one side inside the machine shell 1, a first extrusion wheel 16 is fixedly arranged at the telescopic end of the second electric telescopic rod 14, the second electric telescopic rod 14 drives the first extrusion wheel 16 to extrude the paper board in a sliding manner, a fixing rod 15 corresponding to the three cutters 43 is fixedly arranged at the top end inside the machine shell 1, a second extrusion wheel 17 is fixed through the fixing rod 15, second extrusion wheels 17 are fixedly arranged at the bottom ends of the three fixing rods 15, six edges of the paper board are respectively extruded through the second extrusion wheel 17 and the first extrusion wheel 16 to be convenient to bend, a second electric telescopic rod switch is fixedly arranged on the surface of the switch panel 10, and the second electric telescopic rod 14 is electrically connected with a power supply through the second electric telescopic rod switch; a discharge port 18 is formed in the other side of the machine shell 1, discharging is performed through the discharge port 18, one side inside the machine shell 1 is rotatably connected with two discharge rollers 19 corresponding to the discharge port 18 through bearings, the other ends of the two discharge rollers 19 are rotatably connected with the other side inside the machine shell 1 through bearings respectively, the discharge rollers 19 are driven by a second driving motor 23 to rotate for discharging, one end of one discharge roller 19 is fixedly provided with a third belt pulley 7, the top end of the other placing plate 9 is fixedly provided with a second driving motor 23, a transmission shaft of the second driving motor 23 is fixedly provided with a fourth belt pulley 8, the fourth belt pulley 8 is in transmission connection with the third belt pulley 7 through a belt, a second driving motor switch is fixedly arranged on the surface of the switch panel 10, and the second driving motor 23 is electrically connected with a power supply through the second driving motor switch; a first discharging plate 20 is fixedly arranged on one side of the discharging port 18, a second discharging plate 21 is fixedly arranged on one side of the first discharging plate 20, the second discharging plate 21 is inclined, the first discharging plate 20 is used for blocking the paperboard during discharging, bending is avoided, and the second discharging plate 21 is used for facilitating sliding discharging of the paperboard; silicone rubber layers are fixedly arranged on the surfaces of the two feeding rollers 45 and the two discharging rollers 19, and the friction force of the two feeding rollers 45 and the two discharging rollers 19 is enhanced through the silicone rubber layers, so that the paper conveying plate is convenient to convey; four corners of the bottom end of the casing 1 are all fixedly provided with casters 22, and the casing 1 is convenient to move through the casters 22.

When the die cutting device is used, the utility model relates to a carton production and processing die cutting device, firstly, the casing 1 can be moved to a proper position through the caster 22 to die cut the carton, the material paperboard of the carton is put into die cutting through the feed inlet 2, the first driving motor 46 and the second driving motor 23 are opened through the first driving motor switch and the second driving motor switch, the first belt pulley 5 is driven through the first driving motor 46 and the feeding roller 45 is driven to rotate to convey the paperboard into the casing 1, when the paperboard is conveyed to the front of the cutting board 44, the first extrusion wheel 16 is driven through the second electric telescopic rod 14 to extrude the groove mark in the lateral direction of the paperboard, and when the front end is conveyed to the cutting board 44, the cutter 43 is driven through the first electric telescopic rod 41 to cut the paperboard, die cutting is carried out on the paperboard through the matching of the cutter 43 and the groove, and the waste material is dropped onto the storage box 13, can regularly open chamber door 11 and clear up, avoid piling up at the inside cross cutting that influences of casing 1, laminate through discharge roller 19 after cardboard front end cross cutting and rethread second squeeze wheel 17 extrudees the horizontal groove seal of cardboard and extrude horizontal groove seal to the cardboard rear end again, rethread first electric telescopic handle 41 drives the rear end that cutter 43 cut the cardboard, accomplish the cross cutting of cardboard, buckle when the ejection of compact is avoided to rethread first play flitch 20, carry the operation car equipotential with the cardboard slope through second play flitch 21 when the complete ejection of compact.

In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the indicated device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.

In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly connected, detachably connected, or integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The die cutting device for carton production and processing comprises a machine shell (1) and is characterized in that a feeding hole (2) is formed in one side of the machine shell (1), a containing box (3) is fixedly arranged in the machine shell (1), a die cutting assembly (4) is fixedly arranged in the machine shell (1), the die cutting assembly (4) comprises two first electric telescopic rods (41), a fixing frame (42), three cutters (43), a cutting plate (44), two feeding rollers (45) and a first driving motor (46), the two first electric telescopic rods (41) are fixedly arranged at the top end in the machine shell (1) respectively, the telescopic ends of the two first electric telescopic rods (41) are fixedly connected with the two sides of the top end of the fixing frame (42) respectively, the bottom end of the fixing frame (42) is fixedly connected with the cutters (43) through the three fixing blocks respectively, the three cutters (43) are made of stainless steel materials, the cutting plate (44) is fixedly arranged at the top end of the containing box (3), cutting grooves corresponding to the three cutters (43) are respectively formed in the top end of the cutting plate (44), a rubber pad is fixedly arranged at the top end of the cutting plate (44), the two feeding rollers (45) are respectively and rotatably connected with two sides of the interior of the machine shell (1) through bearings, the positions of the two feeding rollers (45) correspond to the positions of the feeding holes (2), a first belt pulley (5) is fixedly arranged at one end of one of the feeding rollers (45), two placing plates (9) are fixedly arranged on one side of the interior of the machine shell (1), a first driving motor (46) is fixedly arranged at the top end of one of the placing plates (9), and a second belt pulley (6) is fixedly arranged on a transmission shaft of the first driving motor (46), second belt pulley (6) pass through the belt with first belt pulley (5) transmission is connected, fixed flush mounting plate (10) that is equipped with of one side of casing (1), the fixed surface of flush mounting plate (10) is equipped with first electric telescopic handle switch and first driving motor switch, two first electric telescopic handle (41) with first driving motor (46) are respectively through first electric telescopic handle switch and first driving motor switch and power electric connection.

2. The die cutting device for carton production according to claim 1, wherein: one side of the machine shell (1) is provided with a box door (11) corresponding to the containing box (3), one side of the box door (11) is hinged to one side of the machine shell (1) through a hinge, the other side of the box door (11) is connected with one side of the machine shell (1) in a clamping mode through a buckle, a handle (12) is fixedly arranged on the surface of the box door (11), and the containing box (13) is placed in the containing box (3).

3. The die cutting device for carton production according to claim 1, wherein: the utility model discloses a switch panel, including casing (1), fixed second electric telescopic handle (14) that is equipped with in one side of casing (1) inside, the flexible end of second electric telescopic handle (14) is fixed and is equipped with first extrusion wheel (16), the fixed dead lever (15) corresponding with three cutter (43) that are equipped with in the top of casing (1) inside, it is three the bottom of dead lever (15) is all fixed and is equipped with second extrusion wheel (17), the fixed surface of flush mounting plate of switch (10) is equipped with the second electric telescopic handle switch, second electric telescopic handle (14) are through second electric telescopic handle switch and power electric connection.

4. The die cutting device for carton production according to claim 1, wherein: a discharge hole (18) is formed in the other side of the casing (1), two discharge rollers (19) corresponding to the discharge hole (18) are rotatably connected to one side of the interior of the casing (1) through bearings, the other ends of the two discharge rollers (19) are respectively rotatably connected to the other side of the interior of the casing (1) through bearings, one end of one of the discharging rollers (19) is fixedly provided with a third belt pulley (7), wherein the top end of the other placing plate (9) is fixedly provided with a second driving motor (23), a fourth belt pulley (8) is fixedly arranged on a transmission shaft of the second driving motor (23), the fourth belt pulley (8) is in transmission connection with the third belt pulley (7) through a belt, the surface of the switch panel (10) is fixedly provided with a second driving motor switch, and the second driving motor (23) is electrically connected with the power supply through the second driving motor switch.

5. The die cutting device for carton production according to claim 4, wherein: one side of discharge gate (18) is fixed and is equipped with first play flitch (20), one side of first play flitch (20) is fixed and is equipped with second play flitch (21), second play flitch (21) are the slope form.

6. The die cutting device for carton production according to claim 4, wherein: and silicone rubber layers are fixedly arranged on the surfaces of the two feeding rollers (45) and the surfaces of the two discharging rollers (19).

7. The die cutting device for carton production according to claim 1, wherein: four corners of the bottom end of the machine shell (1) are fixedly provided with trundles (22).
