The utility model discloses a mechanical parts guipure ultrasonic spray cleaning machine, including the fixed bolster, fixed first crossbearer, second crossbearer that are equipped with respectively between the inboard surface of fixed bolster, the fixed bolster bottom surface is fixed and is equipped with the wastewater disposal basin, fixed bolster one side surface is fixed and is equipped with the motor, the fixed first pivot that is equipped with of motor output end, connect two sets of synchronizing tooth and with guipure fixed connection through the motor, can realize the stable conveying of guipure to spray different parts under controllable circumstances; the second hobbing is respectively meshed and connected with the second toothed plate and the first hobbing so as to realize that the first rolling brush and the second rolling brush slide along the first sliding groove together while rotating, thereby cleaning the upper surface and the lower surface of the inner wall of the mesh belt; the spraying mechanism is provided with a plurality of nozzles and can rotate on the surface of one side of the third cross frame, so that multi-angle spraying work can be realized, and the comprehensive cleaning effect is achieved.

Description

Ultrasonic spraying cleaning machine for mesh belt of mechanical part
Technical Field
The utility model relates to a guipure supersound sprays cleaning machine technical field specifically is a machine parts guipure supersound sprays cleaning machine.
Background
Nowadays, with the development of mechanization, some middle-high-end large-scale equipment is composed of tens of thousands of parts, the parts are accompanied with some chips in the processing process, or the lubrication treatment is often needed in the use process of the equipment, the condition of putty sticking is existed for a long time, once the equipment breaks down and needs to be disassembled and repaired, the dirt on the parts becomes a difficult problem, the problem can be effectively solved through a mesh belt ultrasonic spray cleaning machine, but the dirt is also stuck in the mesh belt cleaning process, so that the rolling brush is needed to be quickly and comprehensively cleaned, and in addition, the rotatable angle of a spray system carries out multi-directional spray cleaning, so that a mechanical part mesh belt ultrasonic spray cleaning machine is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a machine parts guipure supersound sprays cleaning machine to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an ultrasonic mesh belt spraying cleaning machine for mechanical parts comprises a fixed support, wherein a first cross frame and a second cross frame are respectively fixedly arranged between the inner side surfaces of the fixed support, a wastewater pond is fixedly arranged on the bottom surface of the fixed support, a motor is fixedly arranged on the surface of one side of the fixed support, a first rotating shaft is fixedly arranged at the output end of the motor, the first rotating shaft is inserted into one group of supporting legs of the fixed support in a penetrating manner, the other first rotating shaft is inserted into the other group of supporting legs of the fixed support in a penetrating manner, synchronous teeth are symmetrically and fixedly arranged on the outer surface of the first rotating shaft, circular tooth sockets are arranged in the synchronous teeth, a mesh belt is meshed and driven on the outer surface of the circular tooth sockets and comprises a plurality of connecting rods and a group of second tooth plates, the circular tooth sockets are meshed and connected with the second tooth plates, a first sliding groove is arranged on the upper surface of the first cross frame, and a sliding block is arranged in the first sliding groove, second spout, first pinion rack have been seted up to second crossbearer upper surface, another the slider sliding clamp is located in the second spout, it is equipped with a set of second pivot to run through the interlude in the slider, the fixed first hobbing that is equipped with of second pivot one end, another the fixed second hobbing that is equipped with of second pivot one end, the second hobbing is connected with first hobbing, first pinion rack meshing respectively, it is equipped with clean mechanism to rotate between the slider, clean mechanism includes first round brush, second round brush, first round brush, second round brush surface are connected with the laminating of guipure inner wall upper and lower surface respectively, fixed support upper surface is equipped with the third crossbearer, third crossbearer side surface rotates and is equipped with and sprays the mechanism, it is equipped with a plurality of nozzles to spray mechanism surface bottom fixed.
Preferably, a water outlet is formed in the surface of one side of the wastewater pool.
Preferably, a rocking disc is fixedly arranged on the surface of one side of the second hobbing.
Preferably, the first rolling brush and the second rolling brush are respectively sleeved on the outer surface of the second rotating shaft.
Preferably, one end of the spraying mechanism is provided with a water inlet.
Preferably, a fixed rod is fixedly arranged on the surface of one side of the third transverse frame, a connecting sleeve is sleeved on the outer surface of the fixed rod, and the connecting sleeve is fixedly connected with the spraying mechanism.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the motor is connected with the two groups of synchronous teeth and fixedly connected with the mesh belt, so that the stable transmission of the mesh belt can be realized, and different parts can be sprayed under the controllable condition;
2. the second hobbing is respectively meshed and connected with the second toothed plate and the first hobbing so as to realize that the first rolling brush and the second rolling brush slide along the first sliding groove together while rotating, thereby cleaning the upper surface and the lower surface of the inner wall of the mesh belt;
3. the spraying mechanism is provided with a plurality of nozzles and can rotate on the surface of one side of the third cross frame, so that multi-angle spraying work can be realized, and the comprehensive cleaning effect is achieved.
Drawings

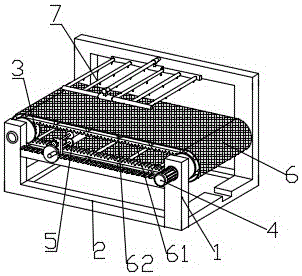

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the structural synchronizing teeth of the present invention;
FIG. 3 is a schematic view of the structure and transmission structure of the present invention;
FIG. 4 is a schematic view of the structure spraying mechanism of the present invention;
in the figure: 1. fixing a bracket; 11. a first cross frame; 111. a first chute; 12. a second cross frame; 13. a third cross frame; 121. a first toothed plate; 122. a second chute; 2. a wastewater tank; 21. a water outlet; 3. a synchronizing tooth; 31. a circular tooth socket; 32. a first rotating shaft; 4. a motor; 5. a cleaning mechanism; 51. a first rolling brush; 511. a first hobbing; 52. a second rolling brush; 521. second hobbing; 5211. shaking the plate; 53. a second rotating shaft; 54. a slider; 6. a mesh belt; 61. a connecting rod; 62. a second toothed plate; 7. a spraying mechanism; 71. fixing the rod; 711. connecting sleeves; 72. a nozzle; 73. a water inlet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: an ultrasonic mesh belt spray cleaning machine for mechanical parts comprises a fixed support 1, wherein the fixed support 1 consists of two groups of supporting legs, a first transverse frame 11 and a second transverse frame 12 are respectively and fixedly arranged between the inner side surfaces of the fixed support 1, a waste water pool 2 is fixedly arranged on the bottom surface of the fixed support 1, the waste water pool 2 is fixedly arranged on the bottom surface of the fixed support 1 and is used for storing waste water, a motor 4 is fixedly arranged on the surface of one side of the fixed support 1, the motor 4 is fixedly connected on the surface of one supporting leg of the fixed support 1, a first rotating shaft 32 is fixedly arranged at the output end of the motor 4, the motor 4 can drive the first rotating shaft 32 to rotate, the first rotating shaft 32 is penetratingly inserted into one group of the supporting legs of the fixed support 1, the other first rotating shaft 32 is penetratingly inserted into the other group of the supporting legs of the fixed support 1, and the two first rotating shafts 32 respectively penetrate through the two groups of the supporting legs of the fixed support 1, the outer surface of the first rotating shaft 32 is symmetrically and fixedly provided with synchronizing teeth 3, the synchronizing teeth 3 can be driven by the first rotating shaft 32 to rotate, circular tooth grooves 31 are formed in the synchronizing teeth 3, the mesh belt 6 is meshed and transmitted on the outer surface of the circular tooth grooves 31, the mesh belt 6 comprises a plurality of connecting rods 61 and a group of second tooth plates 62, the circular tooth grooves 31 are meshed and connected with the second tooth plates 62, a starting motor 4 can drive one of the first rotating shafts 32 to rotate, so that the connected group of synchronizing teeth 3 are driven to rotate, the mesh belt 6 can rotate around the two groups of synchronizing teeth 3 due to the meshed and connected of the synchronizing teeth 3 and the mesh belt 6, the upper surface of the first transverse frame 11 is provided with a first sliding groove 111, a sliding block 54 is arranged in the first sliding groove 111 in a sliding manner, the sliding block 54 can slide along the first sliding groove 111, the upper surface of the second transverse frame 12 is provided with a second sliding groove 122 and a first tooth plate 121, and the other sliding block 54 is slidably clamped in the second sliding groove 122, another sliding block 54 is slidably clamped in the second sliding chute 122, a group of second rotating shafts 53 is penetratingly arranged in the sliding block 54, a group of second rotating shafts 53 is penetratingly arranged in the two sliding blocks 54, one end of each second rotating shaft 53 is fixedly provided with a first hobbing gear 511, one end of each second rotating shaft 53 is fixedly provided with a second hobbing gear 521, the second hobbing gears 521 are respectively meshed with the first hobbing gears 511 and the first toothed plates 121, so that the second hobbing gears 521 rotate along the first toothed plates 121 and can drive the first hobbing gears 511 to rotate and simultaneously slide along the first sliding chute 111, a cleaning mechanism 5 is rotatably arranged between the sliding blocks 54, the cleaning mechanism 5 can realize relative rotation between the sliding blocks 54 through the second rotating shafts 53, the cleaning mechanism 5 comprises a first rolling brush 51 and a second rolling brush 52, the outer surfaces of the first rolling brush 51 and the second rolling brush 52 are respectively attached to the upper surface and the lower surface of the inner wall of the mesh belt 6, thereby can slide along first spout 111 through first round brush 51 of pivoted, second round brush 52 and clear up guipure 6 inner wall surface, fixed surface is equipped with third crossbearer 13 on the fixed bolster 1, third crossbearer 13 side surface rotates and is equipped with sprays mechanism 7, and it can realize rotating at third crossbearer 13 side surface to spray mechanism 7 to can spray at the multi-angle, it is fixed with a plurality of nozzles 72 to spray mechanism 7 outer surface bottom, increases power of spouting and spray area.
As an implementation mode of the utility model, a water outlet 21 is opened on one side surface of the wastewater disposal basin 2, which is convenient for cleaning wastewater and dirt.
As an embodiment of the present invention, a rocking disc 5211 is fixed on a surface of one side of the second hobbing 521 for rotation.
As an embodiment of the present invention, the first rolling brush 51 and the second rolling brush 52 are respectively sleeved on the outer surface of the second rotating shaft 53, and the first rolling brush 51 and the second rolling brush 52 can rotate on the outer surface of the second rotating shaft 53.
As an embodiment of the present invention, the spraying mechanism 7 has one end provided with a water inlet 73 for filling water.
As an embodiment of the present invention, a fixed surface of one side of the third cross frame 13 is provided with a fixing rod 71, a connecting sleeve 711 is sleeved on the outer surface of the fixing rod 71, the connecting sleeve 711 and the spraying mechanism 7 are fixedly connected, so that the spraying mechanism 7 can rotate on the surface of one side of the third cross frame 13.
The working principle is as follows: a first transverse frame 11, a second transverse frame 12 and a third transverse frame 13 are respectively and fixedly arranged between the inner side surfaces of a fixed support 1 consisting of two groups of supporting legs, a wastewater pool 2 is fixedly arranged at the bottom surface of the fixed support 1, wastewater and dirt stored in the wastewater pool 2 are discharged through a water outlet 21, a motor 4 is fixedly connected with one side surface of one supporting leg of the fixed support 1, a first rotating shaft 32 fixedly connected with the output end of the motor 4 is inserted in one group of supporting legs of the fixed support 1 in a penetrating way, another first rotating shaft 32 is inserted in another group of supporting legs of the fixed support 1 in a penetrating way, synchronous teeth 3 are symmetrically and fixedly arranged on the outer surface of the first rotating shaft 32, circular tooth sockets 31 are arranged in the synchronous teeth 3, a plurality of connecting rods 61 and one group of second tooth plates 62 are combined into a net belt 6, and the circular tooth sockets 31 are meshed with the second tooth plates 62, so that the connected first rotating shaft 32 can be driven to rotate by a starting motor 4, thereby driving a group of connected synchronous teeth 3 to rotate, and because the synchronous teeth 3 are meshed with the mesh belt 6, the mesh belt 6 can rotate around the two groups of synchronous teeth 3, so that the transmission speed or position of mechanical parts transmitted on the upper surface of the mesh belt 6 can be controlled by the motor 4, the upper surface of the first cross frame 11 is provided with a first chute 111 in which a sliding block 54 is arranged, the upper surface of the second cross frame 12 is provided with a second chute 122 and a first toothed plate 121, the other sliding block 54 is slidably clamped in the second chute 122, a group of second rotating shafts 53 are penetratingly arranged in the two sliding blocks 54, one end of each second rotating shaft 53 is fixedly provided with a first hobbing gear 511, one end of each second rotating shaft 53 is fixedly provided with a second hobbing gear 521, the second hobbing gears 521 are respectively meshed with the first hobbing gear 511 and the first toothed plate 121, so that the second hobbing gear 521 rotates along the first toothed plate 121, and can drive the first hobbing gear 511 to rotate and simultaneously slide along the first chute 111 because the sliding block 54, therefore, the cleaning mechanism 5 can slide along the first sliding groove 111 together, the cleaning mechanism 5 comprises a first rolling brush 51 and a second rolling brush 52, the first rolling brush 51 and the second rolling brush 52 are respectively arranged on the inner wall of the mesh belt 6, the lower surface of the second rolling brush is connected with the inner wall of the mesh belt 6 in an attaching mode and respectively sleeved on the outer surface of the second rotating shaft 53, so that the first rolling brush 51 rotates relatively, the second rolling brush 52 can comprehensively clean the inner surface of the mesh belt 6 in the sliding process along the first sliding groove 111, the spraying mechanism 7 is provided with a plurality of nozzles 72 capable of increasing the spraying pressure and can rotate on one side surface of the third transverse frame 13 through a connecting sleeve 711, and the motor 4 capable of being adjusted and controlled can be matched to perform long-time multi-angle spraying work on parts to complete the whole operation.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The ultrasonic spraying cleaning machine for the mesh belt of mechanical parts comprises a fixed support (1) and is characterized in that a first transverse frame (11) and a second transverse frame (12) are fixedly arranged between the inner side surfaces of the fixed support (1) respectively, a wastewater pond (2) is fixedly arranged on the bottom surface of the fixed support (1), a motor (4) is fixedly arranged on one side surface of the fixed support (1), a first rotating shaft (32) is fixedly arranged at the output end of the motor (4), the first rotating shaft (32) is inserted into a group of supporting legs of the fixed support (1) in a penetrating manner, the other first rotating shaft (32) is inserted into the other group of supporting legs of the fixed support (1) in a penetrating manner, synchronizing teeth (3) are symmetrically and fixedly arranged on the outer surface of the first rotating shaft (32), a circular tooth groove (31) is formed in the synchronizing teeth (3), and a mesh belt (6) is meshed and driven on the outer surface of the circular tooth groove (31), the mesh belt (6) comprises a plurality of connecting rods (61) and a group of second toothed plates (62), the circular toothed grooves (31) are meshed with the second toothed plates (62), the upper surface of the first transverse frame (11) is provided with a first sliding chute (111), a sliding block (54) is arranged in the first sliding chute (111) in a sliding mode, the upper surface of the second transverse frame (12) is provided with a second sliding chute (122) and a first toothed plate (121), the other sliding block (54) is clamped in the second sliding chute (122) in a sliding mode, a group of second rotating shafts (53) are arranged in the sliding block (54) in a penetrating and penetrating mode, one end of each second rotating shaft (53) is fixedly provided with a first hobbing gear (511), the other end of each second rotating shaft (53) is fixedly provided with a second hobbing gear (521), the second hobbing gears (521) are respectively meshed with the first hobbing gear (511) and the first toothed plate (121), and a cleaning mechanism (5) is arranged between the sliding blocks (121) in a rotating mode, cleaning mechanism (5) are including first round brush (51), second round brush (52), first round brush (51), second round brush (52) surface are connected with guipure (6) inner wall upper and lower surface laminating respectively, fixed surface is equipped with third crossbearer (13) on fixed bolster (1), third crossbearer (13) side surface rotates and is equipped with sprays mechanism (7), it is fixed and is equipped with a plurality of nozzles (72) to spray mechanism (7) surface bottom.
2. The ultrasonic spray cleaning machine for the mesh belt of the mechanical part according to claim 1, characterized in that: a water outlet (21) is formed in the surface of one side of the wastewater tank (2).
3. The ultrasonic spray cleaning machine for the mesh belt of the mechanical part according to claim 1, characterized in that: and a rocking disc (5211) is fixedly arranged on the surface of one side of the second hobbing (521).
4. The ultrasonic spray cleaning machine for the mesh belt of the mechanical part according to claim 1, characterized in that: the first rolling brush (51) and the second rolling brush (52) are respectively sleeved on the outer surface of the second rotating shaft (53).
5. The ultrasonic spray cleaning machine for the mesh belt of the mechanical part according to claim 1, characterized in that: and one end of the spraying mechanism (7) is provided with a water inlet (73).
6. The ultrasonic spray cleaning machine for the mesh belt of the mechanical part according to claim 1, characterized in that: and a fixing rod (71) is fixedly arranged on the surface of one side of the third transverse frame (13), a connecting sleeve (711) is sleeved on the outer surface of the fixing rod (71), and the connecting sleeve (711) is fixedly connected with the spraying mechanism (7).
