Abstract
The embodiment of the utility model relates to the technical field of sewage treatment and recovery, in particular to a high-efficiency sewage treatment device for traditional Chinese medicine processing, which comprises a water injection tank and a water purification tank; the inside wall fixedly connected with inclined plane filter screen of water injection case, water injection case milk tea can not be close to the discharge gate has been seted up to one side of the lower end of inclined plane filter screen, the water injection case surface is close to one side fixedly connected with of discharge gate connects the hopper. The utility model discloses beneficial effect does: sewage is through inclined plane filter screen and fine filtration net, carries out the hierarchical isolation with the granule in the sewage to collect the granule through connecing the hopper and connecing the material drawer and carry out centralized processing, play the effect of the filter particle in conveniently clearing up the device, the cleanup crew's that has significantly reduced operating time filters the organic matter in the sewage through purifying the cover, guarantees the quality of water after the filtration.
Description
Technical Field
The utility model relates to a sewage treatment retrieves technical field, concretely relates to efficient traditional chinese medicine processing sewage treatment plant.
Background
The Chinese patent medicine production wastewater mainly comprises Chinese medicinal material elutriation wastewater, extraction wastewater, bottle washing wastewater, equipment cleaning wastewater, sanitary cleaning, workshop floor washing water and the like. Organic acid, anthraquinone, alkaloid and the like in the wastewater are all high molecular organic matters, are all organic compounds with complex structures, and are components which are difficult to biodegrade. Once the substances enter the water body, rivers and lakes are polluted to different degrees, so that how to treat the wastewater generated by the Chinese patent medicine production is very important.
The sewage treatment is mainly to carry out chemical reaction treatment or biological treatment through sewage in the sewage treatment tank, and some sewage contain some granular impurities with traditional Chinese medicinal materials, can not be treated through chemical reaction or biological treatment, thereby piling up in the sewage treatment tank, thereby the sewage treatment tank needs to be cleaned often.
Therefore, a high-efficiency sewage treatment device for traditional Chinese medicine processing is needed to overcome the problems.
SUMMERY OF THE UTILITY MODEL
In order to solve the problems, namely to solve the problem that the sewage containing some granular impurities with traditional Chinese medicinal materials cannot be treated by chemical reaction or biological treatment, so that the sewage is accumulated in a sewage treatment tank and needs to be treated regularly, the embodiment of the utility model provides a high-efficiency sewage treatment device for traditional Chinese medicine processing, which comprises a water injection tank and a water purification tank;
the inner side wall of the water injection tank is fixedly connected with an inclined plane filter screen, a discharge hole is formed in one side of the milk tea of the water injection tank, which is not close to the lower end of the inclined plane filter screen, and a receiving hopper is fixedly connected to one side of the outer surface of the water injection tank, which is close to the discharge hole;
the water injection tank inside wall fixedly connected with slide, the inside sliding connection of slide has fine filtration net, the interior diapire fixedly connected with of water injection tank connects the water pipe, the one end of connecting the water pipe extends to the inside of water purification case.
Optionally, the inner side wall of the water injection tank is fixedly connected with a scraper device, and the fine filter screen is connected below the scraper device in a sliding manner.
Optionally, the scraper device includes the installation cover, the interior roof fixedly connected with of installation cover is in the connecting spring of open state, the one end fixedly connected with of connecting spring scrapes the material brush, it connects to scrape material brush sliding connection in the top of fine filter screen.
Optionally, a material receiving drawer is arranged below the fine filter screen and is connected to the inner side wall of the water injection tank through a sliding rail in a sliding mode.
Optionally, the inside wall fixedly connected with of water purification case purifies the cover, the one end of connecting the water pipe extends to the inside of purifying the cover.
Optionally, the purification cover is divided into three layers, namely a PP cotton filter layer, an activated carbon layer and a ceramic filter layer from inside to outside in sequence.
Optionally, the inside wall fixedly connected with baffle of water purification case, the baffle will the internal partitioning of water purification case is water purification chamber and still water chamber, the baffle surface is close to water purification incasement lateral wall department has seted up the limbers.
Optionally, the inner side wall of the static water cavity is fixedly connected with a drain pipe, and a control valve is arranged in the drain pipe.
The utility model has the advantages that: the utility model has the advantages of, sewage is through inclined plane filter screen and fine filtration net, carries out hierarchical isolation with the granule in the sewage to collect the granule through connecing the hopper and connecing the material drawer and carry out centralized processing, play the effect of the filter particle in the convenient clearance the device, the staff's that has significantly reduced operating time filters the organic matter in with the sewage through the cage, guarantees the quality of water after filtering, other beneficial effects explain in detail in the embodiment.
Drawings
FIG. 1 is a schematic structural view of an embodiment of the high-efficiency sewage treatment apparatus for traditional Chinese medicine processing;

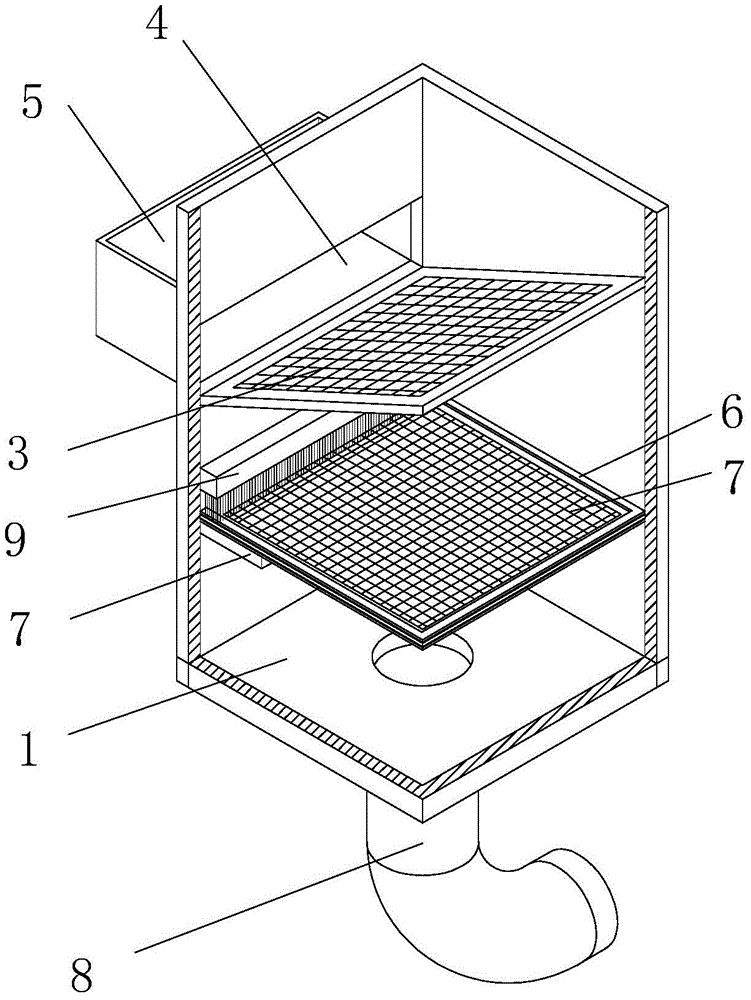

FIG. 2 is a schematic view of the structure of the water injection tank;
FIG. 3 is a schematic view of the squeegee assembly;
FIG. 4 is a schematic structural view of a fresh water tank;
fig. 5 is a schematic structural view of the purge hood.
In the figure: 1. a water injection tank;
2. a water purifying tank;
3. a bevel filter screen; 4. a discharge port; 5. a receiving hopper; 6. a slideway; 7. a fine filter screen; 8. connecting a water pipe;
9. a squeegee assembly; 901. installing a sleeve; 902. a connecting spring; 903. scraping the material brush;
10. a material receiving drawer;
11. a purge hood; 1101. a PP cotton filter layer; 1102. an activated carbon layer; 1103. a ceramic filter layer;
12. a partition plate; 13. a water through hole; 14. a water purifying cavity; 15. a static water cavity.
Detailed Description
The technical solution in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention based on the embodiments of the present invention.
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the terms used herein are for the purpose of describing particular embodiments only and are not intended to be limiting of the invention, and terms such as "and/or" as used herein include any and all combinations of one or more of the associated listed items; furthermore, the technical features mentioned in the different embodiments of the invention described below can be combined with each other as long as they do not conflict with each other.
Referring to fig. 1 to 5, the embodiment of the utility model discloses a high efficiency sewage treatment device for traditional Chinese medicine processing, which comprises a water injection tank 1 and a water purification tank 2;
an inclined plane filter screen 3 is fixedly connected to the inner side wall of the water injection tank 1, a discharge hole 4 is formed in one side, which is not close to the lower end of the inclined plane filter screen 3, of the milk tea of the water injection tank 1, and a receiving hopper 5 is fixedly connected to one side, which is close to the discharge hole 4, of the outer surface of the water injection tank 1;
1 inside wall fixedly connected with slide 6 of water injection tank, the inside sliding connection of slide 6 has fine filtration net 7, and the interior diapire fixedly connected with of water injection tank 1 connects water pipe 8, and the one end of connecting water pipe 8 extends to the inside of water purification case 2.
The inner side wall of the water injection tank 1 is fixedly connected with a scraper device 9, and a fine filter screen 7 is connected below the scraper device 9 in a sliding manner; the scraper device 9 comprises an installation sleeve 901, the inner top wall of the installation sleeve 901 is fixedly connected with a connecting spring 902 in an open state, one end of the connecting spring 902 is fixedly connected with a scraping brush 903, and the scraping brush 903 is connected above the fine filter screen 7 in a sliding manner; the lower part of the fine filter screen 7 is provided with a material receiving drawer 10, and the material receiving drawer 10 is connected to the inner side wall of the water injection tank 1 in a sliding mode through a sliding rail.
The inner side wall of the water purifying tank 2 is fixedly connected with a purifying cover 11, and one end of the connecting water pipe 8 extends into the purifying cover 11; the purification cover 11 is divided into three layers, namely a PP cotton filter layer 1101, an activated carbon layer 1102 and a ceramic filter layer 1103 from inside to outside.
The inner side wall of the water purifying tank 2 is fixedly connected with a partition plate 12, the partition plate 12 divides the interior of the water purifying tank 2 into a water purifying cavity 14 and a still water cavity 15, and a water through hole 13 is formed in the outer surface of the partition plate 12, which is close to the inner side wall of the water purifying tank 2; the inside wall of the static water cavity 15 is fixedly connected with a drain pipe, and a control valve is arranged in the drain pipe.
To sum up, the utility model relates to an efficient traditional chinese medicine processing sewage treatment plant, the operation flow in the use is as follows:
the method comprises the following steps: discharging sewage into the water injection tank 1, isolating the passing sewage by the inclined filter screen 3 and the fine filter screen 7, and grading and isolating larger particles;
large particle impurities which do not pass through the inclined plane filter screen 3 slide into the receiving hopper 5 through the discharge port 4 under the action of the self gravity of the impurities under the action of the inclined plane filter screen 3, so that the impurities can be conveniently cleaned by workers, the inclined plane filter screen 3 is prevented from being blocked by the impurities with larger particles, and the following treatment of sewage is facilitated;
the sewage passing through the inclined plane filter screen 3 falls to the fine filter screen 7, smaller particles are isolated on the surface of the fine filter screen 7, impurities in the sewage are further isolated, after the sewage passes through the fine filter screen 7, the fine filter screen 7 can be pulled, when the fine filter screen 7 is pulled outwards, the scraping brush 903 is tightly attached to the surface of the fine filter screen 7 under the action of the connecting spring 902, the impurities isolated on the surface of the fine filter screen can be brushed off, after the fine filter screen 7 is completely pulled out, the impurities can fall into the material receiving drawer 10, the material receiving drawer 10 is pulled, and the impurities are treated;
step two: under the connection of the connecting water pipe 8, sewage enters the inside of the water purifying cavity 14 through the purifying cover 11 through the water injection tank 1, and when passing through the purifying cover 11, the sewage can sequentially pass through the pp cotton filter layer 1101 (for blocking large granular substances such as rust, silt, worm eggs and the like in water), the activated carbon layer 1102 (for removing odor and organic matters in water and also playing a role in improving water quality) and the ceramic filter layer 1103 (for effectively removing silt, bacteria and rust and having excellent filtering effect), so that the sewage is sequentially filtered, the sewage can be gradually filtered from coarse to fine, the filtering effect is further improved, and the purification purpose is achieved;
step three: the sewage falls into the water purifying cavity 14 after being isolated layer by layer, and due to the fact that the purifying cover 11 is away from the ground of the water purifying cavity 14 by a certain distance, the sewage is enabled to fluctuate and flow into the static water cavity 15 through the water through hole 13 (U-shaped pipe principle), fluctuation of the water surface in the static water cavity 15 area is relieved, and the next treatment is facilitated;
sewage is through inclined plane filter screen 3 and fine filtration net 7, carries out the hierarchical isolation with the granule in the sewage to collect the granule through connecing hopper 5 and connecing material drawer 10 to carry out centralized processing, play the effect of conveniently clearing up the filter particle in the device, the cleanup crew's that has significantly reduced operating time filters the organic matter in the sewage through purifying cover 11, guarantees the quality of water after the filtration.
The present invention is further described in the detailed description, rather than in the limited form thereof, and it will be obvious to those skilled in the art that changes may be made in the structure without departing from the spirit and scope of the invention, and it is intended that all such changes be covered by the appended claims.
Claims (8)
1. A high-efficiency sewage treatment device for traditional Chinese medicine processing, which is characterized by comprising a water injection tank (1) and a water purification tank (2);
an inclined plane filter screen (3) is fixedly connected to the inner side wall of the water injection tank (1), a discharge hole (4) is formed in one side, which cannot be close to the lower end of the inclined plane filter screen (3), of the milk tea of the water injection tank (1), and a receiving hopper (5) is fixedly connected to one side, which is close to the discharge hole (4), of the outer surface of the water injection tank (1);
water injection tank (1) inside wall fixedly connected with slide (6), the inside sliding connection of slide (6) has fine filtration net (7), interior diapire fixedly connected with of water injection tank (1) connects water pipe (8), the one end of connecting water pipe (8) extends to the inside of water purification case (2).
2. The efficient sewage treatment device for traditional Chinese medicine processing according to claim 1, wherein a scraper device (9) is fixedly connected to the inner side wall of the water injection tank (1), and the fine filter screen (7) is slidably connected below the scraper device (9).
3. The efficient traditional Chinese medicine processing sewage treatment device according to claim 2, wherein the scraper device (9) comprises a mounting sleeve (901), a connecting spring (902) in an open state is fixedly connected to the inner top wall of the mounting sleeve (901), a scraping brush (903) is fixedly connected to one end of the connecting spring (902), and the scraping brush (903) is slidably connected above the fine filter screen (7).
4. The efficient sewage treatment device for traditional Chinese medicine processing according to claim 1, wherein a material receiving drawer (10) is arranged below the fine filter screen (7), and the material receiving drawer (10) is slidably connected to the inner side wall of the water injection tank (1) through a slide rail.
5. The efficient sewage treatment device for traditional Chinese medicine processing according to claim 1, wherein a purification cover (11) is fixedly connected to the inner side wall of the water purification tank (2), and one end of the connecting water pipe (8) extends to the inside of the purification cover (11).
6. The efficient sewage treatment device for traditional Chinese medicine processing according to claim 5, wherein the purification cover (11) is divided into three layers, which are a PP cotton filter layer (1101), an activated carbon layer (1102) and a ceramic filter layer (1103) from inside to outside in sequence.
7. The efficient sewage treatment device for traditional Chinese medicine processing according to claim 1, wherein a partition plate (12) is fixedly connected to the inner side wall of the water purification tank (2), the partition plate (12) divides the interior of the water purification tank (2) into a water purification cavity (14) and a static water cavity (15), and a water through hole (13) is formed in the outer surface of the partition plate (12) close to the inner side wall of the water purification tank (2).
8. The high-efficiency sewage treatment device for traditional Chinese medicine processing according to claim 7, wherein a drain pipe is fixedly connected to the inner side wall of the static water cavity (15), and a control valve is arranged in the drain pipe.
