Facial mask liquid filling machine that possesses stable ejection of compact

Technical Field

The application relates to the field of facial mask production, especially relate to a facial mask liquid filling machine that possesses stable ejection of compact.

Background

With the development of economy, people have raised attention to the external image, and the demand of the facial mask as a beauty product for facial skin care is increasing day by day on the market, so that the production chain and production equipment of the facial mask industry are continuously optimized and perfected.

As related art, for example, chinese utility model patent application publication No. CN209351725U discloses a bidirectional facial mask filling device, which comprises a frame, and a transfer mechanism, a first filling mechanism and a second filling mechanism disposed on the frame; the transfer mechanism comprises an upper layer conveying section, a lower layer conveying section and a connecting conveying section which is connected with the upper layer conveying section and the lower layer conveying section and enables the upper layer conveying section and the lower layer conveying section to be capable of circularly conveying; the first filling mechanism is arranged above the upper-layer conveying section and used for filling and sealing from one end of the facial mask packaging bag; the second filling mechanism is arranged above the lower layer conveying section and used for filling and sealing from the other end of the mask packaging bag. The utility model discloses a setting includes the two-way facial mask filling device of transport mechanism, first filling mechanism and second filling mechanism, can realize carrying out automatic filling and sealing to the holding bag at facial mask wrapping bag both ends.

According to the related technology, after filling and sealing of the facial mask packaging bags are completed, the facial mask packaging bags slide down on the secondary conveyor belt and are conveyed to the next station for processing, in the process that the facial mask packaging bags move on the secondary conveyor belt, the inclined conveyor belt is needed to convey the facial mask packaging bags at the low positions to the high positions, the facial mask packaging bags can slide on the inclined conveyor belt, and accordingly discharging movement of the facial mask packaging bags of the filling machine is unstable.

SUMMERY OF THE UTILITY MODEL

In order to improve the stability that the facial mask wrapping bag ejection of compact removed, this application provides a facial mask liquid filling machine that possesses stable ejection of compact, adopts following technical scheme:

the utility model provides a facial mask liquid filling machine that possesses stable ejection of compact, includes ejection of compact frame and a plurality of and arranges the processing unit that sets up along the horizontal direction, processing unit includes that top-down sets gradually puts the bag groove, falls a bag mechanism, filling mechanism, seals the mechanism and goes out the bag spout, ejection of compact frame is provided with the horizontal transport belt who is located a plurality of play bag spouts below and sets up in the promotion conveyer belt of horizontal transport belt one side, promote the slope of conveyer belt and set up, the bottom that promotes the conveyer belt is located one side of horizontal transport belt, the upper surface that promotes the conveyer belt is provided with and supports and presses the conveyer belt.

Through adopting above-mentioned technical scheme, place the facial mask wrapping bag in putting the bag groove and drop to filling mechanism position through bag mechanism that falls, the facial mask wrapping bag after accomplishing the filling drops to sealing mechanism and seals the operation, drop horizontal conveyer belt surface through going out the bag spout afterwards, remove promotion conveyer belt surface afterwards, because promote the setting of conveyer belt slope, support and press the conveyer belt and provide to the facial mask that promotes the conveyer belt surface and press the effect, make the facial mask wrapping bag can be on promoting the conveyer belt steady movement, avoid the facial mask wrapping bag to receive the action of gravity and promote conveyer belt surface landing.

Preferably, the pressing conveyer belt comprises a belt rotating shaft rotatably arranged on the discharging rack, a pressing belt rotatably arranged on the discharging rack and sleeved on the belt rotating shaft and the outer side of the rotating shaft, the pressing belt is positioned above the lifting belt, and the discharging rack is provided with a second driving piece for driving the belt rotating shaft to rotate.

Through adopting above-mentioned technical scheme, the second driving piece driving band pivot is rotatory, takes the pivot to press the area through supporting to drive from the pivot rotatory, makes to press the area to remove in promotion conveyer belt top, supports to press the area can be at the in-process synchronous motion of pressing from both sides the facial mask wrapping bag, reduces the friction to the facial mask wrapping bag, improves transportation effect.

Preferably, the discharging rack is provided with a plurality of auxiliary pressing shafts between the belt rotating shaft and the driven rotating shaft, and the auxiliary pressing shafts are located between the upper layer of pressing belt and the lower layer of pressing belt.

Through adopting above-mentioned technical scheme, the supplementary last axle can compress tightly the area of pressing of supporting in the below, makes to press the area and can support the facial mask wrapping bag better, further improves and carries the effect.

Preferably, all rotate from the pivot with assist the pressure axis and wear to be equipped with the round pin axle, ejection of compact frame and the relative both ends that are located the round pin axle all are provided with the mounting bracket, the perforation has been seted up to the mounting bracket, wear to be equipped with in the perforation and promote conveyer belt surface looks vertically screw rod, the one end that the screw rod is close to the promotion conveyer belt and the round pin axle fixed connection who is close to mutually, the screw rod passes through the locating part and fixes mutually with the mounting bracket.

Through adopting above-mentioned technical scheme, when the screw rod was close to or kept away from the promotion conveyer belt and is removed, the area is pressed to supporting and the corresponding change that takes place of interval between the promotion conveyer belt, can do corresponding adjustment according to the different thickness specification of facial mask wrapping bag, utilizes the locating part to fix screw rod and mounting bracket mutually afterwards, will support the specified height that the area inject in promotion conveyer belt top.

Preferably, the limiting parts are two nuts, the screw threads penetrate through the two nuts, and the two nuts are respectively located on two opposite sides of the through hole.

Through adopting above-mentioned technical scheme, adjust the screw rod to fenestrate assigned position after, with two nuts locking in fenestrate both sides, two nuts press from both sides tightly at the both sides of mounting bracket respectively to fix screw rod and mounting bracket each other, realize supporting pressing the fixed of area.

Preferably, the through holes are arranged as waist-shaped holes, and the length direction of the through holes is perpendicular to the moving direction of the lifting belt.

Through adopting above-mentioned technical scheme, fenestrate length direction sets up, makes the screw rod can remove at fenestrate length direction to can adjust to press the area and do the regulation with promotion conveyer belt removal vertical direction, with the facial mask wrapping bag that corresponds on the promotion conveyer belt.

Preferably, the number of the processing units is 8.

Through adopting above-mentioned technical scheme, processing unit sets up 8, and 8 processing units can satisfy large batch facial mask wrapping bag production, can satisfy the production requirement.

Preferably, the lifting conveyor belt comprises a driving roller, a driven roller and a lifting belt, wherein the driving roller is rotatably arranged on one side, close to the horizontal conveyor belt, of the discharging rack, the driven roller is rotatably arranged on one side, far away from the horizontal conveyor belt, of the discharging rack, the lifting belt is sleeved on the driving roller and the driven roller, and a bearing plate which is abutted against the bottom surface of the upper lifting belt is arranged between the driving roller and the driven roller and is positioned on the discharging rack.

Through adopting above-mentioned technical scheme, drive roll and driven voller drive the lifting belt and revolve, and the bearing plate provides the bearing effect in the below of lifting belt, can keep the planarization of lifting belt upper surface to improve the transport effect of facial mask wrapping bag.

In summary, the present application includes at least one of the following beneficial technical effects:

1. the facial mask packaging bag placed in the bag placing groove falls to the position of the filling mechanism through the bag falling mechanism, the filled facial mask packaging bag falls to the sealing mechanism for sealing operation, then falls to the surface of the horizontal conveying belt through the bag discharging chute and then moves to the surface of the lifting conveying belt, and due to the inclined arrangement of the lifting conveying belt, the pressing conveying belt provides a pressing effect on the facial mask on the surface of the lifting conveying belt, so that the facial mask packaging bag can stably move on the lifting conveying belt, and the facial mask packaging bag is prevented from falling on the surface of the lifting conveying belt under the action of gravity;

2. when the screw rod moves close to or far from the lifting conveying belt, the distance between the pressing belt and the lifting conveying belt changes correspondingly, corresponding adjustment can be performed according to different thickness specifications of the facial mask packaging bag, then the screw rod and the mounting frame are fixed by the nut, and the pressing belt is limited at a specified height above the lifting conveying belt;

3. the perforated length direction is set, so that the screw rod can move in the perforated length direction, and the pressing belt can be adjusted in the direction perpendicular to the movement of the lifting conveying belt so as to correspondingly lift the facial mask packaging bag on the conveying belt.

Drawings

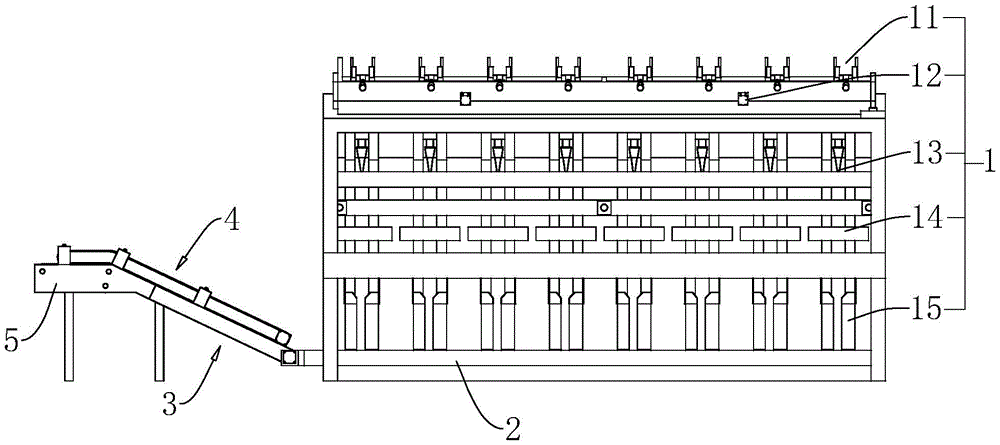

Fig. 1 is a schematic structural diagram of a facial mask filling machine with a stable discharge function in an embodiment of the present application;

fig. 2 is a schematic cross-sectional view of a lifting conveyor in an embodiment of the present application;

fig. 3 is a schematic view of the overall structure of the lifting conveyor belt in the embodiment of the present application;

fig. 4 is a partially enlarged structural view of a portion a in fig. 3.

Description of reference numerals: 1. processing the machine set; 11. placing a bag groove; 12. a bag falling mechanism; 13. a filling mechanism; 14. a sealing mechanism; 15. a bag discharging chute; 2. a horizontal conveyor belt; 3. lifting the conveyor belt; 31. a drive roll; 32. a driven roller; 33. a lifting belt; 34. an upper guide roller; 35. a lower guide roller; 36. a first driving member; 4. pressing the conveying belt; 41. a rotating shaft is arranged; 42. a slave shaft; 43. auxiliary pressing shafts; 44. a second driving member; 45. pressing the belt; 5. a discharging machine frame; 51. a pressure bearing plate; 52. a horizontal plate; 521. a guide surface; 53. a mounting frame; 531. perforating; 6. a pin shaft; 61. a screw; 611. and a nut.

Detailed Description

The present application is described in further detail below with reference to figures 1-4.

The embodiment of the application discloses facial mask liquid filling machine that possesses stable ejection of compact, refer to fig. 1, the facial mask liquid filling machine includes ejection of compact frame 5 and 8 processing unit 1 that arrange the setting along the horizontal direction, and every processing unit 1 can carry out the filling of assembly line and seal the processing as the facial mask wrapping bag alone, and processing unit 1 top-down has set gradually and has put bag groove 11, bag mechanism 12, filling mechanism 13, seal mechanism 14 and go out bag spout 15. The facial mask packaging bag is placed inside the bag placing groove 11, the bag placing mechanism 12 sucks the facial mask packaging bag in the bag placing groove 11 to the filling mechanism 13, the filled facial mask packaging bag falls to the sealing mechanism 14, and the sealed facial mask packaging bag slides out through the bag outlet sliding groove 15. Ejection of compact frame 5 is provided with horizontal transport belt 2 and promotes conveyer belt 3, and 2 levels of horizontal transport belt set up and are located 8 exit end below of going out bag spout 15, promote conveyer belt 3 and are located one side of horizontal transport belt 2, promote the slope setting of conveyer belt 3, and the bottom that promotes conveyer belt 3 is close to and the same height with one side of horizontal transport belt 2 mutually.

Referring to fig. 2 and 3, the lifting and conveying belt 3 includes a lifting belt 33, a driving roller 31 and a driven roller 32, the driving roller 31 and the driven roller 32 are both rotatably mounted on the discharging frame 5, the lifting belt 33 is sleeved outside the driving roller 31 and the driven roller 32, the discharging frame 5 is provided with a first driving member 36 for driving the driving roller 31 to rotate, and the first driving member 36 is provided as a motor. The drive roller 31 is located the discharging machine frame 5 and is close to one side of horizontal transport belt 2, and driven voller 32 is located discharging machine frame 5 and keeps away from one side of horizontal transport belt 2, and the height that highly is higher than drive roller 31 of driven voller 32, and one side of lifting belt 33 and one side of horizontal transport belt 2 are close to each other and form the clearance, and this clearance can guarantee that the facial mask wrapping bag moves smoothly to the lifting belt 33 surface from horizontal transport belt 2 surface.

Specifically, an upper guide roller 34 and a lower guide roller 35 are arranged on the discharging frame 5 and between the driving roller 31 and the driven roller 32, the upper guide roller 34 and the driven roller 32 are at the same horizontal height, the lower guide roller 35 and the upper guide roller 34 are arranged in an up-down opposite mode, the lifting belt 33 located below is located between the upper guide roller 34 and the lower guide roller 35, the lifting belt 33 between the driven roller 32 and the upper guide roller 34 is arranged horizontally, the lifting belt 33 between the upper guide roller 34 and the driving roller 31 is arranged in an inclined mode, and lifting and transporting of the facial film packaging bag are achieved.

Specifically, the discharging frame 5 is provided with a bearing plate 51 between the driving roller 31 and the upper guide roller 34, and the bearing plate 51 is in contact with the bottom surface of the lifting belt 33 located above and between the driving roller 31 and the upper guide roller 34, so as to provide a bearing function and maintain the smoothness of the surface of the lifting belt 33. The horizontal plate 52 is arranged between the driven roller 32 and the upper guide roller 34 of the discharging machine frame 5, and the horizontal plate 52 is abutted against the bottom surface of the lifting belt 33 above the position between the driven roller 32 and the upper guide roller 34, so that the supporting effect can be provided, the smoothness of the surface of the lifting belt 33 is kept, and the conveying effect of the face film packaging bag is improved.

Specifically, the horizontal plate 52 and the pressure-bearing plate 51 are obliquely bent away from one side of the bottom surface of the corresponding lifting belt 33, which is opposite to the side of the lifting belt 33, and form a guide surface 521, and the guide surface 521 can provide a guide function for the moving lifting belt 33, thereby preventing the edges of the horizontal plate 52 and the pressure-bearing plate 51 from obstructing the movement of the lifting belt 33.

The pressing conveying belt 4 is arranged above the lifting belt 33, the pressing conveying belt 4 comprises a belt rotating shaft 41, a driven rotating shaft 42 and a pressing belt 45, the belt rotating shaft 41 and the driven rotating shaft 42 are both rotatably arranged on the discharging rack 5, the belt rotating shaft 41 is arranged above the driving roller 31, the driven roller 42 is arranged above the driven roller 32, the distance between the belt rotating shaft 41 and the driving roller 31 is larger than the distance between the driven roller 32 and the driven roller 42, the pressing belt 45 is sleeved outside the belt rotating shaft 41 and the driven rotating shaft 42, and the pressing belt 45 is arranged above the lifting belt 33. The outfeed frame 5 is mounted with a second drive 44 that drives the rotation shaft 41 in rotation, the second drive 44 being provided as a motor. The pressing belt 45 can be tightly pressed on the surface of the lifting belt 33, so that the facial mask packaging bags moving on the surface of the lifting belt 33 are pressed tightly, and stable transmission of the facial mask packaging bags in the lifting process is guaranteed.

Discharging frame 5 just is located and takes pivot 41 and is provided with a plurality of pressure axles 43 of assisting from between the pivot 42, and a plurality of pressure axles 43 of assisting are arranged along pressing the setting of taking 45 moving direction, and the pressure axle 43 of assisting is located about two-layer and supports to press and take 45 between the area, can improve and support to press and take 45 to the dynamics of compressing tightly of facial mask wrapping bag.

Referring to fig. 3 and 4, the hinge pin 6 is penetrated and arranged from the rotation of the rotating shaft 42 and the auxiliary pressing shaft 43, the mounting frame 53 is fixed on both sides of the hinge pin 6 of the discharging rack 5, a through hole 531 is formed in the mounting frame 53, a screw 61 is penetrated and arranged in the through hole 531, the surface of the screw 61 is perpendicular to that of the lifting belt 33, one end of the screw 61 close to the lifting belt 33 is fixedly connected with the end part close to the hinge pin 6, the screw 61 is close to or far away from the lifting belt 33 in the through hole 531, the distance between the pressing belt 45 and the lifting belt 33 can be adjusted, the facial mask packaging bag is adapted to different specifications, and the screw 61 is fixed with the mounting frame 53 through a limiting part.

Specifically, the through holes 531 are waist-shaped holes, the length direction of the through holes 531 is perpendicular to the moving direction of the lifting belt 33, and the position of the pressing belt 45 in the direction perpendicular to the moving direction of the lifting belt 33 can be adjusted.

In this embodiment, the limiting members are provided as two nuts 611, the screw 61 is threaded through the two nuts 611, and the two nuts 611 are respectively located at two opposite sides of the through hole 531. After the pressing belt 45 is adjusted to a predetermined position, the two nuts 611 may be clamped on opposite sides of the mounting frame 53, thereby fixing the screw 61.

The implementation principle of the facial mask filling machine with stable discharging in the embodiment of the application is as follows: the facial mask packaging bag placed in the bag placing groove 11 falls to the position of the filling mechanism 13 through the bag falling mechanism 12, the filled facial mask packaging bag falls to the sealing mechanism 14 for sealing operation, and then falls to the surface of the horizontal conveying belt 2 through the bag outlet chute 15. Subsequently, the facial mask packaging bag moves to the surface of the lifting conveying belt 3, and due to the inclined arrangement of the lifting conveying belt 3, the pressing belt 45 provides pressing action on the facial mask on the surface of the lifting belt 33, so that the facial mask packaging bag can stably move on the lifting conveying belt 43, and the facial mask packaging bag is prevented from sliding off on the surface of the lifting conveying belt 43 under the action of gravity.

The above are all preferred embodiments of the present application, and the present embodiment is only explained for the present application, and the protection scope of the present application is not limited by this, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. The utility model provides a facial mask liquid filling machine that possesses stable ejection of compact, its characterized in that, arranges processing unit (1) that sets up including ejection of compact frame (5) and a plurality of along the horizontal direction, processing unit (1) is including putting bag groove (11), bag mechanism (12), filling mechanism (13), sealing mechanism (14) and play bag spout (15) that top-down set gradually, ejection of compact frame (5) are provided with horizontal conveyor belt (2) that are located a plurality of play bag spout (15) below and set up in promotion conveyer belt (3) of horizontal conveyor belt (2) one side, promotion conveyer belt (3) slope sets up, the bottom that promotes conveyer belt (3) is located one side of horizontal conveyor belt (2), the upper surface that promotes conveyer belt (3) is provided with and supports and presses conveyer belt (4).

2. The facial mask filling machine with stable discharging function as claimed in claim 1, wherein: the pressing conveying belt (4) comprises a belt rotating shaft (41) arranged on the discharging rack (5), a pressing belt (45) which is arranged on the discharging rack (5) and is sleeved on the belt rotating shaft (41) and the outer side of the rotating shaft (42), the pressing belt (45) is located above the lifting belt (33), and a second driving piece (44) for driving the belt rotating shaft (41) to rotate is arranged on the discharging rack (5).

3. The facial mask filling machine with stable discharging function as claimed in claim 2, wherein: the discharging machine frame (5) is arranged between the belt rotating shaft (41) and the driven rotating shaft (42) and is provided with a plurality of auxiliary pressing shafts (43), and the auxiliary pressing shafts (43) are arranged between the upper pressing belt and the lower pressing belt (45).

4. The facial mask filling machine with stable discharging function as claimed in claim 3, wherein: all rotate from pivot (42) and assist last pressure shaft (43) and wear to be equipped with round pin axle (6), ejection of compact frame (5) and the relative both ends that are located round pin axle (6) all are provided with mounting bracket (53), perforation (531) have been seted up in mounting bracket (53), wear to be equipped with in perforation (531) and promote conveyer belt (3) surface looks vertically screw rod (61), screw rod (61) are close to the one end that promotes conveyer belt (3) and are close to mutually round pin axle (6) fixed connection, screw rod (61) are fixed mutually with mounting bracket (53) through the locating part.

5. The facial mask filling machine with stable discharging function as claimed in claim 4, wherein: the limiting piece is provided with two nuts (611), the screw rod (61) is threaded through the two nuts (611), and the two nuts (611) are respectively located on two opposite sides of the through hole (531).

6. The facial mask filling machine with stable discharging function as claimed in claim 4, wherein: the through holes (531) are arranged to be waist-shaped holes, and the length direction of the through holes (531) is perpendicular to the moving direction of the lifting belt (33).

7. The facial mask filling machine with stable discharging function as claimed in claim 1, wherein: the number of the processing units (1) is 8.

8. The facial mask filling machine with stable discharging function as claimed in claim 1, wherein: promote conveyer belt (3) including rotate set up in ejection of compact frame (5) near drive roller (31) of horizontal transport belt (2) one side, rotate set up in ejection of compact frame (5) keep away from driven voller (32) of horizontal transport belt (2) one side and overlap hoisting belt (33) of locating drive roller (31) and driven voller (32), ejection of compact frame (5) just are located and are provided with bearing plate (51) that offsets with upper hoisting belt (33) bottom surface between drive roller (31) and driven voller (32).
