Abstract
A prefabricated floor slab anti-floating construction node of top cast-in-place concrete comprises prefabricated floor slabs, T-shaped bottom mold fixing rods arranged in splicing seams between adjacent prefabricated floor slabs and bottom molds arranged below the splicing seams and on the bottom surfaces of the adjacent prefabricated floor slabs; the T-shaped bottom die fixing rod comprises transverse reinforcing steel bars and vertical screw rods, two sides of each transverse reinforcing steel bar are respectively supported on the surfaces of adjacent prefabricated floor slabs, the vertical screw rods vertically penetrate through the splicing seams and the bottom die and then are fixed through gaskets and nuts, and the prefabricated floor slabs are provided with fixtures used for limiting the transverse reinforcing steel bars. The utility model discloses simple structure, construction convenience, thereby the fixed stay risk is less, occupation space is less, can adjust mould length and reach to different roof thickness, and the size can have characteristics such as safety, being suitable for according to prefabricated floor thickness adjustment, has fine popularization and practical value, can produce good economic benefits after extensive popularization and application.
Description
Technical Field
The utility model relates to a construction field specifically belongs to a top cast in situ concrete's anti construction node that floats of prefabricated floor.
Background
The prefabricated floor slab is fixed in a steel pipe inclined support mode, two ends of the inclined support are not connected and fixed with the wallboard and the ground, the fixed support risk is large, and the steel pipe inclined support occupies about 3 meters of operation space on two sides of the wallboard, so that other professional construction personnel cannot operate before the steel pipe is not dismantled, the whole progress of a project is influenced, a building with a small area cannot be constructed due to the fact that an operation surface without the steel pipe support, and the application limitation of the scheme is large; the length of the used steel pipe is about 4 meters, the weight is heavier, a large amount of manpower is needed to be consumed in the transportation between floors, and the cost is higher.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing an anti construction node that floats of precast floor of top cast in situ concrete will solve the technical problem of the easy come-up of precast floor of prior art top cast in situ concrete in-process.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a top cast in situ concrete's precast floor slab anti construction node that floats which characterized in that: the prefabricated floor slab comprises prefabricated floor slabs, T-shaped bottom formwork fixing rods arranged in splicing seams between adjacent prefabricated floor slabs and bottom formworks arranged below the splicing seams and on the bottom surfaces of the adjacent prefabricated floor slabs; the T-shaped bottom die fixing rod comprises transverse reinforcing steel bars and vertical screw rods, the two sides of each transverse reinforcing steel bar are respectively supported on the surfaces of adjacent prefabricated floor slabs, the vertical screw rods vertically penetrate through the splicing seams and the bottom die and then are fixed through gaskets and nuts, and the prefabricated floor slabs are provided with fixtures used for limiting the transverse reinforcing steel bars.
Preferably, the fixture is an inverted U-shaped fastener pre-embedded on the prefabricated floor slab, and a space between two vertical parts of the inverted U-shaped fastener and the top surface of the prefabricated floor slab is a transverse steel bar limiting space.
Furthermore, the bottom of two vertical parts of the inverted U-shaped clamping piece is welded with a buried plate.
Furthermore, the upper part of the fixture is a hook-shaped steel bar, the lower part of the fixture is inserted into a reserved blind hole formed in the prefabricated floor slab, and the diameter of the reserved blind hole is matched with that of the fixture.
Further, handles are welded to two sides of the nut.
In addition, the distance between the adjacent T-shaped bottom die fixing rods is 20-30 cm.
More preferably, the length of each of the transverse steel bars and the length of each of the vertical screw rods are 500-600 mm, and the diameters of the transverse steel bars and the vertical screw rods are 12-14 mm and 14-16 mm respectively.
Compared with the prior art the utility model has the following characteristics and beneficial effect:
the utility model discloses simple structure, construction convenience, thereby the fixed stay risk is less, occupation space is less, can adjust mould length and reach to different roof thickness, and the size can have characteristics such as safety, being suitable for according to prefabricated floor thickness adjustment, has fine popularization and practical value, can produce good economic benefits after extensive popularization and application.
Drawings

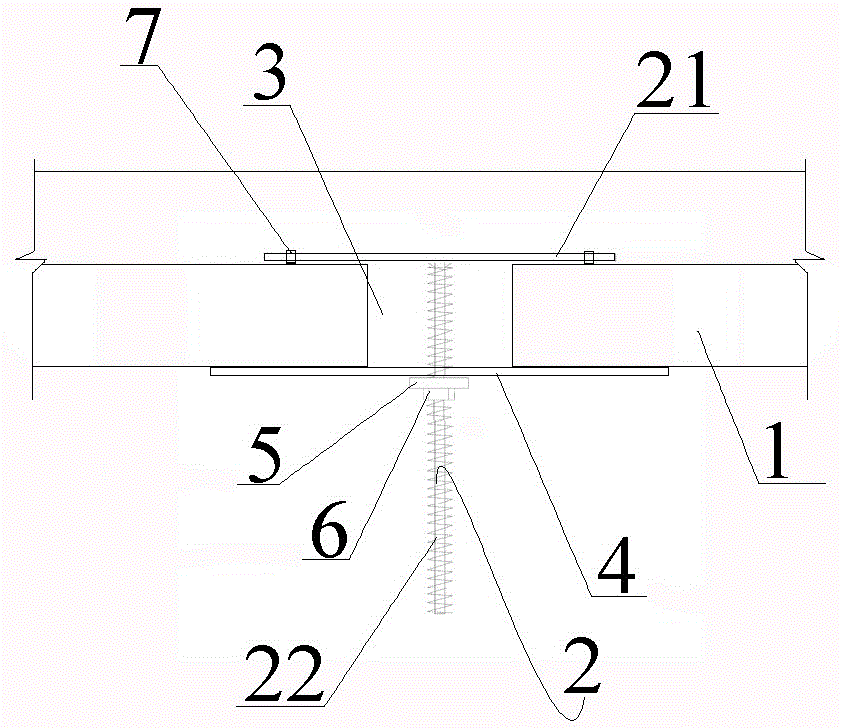

Fig. 1 is the utility model relates to a top cast in situ concrete's precast floor slab anti-structural schematic who floats construction node.
Reference numerals: 1-prefabricating a floor slab; 2-T type bottom mould fixing rod; 21-transverse steel bars; 22-vertical lead screw; 3-splicing seams; 4-bottom die; 5-a gasket; 6-a nut; 7-fixture.
Detailed Description
In order to make the technical means, innovative features, objectives and functions realized by the present invention easy to understand, the present invention will be further described below.
The embodiments described herein are specific embodiments of the present invention, and are intended to be illustrative of the concepts of the present invention, which are intended to be illustrative and exemplary, and should not be construed as limiting the scope of the embodiments of the present invention. In addition to the embodiments described herein, those skilled in the art will be able to employ other technical solutions which are obvious based on the disclosure of the claims and the specification of the present application, and these technical solutions include technical solutions which make any obvious replacement or modification for the embodiments described herein.
A prefabricated floor anti-floating construction node of top cast-in-place concrete is shown in figure 1 and comprises prefabricated floors 1, T-shaped bottom die fixing rods 2 arranged in splicing seams 3 between the adjacent prefabricated floors 1 and bottom dies 4 arranged below the splicing seams 3 and on the bottom surfaces of the adjacent prefabricated floors 1; t type end mould dead lever 2 includes horizontal reinforcing bar 21 and vertical lead screw 22, horizontal reinforcing bar 21 both sides support respectively on 1 face of adjacent prefabricated floor, it is fixed through gasket 5 and nut 6 after vertical lead screw 22 vertically passes splice joint 3 and die block 4, be equipped with fixture 7 that is used for spacing horizontal reinforcing bar 21 on the prefabricated floor 1, the welding of 6 both sides of nut has the handle (not drawn in the picture), need not the spanner can install the nut, 2 intervals of adjacent T type end mould dead lever are 20~30cm, horizontal reinforcing bar 21 and vertical lead screw 22 length are 500~600mm, the diameter is 12~14mm and 14~16mm respectively.
Fixture 7 is pre-buried type of falling U fastener on prefabricated floor 1, and the space between two perpendicular portions of type of falling U fastener and prefabricated floor 1 top surface is the spacing space of horizontal reinforcing bar 21, and the welding of two perpendicular portions bottom of type of falling U fastener has the board of burying.
Or, the fixture 7 is a hook-shaped steel bar, the lower part of the fixture is inserted into a reserved blind hole formed in the prefabricated floor slab 1, and the diameter of the reserved blind hole is matched with that of the fixture 7.
The application is suitable for anti floating control when the cast-in-place floor of prefabricated floor construction upper strata of building engineering fabricated construction, at first adopt 1 length 500mm phi 12 reinforcing bar of component and 2 length 500mm phi 14 harness cord screw rod of component, make T style of calligraphy mould with horizontal reinforcing bar 21 and vertical lead screw 22 welding, it is fixed that rethread component 450 mm x 50mm x 10mm gasket and component 3 phi 14 harness cord screw rod are supporting, reach the reinforcement construction of consolidating different thickness floors according to the concrete thickness adjusting member 4 of floor and the position of component 3, anti floating off normal control.
During on-site construction, workers splice and assemble the prefabricated plates into the die according to the thickness of the prefabricated plates at the current stage, then utilize the phi 12mm steel bars at the top of the die to be tightly attached to the prefabricated floor slabs, lead screws penetrate through the die plate and are fixedly clamped on the prefabricated plates by using gaskets and matched nuts, so that the control of upward floating and deviation of the prefabricated plates is realized, the die is simple to manufacture and convenient to construct, and the die has great popularization and application significance for the construction of the prefabricated floor slabs in the building engineering.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (7)
1. The utility model provides a top cast in situ concrete's precast floor slab anti construction node that floats which characterized in that: the prefabricated floor slab comprises prefabricated floor slabs (1), T-shaped bottom die fixing rods (2) arranged in splicing seams (3) between adjacent prefabricated floor slabs (1), and bottom dies (4) arranged below the splicing seams (3) and on the bottom surfaces of the adjacent prefabricated floor slabs (1); the T-shaped bottom die fixing rod (2) comprises transverse steel bars (21) and vertical screw rods (22), two sides of each transverse steel bar (21) are respectively supported on the surfaces of adjacent prefabricated floors (1), the vertical screw rods (22) vertically penetrate through the splicing seams (3) and the bottom die (4) and then are fixed through gaskets (5) and nuts (6), and the prefabricated floors (1) are provided with clamping devices (7) used for limiting the transverse steel bars (21).
2. A precast floor slab anti-floating construction node of top cast-in-place concrete according to claim 1, wherein; the fixture (7) is an inverted U-shaped fastener pre-buried on the prefabricated floor slab (1), and the space between two vertical parts of the inverted U-shaped fastener and the top surface of the prefabricated floor slab (1) is a transverse steel bar (21) limiting space.
3. The precast floor slab anti-floating construction node of the top cast-in-place concrete according to claim 2, wherein: the bottom of two vertical parts of the inverted U-shaped clamping piece is welded with a buried plate.
4. The precast floor slab anti-floating construction node of the top cast-in-place concrete according to claim 1, wherein: the upper part of the fixture (7) is a hook-shaped steel bar, the lower part of the fixture is inserted into a reserved blind hole formed in the prefabricated floor slab (1), and the diameter of the reserved blind hole is matched with that of the fixture (7).
5. The precast floor slab anti-floating construction node of the top cast-in-place concrete according to claim 1, wherein: handles are welded on two sides of the nut (6).
6. The precast floor slab anti-floating construction node of the top cast-in-place concrete according to claim 1, wherein: and the distance between every two adjacent T-shaped bottom mold fixing rods (2) is 20-30 cm.
7. The precast floor slab anti-floating construction node of the top cast-in-place concrete according to any one of claims 1 to 6, wherein: the length of the transverse steel bar (21) and the length of the vertical screw rod (22) are both 500-600 mm, and the diameters of the transverse steel bar and the vertical screw rod are 12-14 mm and 14-16 mm respectively.
