Abstract

The utility model discloses a graded screening device for the size of cullet, the structure of which comprises a machine body, a baffle, a top plate, a discharge hopper, a support table and a controller, when discharging, the graded screening device for the size of cullet is provided with a powder receiving mechanism in the discharge hopper, a plurality of pressed lugs are arranged on the top end of the powder receiving mechanism to enable the passing glass to generate multi-section vibration to filter most glass powder on the powder receiving mechanism, and a plurality of buffer plates are arranged on the shell to buffer the falling glass in a multi-section way and slow down the falling speed of the falling glass again, so that the device can screen part of powder on the discharged glass after screening and discharging the glass, and the multi-stage buffer plates are arranged in the discharge hopper to buffer the discharged glass and reduce the impact force generated when the falling glass falls into the storage box, thereby avoiding the glass from causing a large amount of dust after being discharged.

Description

A hierarchical screening installation for garrulous glass size

Technical Field

The utility model relates to a classified screening equipment for cullet size belongs to glass processing equipment technical field.

Background

The hierarchical screening installation of cullet size can shake the screening to the mixed glass of different specifications size, makes things convenient for the staff to carry out the equipment of processing of classifying to it, its convenient operation, and machining efficiency is high, but prior art still has following defect:

when current screening installation is using, the glass that its screening was discharged often can produce the friction between the glass piece and form more powder at the in-process that discharges, and the impact that leads to the glass of direct discharge to produce after dropping to the receiver easily makes the powder on it raise everywhere, drops around the receiver, and it is comparatively inconvenient to need the staff to regularly clear up it.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a be used for garrulous glass size's hierarchical screening installation to the current screening installation of prior art of solution is when using, the glass that its screening was discharged is at the in-process that discharges, often can produce the friction between the glass piece and form more powder, the impact that the glass that leads to directly discharging produced after dropping to the receiver easily makes the powder on it raise everywhere, drop around the receiver, need the staff regularly to clear up comparatively inconvenient problem to it.

In order to achieve the above purpose, the present invention is realized by the following technical solution: a graded screening device for the size of cullet structurally comprises a machine body, a baffle, a top plate, a discharge hopper, a supporting table and a controller, wherein the top end of the machine body is welded with the bottom end of the top plate, the top plate is positioned above the discharge hopper, the discharge hopper and the machine body are of an integrated structure, the baffle and the top plate are of an integrated structure, the top end of the supporting table is welded with the bottom end of the machine body, the controller is embedded and installed at the left end of the machine body, the discharge hopper comprises a powder containing mechanism, a shell, a buffer plate and an elastic connecting block, the powder containing mechanism is arranged at the right end of the shell and is of an integrated structure, the buffer plate is welded with the shell, the powder containing mechanism comprises a separation net, a compression convex block, a buffer rod, a supporting frame, a sealing plate and a connecting shell, the bottom end of the separation net is welded with the top end of the buffer rod, the bottom of buffer beam welds mutually with the top of support frame, the shrouding embedding is installed on the bottom of connecting the shell, the top of pressurized lug and separation net is integrated structure, the buffer beam includes sliding connection pole, sleeve, spring groove, gas vent, sliding connection pole embedding is installed on the sleeve, spring groove and sleeve are integrated structure, gas vent and spring groove are integrated structure, shell and organism are integrated structure.

Preferably, the baffle is located above the machine body.

Preferably, the compression convex block is of a half-cylinder long rod structure.

Preferably, the buffer rod is perpendicular to the support frame.

Preferably, the compression convex block is made of rubber materials and has certain elasticity.

Advantageous effects

The utility model relates to a classifying screen device for cullet size, through pouring the raw materials into the opening on the top of the machine body, can make the glass come into the machine body to carry out the vibration screen, at last respectively discharge from different discharge hoppers, when discharging, be equipped with the powder receiving mechanism in the discharge hopper, be equipped with a plurality of pressurized lugs on the top of the powder receiving mechanism and enable the glass passing through to produce multistage vibrations, filter most glass powder on it, drop to the connecting shell and take in, and the spacer net bottom is equipped with the buffer beam, the slip connecting rod on it can slide and cushion on the spring groove of the sleeve when the spacer net is forced, reduce the impact that the spacer net received, and behind the powder receiving mechanism, still be equipped with a plurality of buffer boards on the shell and can carry out multistage buffering to the glass that drops, slow down its speed that drops again, through the structure of the improved device, make equipment filter the emission back to glass, can filter the partial powder on the glass that discharges, discharge simultaneously and be equipped with multistage buffer board in fighting, can cushion the glass that discharges, reduce its impact force that drops to production in the receiver to avoid glass to cause a large amount of powder raise dust discharging the back.

Drawings

Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

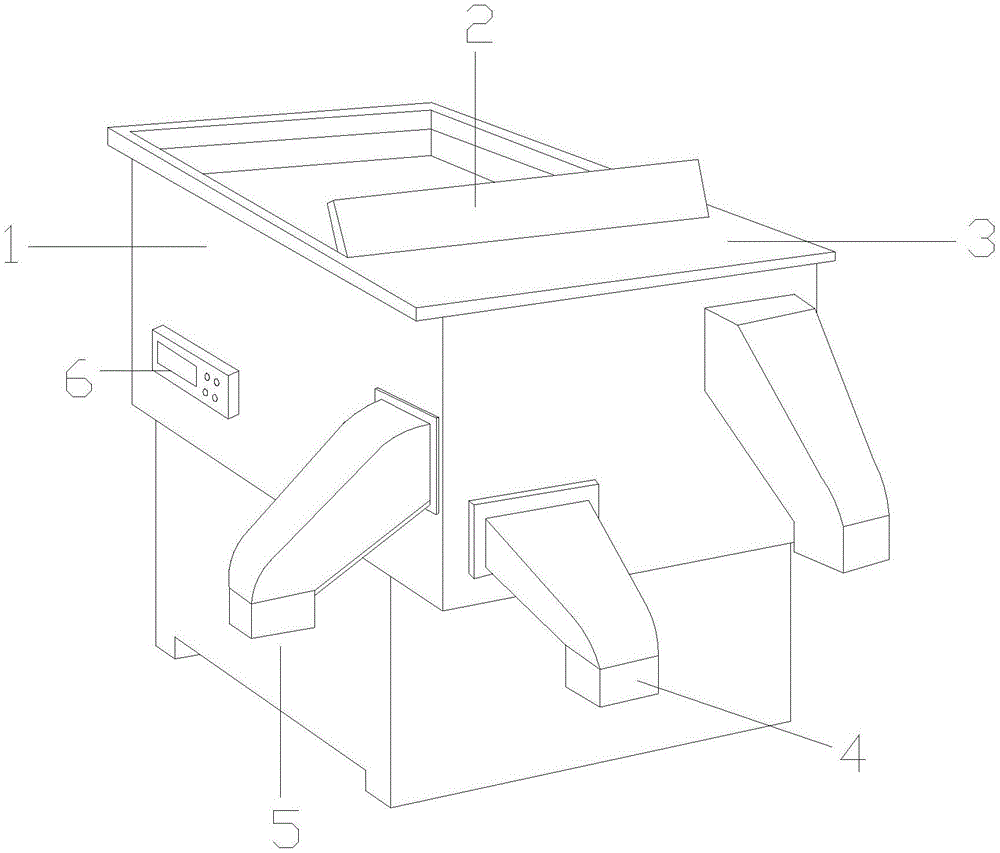

FIG. 1 is a schematic view of a cullet size classifying screen according to the present invention;

FIG. 2 is a schematic cross-sectional detailed structure view of the left side view of the discharge hopper of the present invention;

FIG. 3 is a schematic cross-sectional detailed structure diagram of a front view of the powder storing mechanism of the present invention;

fig. 4 is a schematic cross-sectional detailed structure diagram of a front view of the buffer rod of the present invention.

In the figure: the powder storage device comprises a machine body-1, a baffle-2, a top plate-3, a discharge hopper-4, a support table-5, a controller-6, a powder storage mechanism-41, a shell-42, a buffer plate-43, an elastic connecting block-44, a separation net-411, a compression bump-412, a buffer rod-413, a support frame-414, a sealing plate-415, a connecting shell-416, a sliding connecting rod-4131, a sleeve-4132, a spring groove-4133 and an exhaust port-4134.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.

Referring to fig. 1, 2, 3 and 4, the present invention provides a technical solution of a classifying and screening apparatus for cullet size: the structure of the device comprises a machine body 1, a baffle 2, a top plate 3, a discharge hopper 4, a support table 5 and a controller 6, wherein the top end of the machine body 1 is welded with the bottom end of the top plate 3, the top plate 3 is positioned above the discharge hopper 4, the discharge hopper 4 and the machine body 1 are integrated, the baffle 2 and the top plate 3 are integrated, the top end of the support table 5 is welded with the bottom end of the machine body 1, the controller 6 is embedded and installed on the left end of the machine body 1, the discharge hopper 4 comprises a powder containing mechanism 41, a shell 42, a buffer plate 43 and an elastic connecting block 44, the powder containing mechanism 41 is arranged on the right end of the shell 42, the buffer plate 43 and the elastic connecting block 44 are integrated, the buffer plate 43 is welded with the shell 42, and the powder containing mechanism 41 comprises a separation net 411, a compression lug 412, a buffer rod 413, a support frame 414, a sealing plate 415, The baffle plate 2 is positioned above the machine body 1, the pressure-bearing lug 412 is of a semi-cylindrical long rod structure, the buffer rod 413 is perpendicular to the support frame 414, and the pressure-bearing lug 412 is made of rubber and has certain elasticity.

When equipment is needed to carry out vibration screening on glass, the glass can be brought into the machine body 1 to carry out vibration screening by pouring raw materials onto an opening on the top of the machine body 1, and finally the raw materials are respectively discharged from different discharge hoppers 4, when the raw materials are discharged, a powder receiving mechanism 41 is arranged in each discharge hopper 4, a plurality of pressure lugs 412 are arranged at the top end of each powder receiving mechanism 41, so that the passing glass can generate multi-stage vibration, most glass powder on the powder receiving mechanism is filtered and falls into a connecting shell 416 to be received, a buffer rod 413 is arranged at the bottom of a separation net 411, a sliding connecting rod 4131 on the sliding connecting rod can carry out sliding buffering on a spring groove 4133 of a sleeve 4132 when the separation net 411 is stressed, so that the impact on the separation net 411 is reduced, and after passing through the powder receiving mechanism 41, a plurality of buffer plates 43 are further arranged on a shell 42, so that the falling glass can be buffered in multi-stage, again slowing down its drop.

The utility model solves the problem that when the prior screening equipment in the prior art is used, the glass pieces are often rubbed to form more powder in the process of screening and discharging the discharged glass, so that the powder on the directly discharged glass is easily raised after the glass drops into the storage box and drops around the storage box, and the glass is inconvenient to be cleaned by workers regularly, through the mutual combination of the components, the glass can be brought into the machine body 1 for vibration screening by pouring the raw materials into the opening on the top of the machine body 1, and finally is discharged from different discharge hoppers 4 respectively, and when the glass is discharged, the powder storage mechanism 41 is arranged in the discharge hopper 4, and the plurality of pressed lugs 412 are arranged on the top end of the powder storage mechanism 41 to enable the passing glass to generate multi-section vibration, most of glass powder on the glass filtering device is filtered, the glass powder falls into the connecting shell 416 to be stored, the bottom of the separation net 411 is provided with a buffer rod 413, the sliding connecting rod 4131 on the glass filtering device can buffer the falling glass in a sliding mode when the separation net 411 is stressed, impact on the separation net 411 is reduced, and after the powder storage mechanism 41 is arranged, the shell 42 is further provided with a plurality of buffer plates 43 which can buffer the falling glass in multiple sections, the falling speed of the falling glass is slowed down again, the structure of the device is improved, the device can filter partial powder on the discharged glass after the glass is filtered and discharged, meanwhile, the discharging hopper is internally provided with a plurality of buffer plates, the discharged glass can be buffered, the impact force generated when the glass falls into the storage box is reduced, and therefore a large amount of powder dust is prevented from being generated after the glass is discharged.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims (4)

1. The utility model provides a hierarchical screening installation for cullet size, its structure includes organism (1), baffle (2), roof (3), row's hopper (4), brace table (5), controller (6), its characterized in that:

the top of organism (1) welds mutually with the bottom of roof (3), roof (3) are located the top of arranging hopper (4), arrange hopper (4) and organism (1) structure as an organic whole, baffle (2) and roof (3) structure as an organic whole, the top of brace table (5) welds mutually with the bottom of organism (1), controller (6) embedding is installed on the left end of organism (1), arrange hopper (4) and include powder receiving mechanism (41), shell (42), buffer board (43), elastic connection piece (44), powder receiving mechanism (41) are located on the right-hand member of shell (42), buffer board (43) and elastic connection piece (44) structure as an organic whole, buffer board (43) and shell (42) weld mutually, powder receiving mechanism (41) are including separating net (411), pressurized lug (412), The buffer structure comprises a buffer rod (413), a support frame (414), a sealing plate (415) and a connecting shell (416), wherein the bottom end of a spacer net (411) is welded with the top end of the buffer rod (413), the bottom end of the buffer rod (413) is welded with the top end of the support frame (414), the sealing plate (415) is embedded and installed at the bottom end of the connecting shell (416), a pressure-bearing lug (412) and the top end of the spacer net (411) are of an integrated structure, the buffer rod (413) comprises a sliding connecting rod (4131), a sleeve (4132), a spring groove (4133) and an exhaust port (4134), the sliding connecting rod (4131) is embedded and installed on the sleeve (4132), the spring groove (4133) and the sleeve (4132) are of an integrated structure, the exhaust port (4134) and the spring groove (4133) are of an integrated structure, and the shell (42) and the machine body (1) are of an integrated structure.

2. A classifying screen apparatus for cullet size as claimed in claim 1 wherein: the baffle (2) is positioned above the machine body (1).

3. A classifying screen apparatus for cullet size as claimed in claim 1 wherein: the compression convex block (412) is of a half-cylinder long rod structure.

4. A classifying screen apparatus for cullet size as claimed in claim 1 wherein: the buffer rod (413) is perpendicular to the support frame (414).
