本实用新型涉及农业设备的技术领域，尤其涉及一种农作物分离研磨装置。本实用新型中的在使用时，农作物通过进料板放入，在驱动电机的作用下搅拌轴带动连接杆进行转动，农作物进行分离然后通过第一筛选网，进行初步筛选，当农作物需要进行研磨时，可以启动研磨装置，然后通过第二筛选网进一步的将研磨后的产品进行筛选，在振动装置的作用下，研磨后的产品更快效率的进入收集箱，并且机体底部还安装有垫片装置。本实用新型提供一种农作物分离研磨装置，运行稳点，工作效率高。
The utility model relates to the technical field of agricultural equipment, in particular to a crop separation and grinding device. When the utility model is in use, the crops are put in through the feeding plate, the stirring shaft drives the connecting rod to rotate under the action of the driving motor, the crops are separated and then pass through the first screening net for preliminary screening, and when the crops need to be ground At this time, the grinding device can be started, and then the ground products are further screened through the second screen. Under the action of the vibration device, the ground products can enter the collection box more efficiently, and the bottom of the body is also installed with a gasket device. The utility model provides a crop separation and grinding device with stable operation and high work efficiency.
Description
Technical Field
The utility model relates to a technical field of agricultural equipment especially relates to a crops separation grinder.
Background
The existing automatic crop separating machine only has one function when separating, crop chaff and grain are not completely separated, the efficiency is low, the crops cannot be well separated, the pericarp cannot be completely separated, the separation is performed again by manpower, and some crops need to be ground into powder after being separated for sale, the separated grain food needs to be put into a grinding machine again, and the machine is complex and troublesome.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model aims at solving the defects existing in the prior art and providing a crop separating and grinding device.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a crops separation grinder, includes the organism, its characterized in that, the feed plate is connected through the pivot in the left side of organism, the top of organism is equipped with driving motor, driving motor's bottom is equipped with the (mixing) shaft, the bottom of (mixing) shaft is provided with the fixed block, install in the connecting rod in the outside of fixed block, first screening net is installed to the bottom of connecting rod, the bottom of first screening net is provided with grinder, grinder's below is provided with second screening net, install residue collection device between first screening net and the second screening net, the collecting box is installed to the bottom of second screening net, vibrating device is installed to the top both sides of collecting box, the gasket is installed to the bottom of organism.
Further, a motor cover is installed on the outer side of the driving motor.
Further, the screening hole density of the first screening net is larger than that of the second screening net.
Further, the grinding device is in the shape of a gear.
Further, the length of the residue collection device is larger than that of the collection box, and the residue collection device extends to the bottom of the machine body.
Further, the gasket device is made of anti-skid materials.
(III) advantageous effects
The utility model provides a novel chemical industry filters device possesses following beneficial effect:
(1) the utility model discloses the new installation of structure has first screening net and second screening net, can effectually separate crops to vibrating device has still been installed, further improved screening efficiency.
(2) The utility model discloses the structrual installation has grinder, can open the device when crops need grind and carry out the operation, when crops only need separate the screening, can upwards pack up the device.
(3) The utility model discloses the new gasket device that is equipped with of structure can adjust the steady point nature of this organism, makes its operation steady point, and work efficiency is high.
Drawings

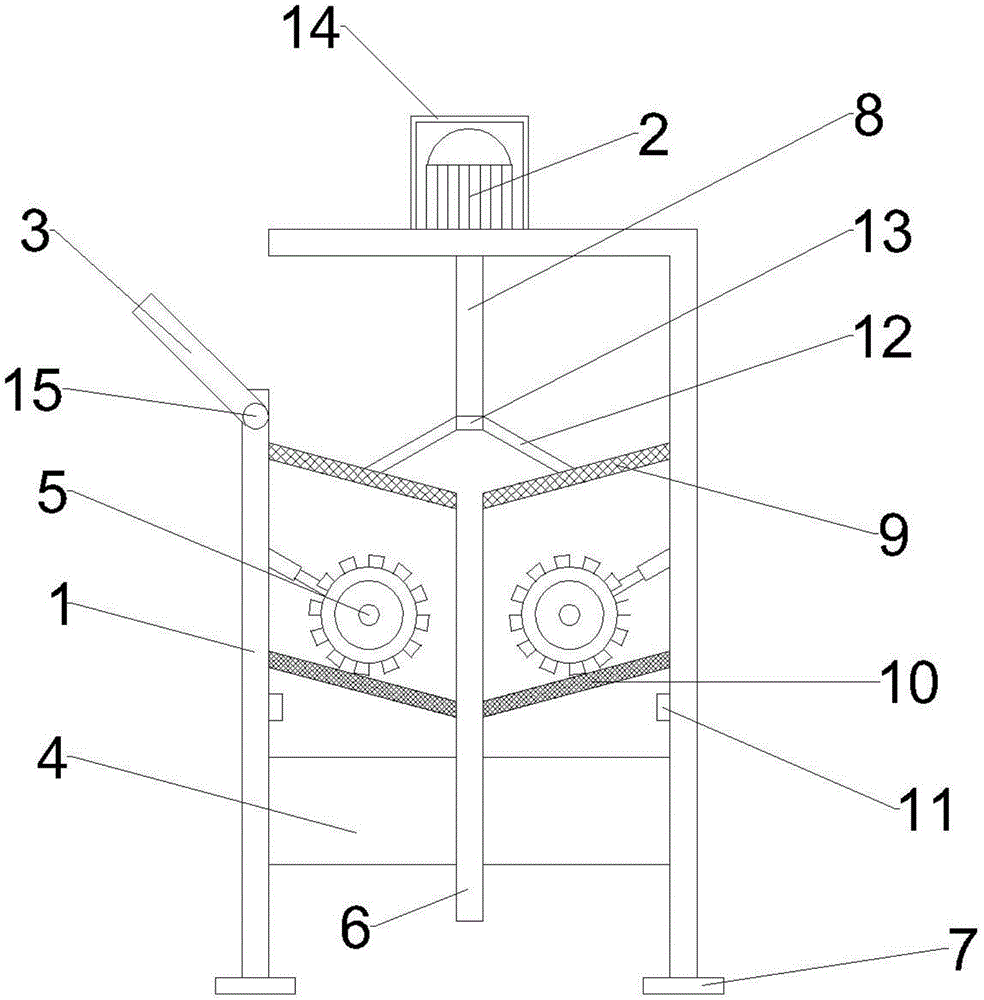

Fig. 1 is a schematic view of the overall structure of the present invention;
in the figure: 1. a body; 2. a drive motor; 3. a feeding plate; 4. a collection box; 5. a grinding device; 6. A residue collection device; 7. a gasket device; 8. a stirring shaft; 9. a first screening net; 10. a second screening net; 11. a vibrating device; 12. a connecting rod; 13. a fixed block; 14. a motor cover; 15. a rotating shaft;
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, the present invention provides a technical solution: the utility model provides a crops separation grinder, feed plate 3 is connected through pivot 15 in the left side of organism 1, the top of organism 1 is equipped with driving motor 2, driving motor 2's bottom is equipped with (mixing) shaft 8, the bottom of (mixing) shaft 8 is provided with fixed block 13, the outside of fixed block 13 is installed in connecting rod 12, first screening net 9 is installed to the bottom of connecting rod 12, the bottom of first screening net 9 is provided with grinder 5, grinder 5's below is provided with second screening net 10, install residue collection device 6 between first screening net 9 and the second screening net 10, collecting box 4 is installed to the bottom of second screening net 10, vibrating device 11 is installed to the top both sides of collecting box 4, gasket 7 is installed to the bottom of organism 1.
As a preferred embodiment of the present invention, the motor cover 14 is installed in the outside of the driving motor 2, the screening hole density of the first screening net 9 is greater than the second screening net 10, the grinding device 5 is in the shape of a gear, the length of the residue collecting device 6 is greater than the collecting box 4, just the residue collecting device 6 extends to the bottom of the machine body 1, and the spacer device 7 is made of an anti-slip material.
The working principle is as follows: firstly, a worker checks whether the performance of each part of the device is normal, if some parts are found to be abnormal, the parts should be repaired or replaced in time, and after the performance of each part of the device to be checked is normal, the device is arranged at a designated operation place. The utility model discloses the during operation, when using, the crops that come will be gathered are put into through feed plate 3, feed plate 3 is through using pivot 16 to connect 1 convenient to use of organism, (mixing) shaft 8 drives connecting rod 12 and rotates under driving motor 2's effect, under the rotation of connecting rod 12, crops separate then through first screening net 9, carry out the preliminary screening, when crops need grind, can start grinder 5 and carry out the operation, then further will grind the product after through second screening net 10 and filter, under vibrating device 11's effect, the faster efficiency's of product after the grinding gets into collecting box 4, and gasket device 7 is still installed to the bottom of the body.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a crops separation grinder, includes organism (1), its characterized in that: the left side of the machine body (1) is connected with the feeding plate (3) through a rotating shaft (15), the top of the machine body (1) is provided with a driving motor (2), the bottom of the driving motor (2) is provided with a stirring shaft (8), the bottom of the stirring shaft (8) is provided with a fixed block (13), the outer side of the fixed block (13) is installed on a connecting rod (12), the bottom of the connecting rod (12) is provided with a first screening net (9), the bottom of the first screening net (9) is provided with a grinding device (5), a second screening net (10) is arranged below the grinding device (5), a residue collecting device (6) is installed between the first screening net (9) and the second screening net (10), the bottom of the second screening net (10) is provided with a collecting box (4), and vibrating devices (11) are installed on two sides of the top of the collecting box (4), and a gasket device (7) is arranged at the bottom of the machine body (1).
2. The crop separating and grinding apparatus of claim 1, wherein: and a motor cover (14) is arranged on the outer side of the driving motor (2).
3. The crop separating and grinding apparatus of claim 1, wherein: the screening hole density of the first screening net (9) is larger than that of the second screening net (10).
4. The crop separating and grinding apparatus of claim 1, wherein: the grinding device (5) is in the shape of a gear.
5. The crop separating and grinding apparatus of claim 1, wherein: the length of the residue collection device (6) is larger than that of the collection box (4), and the residue collection device (6) extends to the bottom of the machine body (1).
6. The crop separating and grinding apparatus of claim 1, wherein: the gasket device (7) is made of anti-skid materials.
