The utility model belongs to the technical field of the pull-up diaper technique and specifically relates to a pull-up diaper convenient to wear to take off, which comprises a belt, the outside fixedly connected with elasticity band of waistband, the both sides bottom of waistband all is connected with through sticky tape a and connects the side waist, the arc backer has been placed to the waistband bottom, the both ends of arc backer are all in the middle of the both sides of waistband through No. two sticky tape fixed connection, the equal fixedly connected with bottom side band in bottom both sides of arc backer, the both ends of bottom side band bond in the both sides bottom of connecting the side waist, one side fixedly connected with absorbed layer of arc backer, one side fixedly connected with coating of absorbed layer. The arc base cloth is taken out from the crotch position of the trousers, and the new arc base cloth is replaced, so that the time for replacing the pull-up trousers is saved, the replacement process is reduced, cold caused by taking off the trousers by a baby in winter is avoided, and the health is ensured.
Description
Technical Field
The utility model relates to a pull-up diaper field especially relates to a pull-up diaper convenient to wear to take off.
Background
The pull-up diaper is different from a common diaper, namely an adhesive diaper, in that the pull-up diaper is in the shape like a small underpants, and a 360-degree elastic waistline design is adopted, so that the pull-up diaper is more convenient to put on and take off on the one hand, and the pull-up diaper can be put on and taken off on the other hand when being pulled on, and can be conveniently replaced no matter a baby lies down or stands; on the other hand, the trousers are more comfortable, when the traditional pull-up trousers are replaced, the trousers outside need to be taken off, then the pull-up trousers are replaced, and the clothes worn by the baby in winter are more, so that the replacement is very troublesome.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing the pull-up diaper convenient to put on and take off.
In order to achieve the above purpose, the utility model adopts the technical scheme that: the utility model provides a pull-up diaper convenient to wear to take off, includes the waistband, the outside fixedly connected with elasticity band of waistband, the both sides bottom of waistband all is connected with through sticky tape a and connects the side waist, arc backer has been placed to the waistband bottom, the both ends of arc backer are all in the middle of the both sides of waistband through No. two sticky tape fixed connection, the equal fixedly connected with bottom side band in bottom both sides of arc backer, the both ends of bottom side band bond in the both sides bottom of connecting the side waist, one side fixedly connected with absorbed layer of arc backer, one side fixedly connected with coating of absorbed layer.
Preferably, the waistband is the cotton material, elasticity band and bottom side band are the elasticity rubber material, one side at bottom side band both ends has viscidity.
Preferably, the connecting side waist is arc-shaped, and two side surfaces of the arc-shaped base fabric are respectively contacted with two ends of the connecting side waist at two sides.
Preferably, the coating layer is made of non-woven fabrics, and a plurality of through grooves are formed in the surface of one side of the coating layer.
Preferably, the absorption layer is made of pure wood pulp and resin, and the absorption layer is of a laminated structure.
Compared with the prior art, the utility model discloses following beneficial effect has:
the two second adhesive tapes are torn open, the two ends of the bottom side bridle are separated from the connecting side waist, the arc base fabric is taken down and taken out from the crotch position of the trousers, the new arc base fabric is replaced, other trousers do not need to be taken off when the pull-up trousers are replaced, the time for replacing the pull-up trousers is saved, the replacement process is reduced, and the cold caused by taking off the trousers by a baby in winter is avoided, so that the health is ensured.
Drawings

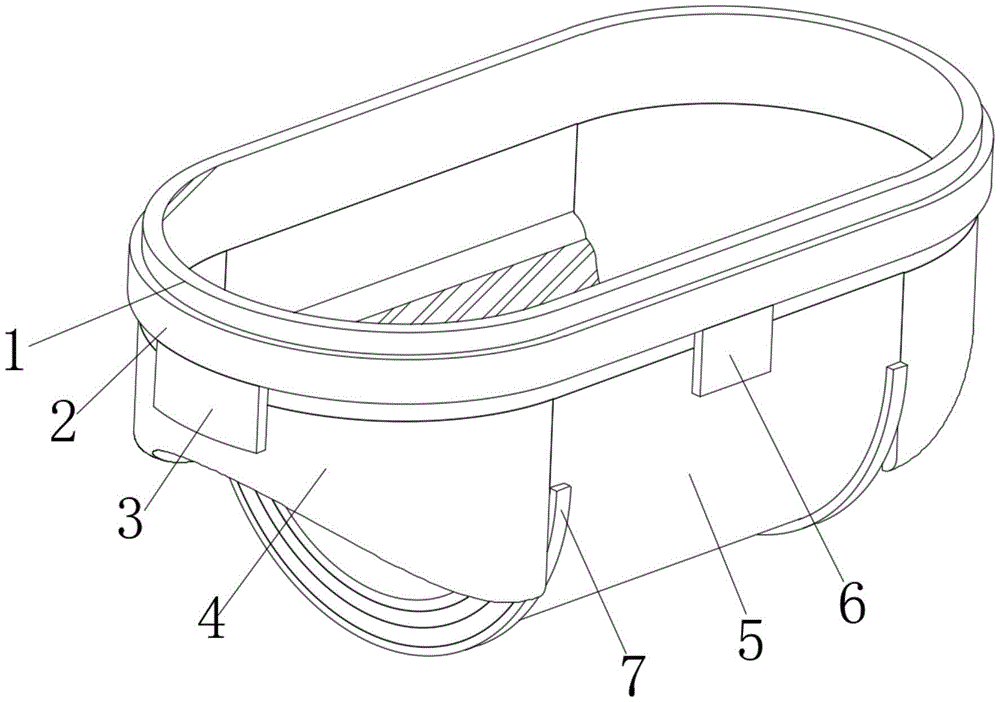

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic front sectional view of the present invention;
fig. 3 is an enlarged schematic view of a structure shown in fig. 2 according to the present invention.
In the figure: the waist belt comprises a waist belt 1, an elastic belt 2, a first adhesive tape 3, a connecting side waist 4, an arc base fabric 5, a second adhesive tape 6, a bottom side belt 7, an absorption layer 8 and a coating layer 9.
Detailed Description
The following description is presented to disclose the invention so as to enable any person skilled in the art to practice the invention. The preferred embodiments in the following description are given by way of example only, and other obvious variations will occur to those skilled in the art.
As shown in fig. 1-3, a pull-up diaper convenient to put on and take off, including waistband 1, the outside fixed connection elasticity belt 2 of waistband 1, the both sides bottom of waistband 1 all is connected with through sticky tape 3 and connects side waist 4, arc backer 5 has been placed to waistband 1 bottom, the both ends of arc backer 5 all are in the middle of waistband 1's both sides through No. two sticky tape 6 fixed connection, the equal fixedly connected with bottom side belt 7 in bottom both sides of arc backer 5, waistband 1 is the cotton material, elasticity belt 2 and bottom side belt 7 are the elastic rubber material, one side at bottom side belt 7 both ends has viscidity, the both ends of bottom side belt 7 bond in the both sides bottom of connecting side waist 4.
The implementation mode is specifically as follows:
through connecting elastic band 2 on waistband 1, make waistband 1 can stabilize the cover on baby's waist, connect side waist 4 and be circular-arc cover in the outside of two legs, the both sides of arc backer 5 all are connected with bottom side band 7, tighten up the both sides and prevent that the urine from leaking out to connect arc backer 5 and connect side waist 4 through bottom side band 7, improve the device's parcel nature.
Connect the side waist 4 and be circular arc shape, two sides of arc backer 5 contact with the both ends of the side waist 4 of being connected of both sides respectively, one side fixedly connected with absorbed layer 8 of arc backer 5, absorbed layer 8 is pure wood pulp and resin material, absorbed layer 8 is laminated structure, one side fixedly connected with coating 9 of absorbed layer 8, coating 9 is the non-woven fabrics material, and open on the surface of one side of coating 9 has a plurality of logical grooves.
The implementation mode is specifically as follows:
through connecting absorbed layer 8 in one side of arc backer 5, absorb the urine and keep dry and comfortable, coating 9 uses the non-woven fabrics material, reduces the uncomfortable sense with the skin contact, what baby usually wore is open crotch trousers, through tearing two No. two sticky tapes 6 and making the both ends of bottom side band 7 break away from the connection side waist 4, takes off arc backer 5 and takes out from the open crotch position of trousers to change new arc backer 5.
The utility model discloses the theory of operation:
referring to the attached drawings 1-3 in the specification, in the using process, the two second adhesive tapes 6 are torn, the two ends of the bottom side binding band 7 are separated from the connecting side waist 4, the arc base cloth 5 is taken out from the open crotch position of the trousers, the two sides of the new arc base cloth 5 are bonded to the two sides of the waistband 1 through the second adhesive tapes 6, and then the two ends of the two bottom side binding bands 7 are bonded to the side surfaces of the side waist 4 at the two sides, so that the change of the pull-up trousers is completed.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the principles of the present invention may be applied to any other embodiment without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (5)
1. The utility model provides a pull-up diaper convenient to wear to take off, includes waistband (1), its characterized in that, the outside fixedly connected with elasticity band (2) of waistband (1), the both sides bottom of waistband (1) all is connected with through sticky tape (3) and connects side waist (4), arc backer (5) have been placed to waistband (1) bottom, the both ends of arc backer (5) all are in the middle of the both sides of waistband (1) through No. two sticky tapes (6) fixed connection, the equal fixedly connected with bottom side band (7) in bottom both sides of arc backer (5), the both ends of bottom side band (7) bond in the both sides bottom of connecting side waist (4), one side fixedly connected with absorbed layer (8) of arc backer (5), one side fixedly connected with coating (9) of absorbed layer (8).
2. The pull-up diaper convenient to put on and take off according to claim 1, wherein the waist belt (1) is made of cotton cloth, the elastic belt (2) and the bottom belt (7) are both made of elastic rubber, and one side of two ends of the bottom belt (7) is sticky.
3. Pull-up pants for easy donning and doffing according to claim 1, wherein said connecting side waist (4) is arc-shaped, and both side faces of said arc-shaped base fabric (5) are respectively in contact with both ends of the connecting side waist (4) at both sides.
4. The pull-up diaper of claim 1, wherein the covering layer (9) is made of non-woven fabric, and a plurality of through grooves are formed on the surface of one side of the covering layer (9).
5. A pull-up pant for easy donning and doffing according to claim 1, wherein the absorbent layer (8) is of a pure wood pulp and resin material, and the absorbent layer (8) is of a laminate structure.
