Abstract
The utility model discloses a high security switch board, including the cabinet body and cabinet door, cabinet door outside bottom fixed position has seted up the ventilation strip, and cabinet door middle part fixed position installs the observation window, and observation window bottom fixed mounting has control module, and control module one side fixed mounting has cabinet door switch, and cabinet body top outside fixed mounting has solar panel, and solar panel one side fixed mounting has the lightning rod, and cabinet body top internal fixed mounting has radiator fan, and the vent is installed to the radiator fan bottom, and cabinet body outside bottom fixed mounting has dampproofing cushion. The device has a simple structure and a novel design, and the arrangement of the cooling fan, the ventilation strips and the cooling holes can effectively play a role in cooling and reduce the temperature of the cabinet body; the coded lock controls the opening and locking of the cabinet door, and the monitoring cameras and the full-time monitoring heads are arranged inside and outside, so that the safety of the whole equipment is guaranteed.
Description
Technical Field
The utility model relates to an electrical equipment technical field specifically is a high security switch board.
Background
A power distribution cabinet, a lighting distribution cabinet and a metering cabinet are power distribution system final-stage equipment, the power distribution cabinet is a general name of a motor control center, the power distribution cabinet is used in the occasions with more dispersed loads and less loops, the motor control center is used in the occasions with concentrated loads and more loops, the power distribution cabinet distributes the electric energy of a certain circuit of the previous-stage power distribution equipment to the nearby loads, the equipment can provide protection, monitoring and control for the loads, the power distribution cabinet is called as a JP cabinet for short, along with the continuous deep reconstruction of rural and urban power grids, a large number of power distribution cabinets are applied to power lines and various power distribution areas, some power distribution cabinets in the market can generate a large amount of heat when in use, the heat dissipation effect is very unsatisfactory, the damage of electric equipment can be caused, electric wires can be ignited seriously, certain loss can be caused, and meanwhile, the power distribution cabinet is easy to leak electricity or be opened by others, the safety performance is low. Therefore, the power distribution cabinet with high safety is provided by improving the technical scheme.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a following technical scheme:
the utility model relates to a high-safety power distribution cabinet, which comprises a cabinet body and a cabinet door, wherein the bottom of the outer side of the cabinet door is fixedly provided with a ventilation strip, an observation window is fixedly arranged in the middle of the cabinet door, a control module is fixedly arranged at the bottom of the observation window, the control module consists of an operation screen and a self-locking box, the self-locking box is fixedly provided with a starting switch outside, a cabinet door switch is fixedly arranged on one side of the control module, the control module controls the opening and the locking of the cabinet door switch by setting a password, a solar power generation panel is fixedly arranged on the outer side of the top of the cabinet body, a lightning rod is fixedly arranged on one side of the solar power generation panel, a heat radiation fan is fixedly arranged in the top of the cabinet body, a vent is arranged at the bottom of the heat radiation fan, the ventilation opening is communicated with the inside of the cabinet body, and a damp-proof cushion block is fixedly mounted at the bottom of the outer side of the cabinet body.
As the utility model discloses a preferred technical scheme, the internal bottom movable mounting of cabinet has dampproofing box that absorbs water, dampproofing box one side fixed mounting that absorbs water has the handle, the sponge that absorbs water is placed to dampproofing box inside that absorbs water.
As an optimal technical scheme of the utility model, cabinet internal wall fixed mounting has two sets of strips of accepting, it has a set of ventilation grid to accept a movable mounting, ventilation grid uses stainless steel support and insulating plastic net to make.
As the utility model discloses a preferred technical scheme, ventilation grid bottom movable mounting has the bugZapper, the tray has been placed to the bugZapper bottom, tray bottom movable mounting has storage battery, the bugZapper passes through bolt and ventilation grid swing joint.
As an optimal technical scheme of the utility model, the inside fixed mounting of control module has temperature sensor, temperature sensor uses ann's vertical METER ANRITSU-METER model, temperature sensor and radiator fan, storage battery and control module electric connection.
As an optimal technical scheme of the utility model, the cabinet body passes through hinge joint with the cabinet door, the cabinet body scribbles anticorrosive paint with the cabinet door outside, the cabinet body adopts the alloy material to make with the cabinet door, the fixed insulating layer of having laid of internal wall of cabinet.
As a preferred technical scheme of the utility model, the internal portion top fixed mounting of cabinet has the monitoring camera, the external side fixed mounting of cabinet has full period monitoring head, the monitoring camera is opened back circular telegram work at the cabinet door, and the closed outage stop work of cabinet door, monitoring camera and full period monitoring head and control module and storage battery electric connection.
The utility model has the advantages that: the utility model has the advantages that the solar power generation panel is arranged, when in use, the solar power generation panel can absorb solar heat energy and convert the solar heat energy into electric energy to be input into the storage battery pack to supply power for the electronic equipment by combining the cabinet body with the traditional power supply mode, thereby reducing the dependence on the traditional power supply mode, having better energy-saving effect and solving the defect of single power supply mode in the prior art; the arranged deinsectization lamp can achieve the effect of killing insects and ensuring the safety of internal elements; the arrangement of the heat radiation fan, the ventilation strip and the heat radiation port can effectively play a role in heat radiation and reduce the temperature of the cabinet body; the coded lock controls the opening and locking of the cabinet door, and the monitoring cameras and the full-time monitoring heads are arranged inside and outside, so that the safety of the whole equipment is guaranteed.
Drawings

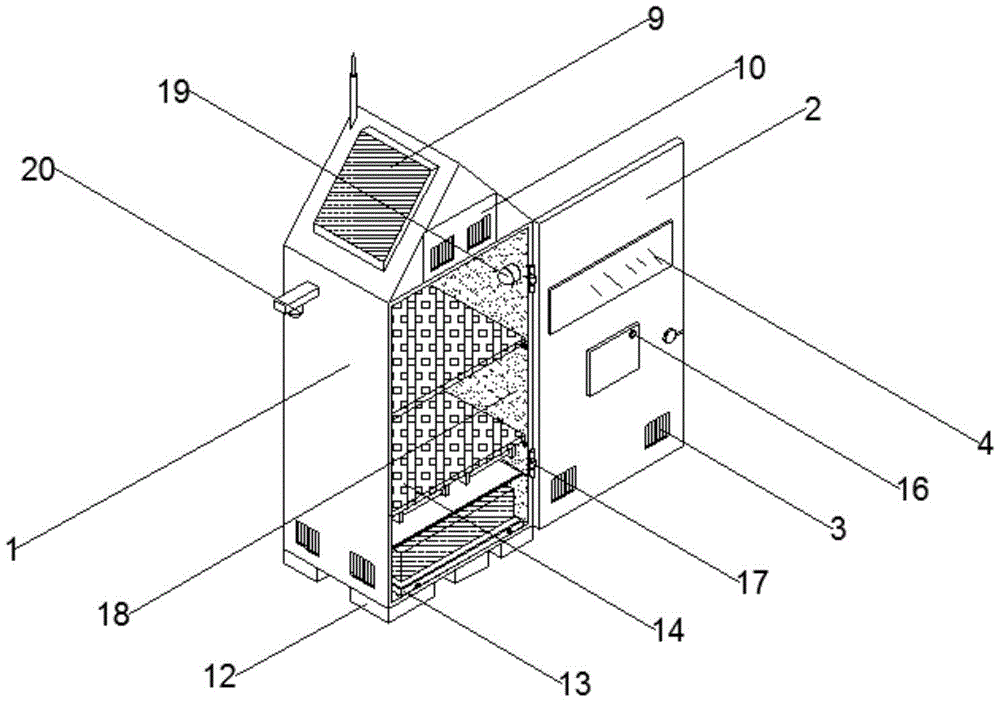

Fig. 1 is a schematic structural diagram of a high-safety power distribution cabinet of the present invention;
fig. 2 is a schematic structural diagram of a high-safety power distribution cabinet of the present invention;
fig. 3 is the utility model relates to a structural schematic of high security switch board.
In the figure: 1. a cabinet body; 2. a cabinet door; 3. a ventilation strip; 4. an observation window; 5. a control module; 6. an operation screen; 7. a self-locking box; 8. opening and closing the cabinet door; 9. a solar power panel; 10. a heat radiation fan; 11. a vent; 12. a damp-proof cushion block; 13. a moisture-proof water absorption box; 14. a ventilation grille; 15. a deinsectization lamp; 16. a temperature sensor; 17. a hinge; 18. an insulating layer; 19. monitoring a camera; 20. the head is monitored for all periods of time.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Example (b): as shown in FIGS. 1-3, the utility model relates to a high-safety power distribution cabinet, which comprises a cabinet body 1 and a cabinet door 2, wherein the bottom of the outer side of the cabinet door 2 is fixedly provided with a ventilation strip 3, the middle of the cabinet door 2 is fixedly provided with an observation window 4, the bottom of the observation window 4 is fixedly provided with a control module 5, the control module 5 consists of an operation panel 6 and a self-locking box 7, the outer part of the self-locking box 7 is fixedly provided with an opening switch, one side of the control module 5 is fixedly provided with a cabinet door switch 8, the control module 5 controls the opening and locking of the cabinet door switch 8 by setting a password, the outer side of the top of the cabinet body 1 is fixedly provided with a solar power generation panel 9, one side of the solar power generation panel 9 is fixedly provided with a lightning rod, the top of the cabinet body 1 is internally and fixedly provided with a cooling fan 10, the bottom of the cooling fan 10 is provided with a ventilation opening 11, the ventilation opening 11 is communicated with the inside of the cabinet body 1, and a damp-proof cushion block 12 is fixedly mounted at the bottom of the outer side of the cabinet body 1.
Wherein, the bottom movable mounting has dampproofing box 13 that absorbs water in the cabinet body 1, dampproofing box 13 one side fixed mounting that absorbs water has the handle, the inside sponge that absorbs water that places of box 13 that absorbs water is prevented damp, through the dampproofing box 13 that absorbs water of placing, can adsorb the moist gas of the cabinet body 1 inside, plays the effect of dampproofing absorbing water.
Wherein, 1 inner wall fixed mounting of the cabinet body has two sets of strips of accepting, it has a set of ventilation grid 14 to accept a strip movable mounting, ventilation grid 14 uses stainless steel support and insulating plastic net to make, and ventilation grid 14 through the installation can make things convenient for the installation and the laying of equipment.
Wherein, 14 bottom movable mounting of ventilation grille has bugZapper 15, the tray has been placed to bugZapper 15 bottom, tray bottom movable mounting has storage battery, bugZapper 15 passes through bolt and 14 swing joint of ventilation grille, through the bugZapper 15 through setting up, can play the effect of killing to getting into inside worm, has protected the safety of internals.
Wherein, the inside fixed mounting of control module 5 has temperature sensor 16, temperature sensor 16 uses ann ritsu-METER model, temperature sensor 16 and radiator fan 10, storage battery and control module 5 electric connection, through the temperature sensor 16 who sets up, can open radiator fan 10 when inside temperature reaches the needs heat dissipation, reduce the inside temperature of the cabinet body 1.
Wherein, the cabinet body 1 and cabinet door 2 are articulated through hinge 17, the cabinet body 1 and the cabinet door 2 outside scribble anticorrosive paint, the cabinet body 1 and cabinet door 2 adopt the alloy material to make, insulating layer 18 has been laid to the fixed inner wall of the cabinet body 1, through the anticorrosive paint who scribbles, can prolong the life of whole equipment, through the insulating layer 18 of laying, can prevent that the accident that the electric leakage from taking place.
Wherein, the inside top fixed mounting of the cabinet body 1 has monitoring camera 19, the outside fixed mounting of the cabinet body 1 has full period monitoring head 20, monitoring camera 19 opens back circular telegram work at cabinet door 2, and the closed outage stop work of cabinet door 2, monitoring camera 19 and full period monitoring head 20 and control module 5 and storage battery electric connection, through monitoring camera 19 and full period monitoring head 20 of installation, can play the effect of a protection to the safety of whole equipment.
The working principle is as follows: first, it is checked whether the device is normal. The control module 5 is opened through an opening switch of the self-locking box 7, an unlocking password is input, the cabinet door 2 is opened through the cabinet door switch 8, the monitoring camera 19 is opened, when the temperature monitoring device is used, the temperature sensor 16 can monitor the temperature change in the cabinet body 1 in real time, when the temperature value reaches a preset alarm threshold value in the temperature sensor 16, the temperature sensor 16 sends an alarm signal to the control module 5, the control module 5 receives the signal and then controls the cooling fan 10 to be opened, the cooling fan 10 can continuously discharge hot air in the cabinet body 1 outwards, so that the replacement of air inside and outside the cabinet body 1 is completed, the rapid heat dissipation is realized, when the temperature sensor 16 monitors that the temperature in the cabinet body 1 returns to a reasonable temperature range, the control module 5 can close the cooling fan 10, the solar power generation panel 9 can absorb solar heat energy and convert the solar heat energy into electric energy to be input into the storage battery pack, the power supply is carried out on the electronic equipment by combining the cabinet body 1 with the traditional power supply mode, the dependence on the traditional power supply mode is reduced, and the energy-saving effect is achieved. The deinsectization lamp 15 that sets up can the effect of insecticidal deinsectization, guarantees the safety of interior component. The coded lock controls the opening and locking of the cabinet door 2, and the monitoring cameras 19 and the full-time monitoring heads 20 are arranged inside and outside, so that the safety of the whole equipment is ensured.
Finally, it should be noted that: in the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a high security switch board, includes cabinet body (1) and cabinet door (2), its characterized in that: the cabinet door is characterized in that a ventilation strip (3) is fixedly arranged at the bottom of the outer side of the cabinet door (2), an observation window (4) is fixedly arranged at the middle position of the cabinet door (2), a control module (5) is fixedly arranged at the bottom of the observation window (4), the control module (5) consists of an operation screen (6) and a self-locking box (7), an opening switch is fixedly arranged outside the self-locking box (7), a cabinet door switch (8) is fixedly arranged on one side of the control module (5), the control module (5) controls the opening and locking of the cabinet door switch (8) through setting a password, a solar power generation panel (9) is fixedly arranged on the outer side of the top of the cabinet body (1), a lightning rod is fixedly arranged on one side of the solar power generation panel (9), a cooling fan (10) is fixedly arranged in the top of the cabinet body (1), and a ventilation opening (11) is arranged at the bottom of the cooling fan (10), the ventilation opening (11) is communicated with the inside of the cabinet body (1), and a damp-proof cushion block (12) is fixedly mounted at the bottom of the outer side of the cabinet body (1).
2. The high-safety power distribution cabinet according to claim 1, wherein a moisture-proof water absorption box (13) is movably mounted at the bottom of the cabinet body (1), a handle is fixedly mounted at one side of the moisture-proof water absorption box (13), and water absorption sponge is placed inside the moisture-proof water absorption box (13).
3. The high-safety power distribution cabinet according to claim 2, wherein two sets of supporting strips are fixedly mounted on the inner wall of the cabinet body (1), one set of the supporting strips is movably mounted with a ventilation grating (14), and the ventilation grating (14) is made of a stainless steel bracket and an insulating plastic net.
4. The high-safety power distribution cabinet according to claim 3, wherein a deinsectization lamp (15) is movably mounted at the bottom of the ventilation grille (14), a tray is placed at the bottom of the deinsectization lamp (15), a storage battery pack is movably mounted at the bottom of the tray, and the deinsectization lamp (15) is movably connected with the ventilation grille (14) through bolts.
5. The high-safety power distribution cabinet according to claim 1, wherein a temperature sensor (16) is fixedly installed inside the control module (5), the temperature sensor (16) is of an ANRITSU-METER type, and the temperature sensor (16) is electrically connected with the heat dissipation fan (10), the storage battery pack and the control module (5).
6. The high-safety power distribution cabinet according to claim 1, wherein the cabinet body (1) and the cabinet door (2) are hinged through a hinge (17), the exterior of the cabinet body (1) and the exterior of the cabinet door (2) are coated with anticorrosive paint, the cabinet body (1) and the cabinet door (2) are made of alloy materials, and an insulating layer (18) is fixedly laid on the inner wall of the cabinet body (1).
7. The high-safety power distribution cabinet according to claim 1, wherein a monitoring camera (19) is fixedly mounted at the top inside the cabinet body (1), a full-time monitoring head (20) is fixedly mounted on the outer side of the cabinet body (1), the monitoring camera (19) is powered on and works after the cabinet door (2) is opened, the cabinet door (2) is closed and powered off and stops working, and the monitoring camera (19) and the full-time monitoring head (20) are electrically connected with the control module (5) and the storage battery pack.
