The utility model discloses a fixing device for assembled component, which comprises a column, the outside of stand is provided with two support frames, the stand includes the base, prefabricated post is installed at the top of base, the support frame includes two stupefied boards, two run through between the stupefied board have two tie bolts, and be located the middle part fixedly connected with cassette in one of them stupefied board outside, the top of cassette is run through there is the gag lever post, the below of gag lever post and the inside swing joint that is located the cassette have the cardboard, the utility model relates to a construction technical field. This a fixing device for assembled component through being provided with the support frame, when consolidating the support to the stand after the stand assembly is accomplished, need not to install the fastener at the outer wall of stand, utilizes two to the stay bolt to clamp two stupefied boards in the outside of stand, can avoid carrying out the damage that direct mount caused the stand with the stupefied board installation on the stand with the top of diagonal brace.
Description
Technical Field
The utility model relates to a construction technical field specifically is a fixing device for assembled component.
Background
The fabricated structure is a concrete structure formed by assembling or connecting prefabricated components serving as main stressed components.
The stand adopts assembled structure usually, and the stand need adopt the diagonal brace to consolidate the support in order to guarantee steadiness and plummet degree that the stand is connected after the installation is accomplished usually to the stand, and the fastener need be installed on the stand on current diagonal brace top for damage appears in the stand surface, for this reason, we design a fixing device for assembled component.
SUMMERY OF THE UTILITY MODEL
The utility model provides a be not enough to prior art, the utility model provides a fixing device for assembled component has solved current diagonal brace top and need install the fastener on the stand for the problem of damage appears on the stand surface.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a fixing device for assembled component, includes the stand, the outside of stand is provided with two support frames, the stand includes the base, prefabricated post is installed at the top of base, the support frame includes two stupefied boards, two run through between the stupefied board have two split bolts, and be located the middle part fixedly connected with cassette in one of them stupefied board outside, run through at the top of cassette has the gag lever post, the below of gag lever post and the inside swing joint that is located the cassette have the cardboard, be connected with the diagonal brace through the free bearing on the lateral wall of cardboard, the bottom of diagonal brace is connected with the locating plate through the free bearing.
Preferably, the circumference at base top inlays and is equipped with a plurality of embedded sleeves that distribute along vertical direction, the circumference of prefabricated column bottom portion inlays and is equipped with a plurality of embedded bars that distribute along vertical direction, and is a plurality of the embedded bar extends to a plurality of embedded sleeve's inside respectively.
Preferably, the stupefied board is formed by two square tube welding, the gasket has all been welded to the inside and outside both sides at stupefied board both ends.
Preferably, the inner sides of the two corrugated plates are respectively attached to the outer side walls of the stand columns, and the two opposite pull bolts are respectively positioned on the outer portions of the two sides of the opposite surfaces of the stand columns.
Preferably, the inclined supporting rods are distributed along the inclined direction, and two ends of each inclined supporting rod are respectively and rotatably connected with the two hinged supports.
Preferably, the two hinged supports are respectively and vertically fixedly connected to the outer side wall of the clamping plate and the top wall of the positioning plate.
Preferably, the positioning plate is fixedly connected to the ground through four foundation bolts, and the four foundation bolts are distributed in a rectangular array.
Advantageous effects
The utility model provides a fixing device for assembled component. Compared with the prior art, the method has the following beneficial effects:
(1) this a fixing device for assembled component through being provided with the support frame, when consolidating the support to the stand after the stand assembly is accomplished, need not to install the fastener at the outer wall of stand, utilizes two to the stay bolt to clamp two stupefied boards in the outside of stand, can avoid carrying out the direct mount on the stand and cause the damage on stand surface with a stupefied board installation with the top of diagonal brace.
(2) This a fixing device for assembled component through being provided with two stupefied boards, two stupefied boards all with stand swing joint, can adjust the height of two stupefied boards according to the demand in the installation, and the both ends of diagonal brace are articulated mutually with cardboard and locating plate through two free bearings respectively simultaneously, and are more nimble convenient when using.
Drawings

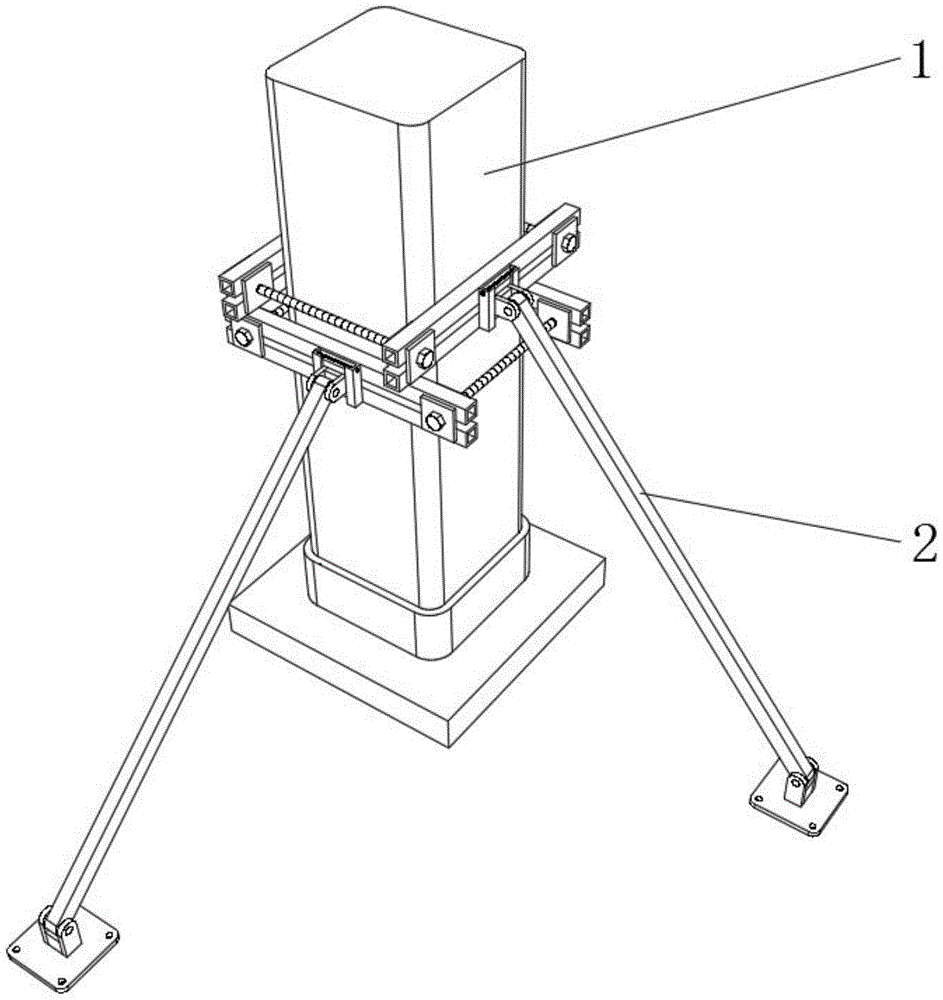

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the column of the present invention;
FIG. 3 is a schematic structural view of the support frame of the present invention;
FIG. 4 is an enlarged view of a portion of FIG. 3 at A;
in the figure: 1. a column; 2. a support frame; 3. a base; 4. pre-burying a sleeve; 5. prefabricating a column; 6. embedding reinforcing steel bars in advance; 7. corrugation plate; 8. oppositely pulling the bolts; 9. a gasket; 10. a card holder; 11. a limiting rod; 12. clamping a plate; 13. hinging seat; 14. a diagonal brace; 15. and (7) positioning the plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a fixing device for an assembled component comprises a stand column 1, two support frames 2 are arranged outside the stand column 1, the stand column 1 comprises a base 3, a prefabricated column 5 is installed at the top of the base 3, the support frames 2 comprise two corrugated plates 7, two counter-pull bolts 8 penetrate between the two corrugated plates 7, a clamping seat 10 is fixedly connected to the middle of the outer side of one of the corrugated plates 7, a limiting rod 11 penetrates through the top of the clamping seat 10, a clamping plate 12 is movably connected to the lower portion of the limiting rod 11 and the inner portion of the clamping seat 10, an inclined strut 14 is connected to the outer side wall of the clamping plate 12 through a hinged seat 13, the bottom end of the inclined strut 14 is connected with a positioning plate 15 through a hinged seat 13, a plurality of embedded sleeves 4 distributed in the vertical direction are embedded in the circumferential direction of the top of the base 3, a plurality of embedded steel bars 6 distributed in the vertical direction are embedded in the circumferential direction of the bottom of the prefabricated column 5, and the embedded steel bars 6 extend to the interiors of the embedded sleeves 4 respectively, the corrugated plate 7 is formed by welding two square pipes, gaskets 9 are welded on the inner side and the outer side of two ends of the corrugated plate 7, the inner sides of the two corrugated plates 7 are respectively attached to the outer side wall of the upright post 1, two opposite pull bolts 8 are respectively positioned on the outer sides of two opposite surfaces of the upright post 1, the inclined support rods 14 are distributed along the inclined direction, two ends of each inclined support rod 14 are respectively rotatably connected with two hinged supports 13, the two hinged supports 13 are respectively and fixedly connected to the outer side wall of the clamping plate 12 and the top wall of the positioning plate 15, the positioning plate 15 is fixedly connected to the ground through four anchor bolts, the four anchor bolts are distributed in a rectangular array, through the arrangement of the support frame 2, when the upright post 1 is reinforced and supported after the upright post 1 is assembled, a fastener does not need to be arranged on the outer wall of the upright post 1, the two corrugated plates 7 are clamped outside the upright post 1 by the two opposite pull bolts 8, the top end of each inclined support rod 14 can be arranged with one corrugated plate 7, the damage to the surface of the upright post 1 caused by direct installation on the upright post 1 is avoided.
During operation, at first operating personnel will prefabricate 5 handling at the top of base 3, accomplish the installation operation of stand 1, operating personnel carries out the support installation of stand 1 afterwards, during the installation, operating personnel at first installs two stupefied boards 7 in the outside of stand 1 through two tie bolts 8, operating personnel is 12 joints of cardboard on diagonal brace 14 top in cassette 10 afterwards, and inwards push down diagonal brace 14 and make diagonal brace 14 play sufficient supporting effect to stand 1, rethread rag bolt is subaerial with locating plate 15 fixed mounting, thereby accomplish the installation of a support frame 2.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A fixing device for a fabricated structure, comprising a column (1), characterized in that: the utility model discloses a prefabricated column, including stand (1), prefabricated post (5) are installed to the top of base (3), support frame (2) are including two stupefied boards (7), two run through between stupefied board (7) have two split bolt (8), and are located middle part fixedly connected with cassette (10) in one of them stupefied board (7) outside, the top of cassette (10) runs through has gag lever post (11), the inside swing joint that just is located cassette (10) in the below of gag lever post (11) has cardboard (12), be connected with diagonal brace (14) through hinged-seat (13) on the lateral wall of cardboard (12), the bottom of diagonal brace (14) is connected with locating plate (15) through hinged-seat (13).
2. A fixing device for a fabricated construction according to claim 1, wherein: the circumference at base (3) top inlays and is equipped with a plurality of embedded sleeve (4) that distribute along vertical direction, the circumference of prefabricated post (5) bottom inlays and is equipped with a plurality of embedded bar (6) that distribute along vertical direction, and is a plurality of embedded bar (6) extend to the inside of a plurality of embedded sleeve (4) respectively.
3. A fixing device for a fabricated construction according to claim 1, wherein: the corrugated plate (7) is formed by welding two square pipes, and gaskets (9) are welded on the inner side and the outer side of the two ends of the corrugated plate (7).
4. A fixing device for a fabricated construction according to claim 1, wherein: the inner sides of the corrugated plates (7) are respectively attached to the outer side walls of the stand columns (1), and the split bolts (8) are respectively located on the outer portions of two sides of the opposite surfaces of the stand columns (1).
5. A fixing device for a fabricated construction according to claim 1, wherein: the inclined supporting rods (14) are distributed along the inclined direction, and two ends of each inclined supporting rod (14) are respectively in rotary connection with the two hinged supports (13).
6. A fixing device for a fabricated construction according to claim 1, wherein: the two hinged supports (13) are respectively and fixedly connected to the outer side wall of the clamping plate (12) and the top wall of the positioning plate (15) in a vertical mode.
7. A fixing device for a fabricated construction according to claim 1, wherein: the positioning plate (15) is fixedly connected to the ground through four foundation bolts, and the four foundation bolts are distributed in a rectangular array.
