本实用新型涉及自立袋生产技术领域，且公开了一种自立袋高速生产装置，包括生产基座，所述生产基座的顶部固定连接有支撑架，所述支撑架的顶部固定连接有电动机，所述电动机的输出端固定连接有往复部件。该实用新型，通过运行电动机可带动往复部件，使往复部件配合往复弹簧，对升降板可做下上位移的往复运动，当传动带恒定带动自立袋传动时，安装座底部的热封装置可往复上下运动，对自立袋起到热封的效果，热封装置向下运动热风自立袋时，弹性部件可起到一定弹性作用，使热封装置热塑效果较好，且配合切割刀片对自立袋进行产品切割，使装置达到对自立袋的热塑封装速度较快，增加了自立袋的生产效率。
The utility model relates to the technical field of stand-up pouch production, and discloses a high-speed production device for stand-up pouches, comprising a production base, a support frame is fixedly connected to the top of the production base, and a motor is fixedly connected to the top of the support frame, A reciprocating component is fixedly connected to the output end of the motor. The utility model can drive the reciprocating parts by running the motor, so that the reciprocating parts cooperate with the reciprocating springs, and the lifting plate can be moved up and down. Movement, has a heat-sealing effect on the stand-up pouch. When the heat-sealing device moves the hot-air stand-up pouch downward, the elastic parts can play a certain elastic role, so that the heat-sealing device has a better thermoplastic effect, and the self-supporting pouch is processed with the cutting blade. The product is cut, so that the device can achieve a faster thermoplastic packaging speed for the stand-up pouch, which increases the production efficiency of the stand-up pouch.
Description
Technical Field
The utility model relates to a self-reliance bag production technical field specifically is a high-speed apparatus for producing of self-reliance bag.
Background
The self-supporting bag is a flexible packaging bag with a horizontal supporting structure at the bottom, does not depend on any support and can stand by itself whether the bag is opened or not, is a relatively novel packaging form, has advantages in aspects of improving product grade, strengthening visual effect of a goods shelf, portability, convenience in use, freshness preservation, sealability and the like, and is sealed by a sealing machine in the production process.
The self-supporting bag is usually required to be subjected to heat sealing and sealing through a sealing machine in the production process, when the heat sealing and sealing are carried out through a traditional sealing machine, a chain and a disc are usually used for rotating, the chain or the disc moves in a stepping mode, when the chain or the disc is static, processes such as filling and sealing are carried out, the heat sealing and sealing of the device are relatively slow, the production efficiency and the speed of the self-supporting bag are affected, and therefore the high-speed production device for the self-supporting bag is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a high-speed apparatus for producing of self-reliance bag possesses to the thermoplastic encapsulation speed of self-reliance bag very fast, has increased advantages such as production efficiency of self-reliance bag, has solved by chain and disc rotation production, and production efficiency is not fast enough relatively.
(II) technical scheme
For realize above-mentioned thermoplastic encapsulation speed to the self-reliance bag is very fast, increased the purpose of the production efficiency of self-reliance bag, the utility model provides a following technical scheme: a high-speed production device for a self-supporting bag comprises a production base, wherein the top of the production base is fixedly connected with a support frame, the top of the support frame is fixedly connected with a motor, the output end of the motor is fixedly connected with a reciprocating component, the middle part of the support frame is slidably connected with two lifting rods, the tops of the two lifting rods are fixedly connected with an integrally formed lifting plate, two reciprocating springs are fixedly connected between the lifting plate and the support frame, the two reciprocating springs are respectively sleeved outside the two lifting rods, the bottoms of the two lifting rods are fixedly connected with an integrally formed mounting seat, the bottom of the mounting seat is fixedly connected with two elastic components, the whole elastic components can be extended or shortened, the bottoms of the two elastic components are fixedly connected with an integrally formed heat sealing device, the top of the production base is fixedly provided with a transmission belt, the heat sealing device is positioned right above the transmission belt.
Preferably, a supporting plate is fixedly connected to the left side of the top of the supporting frame, and the supporting plate is rotatably connected with the left side of the reciprocating component.
Preferably, the reciprocating part comprises a reciprocating cam and a rotating rod, the output shaft of the motor is fixedly connected with the right end of the rotating rod through a coupler, the reciprocating cam is fixedly connected to the outer part of the rotating rod, and the bottom of the reciprocating cam is in contact with the top of the lifting plate.
Preferably, the top of the support frame is embedded with two anti-abrasion rings, and the two lifting rods are respectively connected to the inner end faces of the two anti-abrasion rings in a sliding manner.
Preferably, the elastic components all include sliding rods, the sliding rods are connected to the bottom of the mounting seat in a sliding mode, the top ends of the two sliding rods penetrate through the top of the mounting seat and are fixedly connected with a mounting plate, elastic springs are fixedly connected between the mounting plate and the mounting seat and are sleeved on the outer portions of the sliding rods, and the bottoms of the sliding rods are fixedly connected with the heat sealing device.
Preferably, the top of the production base is fixedly connected with a U-shaped positioning base, and the U-shaped positioning base is positioned at the bottom of the transmission belt.
Preferably, a cutting blade is fixedly connected to the bottom of the mounting seat, and the cutting blade is located on the left side of the heat sealing device.
(III) advantageous effects
Compared with the prior art, the utility model provides a high-speed apparatus for producing of self-reliance bag possesses following beneficial effect:
the high-speed production device of the self-supporting bag is characterized in that a support frame is arranged at the top of a production base, the support frame can support a motor and two lifting rods, the bottoms and the bottoms of the lifting rods are respectively provided with a lifting plate and a mounting seat, the motor can drive a reciprocating component to extrude the lifting plate after running, the reciprocating component is matched with a reciprocating spring, the lifting plate can reciprocate, the mounting seat can be driven by the lifting rods to reciprocate when the lifting plate is lifted up and down, therefore, when a driving belt constantly drives the self-supporting bag to drive, a heat sealing device at the bottom of the mounting seat can reciprocate up and down to play a heat sealing effect on the self-supporting bag, an elastic component is arranged between the heat sealing device and the mounting seat, when the heat sealing device moves downwards to drive the hot air self-supporting bag, the elastic component can play a certain elastic role, the heat sealing device has a better heat molding effect, and in the heat sealing process of downward displacement of the heat sealing device, the product cutting of the stand-up pouch can be performed by the cutting blade, and finally the device achieves the purpose of faster thermoplastic packaging speed of the stand-up pouch, thereby increasing the production efficiency of the stand-up pouch.
Drawings

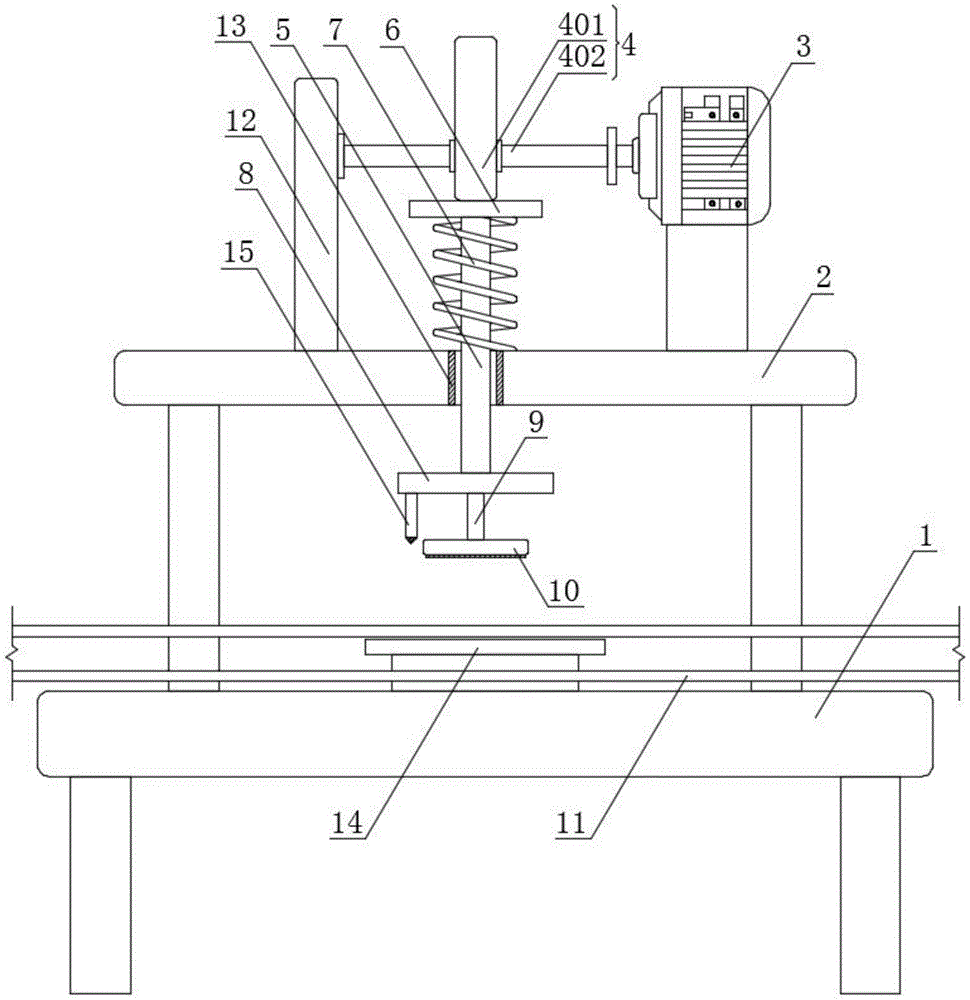

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a side sectional view of the present invention;
FIG. 3 is an enlarged view of portion A of FIG. 2 according to the present invention;
fig. 4 is a front perspective view of the reciprocating member connecting structure of the present invention.
In the figure: 1. producing a base; 2. a support frame; 3. an electric motor; 4. a reciprocating member; 401. a reciprocating cam; 402. rotating the rod; 5. a lifting rod; 6. a lifting plate; 7. a reciprocating spring; 8. a mounting seat; 9. an elastic member; 901. a slide bar; 902. mounting a plate; 903. an elastic spring; 10. a heat sealing device; 11. a transmission belt; 12. a support plate; 13. an anti-abrasion ring; 14. a U-shaped positioning base; 15. and (4) cutting the blade.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, a high-speed production device for self-supporting bags comprises a production base 1, a support frame 2 fixedly connected to the top of the production base 1, a motor 3 fixedly connected to the top of the support frame 2, a reciprocating member 4 fixedly connected to the output end of the motor 3, two lifting rods 5 slidably connected to the middle of the support frame 2, an integrally formed lifting plate 6 fixedly connected to the top of the two lifting rods 5, two reciprocating springs 7 fixedly connected between the lifting plate 6 and the support frame 2, the two reciprocating springs 7 respectively sleeved outside the two lifting rods 5, an integrally formed mounting seat 8 fixedly connected to the bottom of the two lifting rods 5, two elastic members 9 fixedly connected to the bottom of the mounting seat 8, the elastic members 9 being integrally extensible or contractible, and an integrally formed heat sealing device 10 fixedly connected to the bottom of the two elastic members 9, the top of the production base 1 is fixedly provided with a transmission belt 11, and the heat sealing device 10 is positioned right above the transmission belt 11;
in this embodiment, the reciprocating member 4 can be driven by operating the motor 3, so that the reciprocating member 4 cooperates with the reciprocating spring 7, the lifting plate 6 can reciprocate up and down, when the driving belt 11 constantly drives the self-standing bag to drive, the heat sealing device 10 at the bottom of the mounting seat 8 can reciprocate up and down, the heat sealing effect on the self-standing bag is achieved, the elastic member 9 is installed between the heat sealing device 10 and the mounting seat 8, when the heat sealing device 10 can move down to heat the hot air self-standing bag, the elastic member 9 can play a certain elastic role, the heat sealing device 10 has a good thermoplastic effect, and the product cutting is performed on the self-standing bag by cooperating with the cutting blade 15, so that the device achieves the purpose of high thermoplastic packaging speed of the self-standing bag, and the production efficiency of the self-standing bag is increased.
Further, a supporting plate 12 is fixedly connected to the left side of the top of the supporting frame 2, and the supporting plate 12 is rotatably connected with the left side of the reciprocating component 4;
in this embodiment, the supporting plate 12 is fixedly connected to the left side of the top of the supporting frame 2, so that the supporting plate 12 can support the reciprocating component 4, and the device can run stably.
Further, the reciprocating part 4 comprises a reciprocating cam 401 and a rotating rod 402, an output shaft of the motor 3 is fixedly connected with the right end of the rotating rod 402 through a coupler, the reciprocating cam 401 is fixedly connected to the outer part of the rotating rod 402, and the bottom of the reciprocating cam 401 is contacted with the top of the lifting plate 6;
in this embodiment, through setting up reciprocating unit 4 including reciprocal cam 401 and dwang 402, motor 3 can drive dwang 402 after the operation, and then drive reciprocal cam 401, make reciprocal cam 401 can extrude lifter plate 6 when rotating, when reciprocal cam 401 cam position and lifter plate 6 contact, can extrude lifter plate 6 downwards, when the lifter plate 6 was kept away from to the cam part, reciprocal spring 7 can play ascending thrust to lifter plate 6, make lifter plate 6 can reach the effect of reciprocal lift, make the operation of device comparatively stable.
Furthermore, two anti-abrasion rings 13 are embedded in the top of the support frame 2, and the two lifting rods 5 are respectively connected to the inner end faces of the two anti-abrasion rings 13 in a sliding manner;
in the embodiment, the two anti-abrasion rings 13 are embedded in the top of the support frame 2, so that the lifting rod 5 can be always kept stable when ascending and descending, the abrasion-resistant effect of the anti-abrasion rings 13 is relatively good, and the practicability of the device is improved.
Further, the elastic components 9 each include a sliding rod 901, the sliding rods 901 are slidably connected to the bottom of the mounting base 8, the top ends of the two sliding rods 901 penetrate through the top of the mounting base 8 and are fixedly connected with a mounting plate 902, an elastic spring 903 is fixedly connected between the mounting plate 902 and the mounting base 8, the elastic spring 903 is sleeved outside the sliding rods 901, and the bottom of the sliding rods 901 is fixedly connected with the heat sealing device 10;
in this embodiment, by setting the elastic members 9 to each include the sliding rod 901, the mounting plate 902 and the elastic spring 903, when the heat sealing device 10 moves downward to heat-seal the self-standing bag, the downward force of the heat sealing device 10 can act on the sliding rod 901 in the opposite direction, so that the sliding rod 901 moves up and down, and further the elastic spring 903 is driven to bear a force, so that the heat sealing device 10 has a certain elastic force, and when the self-standing bag is cut off by the cutting blade 15, the heat-sealing effect is increased.
Further, the top of the production base 1 is fixedly connected with a U-shaped positioning base 14, and the U-shaped positioning base 14 is positioned at the bottom of the transmission belt 11;
in this embodiment, the U-shaped positioning base 14 is fixedly attached to the top of the production base 1, so that the heat sealing device 10 can support the self-supporting bag when the self-supporting bag is heat-sealed, thereby increasing the practicability of the device.
Further, a cutting blade 15 is fixedly connected to the bottom of the mounting seat 8, and the cutting blade 15 is located at the left side of the heat sealing device 10;
in this embodiment, by fixedly attaching the cutting blade 15 to the bottom of the mounting base 8, when the heat sealing device 10 heat-seals the self-standing pouch, the heat sealing device 10 can move upward during heat-sealing due to the supporting effect of the elastic member 9, so that the cutting blade 15 can rapidly cut the self-standing pouch, further increasing the production efficiency of the device.
The utility model discloses the model of motor 3 that uses can be Y160M-4, and it is provided with rather than supporting control switch, and control switch's mounted position can select according to the in-service use needs.
It should be noted that each device in the present application is a common device in the market, and can be selected according to the requirement when in specific use, and the circuit connection relationship of each device all belongs to a simple series and parallel connection circuit, and there is no innovation point in the circuit connection, and those skilled in the art can easily implement the circuit connection, and belong to the prior art, and are not described again.
The working principle is as follows: the support frame 2 is arranged at the top of the production base 1, so that the support frame 2 can support the motor 3 and the two lifting rods 5, the lifting plates 6 and the mounting seats 8 are respectively arranged at the bottoms and the bottoms of the lifting rods 5, the motor 3 can drive the reciprocating component 4 to extrude the lifting plates 6 after running, the reciprocating component 4 is matched with the reciprocating spring 7 to reciprocate the lifting plates 6, the lifting plates 6 can be driven by the lifting rods 5 to reciprocate the mounting seats 8 when ascending and descending, therefore, when the driving belt 11 constantly drives the self-standing bags to drive, the heat sealing device 10 at the bottom of the mounting seats 8 can reciprocate to move up and down to achieve the heat sealing effect of the self-standing bags, the elastic component 9 is arranged between the heat sealing device 10 and the mounting seats 8, the heat sealing device 10 can move down to achieve a certain elastic effect when the hot air self-standing bags are heated, and the heat sealing device 10 has a good thermoplastic effect, and in the heat sealing process of the downward displacement of the heat sealing device 10, the cutting blade 15 can cut the product of the self-standing bag, so that the device finally achieves the purpose of fast thermoplastic packaging of the self-standing bag, the production efficiency of the self-standing bag is increased, and the problem that the production efficiency is not fast enough due to the rotary production of a chain and a disc is solved.
