CN214345280U - Machinery factory building honeycomb duct of giving vent to anger that can high-efficient dust removal energy dissipation - Google Patents
Machinery factory building honeycomb duct of giving vent to anger that can high-efficient dust removal energy dissipation Download PDFInfo
- Publication number
- CN214345280U CN214345280U CN202022228053.2U CN202022228053U CN214345280U CN 214345280 U CN214345280 U CN 214345280U CN 202022228053 U CN202022228053 U CN 202022228053U CN 214345280 U CN214345280 U CN 214345280U
- Authority
- CN
- China
- Prior art keywords
- energy dissipation
- guide pipe
- flow guide
- factory building
- filter plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A50/00—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE in human health protection, e.g. against extreme weather
- Y02A50/20—Air quality improvement or preservation, e.g. vehicle emission control or emission reduction by using catalytic converters
- Y02A50/2351—Atmospheric particulate matter [PM], e.g. carbon smoke microparticles, smog, aerosol particles, dust
Landscapes
- Filtering Of Dispersed Particles In Gases (AREA)
Abstract
本实用新型公开了一种能够高效除尘消能的机械厂房出气导流管，包括厂房排气管，所述厂房排气管的出气端连接有导流管本体，所述导流管本体的前端与厂房排气管的连接处内侧通过安装支架装设有电磁吸附件，所述电磁吸附件的外表面上下两端均竖向装设有辅助清灰喷气管口，所述导流管本体的内侧衬设有消能滤板，所述消能滤板的表面还装设有凸起的消能挡块，且消能滤板的内侧面与导流管本体的内壁之间装设有支撑弹性件。本实用新型加设的吸附电磁铁能够强效吸附排气管道内气流内的铁质碎屑，加设的辅助清灰喷气管口吹出高速、洁净空气，方便过滤组件的灰尘收集和清理；加设的消能叶片进行有效的消能，满足了使用的需要。
The utility model discloses an air outlet guide pipe of a mechanical workshop capable of high-efficiency dust removal and energy dissipation, comprising a workshop exhaust pipe. The inner side of the connection with the exhaust pipe of the factory building is equipped with an electromagnetic adsorption piece through a mounting bracket, and the upper and lower ends of the outer surface of the electromagnetic adsorption piece are vertically installed with auxiliary dust cleaning jet nozzles. The inner side is lined with an energy dissipation filter plate, the surface of the energy dissipation filter plate is also provided with a raised energy dissipation block, and a support is installed between the inner side of the energy dissipation filter plate and the inner wall of the guide pipe body elastic pieces. The added adsorption electromagnet of the utility model can effectively absorb the iron debris in the airflow in the exhaust pipe, and the added auxiliary dust-cleaning jet nozzle blows out high-speed and clean air, which is convenient for dust collection and cleaning of the filter assembly; The designed energy-dissipating blades can effectively dissipate energy to meet the needs of use.
Description
Technical Field
The utility model relates to a water conservancy diversion pipeline technical field specifically is a machinery factory building honeycomb duct of giving vent to anger that can high-efficient dust removal energy dissipation.
Background
A mechanical factory building, i.e. a mechanical manufacturing plant, is a factory building device used for manufacturing mechanical parts in industry. Machine manufacturing plants can be divided into general type and professional type. Comprehensive mechanical manufacturers have a relatively complete production process from blank production to product processing and assembly, and the production process is not favorable for improving products and reducing production cost, so that the comprehensive mechanical manufacturers have few products. Professional machine manufacturers including the types of parts, forgings, tools, equipment, tooling, and the like develop rapidly due to the high level of specialization. Modern machine manufacturers are mostly of this type. The factory building for machine manufacturing needs to use an air outlet flow guide pipe fitting, namely an exhaust treatment pipe, during exhaust.
The dust removal and energy dissipation performance of the air outlet flow guide pipe structure of the current common mechanical workshop is low, so that the working efficiency is low, and the use requirement can not be met.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a machinery factory building honeycomb duct of giving vent to anger that can high-efficient dust removal energy dissipation to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a machinery factory building honeycomb duct of giving vent to anger that can high-efficient dust removal energy dissipation, includes the factory building blast pipe, the end of giving vent to anger of factory building blast pipe is connected with the honeycomb duct body, the front end of honeycomb duct body and the junction inboard of factory building blast pipe have installed the electromagnetic adsorption piece through the installing support, the electromagnetic adsorption piece includes the absorption electro-magnet of inside external power supply stand alone type power supply and the supplementary filter screen layer that the outside cover of absorption electro-magnet was established, the electromagnetism adsorbs the equal vertical supplementary deashing jet-propelled mouth of pipe of having installed in both ends about the surface of piece, the inboard lining of honeycomb duct body is equipped with the energy dissipation filter plate, bellied energy dissipation dog has still been installed on the surface of energy dissipation filter plate, and has installed support elastic component between the medial surface of energy dissipation filter plate and the inner wall of honeycomb duct body, the terminal inner wall of honeycomb duct body still has installed the unsettled energy dissipation flabellum through the mounting bracket.
Preferably, the diameter of the flow guide pipe body is larger than that of the plant exhaust pipe, and the flow guide pipe body and the plant exhaust pipe are connected through a bell-mouth-shaped sleeve.
Preferably, the air inlet end of the auxiliary deashing air injection pipe orifice is externally connected with an air blowing pump body.
Preferably, the front end of the energy dissipation filter plate is movably connected with the inner wall of the flow guide pipe body through a mounting hinge.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the adsorption electromagnet added in the utility model can strongly adsorb iron scraps in the air flow in the exhaust pipeline, and is matched with the auxiliary filter screen layer, thereby realizing the filtration and collection of high-efficiency dust and scrap iron;
2. under the action of blowing high-speed and clean air from the added auxiliary ash cleaning air injection pipe orifice, dust on the surfaces of the auxiliary filter screen layer and the energy dissipation filter plate is blown off and discharged, so that collection and cleaning are facilitated;
3. add the energy dissipation blade of establishing, when the air current passes through, drive the rotation of the great blade of dead weight, carry out effectual energy dissipation, avoid high-speed, the high energy to strike the damage of body down and satisfied the needs that use.
Drawings

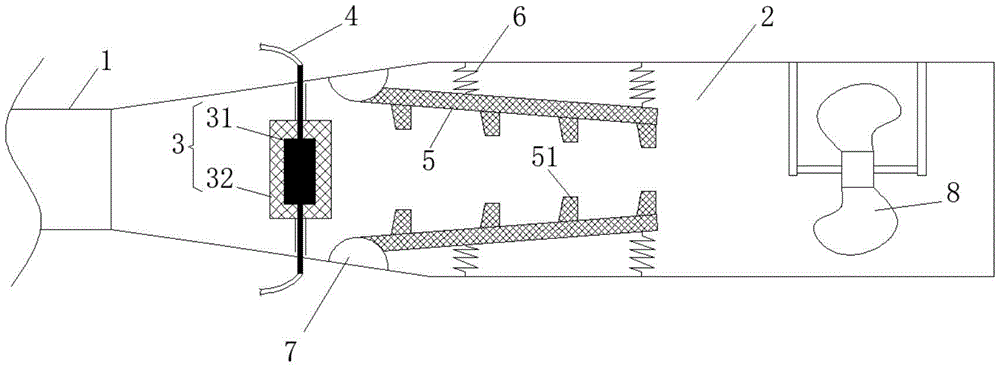

Fig. 1 is the utility model relates to a machinery factory building honeycomb duct of giving vent to anger that can high-efficient dust removal energy dissipation's schematic structure.
In the figure: the device comprises a plant exhaust pipe 1, a honeycomb duct body 2, an electromagnetic adsorption piece 3, an adsorption electromagnet 31, an auxiliary filter screen layer 32, an auxiliary deashing air injection pipe opening 4, an energy dissipation filter plate 5, an energy dissipation stop block 51, a support elastic piece 6, an installation hinge 7 and energy dissipation fan blades 8.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1, the present invention provides a technical solution: a machinery factory building air outlet flow guide pipe capable of efficiently removing dust and energy comprises a factory building exhaust pipe 1, a flow guide pipe body 2, an electromagnetic adsorption part 3, an auxiliary deashing air injection pipe opening 4, an energy dissipation filter plate 5, a supporting elastic part 6 and an installation hinge 7, wherein the air outlet end of the factory building exhaust pipe 1 is connected with the flow guide pipe body 2, the diameter of the flow guide pipe body 2 is larger than that of the factory building exhaust pipe 1, the flow guide pipe body and the factory building exhaust pipe 1 are connected through a horn mouth-shaped sleeve pipe, the electromagnetic adsorption part 3 has the effect of buffering and energy dissipation, the electromagnetic adsorption part 3 comprises an adsorption electromagnet 31 independently powered by an internal external power supply and an auxiliary filter screen layer 32 sleeved outside the adsorption electromagnet 31, and the adsorption electromagnet 31 can strongly adsorb iron fragments in air flow in an exhaust pipeline, the electromagnetic adsorption piece 3 is powered off when in work, the iron dust adsorbed on the surface is scattered, then a blowing power end pump body of the auxiliary ash cleaning jet pipe orifice 4 is opened, under the action of blowing of the auxiliary ash cleaning jet pipe orifice 4, dust is blown off and discharged, an air blowing pump body is connected to the outside of the air inlet end of the auxiliary ash cleaning jet pipe orifice 4, external air can be blown to the auxiliary ash cleaning jet pipe orifice 4 to be sprayed out, the air jet dust removal and ash removal operation is realized, the energy dissipation filter plate 5 is lined on the inner side of the guide pipe body 2, the diameter of the filter hole mesh of the energy dissipation filter plate 5 and the auxiliary filter screen layer 32 is 1-5mm, the energy dissipation filter plate structure has the advantages that dust and particles in exhaust air flow can be effectively removed, the front end of the energy dissipation filter plate 5 is movably connected with the inner wall of the flow guide pipe body 2 through the mounting hinge 7 and used for forming an inclined air flow guide surface, the surface of the energy dissipation filter plate 5 is also provided with the raised energy dissipation stop block 51, high-efficiency energy dissipation and filtering effects are achieved, the supporting elastic piece 6 is arranged between the inner side surface of the energy dissipation filter plate 5 and the inner wall of the flow guide pipe body 2, the buffering capacity is higher, the inner wall of the tail end of the flow guide pipe body 2 is also provided with the energy dissipation fan blades 8 in a hanging mode through the mounting frame, the weight is not lower than 1kg, when the air flow passes through the mounting frame, the rotation of the energy dissipation fan blades 8 is driven, effective energy dissipation is achieved, and damage to a pipe body under high-speed and high-energy impact is avoided.
The added adsorption electromagnet 31 of the utility model can strongly adsorb iron scraps in the air flow in the exhaust pipeline, and is matched with the auxiliary filter screen layer 32, thereby realizing the filtration and collection of high-efficiency dust and scrap iron; under the action of blowing high-speed and clean air from the added auxiliary ash cleaning air injection pipe orifice 4, dust on the surfaces of the auxiliary filter screen layer 32 and the energy dissipation filter plate 5 is blown off and discharged, so that collection and cleaning are facilitated; add the energy dissipation blade of establishing, when the air current passes through, drive the rotation of the great blade of dead weight, carry out effectual energy dissipation, avoid high-speed, damage to the body under the high energy strikes.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (4)
1. The utility model provides a honeycomb duct of giving vent to anger of machinery factory building that can high-efficient dust removal energy dissipation, includes factory building blast pipe (1), its characterized in that: the air outlet end of the plant exhaust pipe (1) is connected with a flow guide pipe body (2), the inner side of the joint of the front end of the flow guide pipe body (2) and the plant exhaust pipe (1) is provided with an electromagnetic adsorption piece (3) through a mounting bracket, the electromagnetic adsorption piece (3) comprises an adsorption electromagnet (31) with an internal external power supply independently powered and an auxiliary filter screen layer (32) sleeved outside the adsorption electromagnet (31), the upper end and the lower end of the outer surface of the electromagnetic adsorption piece (3) are both vertically provided with an auxiliary deashing air injection pipe orifice (4), the inner side of the draft tube body (2) is lined with an energy dissipation filter plate (5), the surface of the energy dissipation filter plate (5) is also provided with a raised energy dissipation stop block (51), and a supporting elastic part (6) is arranged between the inner side surface of the energy dissipation filter plate (5) and the inner wall of the draft tube body (2), the inner wall of the tail end of the flow guide pipe body (2) is also provided with energy dissipation fan blades (8) in a suspension mode through a mounting frame.
2. The mechanical factory building air outlet flow guide pipe capable of achieving efficient dust removal and energy dissipation according to claim 1, is characterized in that: the diameter of the flow guide pipe body (2) is larger than that of the plant exhaust pipe (1), and the flow guide pipe body and the plant exhaust pipe are connected through a horn-mouth-shaped sleeve.
3. The mechanical factory building air outlet flow guide pipe capable of achieving efficient dust removal and energy dissipation according to claim 1, is characterized in that: and the air inlet end of the auxiliary ash cleaning air injection pipe orifice (4) is externally connected with an air blowing pump body.
4. The mechanical factory building air outlet flow guide pipe capable of achieving efficient dust removal and energy dissipation according to claim 1, is characterized in that: the front end of the energy dissipation filter plate (5) is movably connected with the inner wall of the flow guide pipe body (2) through a mounting hinge (7).
