CN214340815U

CN214340815U - Multimedia Podium Table with Sliding Doors

Info

Publication number: CN214340815U
Application number: CN202022524062.6U
Authority: CN
Inventors: 陈思毅; 宋辉; 黄晓丹
Original assignee: Guangdong Vocational and Technical College
Current assignee: Guangdong Vocational and Technical College
Priority date: 2020-11-04
Filing date: 2020-11-04
Publication date: 2021-10-08
Anticipated expiration: 2030-11-04

Abstract

The utility model discloses a multimedia podium table with a sliding door, which comprises a cabinet body and a sliding door. The cabinet body comprises an upper top plate, a lower bottom plate, a left side plate, a right side plate and a rear plate, and the upper top plate is provided with a table top , the upper ends of the left side plate and the right side plate are provided with chute, the left and right sides of the sliding door are provided with at least two pins, all the pins are slidingly connected with the chute, so The front side of the chute is provided with an arc-shaped downward guide groove. The utility model uses the reversible sliding door to open and close the cabinet, and when not in use, the sliding door is turned upside down under the upper top plate, which does not occupy space, thereby making the use of the podium table more convenient.

Description

Multimedia platform table with sliding door

Technical Field

The utility model relates to a teaching furniture, in particular to a multimedia platform table with a sliding door.

Background

Along with the continuous development of the economy of China, the teaching facilities of schools are also continuously improved. Multimedia has gradually become an indispensable device in educational activities. Multimedia has at least the following advantages: (1) the teaching process is more vivid, the teaching contents can be expressed more easily and perfectly, and the teaching quality is obviously improved; (2) courseware resources are easier to accumulate, modify and share, lesson preparation time is reduced, and teaching efficiency is obviously improved; (3) the multimedia realizes the dust-free teaching and reduces the environmental pollution. However, the traditional multimedia platform table is large in overall size, adopts a traditional side-by-side door opening mode, occupies a large space, often causes the space on the platform to be crowded, and causes inconvenience for teachers to move when the platform is opened.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is: it is an object of the present invention to provide a multimedia platform table with a sliding door, which solves one or more of the problems of the prior art, and at least provides a useful choice or creation

The utility model provides a solution of its technical problem is: take multi-media podium table of sliding door, including the cabinet body, sliding door, the cabinet body includes roof, lower plate, left side board, right side board and rear panel, be equipped with the desktop on the roof, the upper end of left side board and right side board all is equipped with the spout, all be equipped with two at least round pins on the side about the sliding door, all the round pin axle all with spout sliding connection, the front side of spout is equipped with the decurrent guide slot of arc.

The utility model has the advantages that: the utility model discloses an utilize the sliding door that can overturn to open and shut the cabinet body, when not using, the sliding door goes up to turn over in the below of last roof, does not occupy the place to make the use of podium table more convenient.

As a further improvement of the above technical solution, the sliding door includes an upper door plate and a lower door plate, the pin shaft is disposed on the upper door plate, the lower door plate is hinged to the upper door plate, and a positioning mechanism is disposed between the upper door plate and the lower door plate. When the height of the cabinet body is larger, a single door plate is obviously not used, so that the sliding door is formed by two door plates which can be turned and folded, and the cabinet body is conveniently sealed.

As a further improvement of the above technical solution, the positioning mechanism includes a magnet and an iron block, the magnet is disposed on the back of the upper door plate, the iron block is disposed on the back of the lower door plate, and the magnet is opposite to the iron block. When the upset is folding, magnet attracts the iron plate to make and go up door plant and lower door plant and be close together. When the door needs to be closed, the upper door plate and the lower door plate are separated by force, so that the normal use of the sliding door is realized.

As a further improvement of the technical scheme, the front surface of the lower door plate is provided with a handle. The use of the sliding door can be more convenient by adding the handle.

As a further improvement of the above technical solution, a lock body is arranged below the lower door plate, and a lock slot corresponding to the lock body is arranged on the lower bottom plate. When the sliding door is closed, the opening of the multimedia platform table can be effectively prevented by using the lock body.

As a further improvement of the technical scheme, the cabinet body further comprises an upper plate, the upper plate is fixed between the left side plate and the right side plate, and the upper plate is obliquely arranged. The upper plate can be placed with a computer display. In order to cooperate with the computer monitor, the desktop and the sliding door can be arranged as glass blocks at corresponding positions. So as not to interfere with normal use of the display.

As a further improvement of the technical scheme, the cabinet body further comprises a drawer plate, the drawer plate is connected with the left side plate and the right side plate through sliding rails, and the drawer plate is provided with a keyboard groove and a containing groove. The keyboard is arranged in the keyboard groove, and a plurality of commonly used teaching aids such as laser pens, whitewashes and the like can be arranged in the accommodating groove.

As a further improvement of the above technical solution, the cabinet further includes a lower plate. Increase the lower plate, can improve the function of accomodating of the cabinet body, it is more convenient to use.

As a further improvement of the technical scheme, the rear panel is provided with a plurality of horn sound outlets. When the cabinet body is internally provided with a sound box, the loudspeaker sound outlet is utilized, so that the field use effect can be improved.

Drawings

In order to more clearly illustrate the technical solution in the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly described below. It is clear that the described figures represent only some embodiments of the invention, not all embodiments, and that a person skilled in the art can also derive other designs and figures from these figures without inventive effort.

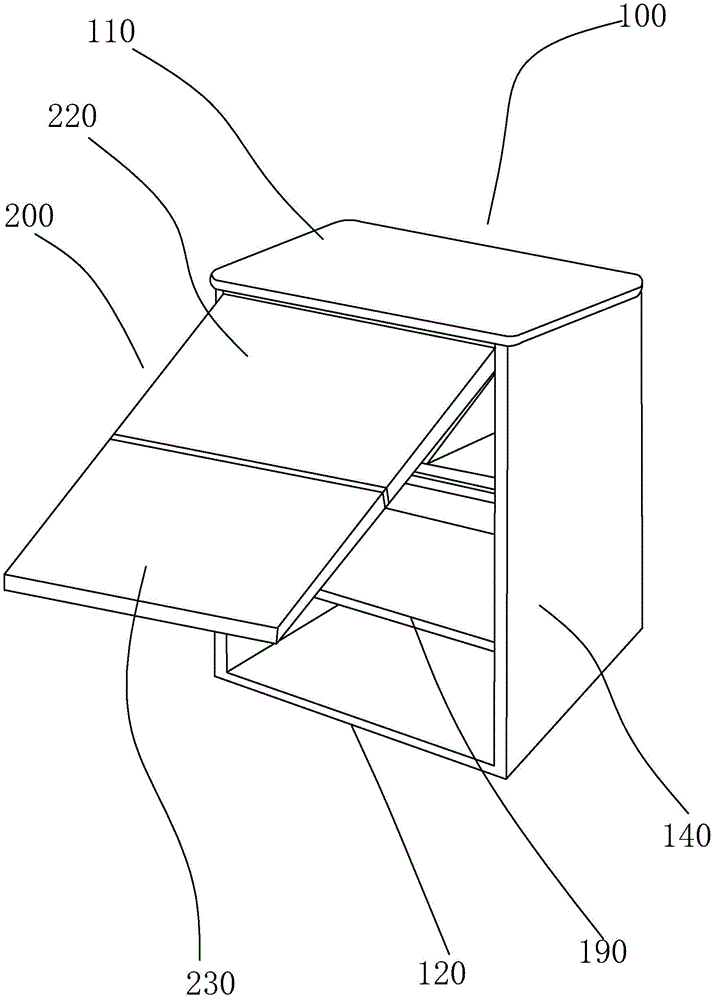

Fig. 1 is a schematic perspective view of the present invention;

fig. 2 is a perspective view of another angle of the present invention;

fig. 3 is a rear perspective view of the present invention;

fig. 4 is an inner side structure diagram of the left side plate of the present invention.

Detailed Description

The conception, the specific structure, and the technical effects produced by the present invention will be clearly and completely described below in conjunction with the embodiments and the accompanying drawings to fully understand the objects, the features, and the effects of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and other embodiments obtained by those skilled in the art without inventive labor based on the embodiments of the present invention all belong to the protection scope of the present invention. The preferred embodiment of the present invention is shown in the attached drawings, which are used to supplement the description of the text part of the specification with figures, so that one can intuitively and vividly understand each technical feature and the whole technical solution of the present invention, but they cannot be understood as the limitation of the protection scope of the present invention.

In the description of the present invention, it should be understood that the orientation or positional relationship indicated with respect to the orientation description, such as up, down, front, rear, left, right, etc., is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.

In the description of the present invention, a plurality of means are one or more, a plurality of means are two or more, and the terms greater than, less than, exceeding, etc. are understood as not including the number, and the terms greater than, less than, within, etc. are understood as including the number. If the first and second are described for the purpose of distinguishing technical features, they are not to be understood as indicating or implying relative importance or implicitly indicating the number of technical features indicated or implicitly indicating the precedence of the technical features indicated.

In the description of the present invention, unless there is an explicit limitation, the words such as setting, installation, connection, etc. should be understood in a broad sense, and those skilled in the art can reasonably determine the specific meanings of the above words in combination with the specific contents of the technical solution. Meanwhile, all technical characteristics in the invention can be interactively combined on the premise of not conflicting with each other.

Referring to fig. 1 to 4, the multimedia platform table with the sliding door includes a cabinet body 100 and a sliding door 200, wherein the cabinet body 100 includes an upper top plate 110, a lower bottom plate 120, a left side plate 130, a right side plate 140 and a rear panel 150, a table top is disposed on the upper top plate 110, sliding grooves 160 are disposed at the upper ends of the left side plate 130 and the right side plate 140, at least two pin shafts 210 are disposed on the left and right side surfaces of the sliding door 200, all the pin shafts 210 are slidably connected with the sliding grooves 160, and an arc-shaped downward guide groove 170 is disposed on the front side of the sliding groove 160.

Further as a preferred embodiment, the sliding door 200 includes an upper door panel 220 and a lower door panel 230, the pin 210 is disposed on the upper door panel 220, the lower door panel 230 and the upper door panel 220 are hinged to each other, and a positioning mechanism is disposed between the upper door panel 220 and the lower door panel 230.

Further preferably, the positioning mechanism includes a magnet and an iron block, the magnet is disposed on the back surface of the upper door plate, the iron block is disposed on the back surface of the lower door plate, and the magnet is opposite to the iron block.

Further, in a preferred embodiment, a handle is disposed on the front surface of the lower door panel 230.

Further, as a preferred embodiment, a lock body is disposed below the lower door plate 230, and a lock slot corresponding to the lock body is disposed on the lower bottom plate.

Further as a preferred embodiment, the cabinet further includes an upper plate 180, the upper plate 180 is fixed between the left side plate 130 and the right side plate 140, and the upper plate 180 is disposed in an inclined manner.

Further as a preferred embodiment, the cabinet body further includes a drawer plate 181, the drawer plate 181 is connected to the left side plate 130 and the right side plate 140 through a slide rail, and a keyboard groove 182 and a receiving groove 183 are disposed on the drawer plate 181.

As a further preferred embodiment, the cabinet 100 further includes a lower plate 190.

In a further preferred embodiment, the rear panel 150 is provided with a plurality of speaker outlets 151.

Under normal conditions, the cabinet 100 is in a locked state, the sliding door 200 covers the front of the cabinet 100, and the lock body is locked. And when the multimedia platform table needs to be opened, the lock is unlocked by using the key. The sliding door 200 is then flipped up and the sliding door 200 is then slid horizontally into the top of the cabinet. Just like a drawer. After use, the sliding door 200 is horizontally pulled out, and then the sliding door is turned over by gravity to cover the front of the cabinet 100. The lock body is then locked.

When the top surface of the cabinet 100 is smaller than the front surface, the single sliding door that can be completely received in the top of the cabinet 100 cannot completely cover the front surface of the cabinet. Therefore, in the present embodiment, the sliding door 200 includes the upper door panel 220 and the lower door panel 230, and the sliding door 200 is formed by using two foldable door panels. When the folding door is required to be folded, the folding door can be folded through the hinge between the two doors, and then the two doors can be attached together through the acting force of the magnet, so that the lower door plate 230 is prevented from being reversed under the action of gravity. The size of the upper door panel 220 is slightly smaller than that of the upper top plate 110, and the size of the lower door panel 230 is smaller than that of the upper door panel 220, so that the lower door panel 230 can be attached to the back of the upper door panel 220. And the sum of the surface areas of the upper door panel 220 and the lower door panel 230 is approximately equal to the surface area of the front surface of the cabinet 100.

When the multimedia platform table needs to be used, the lock body is unlocked firstly, then the lower door plate 230 is turned upwards and attached to the back surface of the upper door plate 220, then the upper door plate 220 drives the lower door plate 230 to turn upwards together, and after the upper door plate is turned in place, the upper door plate 220 is horizontally pushed into the upper top plate 110. The use is very convenient. After use, the upper door panel 220 is pulled out, the upper door panel 220 is turned downwards, and the lower door panel 230 is turned outwards, so that the lower door panel 230 and the upper door panel 230 are coplanar. And finally locking the lock body.

Referring to fig. 4, the sliding and the turning of the sliding door are completed by means of the pins at both sides of the sliding door. When the sliding is horizontal, the pin shaft plays a role in guiding. The pin shaft slides in the sliding groove. When the sliding door needs to be turned over, the pin shaft is connected with the arc-shaped guide groove, and the pin shaft drives the sliding door to turn over when moving in the guide groove.

While the preferred embodiments of the present invention have been described in detail, it will be understood by those skilled in the art that the invention is not limited to the details of the embodiments shown, but is capable of various modifications and substitutions without departing from the spirit of the invention.

Claims

1. The multimedia podium table with sliding door is characterized in that: comprising a cabinet body, a sliding door, and the cabinet body includes an upper top plate, a lower bottom plate, a left side plate, a right side plate and a rear panel, and the upper top plate is provided with a The desktop, the upper ends of the left side panel and the right side panel are provided with chute, and the left and right sides of the sliding door are provided with at least two pins, all of which are slidably connected with the chute, The front side of the chute is provided with an arc-shaped downward guide groove.

2 . The multimedia podium table with sliding door according to claim 1 , wherein the sliding door comprises an upper door panel and a lower door panel, the pin shaft is arranged on the upper door panel, and the lower door panel and the The upper door panels are hinged to each other, and a positioning mechanism is arranged between the upper door panel and the lower door panel.

3 . The multimedia podium table with sliding door according to claim 2 , wherein the positioning mechanism comprises a magnet and an iron block, the back of the upper door panel is provided with the magnet, and the back of the lower door panel is provided with the magnet. 4 . There is the iron block, and the magnet is opposite to the iron block.

4 . The multimedia podium table with sliding door according to claim 3 , wherein a handle is provided on the front of the lower door panel. 5 .

5 . The multimedia podium table with a sliding door according to claim 4 , wherein a lock body is arranged below the lower door panel, and a lock slot corresponding to the lock body is arranged on the lower bottom plate. 6 .

6 . The multimedia podium table with sliding door according to claim 1 , wherein the cabinet body further comprises an upper board, and the upper board is fixed between the left and right boards, and the The upper deck is tilted.

7 . The multimedia podium table with sliding doors according to claim 1 , wherein the cabinet body further comprises a drawer board, and slide rails pass between the drawer board and the left and right side boards. 8 . The drawer plate is provided with a keyboard groove and an accommodating groove.

8 . The multimedia podium table with sliding doors according to claim 1 , wherein the cabinet body further comprises a lower board. 9 .

9 . The multimedia podium table with sliding doors according to claim 1 , wherein the rear panel is provided with a plurality of speaker outlets. 10 .
