Hospital supply room collection box

Technical Field

The utility model relates to a collection box specifically is a hospital supply room collection box.

Background

Hospital supply rooms, also known as sterile supply rooms, are important departments that provide various sterile equipment, dressings, and other sterile items to the hospital. The working quality of the supply room is closely related to hospital infection, the occurrence of pyrogen reaction and the harm of particles, directly influences the quality and effect of medical care and even relates to the life safety of patients. The standard work flow of the disinfection supply room is as follows: recycling, sorting, cleaning, inspecting and packaging, sterilizing, storing and distributing. The staff in the supply room must return the used instruments to the supply room for cleaning, sorting and disinfection.

Need use the collection box when retrieving the apparatus, and current collection box though retrieve convenient and fast, nevertheless inconvenient clears up the collection box inside, and it is comparatively inconvenient to use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a hospital supply room collection box to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a hospital supply room recycling bin comprises a bin body, wherein an inner cavity of the bin body is cylindrical, a fixing frame is arranged at the outer bottom of the bin body, a blow-off pipe is connected to the bottom of the bin body in a conduction mode, a rotating shaft is rotatably connected to the inner bottom of the bin body, the rotating shaft is arranged in the vertical direction, a driving mechanism is arranged at the lower end of the rotating shaft, and a cleaning mechanism is arranged at the upper end of the rotating shaft;

the cleaning mechanism comprises a fixed sleeve which is detachably arranged on the rotating shaft, a plurality of cleaning rods are arranged on the outer wall of the fixed sleeve at intervals along the circumferential direction, and cleaning brushes which are adaptive to the inner surface of the box body are arranged on the cleaning rods.

As a further aspect of the present invention: the fixing frame comprises a bottom plate arranged in the horizontal direction, a plurality of supporting rods are arranged on the bottom plate in parallel at intervals, and the upper ends of the supporting rods are fixedly connected with the box body.

As a further aspect of the present invention: the driving mechanism comprises a rotating disk arranged at the lower end of the rotating shaft, a handle is arranged at the bottom of the rotating disk, and a fixed limiting structure matched with the rotating disk is arranged at the outer bottom of the box body.

As a further aspect of the present invention: the fixed limiting structure comprises a sleeve arranged at the outer bottom of the box body, one end of the sleeve, which is close to the rotating disc, is provided with an opening, a limiting rod is movably connected in the sleeve, and a limiting groove matched with the limiting rod is arranged on the rotating disc;

the limiting device is characterized in that a connecting rod is arranged at one end, away from the limiting groove, of the limiting rod, the connecting rod penetrates through the sleeve in a movable mode in the horizontal direction, a limiting ball is arranged at the free end of the connecting rod, and a reset spring is sleeved on the connecting rod in the sleeve.

As a further aspect of the present invention: a fixing bolt penetrates through the fixing sleeve along the horizontal direction, and a through hole matched with the fixing bolt is formed in the rotating shaft; the fixed sleeve is detachably connected with the rotating shaft through the matching of the fixed bolt and the through hole.

As a further aspect of the present invention: the cleaning rod is in an L shape matched with the inner cavity of the box body.

Compared with the prior art, the beneficial effects of the utility model are that:

after the above structure is adopted in the utility model, the inner chamber of box is cylindricly to through mutually supporting of blow off pipe, rotation axis, actuating mechanism and clearance mechanism, when clearing up the box, can spray washing liquid or antiseptic solution to the box in, then drive each clearance pole along rotating in the box, thereby clear up the inner wall of box through the clearance brush. Furthermore, the cleaning rod is L-shaped and is matched with the inner cavity of the box body, the inner surface of the box body can be effectively cleaned, the structure is simple, and the cleaning effect is good.

Simultaneously, fixed cover can be dismantled with the rotation axis through the cooperation of fixing bolt and through-hole and be connected, can conveniently carry out dismouting, change, convenient to use to clearance mechanism. The utility model discloses simple structure can conveniently clear up the internal surface of box, and the result of use is better.

Drawings

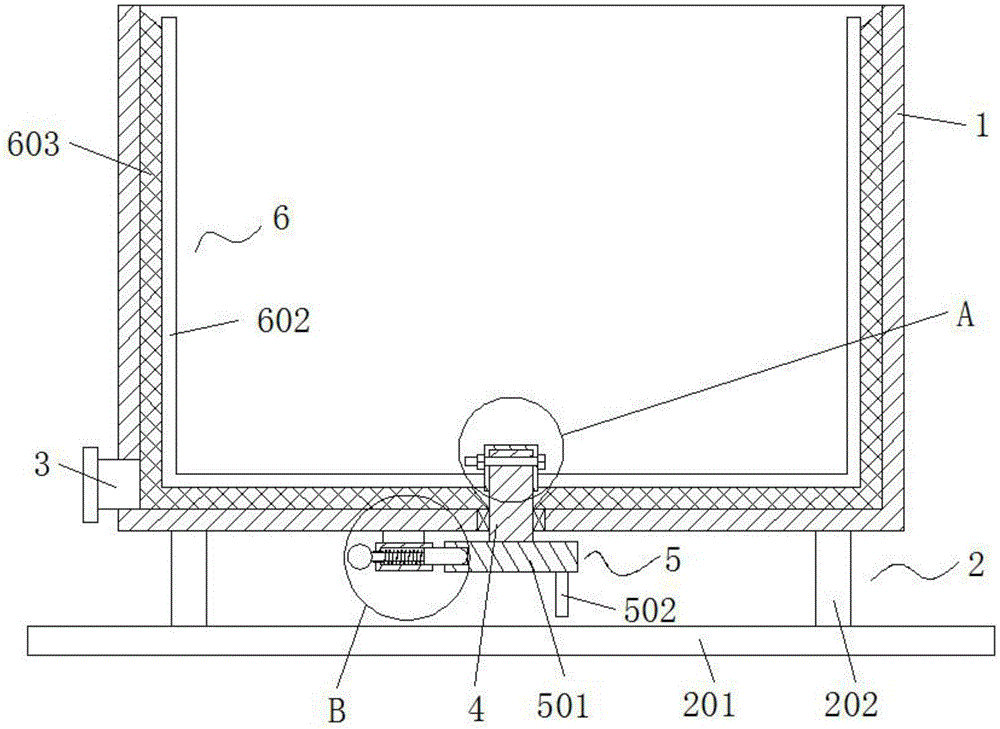

Fig. 1 is a schematic structural view of a recycling bin in a supply room of a hospital.

Fig. 2 is a partially enlarged schematic view of a portion a in fig. 1.

Fig. 3 is a partially enlarged schematic view of a portion B in fig. 1.

In the figure: 1. a box body; 2. a fixed mount; 201. a base plate; 202. a support bar; 3. a blow-off pipe; 4. a rotating shaft; 5. a drive mechanism; 501. rotating the disc; 502. a handle; 503. a sleeve; 504. a limiting rod; 505. a limiting groove; 506. a connecting rod; 508. a limiting ball; 509. a return spring; 6. a cleaning mechanism; 601. fixing a sleeve; 602. cleaning the rod; 603. cleaning a brush; 7. fixing the bolt; 8. and a through hole.

Detailed Description

The technical solution of the present patent will be described in further detail with reference to the following embodiments.

Referring to fig. 1-3, a recycling bin for a hospital supply room comprises a bin body 1, wherein the inner cavity of the bin body 1 is cylindrical, a fixed frame 2 is arranged at the outer bottom of the bin body 1, a sewage discharge pipe 3 is connected to the bottom of the bin body 1 in a conduction manner, a rotating shaft 4 is rotatably connected to the inner bottom of the bin body 1, the rotating shaft 4 is arranged in the vertical direction, a driving mechanism 5 is arranged at the lower end of the rotating shaft 4, and a cleaning mechanism 6 is arranged at the upper end of the rotating shaft 4; the cleaning mechanism 6 comprises a fixed sleeve 601 detachably arranged on the rotating shaft 4, a plurality of cleaning rods 602 are arranged on the outer wall of the fixed sleeve 601 at intervals along the circumferential direction, and cleaning brushes 603 adapted to the inner surface of the box body 1 are arranged on the cleaning rods 602. When clearing up box 1, can spray washing liquid or antiseptic solution in to box 1, then drive each clearance pole 602 along rotating in box 1 to clear up the inner wall of box 1 through cleaning brush 603.

Wherein, mount 2 includes the bottom plate 201 that sets up along the horizontal direction, bottom plate 201 is last parallel and the interval is equipped with a plurality of bracing pieces 202, and the upper end and the box 1 fixed connection of each bracing piece 202 can support box 1, simple structure, convenient to use.

Specifically, the driving mechanism 5 includes a rotating disc 501 arranged at the lower end of the rotating shaft 4, a handle 502 is arranged at the bottom of the rotating disc 501, and a fixed limiting structure adapted to the rotating disc 501 is arranged at the outer bottom of the box body 1, and can drive the rotating shaft 4 to rotate, so as to drive the cleaning mechanism 6 to rotate to clean the inner surface of the box body 1.

Further, the fixed limiting structure comprises a sleeve 503 arranged at the outer bottom of the box body 1, one end of the sleeve 503, which is close to the rotating disc 501, is provided with an opening, a limiting rod 504 is movably connected in the sleeve 503, and a limiting groove 505 matched with the limiting rod 504 is arranged on the rotating disc 501; a connecting rod 506 is arranged at one end of the limiting rod 504 far away from the limiting groove 505, the connecting rod 506 movably penetrates through the sleeve 503 along the horizontal direction, a limiting ball 508 is arranged at the free end of the connecting rod 506, and a return spring 509 is sleeved on the connecting rod 506 in the sleeve 503. When clearing the box 1, can outwards stimulate spacing ball 508 to make gag lever post 504 break away from spacing groove 505, accessible handle 502 rotates rotary disk 501 this moment, thereby drives clearance mechanism 6 and rotates, clears up the inner wall of box 1. In a normal state, the stopper rod 504 is inserted into the stopper groove 505 by the return spring 509 to fix and restrict the rotary disk 501, thereby preventing the rotary disk 501 from rotating and preventing the cleaning mechanism 6 from rotating.

In addition, a fixing bolt 7 penetrates through the fixing sleeve 601 along the horizontal direction, and a through hole 8 matched with the fixing bolt 7 is formed in the rotating shaft 4; fixed cover 601 can be dismantled with rotation axis 4 through the cooperation of fixing bolt 7 and through-hole 8 and be connected, can conveniently carry out dismouting, change, simple structure, convenient to use to clearance mechanism 6.

Further, clearance pole 602 is the L shape that suits with the inner chamber of box 1, can effectually clear up the internal surface of box 1, simple structure, and the clearance is effectual.

The utility model discloses a theory of operation is: when the cleaning device is used, the limiting rod 504 is inserted into the limiting groove 505 under the action of the return spring 509 to fix and limit the rotating disc 501, so that the rotating disc 501 is prevented from rotating, the cleaning mechanism 6 is prevented from rotating, and then the device is recovered by the box body 1.

When cleaning the box body 1, the limiting ball 508 is pulled outwards, so that the limiting rod 504 is separated from the limiting groove 505, then the rotating disc 501 is rotated through the handle 502, so that the cleaning mechanism 6 is driven to rotate, and meanwhile, cleaning liquid or disinfectant is sprayed into the box body 1, so that the inner wall of the box body 1 is cleaned or disinfected.

Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.

Claims

1. A hospital supply room recycling bin comprises a bin body (1) and is characterized in that an inner cavity of the bin body (1) is cylindrical, a fixing frame (2) is arranged at the outer bottom of the bin body (1), a blow-off pipe (3) is connected to the bottom of the bin body (1) in a conduction mode, a rotating shaft (4) is rotatably connected to the inner bottom of the bin body (1), the rotating shaft (4) is arranged in the vertical direction, a driving mechanism (5) is arranged at the lower end of the rotating shaft (4), and a cleaning mechanism (6) is arranged at the upper end of the rotating shaft (4);

clearance mechanism (6) are including dismantling fixed cover (601) of setting on rotation axis (4), be equipped with a plurality of clearance poles (602) along circumference interval on the outer wall of fixed cover (601), be equipped with on each clearance pole (602) with box (1) internal surface adapted clearance brush (603).

2. The recycling bin for hospital supply rooms according to claim 1, wherein said fixing frame (2) comprises a bottom plate (201) horizontally disposed, said bottom plate (201) is provided with a plurality of support rods (202) in parallel and at intervals, and the upper end of each support rod (202) is fixedly connected with the box body (1).

3. The hospital supply room recycling bin of claim 1, wherein the driving mechanism (5) comprises a rotating disc (501) arranged at the lower end of the rotating shaft (4), a handle (502) is arranged at the bottom of the rotating disc (501), and a fixed limiting structure matched with the rotating disc (501) is arranged at the outer bottom of the box body (1).

4. The hospital supply room recycling bin as recited in claim 3, wherein the fixed limiting structure comprises a sleeve (503) arranged at the outer bottom of the box body (1), one end of the sleeve (503) close to the rotating disc (501) is arranged in an open manner, a limiting rod (504) is movably connected in the sleeve (503), and a limiting groove (505) matched with the limiting rod (504) is arranged on the rotating disc (501);

the limiting rod (504) is provided with a connecting rod (506) at one end far away from the limiting groove (505), the connecting rod (506) movably penetrates through the sleeve (503) along the horizontal direction, a limiting ball (508) is arranged at the free end of the connecting rod (506), and a return spring (509) is sleeved on the connecting rod (506) in the sleeve (503).

5. The recycling bin of hospital supply room according to claim 1, characterized in that said fixing sleeve (601) is provided with a fixing bolt (7) along the horizontal direction, and the rotating shaft (4) is provided with a through hole (8) corresponding to the fixing bolt (7); the fixed sleeve (601) is detachably connected with the rotating shaft (4) through the matching of the fixed bolt (7) and the through hole (8).

6. Hospital supply room recycling bin according to claim 1, characterized in that the cleaning bar (602) is L-shaped to fit the inner cavity of the box (1).
