Abstract
The utility model discloses a multifunctional desk lamp belongs to life study article field. The utility model provides a multifunctional desk lamp, includes base and lamp plate, the right-hand member of base is equipped with the backup pad, and the backup pad rotates with the base damping to be connected, the damping rotates on the base and installs the baffle, the right-hand member of base is located the left side of baffle and is equipped with the notch, the upper end symmetry of base is equipped with the telescopic link. The utility model discloses, when not using the desk lamp to need to receive up the desk lamp, at first rotating the baffle and making its one end that shelters from to the backup pad enter into the notch, press down the lamp plate again and pack up the telescopic link, then in putting into first recess with the telescopic link that packs up, rotate the backup pad at last and make it pass through second recess and lamp plate joint, make the desk lamp fold completely to make the desk lamp be convenient for deposit and carry, the utility model discloses install mirror surface and player on the desk lamp for the desk lamp has the multifunctionality, thereby increases the practicality of desk lamp.
Description
Technical Field
The utility model relates to a life study article field specifically is a multifunctional desk lamp.
Background
The desk lamp is a daily necessity frequently used in daily life, and the existing desk lamp is large in size, inconvenient to carry, single in function and inconvenient to store in occupied space when not in use. Therefore, the utility model provides a multifunctional desk lamp to solve the above-mentioned problem that proposes.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a multifunctional desk lamp to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
the utility model provides a multifunctional desk lamp, includes base and lamp plate, the right-hand member of base is equipped with the backup pad, and the backup pad rotates with the base damping to be connected, the damping rotates on the base and installs the baffle, the left side that the right-hand member of base is located the baffle is equipped with the notch, the upper end symmetry of base is equipped with the telescopic link, the one end that the base was kept away from to the telescopic link all rotates with the lamp plate damping to be connected, the lower extreme symmetry of lamp plate is equipped with first recess, is equipped with a plurality of LED lamps between the first recess, the upper end right side of lamp plate is equipped with the second recess.
As a further scheme of the utility model, the inside of base is equipped with the player, the base sets up to "L" shape, the front end of base is equipped with the display screen, the below of display screen is equipped with a plurality of buttons.
As the utility model discloses further scheme again, the upper end of lamp plate is equipped with the mirror surface, and the length and the width of mirror surface are less than the length and the width of lamp plate respectively.
As a further aspect of the present invention, the length and width of the second groove are the same as the length and width of the support plate, respectively, and the depth of the second groove is the same as the thickness of the support plate.
As a further proposal, the left side of the mirror surface is provided with a plurality of keys.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses during the use, when not using the desk lamp to need to receive up the desk lamp, at first rotating the baffle and making its one end that shelters from to the backup pad enter the notch, press down the lamp plate again and pack up the telescopic link, then in putting into first recess with the telescopic link that packs up, rotate the backup pad at last and make it pass through second recess and lamp plate joint, make the desk lamp fold completely to make the desk lamp be convenient for deposit and carry.
2. The utility model discloses install mirror surface and player on the desk lamp for the desk lamp has the multifunctionality, thereby increases the practicality of desk lamp.
Drawings
Fig. 1 is a schematic structural diagram of a multifunctional table lamp.

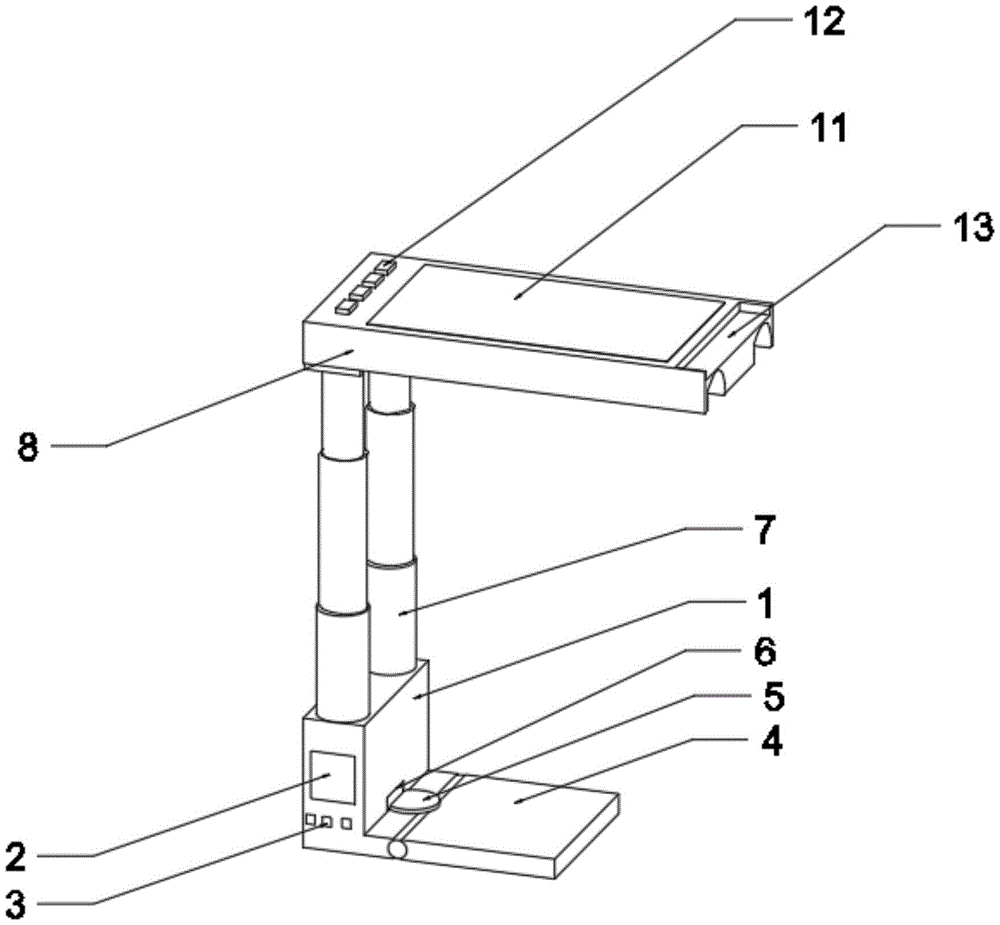

Fig. 2 is a perspective view of a multifunctional desk lamp.
Fig. 3 is a folded state view of the multifunctional desk lamp.
In the figure: 1. a base; 2. a display screen; 3. a button; 4. a support plate; 5. a baffle plate; 6. a notch; 7. a telescopic rod; 8. a lamp panel; 9. a first groove; 10. an LED lamp; 11. a mirror surface; 12. pressing a key; 13. a second groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1-3, in the embodiment of the utility model, a multifunctional desk lamp, including base 1 and lamp plate 8, base 1's right-hand member is equipped with backup pad 4, and backup pad 4 rotates with base 1 damping and is connected, the damping rotates to install baffle 5 on base 1, the left side that base 1's right-hand member is located baffle 5 is equipped with notch 6, base 1's upper end symmetry is equipped with telescopic link 7, base 1's one end is all rotated with lamp plate 8 damping to be connected to telescopic link 7, lamp plate 8's lower extreme symmetry is equipped with first recess 9, is equipped with a plurality of LED lamps 10 between the first recess 9, lamp plate 8's upper end right side is equipped with second recess 13.
The music player is characterized in that a player is arranged inside the base 1, the base 1 is L-shaped, a display screen 2 is arranged at the front end of the base 1, a plurality of buttons 3 are arranged below the display screen 2, the display screen 2 is connected with the player, and the player can be controlled to play music through the buttons 3.
Wherein, lamp plate 8's upper end is equipped with mirror surface 11, and mirror surface 11's length and width are less than lamp plate 8's length and width respectively, can use the desk lamp as the mirror when not using the desk lamp illumination.
Wherein, the length and the width of the second groove 13 are respectively the same as the length and the width of the support plate 4, and the depth of the second groove 13 is the same as the thickness of the support plate 4.
Wherein, the left side of mirror surface 11 is equipped with a plurality of buttons 12, and the light intensity of steerable LED lamp 10 through button 12.
The utility model discloses a theory of operation is:
the utility model discloses during the use, expand the desk lamp, open LED lamp 10 through button 12, thereby utilize the illumination of LED lamp 10, luminance through button 12 steerable LED lamp 10, accessible button 3 opens player broadcast music when the mind is tired out and need relax, thereby alleviate the tired out of mind, when not using the desk lamp to need to receive the desk lamp, at first rotating the baffle 5 makes its one end that shelters from to backup pad 4 get into in notch 6, press down lamp plate 8 again and pack up telescopic link 7, then in putting into first recess 9 with telescopic link 7 that packs up, rotate backup pad 4 at last and make it pass through second recess 13 and 8 joints of lamp plate, make the desk lamp fold completely, thereby make the desk lamp be convenient for deposit and carry.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The utility model provides a multifunctional desk lamp, includes base (1) and lamp plate (8), its characterized in that, the right-hand member of base (1) is equipped with backup pad (4), and backup pad (4) rotate with base (1) damping and are connected, damping rotation installs baffle (5) on base (1), the left side that the right-hand member of base (1) is located baffle (5) is equipped with notch (6), the upper end symmetry of base (1) is equipped with telescopic link (7), the one end that base (1) was kept away from in telescopic link (7) all rotates with lamp plate (8) damping and is connected, the lower extreme symmetry of lamp plate (8) is equipped with first recess (9), is equipped with a plurality of LED lamps (10) between first recess (9), the upper end right side of lamp plate (8) is equipped with second recess (13).
2. The multifunctional table lamp according to claim 1, characterized in that a player is arranged inside the base (1), the base (1) is L-shaped, a display screen (2) is arranged at the front end of the base (1), and a plurality of buttons (3) are arranged below the display screen (2).
3. The multifunctional desk lamp as claimed in claim 1, wherein the upper end of the lamp panel (8) is provided with a mirror surface (11), and the length and width of the mirror surface (11) are respectively smaller than those of the lamp panel (8).
4. A multifunctional desk lamp as claimed in claim 1, wherein the length and width of the second groove (13) are the same as the length and width of the support plate (4), respectively, and the depth of the second groove (13) is the same as the thickness of the support plate (4).
5. A multifunctional desk lamp as claimed in claim 3, wherein the left side of the mirror (11) is provided with a plurality of keys (12).
