Abstract
The utility model discloses an external folding storing frame, including dead lever, chain joint board, the rotation supporting shoe and the folding frame of taking the couple, the dead lever back is provided with the couple, and its front relative with the back is equipped with the lug of evagination, the chain joint board is fixed on the lug of these 2 dead levers, a side of rotating the supporting shoe passes through the axis of rotation rotatable ground and links in the bottom surface of chain joint board, the folding frame is connected fixedly and is located the rotation supporting shoe top when the rotation supporting shoe is unscrewed through the hinge and the side of chain joint board, and rotates folding receipts downwards when rotating supporting shoe screw in to chain joint board below and close. The utility model discloses simple structure, convenient to use, the usage space of expanded bathroom cabinet mesa possesses the function of accomodating again simultaneously, and the practicality is strong, is fit for modern family's use, also can be used to any place that needs external storing frame simultaneously, and application range is extensive.
Description
Technical Field
The utility model relates to a storage rack, in particular to an external folding storage rack which can be arranged outside a kitchen cabinet and a bathroom cabinet.
Background
The washrooms of modern families are generally provided with bathrooms, toilets and bathroom cabinets with wash basins, wherein the wash basins are arranged in the middle of the table top of the bathroom cabinet, and the spaces below the wash basins are generally provided with storage cabinets capable of containing articles. The size of the table top of the existing bathroom cabinet is generally determined according to the space size of a toilet, and the table top cannot be changed after being formed, so that the problem that the use space needs to be temporarily increased cannot be solved. In particular, in order to increase the storage capacity of the storage cabinets and maintain the cleanliness of the storage space in the bathroom cabinet, the storage cabinets are generally layered by using partition plates, or articles are stored in the storage cabinets in a classified manner by using storage boxes, storage baskets, and the like, and are stacked in order. In order to conveniently take, generally adopt hidden drawer basket structure on the market at present, namely will deposit the storage basket or the storing box of smallclothes article and fix at the locker door back, when opening locker door, the storage basket just opens along with the locker door, just so conveniently takes the smallclothes article commonly used, also makes storage space whole have in addition, and is very clean and tidy.
Although the built-in hidden storing basket is convenient for taking articles, but needs to occupy a large part of the internal storing space, so that the practicability of the storing cabinet can be reduced, and the mounting process is more complicated and complicated, is limited by the space of a toilet, and is not clean well in practical use. Particularly, for wet clothes, if the clothes are stored in the storage cabinet, not only can the clean articles be easily subjected to cross contamination and the use is influenced, but also the clothes in the storage cabinet are too wet and easy to go moldy, so the clothes cannot be placed in the cabinet; while placing damp clothing elsewhere makes the toilet look messy.
SUMMERY OF THE UTILITY MODEL
In order to overcome the problems in the prior art, the utility model aims to provide an external folding storage rack which can temporarily increase the use space of the table top of the bathroom cabinet and optimize the storage function of the bathroom cabinet; the external folding storage rack can be hung on a side plate of the bathroom cabinet or outside a cabinet door, has a folding function, and is small in occupied space, simple in structure and convenient to use.
In order to solve the technical problem, the utility model discloses a following technical scheme realizes:
an external folding storage shelf comprising:
the back surface of the fixed rod is provided with a hook, and the front surface of the fixed rod, which is opposite to the back surface, is provided with a convex bump;
a link plate fixed on the projection of the fixing rod;
the rotating support block can be rotatably inserted and fixed below the link plate and comprises a fixed end and a free end, and the fixed end is fixedly connected with the link plate through a rotating shaft;
the folding frame is connected to the side edge of the link plate through a hinge, and the folding frame and the link plate are respectively positioned at two ends of the hinge;
when the free end of the rotating supporting block rotates around the rotating shaft and is screwed out of the lower part of the link plate, the rotating supporting block supports the folding frame to be in a use state; when the free end of the rotating supporting block rotates around the rotating shaft and returns to the position below the link plate, the folding frame is folded downwards.
The external folding storage rack of the utility model can be hung outside the side edge of the bathroom cabinet through the hook on the fixed rod, when in use, the folding frame is supported to a horizontal state through rotating the supporting block, and the cover plate is covered on the folding frame, so that an extra expansion space of the table top of the bathroom cabinet can be formed, and the requirement of increasing the space of the table top is met; when the bathroom cabinet is folded, the folding frame can be folded close to the side of the bathroom cabinet after losing the support only by rotating the rotating support block to the position below the link plate. If desired, a storage basket may also be provided on the folding frame to optimize storage. The utility model can also be hung on the cabinet door of the bathroom, and is convenient and flexible to use.
Furthermore, the fixed end of the rotating supporting block is provided with a jack, and the rotating shaft is a bolt or a screw.
Furthermore, the hook is formed by bending the top end of the fixing rod downwards, and the hook and the fixing rod are integrally formed.
Furthermore, a cover plate is laid on the folding frame to be used as an extension of the bathroom cabinet table board.
Furthermore, a storage basket is hung below the folding frame, an ear buckle is arranged at the opening edge of the storage basket, and a bulge fixedly clamped with the ear buckle is arranged at the edge of the inner side of the folding frame; the storage basket and the cover plate can be used independently or simultaneously.
Further, the number of the fixing rods is two or more.
Furthermore, the number of the folding frames is more than one, and each folding frame is provided with at least one rotating support block.
Furthermore, the hinge mainly comprises a bearing and blades which are linked on the left side and the right side of the bearing and can respectively rotate around the bearing for a certain angle, the rotating angle of the blades is alpha, and alpha is more than or equal to 0 degrees and less than 180 degrees.
Further, the angle of folding frame folding back downwards is 90 °.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses an ingenious structural design will fold the frame and pass through hinged joint at the side of chain joint board to will rotate the supporting shoe through the axis of rotation and rotationally peg graft and fix in chain joint board below. When the free end of the rotating supporting block rotates around the rotating shaft and is screwed out of the lower part of the link plate, the folding frame is supported to be in a use state, and the use space of the bathroom table top can be additionally expanded; when the free end of the rotating supporting block rotates around the rotating shaft and returns to the position below the link plate, the folding frame is folded downwards and does not occupy the space of a toilet after being folded.
The utility model discloses it is fairly convenient to use, has following effect:
1. the use space of bathroom cabinet is additionally expanded, and the function of the storage basket below is increased while the folding table top is increased, so that the utilization rate of the space is improved.
2. When the folding rack is not needed, the folding rack can be folded and tightly attached to the cabinet body, so that redundant space is not occupied; the storage bag can still perform the storage function of the bag without influence.
3. When wholly promoting the usage space, get rid of the structure that needs general built-in storing drawer basket whole comparatively succinctly pleasing to the eye.
Drawings

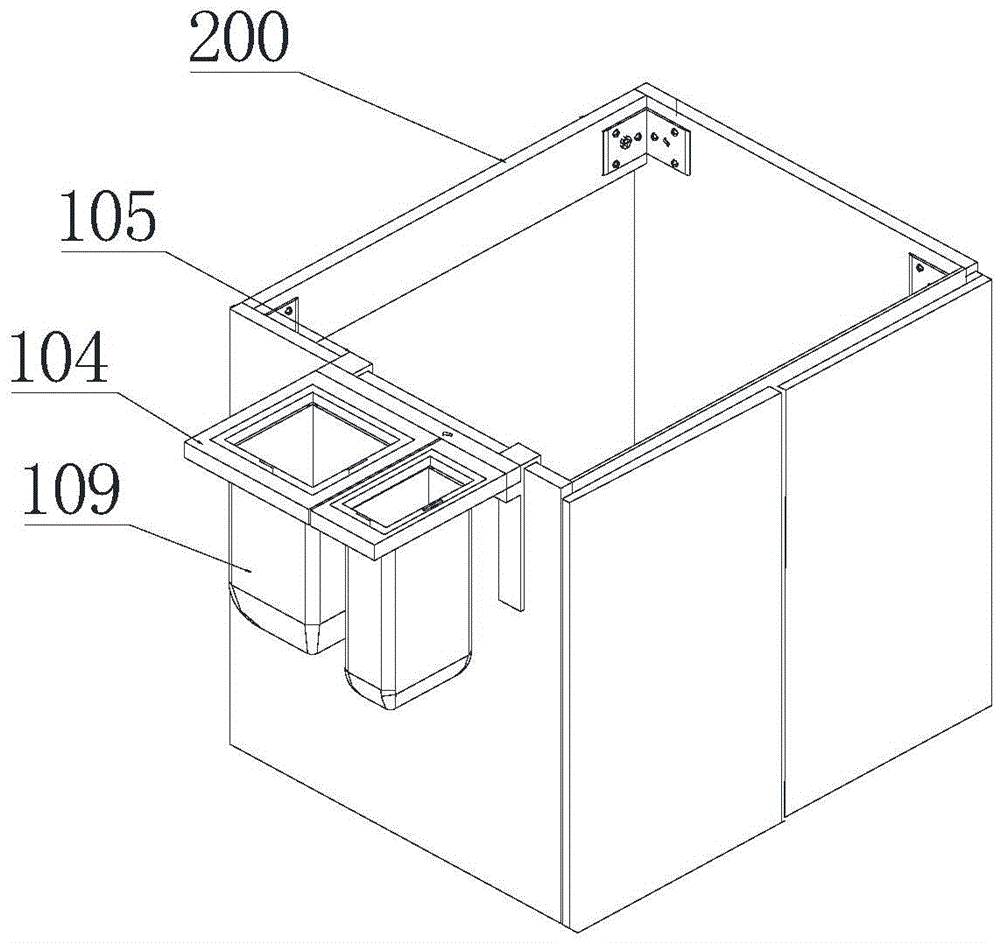

FIG. 1 is a schematic view of the present invention in use;
fig. 2 is an exploded view of the external foldable storage rack of the present invention in embodiment 1;
FIGS. 3A-3C are schematic views illustrating a folding process of the folding frame;
wherein: FIG. 3A is a schematic view of the folding frame when fully unfolded, FIG. 3B is a schematic view of the folding process of the folding frame, and FIG. 3C is a schematic view of the folding frame when fully folded;
FIG. 4 is a schematic structural view of the storage basket and the folding frame in example 1;
FIG. 5 is a schematic structural diagram illustrating an external folding storage rack in accordance with embodiment 2.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Example 1
Referring to fig. 1, fig. 1 is a diagram illustrating a usage state of the present invention, which includes a bathroom cabinet 200. The utility model discloses an external folding storing frame mainly includes dead lever 101, chain link plate 102, rotation supporting shoe 103 and folding frame 104 of taking the couple.
Referring to fig. 2, in the embodiment, the number of the fixing rods 101 is 2, the top end of the fixing rod 101 is bent downward to form a hook 105, and the hook 105 is disposed on the back of the fixing rod and integrally formed with the fixing rod. The front surface of the fixing rod 101 opposite to the back surface is provided with a convex bump 106. The protrusion 106 is used for mounting the link plate 102, and both ends of the link plate 102 are respectively fixed on the protrusions 106 of the 2 fixing rods 101. The rotating support block 103 is rotatably inserted and fixed below the link plate 102, the rotating support block 103 comprises a fixed end and a free end, the fixed end is fixedly connected with the link plate through a rotating shaft 107, the rotating support block 103 can rotate around the rotating shaft 107, and when the free end of the rotating support block 103 rotates around the rotating shaft 107 and is screwed out of the lower part of the link plate 102, the rotating support block 103 supports the folding frame 104 to be in a use state; when the free end of the rotating support block 103 rotates around the rotating shaft 107 and returns to the position below the link plate 102, the folding frame 104 loses support so as to be folded and folded downwards, and the folding frame 104 is unfolded and folded, as shown in fig. 3A to 3C.
The folding frame 104 is connected and fixed on the side of the link plate 102 by a hinge 108, and the folding frame 104 and the link plate 102 are respectively located at both ends of the hinge 108. Each folding frame disposes a rotation supporting shoe at least, and folding frame 104 arranges rotation supporting shoe 103 top in when rotating supporting shoe 103 and unscrewing in to expand and can regard as the extension mesa of bathroom cabinet to when rotating supporting shoe 103 screw in to linking plate 102 below downwards rotate with folding receipts, folding receipts receive can not occupy the space in bathroom behind bathroom cabinet side, thereby has promoted greatly the utility model discloses a practicality.
The hinge 108 is mainly composed of a bearing and blades at two sides thereof, the blades are linked at the left and right sides of the bearing and can rotate around the bearing respectively for a certain angle, the rotating angle is alpha, alpha is more than or equal to 0 degree and less than 180 degrees. In this embodiment, the hinge 108 is a commercially available hinge member, one leaf of which is secured to the link plate 102 and the other leaf of which is simultaneously secured to the folding frame 104. The downward rotation angle of the folding frame is substantially consistent with the angle alpha, in the embodiment, the rotation angle of the folding frame is 0-90 degrees, namely, the folding frame is positioned on the same horizontal plane with the table-board of the bathroom cabinet when being unfolded, and is attached to the side edge of the bathroom cabinet when being folded and folded, and forms an angle of 90 degrees with the table-board.
Referring to fig. 4, in the present embodiment, there are 2 folding frames 104, and there are 2 rotating support blocks 103. A storage basket 109 is hung below the folding frame 104, an ear clip 112 is arranged at the opening edge of the storage basket 109, and correspondingly, a protrusion 113 which is clamped and fixed with the ear clip 112 is arranged at the inner side edge of the folding frame 104. Therefore, the external folding storage rack of this embodiment is provided with two storage baskets and folding storage rack, and the storage basket has the function of accomodating, in the summer of hidrosis, can be used to accomodate the clothes of waiting to change and wash, can effectively promote the clean and tidy degree in bathroom. According to the use requirement, the two storage baskets can be matched with each other in a large-small mode, and correspondingly, the size of the folding frame 104 is changed along with the size of the storage basket.
This embodiment external folding storing frame hangs through the couple on the dead lever 101 and establishes on the bathroom cabinet side, also can hang and locate the bathroom cabinet door or any place that can hang the couple, just so can with purpose-made bathroom cabinet cooperation is used, can be used to accomodate inconvenient moist clothing of placing in the bathroom cabinet, also can be used to accomodate the higher smallclothes article of frequency of use, conveniently takes the use.
Example 2
Please refer to fig. 2 and fig. 5; the external folding storage rack of the present embodiment includes a fixing rod 101 with a hook, a link plate 102, a rotation supporting block 103, and a folding frame 104.
The number of the fixing rods 101 is 2, the top end of each fixing rod 101 is bent downwards to form a hook 105, the hook 105 is arranged on the back face of each fixing rod and integrally formed with the fixing rod, and a convex bump 106 is arranged on the front face, opposite to the back face, of each fixing rod 101. The protrusion 106 is used for installing the link plate 102, and two ends of the link plate 102 are respectively fixed on the protrusions 106 of the 2 fixing rods. The rotating support block 103 is rotatably inserted and fixed below the link plate 102, the rotating support block 103 comprises a fixed end and a free end, the fixed end is fixedly connected with the link plate through a rotating shaft 107, the rotating support block 103 can rotate around the rotating shaft 107, and when the free end of the rotating support block 103 rotates around the rotating shaft 107 and is screwed out of the lower part of the link plate 102, the rotating support block 103 supports the folding frame 104 to be in a use state; when the free end of the rotating support block 103 rotates around the rotating shaft 107 and returns to the position below the link plate 102, the folding frame 104 loses support so as to be folded and folded downwards, and the folding frame 104 is unfolded and folded, as shown in fig. 3A to 3C.
The connection structure of the foldable frames 104 and the link plates 102 is as described in embodiment 1, in this embodiment, there are 2 foldable frames 104, one of the foldable frames 104 is connected to the storage basket 110, and the other foldable frame is laid with the cover plate 111, the cover plate 111 can be used as an extension of the bathroom cabinet table, so as to increase the usable area of the bathroom cabinet table. Connection structure of storage basket 110 and folding frame 104 as described in reference to embodiment 1, the opening edge of storage basket 110 is provided with an ear clip, and correspondingly, the inner side edge of folding frame 104 is provided with a protrusion fastened and fixed with the ear clip. The 2 folding frames 104 may be integrally formed or may be independent from each other, so that one of the folding frames may be unfolded and the other folding frame may be folded, or the two folding frames may be unfolded or folded simultaneously.
When in use, the hook 105 is hung on the side edge of the bathroom cabinet, and then the support block 103 is rotated to lift the folding frame 104 until the folding frame is completely unfolded, as shown in fig. 3A; after the folding frame 104 is unfolded, the storage basket and/or the cover plate can be mounted according to the use requirement, and then the folding frame can be normally used. When the foldable frame is folded, the rotary supporting block 103 is rotated to the position below the link plate 102, so that the foldable frame 104 is unsupported and can be folded downwards. The utility model discloses paste on bathroom cabinet side after folding to can not occupy the space in bathroom, and the function of storing still can be played to folding back storing basket. If the storage basket is not needed to be used, the storage basket can be taken down.
The storing basket in above-mentioned two embodiments also can be replaced by the storing bag, in order to promote the utility model discloses an outward appearance aesthetic feeling according to user's needs, can add decorative plate lid 114 on folding frame 104's the border, both played the effect of decorating, still make storing basket and folding frame be connected more firmly simultaneously.
Although the present invention has been described in detail with reference to the embodiments, it will be apparent to those skilled in the art that modifications, equivalents, improvements and the like can be made in the technical solutions of the foregoing embodiments or in some technical features of the foregoing embodiments, but all modifications, equivalents, improvements and the like within the spirit and principle of the present invention are intended to be included in the scope of the present invention.
Claims (9)
1. An external folding storage rack, characterized by comprising:
the back surface of the fixed rod is provided with a hook, and the front surface of the fixed rod, which is opposite to the back surface, is provided with a convex bump;
a link plate fixed on the projection of the fixing rod;
the rotating support block can be rotatably inserted and fixed below the link plate and comprises a fixed end and a free end, and the fixed end is fixedly connected with the link plate through a rotating shaft;
the folding frame is connected to the side edge of the link plate through a hinge, and the folding frame and the link plate are respectively positioned at two ends of the hinge;
when the free end of the rotating supporting block rotates around the rotating shaft and is screwed out of the lower part of the link plate, the rotating supporting block supports the folding frame to be in a use state; when the free end of the rotating supporting block rotates around the rotating shaft and returns to the position below the link plate, the folding frame is folded downwards.
2. The external folding storage shelf of claim 1, wherein: the fixed end of the rotating supporting block is provided with a jack, and the rotating shaft is a bolt or a screw.
3. The external folding storage shelf of claim 1, wherein: the hook is formed by bending the top end of the fixed rod downwards, and the hook and the fixed rod are integrally formed.
4. The external folding storage shelf of claim 1, wherein: and a cover plate is laid on the folding frame to be used as an extension of the bathroom cabinet table board.
5. The external folding storage shelf as defined in claim 1 or 4, wherein: the storage basket is hung below the folding frame, an ear buckle is arranged on the opening edge of the storage basket, and a bulge fixed with the ear buckle in a clamping mode is arranged on the edge of the inner side of the folding frame.
6. The external folding storage shelf of claim 1, wherein: the number of the fixing rods is two or more.
7. The external folding storage shelf of claim 1, wherein: the number of the folding frames is more than one, and each folding frame is provided with at least one rotating supporting block.
8. The external folding storage shelf of claim 1, wherein: the hinge is mainly composed of a bearing and blades which are linked on the left side and the right side of the bearing and can rotate around the bearing for a certain angle respectively, wherein the rotating angle of the blades is alpha, and alpha is more than or equal to 0 degrees and less than 180 degrees.
9. The external folding storage shelf of claim 7, wherein: the angle of the folding frame which is folded downwards is 90 degrees.
