Abstract
本实用新型公开了一种对联包装彩灯福筒，包括底座；所述底座上侧固定安装有灯珠支撑座；所述灯珠支撑座的上侧设有灯座，所述灯座内部设有灯珠；所述灯珠支撑座的外侧设有内罩；所述内罩的外侧套装有外罩；本实用新型的内罩是透明明塑料筒，外面纸筒套在内罩外侧，形成一个完整的包装筒；外筒采用纸裱糊，镂空，也可以让里面的光源透出来，也可以是装饰灯。
The utility model discloses a couplet-packed lantern blessing tube, comprising a base; a lamp bead support seat is fixedly installed on the upper side of the base; a lamp seat is arranged on the upper side of the lamp bead support seat, and a lamp seat is arranged inside the lamp base There are lamp beads; the outer side of the lamp bead support seat is provided with an inner cover; the outer side of the inner cover is sleeved with an outer cover; the inner cover of the utility model is a transparent bright plastic tube, and the outer paper tube is sleeved outside the inner cover to form a A complete packaging tube; the outer tube is covered with paper and hollowed out, which can also allow the light source inside to show through, or it can be a decorative lamp.
Description
Technical Field
The utility model relates to a ornament lamp field specifically is a fortune section of thick bamboo of antithetical couplet packing color lamp.
Background
The traditional decorative lamp is a colored decorative lamp formed by coating a layer of independent color on a common bulb and combining a plurality of groups of bulbs with different colors. For example, a string of bulbs wound on a christmas tree emit light of different colors, thereby adding to the atmosphere of a holiday; decorative lamps with different colors are arranged in plants or buildings at two sides of the road, so that the decorative lamps have different lighting effects, and the urban environment is beautified. The decorative lamp used in the catering industry is generally installed on a ceiling, and the indoor environment is more beautiful and beautiful by the downward irradiation of the reflection of the lampshade installed on the ceiling.
The existing decorative lamps used in the catering industry are monotonous, have poor artistic sense and lack personalized elements, and along with the improvement of the life quality of people, people cannot meet the decorative effect brought by the decorative lamps provided in the existing market.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a fortune section of thick bamboo of antithetical couplet packing color lamp to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a fortune section of thick bamboo of antithetical couplet packing color lamp, including the base; a lamp bead supporting seat is fixedly arranged on the upper side of the base; a lamp holder is arranged on the upper side of the lamp bead supporting seat, and a lamp bead is arranged in the lamp holder; an inner cover is arranged on the outer side of the lamp bead supporting seat; the outer side of the inner cover is sleeved with an outer cover.
As a further aspect of the present invention: the inner cover is made of transparent PVC material and is subjected to color printing treatment on the outer side.
As a further aspect of the present invention: the outer cover is made of hollowed paper.
As a further aspect of the present invention: the lamp beads are connected with the battery through wires, and a switch is arranged on a connected loop; the switch is arranged on the base; the battery is clamped and installed in the battery seat; the battery holder is fixedly arranged in the groove of the base, the cover plate is clamped and arranged on the outer side of the groove, and the cover plate is clamped and connected with the groove.
Compared with the prior art, the beneficial effects of the utility model are that: the inner cover of the utility model is a transparent plastic tube, and the outer paper tube is sleeved outside the inner cover to form a complete packaging tube; the outer barrel is pasted with paper and is hollow, so that a light source inside the outer barrel can be transmitted out, and the outer barrel can also be a decorative lamp.
Drawings

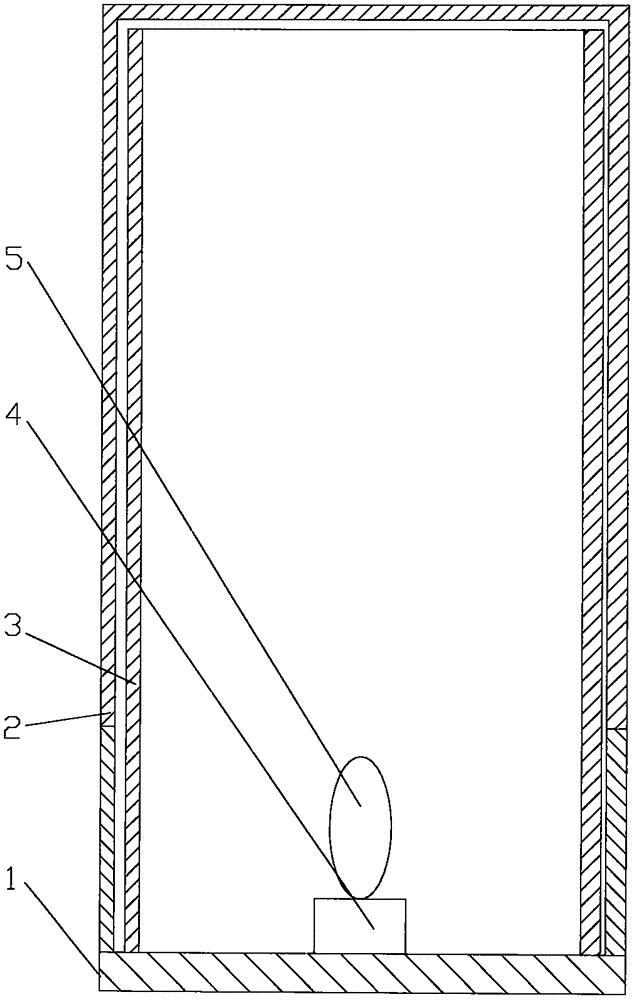

Fig. 1 is a schematic structural view of a blessing tube with a pair of packaging color lamps.
In the figure: base 1, dustcoat 2, inner cover 3, lamp pearl supporting seat 4, lamp pearl 5.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
In the description of the present invention, it should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected" and "disposed" are to be construed broadly, and may for example be fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1, in an embodiment of the present invention, a fortune section of thick bamboo of antithetical couplet packing color lamp includes a base 1; a lamp bead supporting seat 4 is fixedly arranged on the upper side of the base 1; a lamp holder is arranged on the upper side of the lamp bead supporting seat 4, and a lamp bead 5 is arranged in the lamp holder; an inner cover 3 is arranged on the outer side of the lamp bead supporting seat 4; the outer side of the inner cover 3 is sleeved with an outer cover 2.
The inner cover 3 is made of transparent PVC material and is subjected to color printing treatment on the outer side.
The outer cover 2 is made of hollowed paper.
The lamp bead 5 is connected with a battery through a wire, and a switch is arranged on a connected loop; the switch is arranged on the base; the battery is clamped and installed in the battery seat; the battery holder is fixedly arranged in the groove of the base, the cover plate is clamped and arranged on the outer side of the groove, and the cover plate is clamped and connected with the groove.
The outer cover 2 is divided into a top outer cover and a bottom outer cover, the bottom outer cover and the base 1 are integrated, and the top outer cover is clamped on the upper side of the bottom outer cover during installation; the top of the inner cover 3 is processed without a cover.
The utility model discloses a theory of operation is:
the utility model is provided with a transparent plastic tube inside, and an outer paper tube is sleeved on the transparent plastic tube inside to form a complete packaging tube; the outer barrel is pasted with paper and is hollow, so that a light source inside the outer barrel can be transmitted out, and the outer barrel can also be a decorative lamp.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (3)
1. The utility model relates to a fortune section of thick bamboo of antithetical couplet packing color lamp which is characterized in that comprises a base (1); a lamp bead supporting seat (4) is fixedly arranged on the upper side of the base (1); a lamp holder is arranged on the upper side of the lamp bead supporting seat (4), and a lamp bead (5) is arranged in the lamp holder; an inner cover (3) is arranged on the outer side of the lamp bead supporting seat (4); the outer side of the inner cover (3) is sleeved with an outer cover (2); the inner cover (3) is made of transparent PVC material and is subjected to color printing treatment on the outer side.
2. The colour lamp fortune cylinder of antithetical couplet packing of claim 1, characterized in that, the outer cover (2) is made of hollowed paper.
3. The antithetical couplet packaging color lamp cartridge according to claim 1, wherein the lamp bead (5) is connected with a battery through a wire, and a switch is arranged on a connected loop; the switch is arranged on the base; the battery is clamped and installed in the battery seat; the battery holder is fixedly arranged in the groove of the base, the cover plate is clamped and arranged on the outer side of the groove, and the cover plate is clamped and connected with the groove.
