Abstract

The application relates to a winding mechanism for an elasticizer, belonging to the technical field of elasticizer equipment and comprising a rack, a winding roller and a winding motor, wherein the winding roller and the winding motor are arranged on the rack; the winding roller is vertically arranged on the rack, a driving piece for driving the winding roller to lift is arranged on the rack, and the winding roller is in running fit with the driving piece; a plurality of winding drums in sliding fit with the winding drum are sleeved outside the winding drum, driven gears are fixed at the bottoms of the winding drums and sleeved outside the winding drum and in sliding fit with the winding drum; a limiting plate is fixed at the bottom of the winding roller, and a driven gear of the winding drum positioned at the bottom of the winding roller is supported on the limiting plate; the top of the winding roller is detachably connected with a positioning plate, and the positioning plate is abutted against the top of the winding drum positioned at the top of the winding roller; the rack is rotatably connected with a driving gear, and the winding motor is connected to the driving gear; the driving gear is meshed with a driven gear on a winding drum positioned at the top of the winding roller. This application has the effect that improves the work efficiency who adds the bullet machine.

Description

Winding mechanism for elasticizer
Technical Field
The application relates to the field of draw texturing machine equipment, in particular to a winding mechanism for a draw texturing machine.
Background
The easy-to-dye polyester POY fiber is artificial fiber processed by utilizing a high polymer material, and the easy-to-dye polyester POY fiber needs to be subjected to heat treatment by utilizing an elasticizer and then to be subjected to back twisting in the production process, so that the surface of the easy-to-dye polyester POY fiber is curled, and the fluffiness and the elasticity of the easy-to-dye polyester POY are improved.
Chinese patent with grant publication No. CN210341202U discloses a high-efficient elasticizer, including decoiling mechanism, elasticizer and winding mechanism, decoiling mechanism includes decoiling frame, unwinding roller and scram device, decoiling roller has a plurality of to set firmly in decoiling frame, scram device has a plurality of and unwinding roller one-to-one, scram device sets firmly directly over unwinding roller and opens the winding frame and rotate and connect on the mounting bracket, scram switch sets firmly in decoiling frame in the dwang department that can touch, winding mechanism includes frame, winding roller and rolling motor, the winding roller has a plurality ofly and with the decoiling roller one-to-one and set firmly in the frame, the rolling motor has a plurality ofly to link to each other with the winding roller one-to-one.
With respect to the related art among the above, the inventors consider that the following drawbacks exist: the winding mechanism often needs to stop the operation of the elasticizer firstly when winding, then the winding drum on the winding mechanism is replaced, then the elasticizer is started to continue working, and the working efficiency of the elasticizer is low due to the fact that the winding drum needs to be replaced frequently.
SUMMERY OF THE UTILITY MODEL
In order to improve the work efficiency who adds the bullet machine, this application provides a winding mechanism for adding bullet machine.
The above object of the present application is achieved by the following technical solutions:
a winding mechanism for an elasticizer comprises a frame, a winding roller and a winding motor, wherein the winding roller and the winding motor are arranged on the frame; the winding roller is vertically arranged on the rack, a driving piece for driving the winding roller to lift is additionally arranged on the rack, and the winding roller can rotate on the driving piece around the axis of the winding roller; a plurality of winding drums in sliding fit with the winding drum are sleeved outside the winding drum, driven gears are fixed at the bottoms of the winding drums, and the driven gears are sleeved outside the winding drum and are in sliding fit along the winding drum; a limiting plate is fixed at the bottom of the winding roller, and a driven gear of a winding drum positioned at the bottom of the winding roller is supported on the limiting plate; the top of the winding roller is detachably connected with a positioning plate, and the positioning plate is tightly propped against the top of the winding drum positioned at the top of the winding roller; the rack is rotatably connected with a driving gear, and the winding motor is connected to the driving gear; the driving gear is meshed with a driven gear on a winding drum positioned at the top of the winding roller.
Through adopting above-mentioned technical scheme, after the rolling of fibre was accomplished to the winding drum that is located the winding drum top, start the driving piece and make the winding drum rise, driven gear and the driving gear meshing in the frame on the winding drum that is located the below for the winding drum of below carries out the rolling of fibre. And when all the winding drums on the winding rollers complete the winding of the fibers, detaching the positioning plate, taking out all the winding drums on the winding rollers, replacing the new winding drums, and winding the fibers again. In the working process of the elasticizer, after all winding drums on the winding roller complete fiber winding, the efficiency of the winding drums is improved, the frequency of replacing the winding drums can be reduced, and the working efficiency of the elasticizer is improved.
The present invention may be further configured in a preferred embodiment as: the driving piece is arranged at the bottom of the winding roller, and a push plate is additionally arranged between the driving piece and the winding roller; wind-up roll and push pedal normal running fit, just be provided with many wind-up rolls in the push pedal, each wind-up roll below all is provided with the driving piece that corresponds, and all the driving piece all is fixed in the push pedal bottom.
Through adopting above-mentioned technical scheme, the receipts reel on the many wind-up rolls carries out the rolling simultaneously, and the back is accomplished in the rolling, changes the winding drum on all wind-up rolls, further improves the efficiency of rolling. The setting of push pedal can improve the stability of wind-up roll in the rotation process to can strengthen the wholeness of all wind-up rolls.
The present invention may be further configured in a preferred embodiment as: the relative both sides of push pedal are fixed with the slider, just vertical spout has been seted up in the frame, slider along spout sliding fit.
Through adopting above-mentioned technical scheme, improve the structural stability of push pedal removal in-process.
The present invention may be further configured in a preferred embodiment as: the rack comprises a top plate and a side plate for supporting the top plate, and a positioning hole for the driven gear to pass through is formed in the top plate; the driving gear is located above the top plate and is connected to the top plate in a rotating mode.
Through adopting above-mentioned technical scheme for the winding drum that the winding was accomplished to the winding that needs to carry out the rolling and winding are located the push pedal top, thereby the staff of being convenient for observes and operates. The setting of locating hole can carry on spacingly to the wind-up roll, and when the hookup location of wind-up roll broke away from, the motion of wind-up roll can be restricted to the locating hole to improve the security among the operation process.
The present invention may be further configured in a preferred embodiment as: the winding motor is fixed at the bottom of the top plate.
Through adopting above-mentioned technical scheme, be fixed in the roof below with the rolling motor for the space of roof top can be more open, has avoided the rolling motor to blockking of a winding drum, and the staff of being convenient for observes the condition of winding drum from each visual angle.
The present invention may be further configured in a preferred embodiment as: the top plate upper surface has increased a plurality of leading wheels that are used for guiding fibre to a winding drum, the leading wheel rotates to be connected on the top plate, just the leading wheel is located the one side that the driving gear was kept away from to the wind-up roll.
Through adopting above-mentioned technical scheme, the fibre to the needs rolling leads to make the fibre accurately twine in the outer wall of take-up reel, improve the operating efficiency.
The present invention may be further configured in a preferred embodiment as: one side of the winding drum departing from the driven gear and the upper surface of the limiting plate are both provided with grooves, one side of the driven gear far away from the winding drum is provided with a convex block, and the convex block is in inserting fit with the grooves.
Through adopting above-mentioned technical scheme, the wholeness of reinforcing wind-up roll and all receipts reel on it to when making the driving gear rotate, can drive the wind-up roll and rotate, avoid only driving one of them wind-up reel and rotate and the friction between the wind-up roll outer wall that leads to and the wind-up reel inner wall.
The present invention may be further configured in a preferred embodiment as: a threaded rod is fixed on one side of the positioning plate, a threaded groove is formed in the top of the winding roller, and the threaded rod is in threaded fit with the threaded groove; when the bottom of the threaded rod abuts against the bottom of the threaded groove, an interval is formed between the positioning plate and the top of the winding roller.
Through adopting above-mentioned technical scheme for the tight effect of supporting of locating plate and the receipts reel roof that is located the wind-up roll top is better.
To sum up, the utility model discloses a following at least one useful technological effect:
1. a plurality of winding drums are arranged on one winding roller, and after the fiber winding is finished on all the winding drums, all the winding drums are replaced to perform winding, so that the trouble of replacing the winding drums one by one is avoided, and the operation efficiency is improved;
2. set up the push pedal in the frame to connect many wind-up rolls in the push pedal, many wind-up rolls carry out the operation simultaneously, further improve rolling efficiency.
Drawings

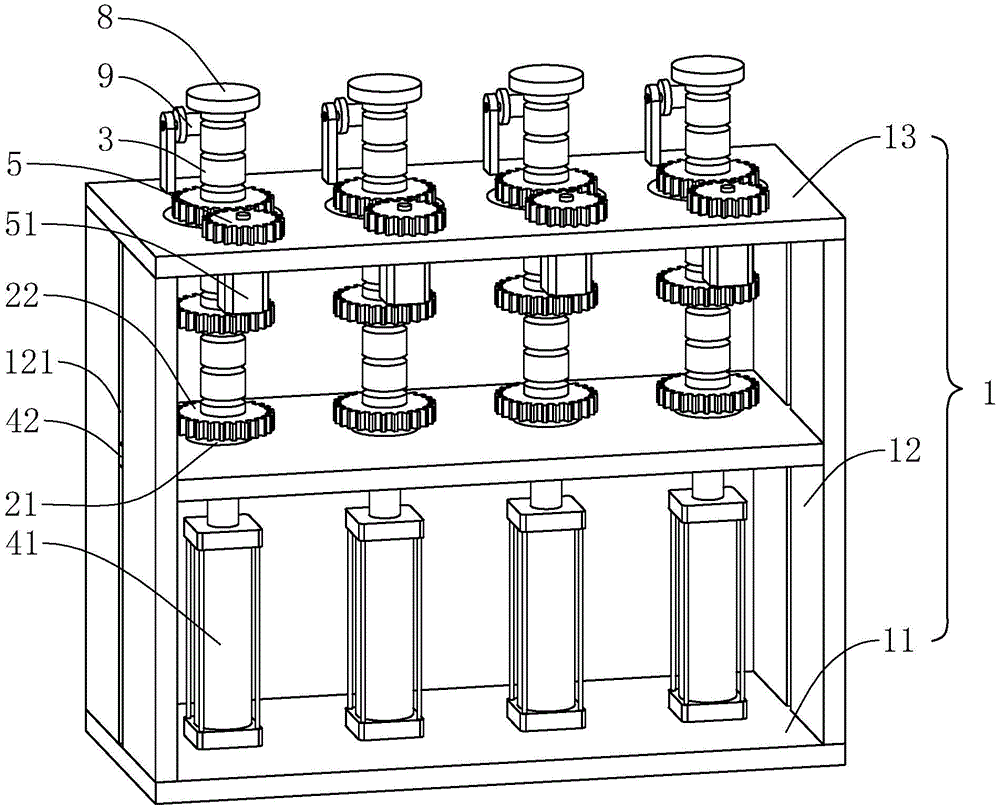

FIG. 1 is a schematic diagram of the overall structure of an embodiment of the present application;
FIG. 2 is a schematic view of the vertical cross-section of FIG. 1;
fig. 3 is a partially enlarged schematic view of a portion a in fig. 2.
In the figure, 1, a frame; 11. a base plate; 12. a side plate; 121. a chute; 13. a top plate; 131. positioning holes; 2. a wind-up roll; 21. a limiting plate; 22. a driven gear; 23. a thread groove; 3. winding the roll; 4. pushing the plate; 41. an electric cylinder; 42. a slider; 5. a driving gear; 51. a winding motor; 6. a groove; 7. a bump; 8. positioning a plate; 81. a threaded rod; 9. a guide wheel.
Detailed Description
The present application is described in further detail below with reference to figures 1-3.
The embodiment of the application discloses a winding mechanism for adding bullet machine. With reference to fig. 1 and 2, the winding mechanism for the elasticizer includes a frame 1, a plurality of winding rollers 2 vertically disposed on the frame 1, and a plurality of winding drums 3 sleeved outside each winding roller 2. When the fiber winding machine is used, after fibers are wound on the outer portions of all the winding drums 3, all the winding drums 3 are uniformly replaced, so that the trouble of replacing one by one is avoided, and the processing efficiency is improved.
The frame 1 includes a bottom plate 11 supported on the ground, side plates 12 fixed to both ends of the bottom plate 11, and a top plate 13 fixed to the tops of the two side plates 12. The bottom plate 11 and the top plate 13 are horizontally arranged, and the two side plates 12 are vertically arranged. Add the push pedal 4 that sets up along the level between bottom plate 11 and the roof 13, the both ends of push pedal 4 are fixed with slider 42, and all seted up on two blocks of curb plates 12 along vertical spout 121, and slider 42 pegs graft in spout 121 and along spout 121 sliding fit.
The bottom of push pedal 4 is fixed with a plurality of along the vertical electric jar 41 that sets up, and wind-up roll 2 rotates through the bearing and is connected with in the top of push pedal 4, wind-up roll 2 and electric jar 41 one-to-one. The top of the winding roller 2 passes through a positioning hole 131 formed in the top plate 13, and when the piston rod of the electric cylinder 41 is in the shortest length, the top of the winding roller 2 is located above the top plate 13. And a limiting plate 21 is fixed at the position of the wind-up roll 2 close to the push plate 4, and the limiting plate 21 and the push plate 4 are arranged at intervals.
Every wind-up roll 2 outside all cup joints three with wind-up roll 2 sliding fit's a winding section of thick bamboo 3, and in actual production process, the quantity of a winding section of thick bamboo 3 can be selected as required and wind-up roll 2's diameter. The winding drum 3 is of a hollow cylindrical structure with two open ends, one end of the winding drum 3 is connected with a driven gear 22 vertical to the winding drum, the driven gear 22 and the winding drum 3 are coaxially arranged, and the driven gear 22 is sleeved outside the winding drum 2. In practical use, the driven gear 22 can be fixed at the end of the winding drum 3 or detachably connected with the winding drum 3.
Three are formed by the winding drum 3 and the driven gear 22, and the driven gear 22 is sleeved outside the winding roller 2 downwards. The driven gear 22 on the winding drum 3 at the bottom of the winding roller 2 is supported on the limit plate 21, the driven gear 22 on the winding drum 3 at the top of the winding roller 2 is positioned above the top plate 13, and the driven gear 22 can pass through the positioning hole 131 on the top plate 13.
With reference to fig. 2 and 3, in order to enable the three winding drums 3 to rotate synchronously with the winding rollers 2, grooves 6 are formed in both one side of the winding drum 3 away from the driven gear 22 and the upper surface of the limiting plate 21, a protruding block 7 is arranged on one side of the driven gear 22 away from the winding drums 3, and the protruding block 7 is in insertion fit with the grooves 6; meanwhile, a positioning plate 8 is additionally arranged at the top of the winding roller 2. A threaded rod 81 is fixed on one side of the positioning plate 8, a threaded groove 23 is formed in the top of the winding roller 2, and the threaded rod 81 is in threaded fit with the threaded groove 23. When the bottom of the threaded rod 81 abuts against the bottom of the threaded groove 23, a gap is formed between the positioning plate 8 and the top of the winding roller 2, and the lower surface of the positioning plate 8 abuts against the upper surface of the winding drum 3 at the top.
In order to drive the driven gear 22 to rotate, so as to drive the winding drum 3 to rotate to realize the winding of fibers, a driving gear 5 is arranged on the top plate 13 corresponding to each winding roller 2, the driving gear 5 is rotatably connected above the top plate 13, and the driving gear 5 can be meshed with the driven gear 22. The bottom of the driving gear 5 is connected with a winding motor 51 for driving the driving gear to rotate, and the winding motor 51 is fixed on the lower surface of the top plate 13. In the initial state, the piston rod of the electric cylinder 41 is at the shortest length, and the driven gear 22 on the winding drum 3 at the top of the winding roller 2 and the corresponding driving gear 5 are engaged with each other.
The top of the winding roller 2 is detachably connected with a positioning plate 8, and the positioning plate 8 is tightly propped against the top of the winding drum 3 positioned at the top of the winding roller 2; the rack 1 is rotatably connected with a driving gear 5, and the winding motor 51 is connected to the driving gear 5; the driving gear 5 is meshed with a driven gear 22 on the winding drum 3 positioned at the top of the winding roller 2.
In order to guide the wound fibers, a guide wheel 9 is additionally arranged on the upper surface of the top plate 13, the guide wheel 9 is rotatably connected to the top plate 13, and the guide wheel 9 corresponds to the winding roller 2 one to one. The axis of the guide wheel 9 is perpendicular to the axis of the winding roller 2, and the guide wheel 9 is positioned on one side of the winding roller 2 far away from the driving gear 5.
The implementation principle of the embodiment is as follows: in the initial state, the piston rods of all the electric cylinders 41 are in the shortest state, the end part of the fiber to be wound is pulled above the corresponding guide wheel 9, and the end part of the fiber is wound on the winding drum 3 at the top of each winding roller 2 and is wound at least two times. Then, the winding motor 51 is started to drive the driving gear 5 to rotate, and the driven gear 22 is driven to synchronously rotate, so that the winding drum 3 rotates along the fiber winding direction to wind the fiber. After the winding drum 3 at the top of the winding roller 2 finishes winding, the electric cylinder 41 is started to extend the piston cylinder of the electric cylinder until the driven gear 22 on the winding drum 3 in the middle is meshed with the corresponding driving gear 5, at the moment, fibers are cut off, the end part of the fibers is wound on the outer wall of the winding drum 3 in the middle, and the operation is repeated until all the winding drums 3 finish winding the fibers.
Then, the positioning plate 8 is rotated to be separated from the wind-up roll 2, all the wind-up reels 3 on the wind-up roll 2 are taken out, the wind-up reels 3 on which no fiber is wound are replaced, and the positioning plate 8 is screwed on the wind-up roll 2. The electric cylinder 41 is started to shorten the piston rod thereof to the lowest position, and the above-described operation is repeated.
In the present application, the extension distance of the piston rod of the electric cylinder 41 may be set to a constant value, and each extension is performed just by engaging the driven gear 22 on one of the winding drums 3 with the corresponding driving gear 5.
The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims (8)

1. A winding mechanism for an elasticizer comprises a frame (1), a winding roller (2) and a winding motor (51), wherein the winding roller (2) and the winding motor are arranged on the frame (1); the method is characterized in that: the winding roller (2) is vertically arranged on the rack (1), a driving piece for driving the winding roller (2) to lift is additionally arranged on the rack (1), and the winding roller (2) can rotate on the driving piece around the axis of the winding roller (2); a plurality of winding drums (3) in sliding fit with the winding drum (2) are sleeved outside the winding drum (2), driven gears (22) are fixed at the bottoms of the winding drums (3), and the driven gears (22) are sleeved outside the winding drum (2) and are in sliding fit along the winding drum (2); a limiting plate (21) is fixed at the bottom of the winding roller (2), and a driven gear (22) of the winding drum (3) positioned at the bottom of the winding roller (2) is supported on the limiting plate (21); the top of the winding roller (2) is detachably connected with a positioning plate (8), and the positioning plate (8) is tightly propped against the top of the winding drum (3) positioned at the top of the winding roller (2); the machine frame (1) is rotatably connected with a driving gear (5), and the winding motor (51) is connected to the driving gear (5); the driving gear (5) is meshed with a driven gear (22) on the winding drum (3) positioned at the top of the winding roller (2).
2. The winding mechanism for the elasticizer as set forth in claim 1, wherein: the driving piece is arranged at the bottom of the winding roller (2), and a push plate (4) is additionally arranged between the driving piece and the winding roller (2); wind-up roll (2) and push pedal (4) normal running fit, just be provided with many wind-up rolls (2) on push pedal (4), each wind-up roll (2) below all is provided with the driving piece that corresponds, and all the driving piece all is fixed in push pedal (4) bottom.
3. The winding mechanism for the elasticizer as set forth in claim 2, wherein: the push plate is characterized in that sliding blocks (42) are fixed on two opposite sides of the push plate (4), vertical sliding grooves (121) are formed in the rack (1), and the sliding blocks (42) are in sliding fit with the sliding grooves (121).
4. The winding mechanism for the elasticizer as set forth in claim 1, wherein: the rack (1) comprises a top plate (13) and a side plate (12) used for supporting the top plate (13), wherein a positioning hole (131) for the driven gear (22) to penetrate through is formed in the top plate (13); the driving gear (5) is positioned above the top plate (13) and is rotatably connected to the top plate (13).
5. The winding mechanism for the elasticizer as set forth in claim 4, wherein: the winding motor (51) is fixed at the bottom of the top plate (13).
6. The winding mechanism for the elasticizer as set forth in claim 4, wherein: a plurality of guide wheels (9) used for guiding fibers to the winding drum (3) are additionally arranged on the upper surface of the top plate (13), the guide wheels (9) are rotatably connected to the top plate (13), and the guide wheels (9) are located on one side, far away from the driving gear (5), of the winding roller (2).
7. The winding mechanism for the elasticizer as set forth in claim 1, wherein: one side that the winding drum (3) deviates from the driven gear (22) and the upper surface of the limiting plate (21) are provided with a groove (6), one side, far away from the winding drum (3), of the driven gear (22) is provided with a convex block (7), and the convex block (7) is in plug-in fit with the groove (6).
8. The winding mechanism for the elasticizer as set forth in claim 1, wherein: a threaded rod (81) is fixed on one side of the positioning plate (8), a threaded groove (23) is formed in the top of the winding roller (2), and the threaded rod (81) is in threaded fit with the threaded groove (23); when the bottom of the threaded rod (81) abuts against the bottom of the threaded groove (23), a gap is formed between the positioning plate (8) and the top of the winding roller (2).
