CN214239098U - Mould is used in circuit board production

Info

Publication number: CN214239098U
Application number: CN202023162933.0U
Authority: CN
Inventors: 钱志红
Original assignee: Wan'an Weihao Electronics Co ltd
Current assignee: Wan'an Weihao Electronics Co ltd
Priority date: 2020-12-24
Filing date: 2020-12-24
Publication date: 2021-09-21
Anticipated expiration: 2030-12-24

Abstract

The utility model discloses a mold for circuit board production, comprising a lower template, a side plate is installed on the inner upper side of the lower template, a fixing block is fixed on the outer surface of the side plate, a guide plate is arranged inside the fixing block, and the guide plate is guided The lower end of the plate is connected with the lower template, the outer surface of the fixing block is provided with a mounting plate, and the interior of the mounting plate is penetrated with a fixing column, and the lower end of the fixing column is connected with the lower template, and the lower side of the fixing column is sleeved with a compression spring , and the upper side of the compression spring is connected with the lower surface of the mounting plate, the outer side of the upper end of the fixed column is covered with a slider, and the inner side of the slider is connected with a cross bar, the middle of the inner end of the cross bar is installed with a buckle, the hydraulic pressure The lower end is connected with a baffle plate, and the surface of the baffle plate is provided with a slot, and a sealing plate is fixed on the lower end surface of the baffle plate. The mold for circuit board production is convenient for operators to take out the raw materials produced inside, and at the same time, it can disassemble and repair the internal parts.

Description

Mould is used in circuit board production

Technical Field

The utility model relates to a circuit board production technical field specifically is a mould is used in circuit board production.

Background

The circuit board has different types according to different requirements, is an important electronic component, is a support body of the electronic component, is a carrier for electrical connection of the electronic component, is called a printed circuit board because the circuit board is manufactured by adopting electronic printing technology, and almost all electric appliances need to use the circuit board.

In the existing mold, when the raw materials which are successfully molded are taken out, the molding is often troublesome, more structures are required to be taken out, and the sealing inside the molding cannot be ensured during production. Aiming at the problems, the novel design is carried out on the basis of the original mould.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a mould is used in circuit board production has solved in current mould, when taking out moulding successful raw materials, often comparatively troublesome, needs more structure to take out, during the coproduction, can't guarantee inside sealed problem.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a mold for producing a circuit board comprises a lower template, wherein the upper side inside the lower template is provided with a side plate, and the outer side surface of the side plate is fixed with a fixed block, the inside of the fixed block is provided with a guide plate, the lower end of the guide plate is connected with the lower template, the outer side surface of the fixed block is provided with a mounting plate, a fixed column penetrates through the mounting plate, the lower end of the fixed column is connected with the lower template, a compression spring is sleeved outside the lower side of the fixed column, the upper side of the compression spring is connected with the lower surface of the mounting plate, the outer side of the upper end of the fixed column is sleeved with a sliding block, the inner side of the sliding block is connected with a cross bar, the middle part of the inner end of the cross bar is provided with a buckle, the inner side of the buckle is fixed with a hydraulic press, the lower extreme of hydraulic press is connected with the baffle, and the surface of baffle has seted up the fluting to the lower extreme surface fixation of baffle has the closing plate.

Preferably, the side plate forms a lifting structure through the fixing block and the guide plate, the surfaces of the two ends of the side plate are of inclined plane structures, and the cross section of the side plate is of a trapezoidal structure.

Preferably, the mounting plate and the lower template form an elastic structure through a compression spring, and the upper side surface and the lower side surface of the compression spring are respectively connected with the mounting plate and the lower template.

Preferably, the cross rod and the fixed column form a lifting structure through a sliding block, and the sliding block and the fixed column are connected with each other through fixed screws.

Preferably, the hydraulic press constitutes through buckle and horizontal pole and dismantles mounting structure, and two buckles are connected through the set screw.

Preferably, the baffle forms a lifting structure through a hydraulic press, and the baffle and the sealing plate form an integrated structure.

Preferably, the lower surface of the sealing plate is attached to the upper surface of the side plate, and the sealing plate and the side plate form a sealing structure.

(III) advantageous effects

The utility model provides a mould is used in circuit board production. The method has the following beneficial effects:

(1) this mould is used in circuit board production through the use of curb plate, makes the device can piece into a square with four curb plates, later makes curb plate and lower bolster constitution container, alright with the raw materials inboard of dripping at the curb plate to through the cooling, make the raw materials successfully moulding, and the closing plate can make the upper surface of curb plate be in encapsulated situation, guarantees moulding efficiency.

(2) This mould is used in circuit board production through compression spring's use, makes the device accomplish the back to the raw materials production, and compression spring can make progress jack-up with the mounting panel, later through inboard fixed block with curb plate jack-up that makes four curb plates separate to make things convenient for operating personnel to take out the inboard raw materials of curb plate, improved the device's practicality.

Drawings

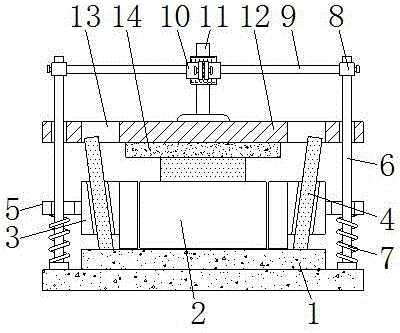

FIG. 1 is a schematic sectional view of the present invention;

FIG. 2 is a schematic cross-sectional top view of the present invention;

FIG. 3 is a schematic top view of the present invention;

fig. 4 is a schematic view of the baffle plate of the present invention.

In the figure: 1. a lower template; 2. a side plate; 3. a fixed block; 4. a guide plate; 5. mounting a plate; 6. fixing a column; 7. a compression spring; 8. a slider; 9. a cross bar; 10. buckling; 11. a hydraulic press; 12. a baffle plate; 13. grooving; 14. and (7) sealing the plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in fig. 1-4, the utility model provides a technical solution: a mold for producing a circuit board comprises a lower template 1, a side plate 2, a fixed block 3, a guide plate 4, a mounting plate 5, a fixed column 6, a compression spring 7, a sliding block 8, a cross rod 9, a buckle 10, a hydraulic press 11, a baffle 12, a slot 13 and a sealing plate 14, wherein the side plate 2 is mounted on the upper side inside the lower template 1, the fixed block 3 is fixed on the surface of the outer side of the side plate 2, the guide plate 4 is arranged inside the fixed block 3, the lower end of the guide plate 4 is connected with the lower template 1, the mounting plate 5 is arranged on the surface of the outer side of the fixed block 3, the fixed column 6 penetrates through the mounting plate 5, the lower end of the fixed column 6 is connected with the lower template 1, the compression spring 7 is sleeved outside the lower side of the fixed column 6, the upper side of the compression spring 7 is connected with the lower surface of the mounting plate 5, the sliding block 8 is sleeved outside the upper end of the fixed column 6, and the cross rod 9 is connected with the inner side of the sliding block 8, a buckle 10 is arranged in the middle of the inner end of the cross rod 9, a hydraulic press 11 is fixed on the inner side of the buckle 10, the lower end of the hydraulic press 11 is connected with a baffle plate 12, a slot 13 is formed in the surface of the baffle plate 12, and a sealing plate 14 is fixed on the surface of the lower end of the baffle plate 12;

the side plates 2 form a lifting structure through the fixing blocks 3 and the guide plates 4, the surfaces of the two ends of each side plate 2 are of inclined plane structures, and the cross section of each side plate 2 is of a trapezoid structure, so that when the device is in normal use, the joints of the four side plates 2 can be mutually attached, and the side plates and the lower template 1 on the lower side form a container structure;

the mounting plate 5 and the lower template 1 form an elastic structure through the compression spring 7, and the upper side surface and the lower side surface of the compression spring 7 are respectively connected with the mounting plate 5 and the lower template 1, so that the device can exert an upward extrusion force on the mounting plate 5 through the compression spring 7, and an operator can conveniently take out internal raw materials after production is completed;

the cross rod 9 and the fixed column 6 form a lifting structure through the slide block 8, and the slide block 8 and the fixed column 6 are mutually connected through the fixed screws, so that the device can drive the hydraulic press 11 at the inner side to lift through lifting the cross rod 9, and meanwhile, the device is convenient to disassemble, and the practicability of the device is improved;

the hydraulic press 11 and the cross rod 9 form a dismounting and mounting structure through the buckles 10, and the two buckles 10 are connected through the fixing screws, so that the device can complete the fixing effect on the hydraulic press 11 through the buckles 10, the device can be more stable in a normal operation state, and the shaking condition is avoided;

the baffle plate 12 forms a lifting structure through the hydraulic press 11, and the baffle plate 12 and the sealing plate 14 form an integrated structure, so that the device can drive the sealing plate 14 on the lower side to lift through lifting of the baffle plate 12, and then the sealing plate 14 downwards extrudes the side plate 2, so that the inner space of the side plate 2 is in a sealed state;

the lower surface of the sealing plate 14 is attached to the upper surface of the side plate 2, and the sealing plate 14 and the side plate 2 form a sealing structure, so that the device can fix the side plate 2 through the sealing plate 14.

When the device is used, the side plates 2 are pressed downwards by external force, the lower surfaces of the four side plates 2 are connected with the lower template 1, then raw materials are injected into the inner sides of the side plates 2, the hydraulic press 11 is opened, the hydraulic press 11 descends the baffle plate 12 downwards, the sealing plate 14 is driven to descend downwards until the sealing plate 14 contacts with the four side plates 2, and the space inside the side plates 2 is in a sealed state, so that the raw materials inside are cooled and shaped, after treatment is completed, the baffle plate 12 is lifted upwards by the hydraulic press 11, the sealing plate 14 can be driven to lift upwards, the mounting plate 5 can lift upwards under the action of the compression spring 7, and due to the connection of the fixing block 3 and the guide plate 4, the side plates 2 can lift upwards along with the inclination angle of the guide plate 4 in the lifting process, so that the distance between the inner sides of the four side plates 2 is increased, make things convenient for operating personnel to take out the raw materials of handling the completion, the practicality of the device is improved, and through the lift to slider 8, can make slider 8 and fixed column 6 break away from the connection, and take out the inboard fixed screw of two buckles 10, can dismantle inside hydraulic press 11, make things convenient for operating personnel's check and repair, the baffle 12 of the device is in-process from top to bottom, deflector 4 can enter into the inside of fluting 13, can avoid baffle 12 and deflector 4 to collide the condition, simultaneously through the connection of fixed column 6 and baffle 12, can play fixed effect to the direction of rise of baffle 12, the content that does not make detailed description in this specification all belongs to the known prior art of the professional skilled in the art in this field.

In conclusion, the die for producing the circuit board can enable the device to splice four side plates 2 into a square through the use of the side plates 2, then enable the side plates 2 and the lower die plate 1 to form a container, so that raw materials can be dripped on the inner sides of the side plates 2, the raw materials can be successfully shaped through cooling, the upper surfaces of the side plates 2 can be in a sealing state through the sealing plate 14, and shaping efficiency is guaranteed.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a mould is used in circuit board production, includes lower bolster (1), its characterized in that: the side plate (2) is installed on the upper side of the interior of the lower template (1), the fixed block (3) is fixed on the surface of the outer side of the side plate (2), the guide plate (4) is arranged inside the fixed block (3), the lower end of the guide plate (4) is connected with the lower template (1), the mounting plate (5) is arranged on the surface of the outer side of the fixed block (3), the fixed column (6) penetrates through the interior of the mounting plate (5), the lower end of the fixed column (6) is connected with the lower template (1), the compression spring (7) is sleeved outside the lower side of the fixed column (6), the upper side of the compression spring (7) is connected with the lower surface of the mounting plate (5), the sliding block (8) is sleeved outside the upper end of the fixed column (6), the transverse rod (9) is connected with the inner side of the sliding block (8), and the buckle (10) is installed in the middle of the inner end of the transverse rod (9), and a hydraulic press (11) is fixed on the inner side of the buckle (10), the lower end of the hydraulic press (11) is connected with a baffle (12), a slot (13) is formed in the surface of the baffle (12), and a sealing plate (14) is fixed on the surface of the lower end of the baffle (12).

2. The mold for circuit board production according to claim 1, wherein: the side plate (2) and the guide plate (4) form a lifting structure through the fixing block (3), the surfaces of two ends of the side plate (2) are of inclined plane structures, and the cross section of the side plate (2) is of a trapezoid structure.

3. The mold for circuit board production according to claim 1, wherein: the mounting plate (5) and the lower template (1) form an elastic structure through a compression spring (7), and the upper side surface and the lower side surface of the compression spring (7) are respectively connected with the mounting plate (5) and the lower template (1).

4. The mold for circuit board production according to claim 1, wherein: the cross rod (9) and the fixed column (6) form a lifting structure through the sliding block (8), and the sliding block (8) and the fixed column (6) are connected with each other through the fixed screws.

5. The mold for circuit board production according to claim 1, wherein: the hydraulic press (11) and the cross rod (9) form a dismounting and mounting structure through the buckles (10), and the two buckles (10) are connected through the fixing screws.

6. The mold for circuit board production according to claim 1, wherein: the baffle (12) forms a lifting structure through a hydraulic press (11), and the baffle (12) and the sealing plate (14) form an integrated structure.

7. The mold for circuit board production according to claim 1, wherein: the lower surface of the sealing plate (14) is attached to the upper surface of the side plate (2), and the sealing plate (14) and the side plate (2) form a sealing structure.
