Abstract
The utility model discloses a filtering device for water pollution control, which comprises a water inlet tank, wherein the top end of the water inlet tank is provided with a switch valve, a water inlet is arranged at one side of the top end of the water inlet tank, a purified water outlet is arranged at one side of the bottom of the water inlet tank, a fixed rod is arranged at one side of the water inlet tank, a water pump is arranged at one side of the fixed rod, a back flushing blow-off pipe is arranged at one side inside the water inlet tank, and the other side of the interior of the water inlet tank is provided with a bubble generator, the top of the water inlet tank is respectively provided with two stirring motors, and the top ends of the two stirring motors are respectively provided with a stirring rod, a garbage collecting tank is arranged in the water inlet tank and is close to the lower part of the stirring motors, an inner filter body is arranged on the periphery of the inner side of the water inlet tank, a filter screen is arranged in the garbage collection tank = and buckles are arranged on the periphery of the inner side of the garbage collection tank = respectively; the utility model discloses possess better filter effect, possess better garbage collection function simultaneously, it is also comparatively convenient to operate.
Description
Technical Field
The utility model belongs to the technical field of sewage treatment, specifically be a filter equipment for water pollution administers.
Background
The sewage treatment is a process for purifying sewage to meet the water quality requirement of discharging the sewage into a certain water body or reusing the sewage, and the sewage treatment is widely applied to various fields of buildings, agriculture, environmental protection, catering and the like and is also more and more popular in daily life of common people.
The filter equipment that current water pollution was administered has certain drawback when using, and the filter equipment that current water pollution was administered is when using, because in sewage directly pours into the case of intaking through the water inlet, the impurity that makes the bringing of sewage splashes in the case of intaking, leads to intaking the filter equipment in the case and can cause the jam in the past for a long time, and the filter equipment that current water pollution was administered is when using, because the organic microorganism that sewage produced is more, leads to water quality to filter unclean and has brought certain influence for the in-service use.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a filter equipment for water pollution administers, the utility model discloses the effectual filter equipment who has solved current water pollution administers is when using, because directly pour into the case into water through the water inlet at sewage, makes the impurity of bringing of sewage splash in the case of intaking, leads to intaking the filter equipment in the case and can cause the jam in the past for a long time, and the filter equipment that current water pollution administers is when using, because the organic microorganism that sewage produced is more, leads to water quality to filter technical problem such as unclean.
The purpose of the utility model can be realized by the following technical scheme:
a filtering device for water pollution treatment comprises a water inlet tank, wherein a switch valve is installed at the top end of the water inlet tank, a water inlet is installed on one side of the top end of the water inlet tank, a purified water outlet is installed on one side of the bottom of the water inlet tank, a fixing rod is installed on one side of the water inlet tank, and a water pump is installed on one side of the fixing rod; a back flushing blow-off pipe is installed on one side inside the water inlet tank, a bubble generator is installed on the other side inside the water inlet tank, two stirring motors are installed on the top of the water inlet tank respectively, stirring rods are installed at the top ends of the two stirring motors, a garbage collecting tank is installed below the inside of the water inlet tank, which is close to the stirring motors, and inner filter bodies are installed on the periphery of the inner side of the water inlet tank; the garbage collection tank is internally provided with a filter screen, and the periphery of the inner side of the garbage collection tank is provided with buckles.
As a further proposal of the utility model, the stirring shaft is installed at one end of the stirring motor, and is fixedly connected between the stirring rod and the stirring shaft.
As a further proposal of the utility model, the filter screen passes through the buckle and the inner wall connection of garbage collection groove. As a further proposal of the utility model, the bubble generator is fixed between the inner wall of the inner filter body and the water inlet tank through the fixing frame, and the opening of the bubble generator runs through the top end of the garbage collection tank.
As a further proposal of the utility model, the water purification delivery port is fixed on the side wall of the water inlet tank through a pipe hoop, and the inside of the inner filter body runs through the water purification delivery port. As a further proposal of the utility model, the inner side of the water purification delivery port is provided with the filter tube, and the filter tube passes through the fixed frame and the inner side fixed connection of water purification delivery port.
The utility model has the advantages that:
the utility model is provided with the stirring rod, the stirring rod is connected with the stirring motor through the stirring shaft, the stirring rod can be rotated by utilizing the stirring shaft, and the garbage brought by the sewage entering the water inlet tank can be crushed by the stirring rod, so that the filter screen is not easy to be blocked and the sewage is convenient to be filtered;
through setting up bubble generator, utilize fixed frame fixed including bubble generator to be fixed between the inner wall of internal filter and the case of intaking, and bubble generator's opening runs through on garbage collection groove's top, and bubble generator produces in the steam pocket gets into the sewage, and the impact force that produces after the bubble is broken can break organic microorganism shatter destruction, great improvement quality of water.
Drawings
In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.
Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a sectional view of the water inlet tank of the present invention;

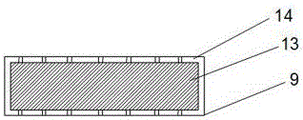

fig. 3 is a sectional view of the garbage collection tank of the present invention.
In the figure: 1. a water inlet tank; 2. a water inlet; 3. a purified water outlet; 4. a water pump; 5. fixing the rod; 6. an on-off valve; 7. back flushing the sewage discharge pipe; 8. an inner filter body; 9. a garbage collection tank; 10. a stirring motor; 11. a stirring rod; 12. a bubble generator; 13. a filter screen; 14. and (5) buckling.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the following embodiments, and it should be understood that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
As shown in fig. 1-3, a filtering device for water pollution treatment comprises a water inlet tank 1, wherein a switch valve 6 is installed at the top end of the water inlet tank 1, a water inlet 2 is installed at one side of the top end of the water inlet tank 1, a purified water outlet 3 is installed at one side of the bottom of the water inlet tank 1, a fixing rod 5 is installed at one side of the water inlet tank 1, and a water pump 4 is installed at one side of the fixing rod 5;
the back flush blow off pipe 7 is installed to inside one side of case 1 of intaking, and the bubble generator 12 is installed to the inside opposite side of case 1 of intaking, and two agitator motor 10 are installed respectively at case 1 top of intaking, and the puddler 11 is all installed on the top of two agitator motor 10, and the garbage collection groove 9 is installed to the inside below that is close to agitator motor 10 of case 1 of intaking, and the interior filter 8 is installed all around to the inboard of case 1 of intaking to it is better to make sewage filter.
A filter screen 13 is arranged inside the garbage collection groove 9, buckles 14 are arranged on the periphery of the inner side of the garbage collection groove 9, and garbage generated by sewage can be collected through the garbage collection groove 9.
The (mixing) shaft is installed to agitator motor 10's one end, and fixed connection between puddler 11 and the (mixing) shaft, makes puddler 11 rotatable through the (mixing) shaft, and then better stirs rubbish garrulous.
The filter screen 13 is connected with the inner wall of the garbage collection groove 9 through a buckle 14, so that the filter screen 13 is convenient to detach and mount.
The water purification delivery port 3 is fixed on the lateral wall of the water inlet tank 1 through a pipe hoop, the inside of the water purification delivery port 3 penetrates through the inside of the inner filter body 8, and the pipe hoop is utilized to better fix the water purification delivery port 3 on the lateral wall of the water inlet tank 1.
The filter pipe is arranged on the inner side of the purified water outlet 3 and is fixedly connected with the inner side of the purified water outlet 3 through a fixing frame, so that water quality is filtered again, and the filtering effect of the water quality is ensured.
A filtering device for water pollution treatment, when in use, sewage is injected into a water inlet tank 1 from a water inlet 2, two stirring motors 10 are installed at the top of the water inlet tank 1, a stirring shaft is installed at the position, close to the middle position, of each stirring motor 10, three stirring rods 11 are installed at the outer side of each stirring shaft, so that the stirring rods 11 can rotate, garbage brought in the water inlet tank 1 can be stirred and smashed through the stirring rods 11 in a rotating mode, the smashed garbage is collected through a garbage collecting tank 9 at the bottom end of each stirring motor 10, a multi-layer filter screen 13 is installed inside each garbage collecting tank 9 through a buckle 14, the garbage collecting tank 9 can collect the smashed garbage and filter the sewage, impurities are removed after the sewage is filtered through the multi-layer filter screen 13, a bubble generator 12 is fixed between an inner filter body 8 and the inner wall of the water inlet tank 1, and an opening of the bubble generator 12 penetrates through the top end of the garbage collecting tank 9, the impact force that produces after the bubble breakage can shatter some microorganisms when bubble generator 12 produced the bubble and got into in the sewage to the messenger has improved quality of water, and the inside of water purification delivery port 3 is provided with the filter tube, and the sewage filters the back and comes out from water purification delivery port 3 and once filters, makes sewage filter more carefully, is favorable to promoting filtration treatment efficiency.
The utility model is provided with the stirring rod 11, the stirring rod 11 is connected with the stirring motor 10 through the stirring shaft, the stirring rod 11 can be rotated by the stirring shaft, and the garbage brought by the sewage entering the water inlet tank 1 can be crushed by the stirring rod 11, so that the filtering net 13 is not easy to be blocked, and the sewage is convenient to be filtered; through setting up bubble generator 12, utilize fixed frame to fix bubble generator 12 between the inner wall of internal filter 8 and intake case 1, and bubble generator 12's opening runs through on garbage collection groove 9's top, and bubble generator 12 produces the steam pocket and gets into in the sewage, and the impact force that produces after the bubble breakage can break organic microorganism shatter destruction, great improvement quality of water.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (6)
1. The utility model provides a filter equipment for water pollution treatment, includes into water tank (1), its characterized in that: the water inlet device is characterized in that a switch valve (6) is installed at the top end of the water inlet tank (1), a water inlet (2) is installed on one side of the top end of the water inlet tank (1), a purified water outlet (3) is installed on one side of the bottom of the water inlet tank (1), a fixing rod (5) is installed on one side of the water inlet tank (1), and a water pump (4) is installed on one side of the fixing rod (5);
a back-flushing blow-off pipe (7) is installed on one side inside the water inlet tank (1), a bubble generator (12) is installed on the other side inside the water inlet tank (1), two stirring motors (10) are installed on the top of the water inlet tank (1) respectively, stirring rods (11) are installed at the top ends of the two stirring motors (10), a garbage collecting tank (9) is installed below the inside of the water inlet tank (1) and close to the stirring motors (10), and inner filter bodies (8) are installed on the periphery of the inner side of the water inlet tank (1); the garbage collection tank is characterized in that a filter screen (13) is installed inside the garbage collection tank (9), and buckles (14) are installed on the periphery of the inner side of the garbage collection tank (9).
2. A filter unit for water pollution treatment according to claim 1, wherein a stirring shaft is installed at one end of the stirring motor (10), and the stirring rod (11) is fixedly connected with the stirring shaft.
3. A filter device for water pollution abatement according to claim 1, wherein the filter screen (13) is connected to the inner wall of the refuse collection tank (9) by means of a snap (14).
4. A filtering apparatus for water pollution abatement according to claim 1, wherein the bubble generator (12) is fixed between the inner filter body (8) and the inner wall of the water inlet tank (1) by a fixing frame, and the opening of the bubble generator (12) penetrates the top end of the garbage collection tank (9).
5. A filter device for water pollution abatement according to claim 1, wherein the clean water outlet (3) is fixed on the side wall of the water inlet tank (1) by a pipe hoop, and the interior of the clean water outlet (3) penetrates the interior of the inner filter body (8).
6. A filter device for water pollution treatment according to claim 1, wherein the inner side of the purified water outlet (3) is provided with a filter pipe, and the filter pipe is fixedly connected with the inner side of the purified water outlet (3) through a fixing frame.
