CN214214098U

CN214214098U - Flat planer for furniture processing

Info

Publication number: CN214214098U
Application number: CN202022664744.7U
Authority: CN
Inventors: 欧阳美群
Original assignee: Jirong Furniture Co ltd
Current assignee: Jirong Furniture Co ltd
Priority date: 2020-11-17
Filing date: 2020-11-17
Publication date: 2021-09-17
Anticipated expiration: 2030-11-17

Abstract

The utility model discloses a planer for furniture processing, which comprises a workbench, wherein two sides of the bottom end of the workbench are respectively and fixedly connected with two sides of the top end of a bottom plate, a stepping motor is fixedly arranged at the middle part of one end of the workbench, the output end of the stepping motor is fixedly connected with one end of a driving wheel, the driving wheel is in transmission connection with the driving wheel through a belt, mounting seats are fixedly arranged at two sides of the inner wall of the workbench, rotating shafts are fixedly arranged on the inner walls of the two mounting seats, one ends of the two rotating shafts are fixedly connected with the middle parts of two ends of a planer knife roller, the utility model can push wood by driving a push plate through an electric telescopic rod on the mounting plate, a supporting leg is connected with a supporting plate, an electric hydraulic cylinder on the supporting plate drives a pressing frame, a roller on the pressing frame can be pressed on the wood, the pressing during the wood moving can be ensured to be more firmly, a higher processing effect can be ensured, and the problem of manual feeding of personnel can be solved, the planer is guaranteed to have higher machining efficiency.

Description

Flat planer for furniture processing

Technical Field

The utility model relates to a calender, in particular to furniture processing is with flat plane machine.

Background

The planer is a processing machine used for striking off wood, and can make the wood meet the use requirements of people. A flat planer for furniture processing is needed during furniture processing.

And current planer for furniture processing result of use is not good, and personnel can't compress tightly timber, lead to the timber processing effect not up to standard, and the manual pay-off of personnel wastes time and energy, also can lead to the timber pay-off unstability, influence ligneous processing, current planer for furniture processing does not have the garbage collection function simultaneously, can produce a large amount of waste wood bits when wood processing, and the saw-dust is fluffy, and the personnel of being not convenient for collect the clearance, lead to personnel to use inconveniently.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a furniture processing is with flat plane machine to solve among the above-mentioned background art current furniture processing with flat plane machine not good with the problem that does not have the garbage collection function of result of use.

In order to achieve the above object, the utility model provides a following technical scheme: a planer for furniture processing comprises a workbench, wherein two sides of the bottom end of the workbench are fixedly connected with two sides of the top end of a bottom plate respectively, a stepping motor is fixedly arranged in the middle of one end of the workbench, the output end of the stepping motor is fixedly connected with one end of a driving wheel, the driving wheel is in transmission connection with a driving wheel through a belt, mounting seats are fixedly arranged on two sides of the inner wall of the workbench, rotating shafts are fixedly arranged on the inner walls of the two mounting seats, one end of each rotating shaft is fixedly connected with the middle of two ends of a planer knife roller, the other end of one rotating shaft is fixedly connected with one end of the driving wheel, detachable plates are fixedly arranged on two sides of the top end of the workbench, supporting legs are fixedly arranged at four corners of the top end of the workbench, the top ends of the four supporting legs are fixedly connected with four corners of the bottom end of a supporting plate respectively, the middle part fixed mounting on backup pad top has electric hydraulic cylinder, electric hydraulic cylinder's output and the middle part fixed connection who compresses tightly a top, the both sides that compress tightly a bottom all are fixed and are equipped with the gyro wheel.

As a preferred technical scheme of the utility model, the top of workstation one end and the one end fixed connection of mounting panel, the middle part fixed mounting on mounting panel top has electric telescopic handle, electric telescopic handle's output and the middle part fixed connection of push pedal one end.

As an optimal technical scheme of the utility model, another the bottom fixed connection of the one end of pivot and cam one side, the middle part fixed mounting of workstation one side has the protection box.

As a preferred technical scheme of the utility model, it is equipped with the drive shaft to alternate in the trompil of seting up at the middle part of protection bottom of the box, the bottom of drive shaft and the middle part fixed connection on pressure flitch top, the top of drive shaft and the middle part fixed connection of clamp plate bottom, the avris of clamp plate bottom and the avris fixed connection on return spring top, the avris of return spring bottom and the bottom fixed connection who protects the box inner wall.

As a preferred technical scheme of the utility model, the bar spout has been seted up at the middle part on bottom plate top, the fixed bar draw runner sliding connection that is equipped with in middle part of the inner wall of bar spout and material receiving box bottom, the fixed pull ring that is equipped with in top of material receiving box one side, the inner wall of material receiving box alternates with the outer wall of pressing the flitch and is connected.

As a preferred technical scheme of the utility model, the fixed flush mounting plate that is equipped with of one end of workstation one side, flush mounting plate's fixed surface is equipped with step motor switch, electric hydraulic cylinder switch and electric telescopic handle switch, step motor, electric hydraulic cylinder and electric telescopic handle are respectively through step motor switch, electric hydraulic cylinder switch and electric telescopic handle switch and external power supply electric connection.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model relates to a furniture processing is with flat plane machine:

1. through the electric telescopic handle drive push pedal on the mounting panel, can promote timber, the supporting leg is connected with the backup pad, and the electric hydraulic cylinder drive in the backup pad compresses tightly the frame, can make the gyro wheel that compresses tightly on the frame press on timber, and it is more firm to compress tightly when guaranteeing timber and removing, guarantees higher processing effect, and has solved the problem of personnel's manual pay-off, guarantees that this planer has higher machining efficiency.

2. The strip-shaped sliding groove formed in the bottom plate is connected with the material receiving box in a sliding mode, the rotating shaft driving cam acts on the pressing plate, the driving shaft can drive the material pressing plate to descend, meanwhile, the return spring is compressed to drive the pressing plate, the driving shaft can ascend, the driving bearing is guaranteed to drive the material pressing plate to move up and down, the material receiving box can be subjected to waste material compression, and the waste material collecting device is convenient for personnel to collect waste materials and is convenient for the personnel to use.

Drawings

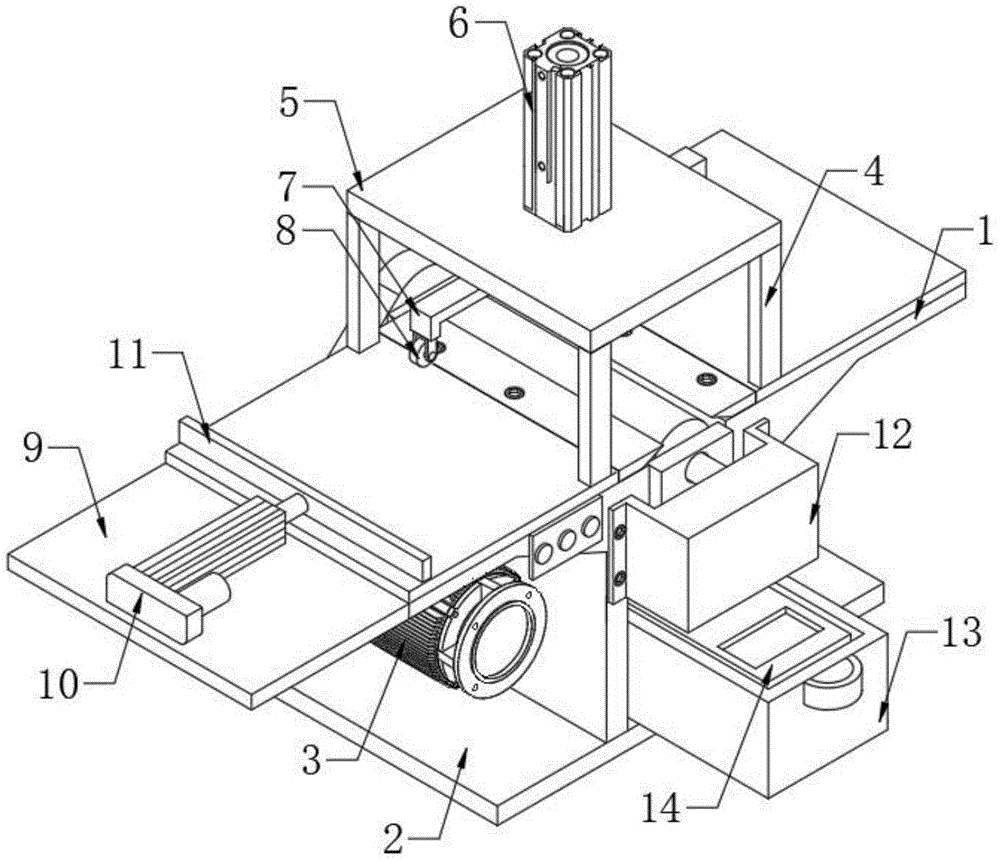

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of a partial structure of the present invention;

fig. 3 is an internal schematic view of the protection box of the present invention.

In the figure: 1. a work table; 2. a base plate; 3. a stepping motor; 4. supporting legs; 5. a support plate; 6. an electric hydraulic cylinder; 7. a pressing frame; 8. a roller; 9. mounting a plate; 10. an electric telescopic rod; 11. pushing the plate; 12. A protection box; 13. a material receiving box; 14. a material pressing plate; 15. a mounting seat; 16. a rotating shaft; 17. a planer knife roller; 18. a removable panel; 19. a strip-shaped chute; 20. a cam; 21. a drive shaft; 22. pressing a plate; 23. and a return spring.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a flat planer for furniture processing, which comprises:

as shown in the figure 1-2, the automatic leveling machine comprises a workbench 1, wherein two sides of the bottom end of the workbench 1 are respectively and fixedly connected with two sides of the top end of a bottom plate 2, a stepping motor 3 is fixedly arranged in the middle of one end of the workbench 1, the output end of the stepping motor 3 is fixedly connected with one end of a driving wheel, the driving wheel is in transmission connection with a driving wheel through a belt, mounting seats 15 are fixedly arranged on two sides of the inner wall of the workbench 1, rotating shafts 16 are fixedly arranged on the inner walls of the two mounting seats 15, one ends of the two rotating shafts 16 are fixedly connected with the middle parts of two ends of a leveling knife roller 17, the other end of one rotating shaft 16 is fixedly connected with one end of the driving wheel, detachable plates 18 are fixedly arranged on two sides of the top end of the workbench 1, the detachable plates 18 can be detached, the leveling knife roller 17 can be conveniently cleaned and maintained by personnel, supporting legs 4 are fixedly arranged at four corners of the top end of the workbench 1, the top ends of the four supporting legs 4 are respectively and fixedly connected with four corners of the bottom end of a supporting plate 5, the middle part fixed mounting on 5 tops of backup pad has electric hydraulic cylinder 6, electric hydraulic cylinder 6's output and the middle part fixed connection who compresses tightly 7 tops, the both sides that compress tightly 7 bottoms are all fixed and are equipped with gyro wheel 8, the top of 1 one end of workstation and the one end fixed connection of mounting panel 9, the middle part fixed mounting on mounting panel 9 top has electric telescopic handle 10, the middle part fixed connection of the output of electric

telescopic handle

10 and 11 one ends of push pedal.

According to the figure 1-3, one end of another rotating shaft 16 is fixedly connected with the bottom of one side of a cam 20, a protection box 12 is fixedly arranged in the middle of one side of a workbench 1, a driving shaft 21 is inserted into an opening formed in the middle of the bottom end of the protection box 12, the bottom end of the driving shaft 21 is fixedly connected with the middle of the top end of a pressure plate 14, the top end of the driving shaft 21 is fixedly connected with the middle of the bottom end of a pressure plate 22, the side of the bottom end of the pressure plate 22 is fixedly connected with the side of the top end of a return spring 23, the side of the bottom end of the return spring 23 is fixedly connected with the bottom end of the inner wall of the protection box 12, a strip-shaped sliding groove 19 is formed in the middle of the top end of a bottom plate 2, the inner wall of the strip-shaped sliding groove 19 is slidably connected with a strip-shaped sliding strip fixedly arranged in the middle of the bottom end of a material receiving box 13, a pull ring is fixedly arranged at the top of one side of the material receiving box 13, and a person pulls the pull ring to separate the strip-shaped sliding groove 19 connected with the strip-shaped sliding groove 19 formed in the bottom plate 2, can be to the garbage cleaning, the inner wall of material receiving box 13 alternates with the outer wall of pressure flitch 14 and is connected, the fixed flush mounting plate that is equipped with of one end of 1 one side of workstation, flush mounting plate's fixed surface is equipped with step motor switch, electric hydraulic cylinder switch and electric telescopic handle switch, step motor 3, electric hydraulic cylinder 6 and electric telescopic handle 10 are respectively through step motor switch, electric hydraulic cylinder switch and electric telescopic handle switch and external power supply electric connection.

When the planer is used, a person puts wood on the workbench 1, then the electric hydraulic cylinder 6 is opened, the electric hydraulic cylinder 6 on the supporting plate 5 drives the pressing frame 7 to descend, the roller 8 on the pressing frame 7 can be pressed against the wood, meanwhile, the electric telescopic rod 10 on the mounting plate 9 pushes the push plate 11, the push plate 11 can push the wood to move, the roller 8 presses the wood, the push plate 11 pushes the wood to move, meanwhile, the stepping motor 3 drives the rotating shaft 16 to rotate, so that the planer knife roller 17 can be driven to rotate, thereby processing the wood, waste materials generated by processing fall into the material receiving box 13 through a gap, the rotating shaft 16 drives the cam 20 to rotate, the cam 20 acts on the pressing plate 22, the pressing plate 22 can descend, thereby driving the driving shaft 21, the pressing plate 14 can be driven to descend to compress the waste materials, and the return spring 23 is compressed by the pressing plate 22, so that the driving shaft 21 can ascend, the material pressing plate 14 can be driven to reciprocate and waste materials can be collected.

In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the indicated device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.

In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly connected, detachably connected, or integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The planer for furniture processing comprises a workbench (1) and is characterized in that two sides of the bottom end of the workbench (1) are fixedly connected with two sides of the top end of a bottom plate (2) respectively, a stepping motor (3) is fixedly mounted in the middle of one end of the workbench (1), the output end of the stepping motor (3) is fixedly connected with one end of a driving wheel, the driving wheel is in transmission connection with a driving wheel through a belt, mounting seats (15) are fixedly arranged on two sides of the inner wall of the workbench (1), rotating shafts (16) are fixedly arranged on the inner walls of the two mounting seats (15), one ends of the two rotating shafts (16) are fixedly connected with the middle of two ends of a planer knife roller (17), one end of each rotating shaft (16) is fixedly connected with one end of the driving wheel, detachable plates (18) are fixedly mounted on two sides of the top end of the workbench (1), four edges on workstation (1) top all fix and are equipped with supporting leg (4), four the top of supporting leg (4) respectively with four edges fixed connection of backup pad (5) bottom, the middle part fixed mounting on backup pad (5) top has electric hydraulic cylinder (6), the output of electric hydraulic cylinder (6) and the middle part fixed connection who compresses tightly frame (7) top, the both sides that compress tightly frame (7) bottom are all fixed and are equipped with gyro wheel (8).

2. The planer for furniture processing of claim 1 wherein: the top of workstation (1) one end and the one end fixed connection of mounting panel (9), the middle part fixed mounting on mounting panel (9) top has electric telescopic handle (10), the output of electric telescopic handle (10) and the middle part fixed connection of push pedal (11) one end.

3. The planer for furniture processing of claim 1 wherein: and the other end of the rotating shaft (16) is fixedly connected with the bottom of one side of the cam (20), and a protection box (12) is fixedly installed in the middle of one side of the workbench (1).

4. A planer for furniture processing as claimed in claim 3, characterized in that: the utility model discloses a protection box, including protection box (12), drive shaft (21) have been worn to be equipped with in the trompil of seting up in the middle part of protection box (12) bottom, the bottom of drive shaft (21) and the middle part fixed connection on pressure flitch (14) top, the top of drive shaft (21) and the middle part fixed connection of clamp plate (22) bottom, the avris of clamp plate (22) bottom and the avris fixed connection on return spring (23) top, the avris of return spring (23) bottom and the bottom fixed connection of protection box (12) inner wall.

5. The planer for furniture processing of claim 1 wherein: the middle part on bottom plate (2) top has seted up bar spout (19), the fixed bar draw runner sliding connection that is equipped with in the middle part of the inner wall of bar spout (19) and material receiving box (13) bottom, the fixed pull ring that is equipped with in top of material receiving box (13) one side, the inner wall of material receiving box (13) alternates with the outer wall of pressing flitch (14) and is connected.

6. The planer for furniture processing as claimed in claim 2, wherein: the fixed flush mounting plate that is equipped with of one end of workstation (1) one side, flush mounting plate's fixed surface is equipped with step motor switch, electric hydraulic cylinder switch and electric telescopic handle switch, step motor (3), electric hydraulic cylinder (6) and electric telescopic handle (10) are respectively through step motor switch, electric hydraulic cylinder switch and electric telescopic handle switch and external power supply electric connection.
