Abstract

The utility model relates to the field of packaging, especially, relate to a can be along with packing carton of opening and close automatic exhibition, including outer box, show part and interior box, outer box cover is located interior box is outer just interior box can be followed interior box and slided from top to bottom, interior box includes the box body, the show part sets up in the box body, the show part includes the show board and sets up the first bayonet socket on the box body, the show board includes show portion and block portion, be provided with the recess between show portion and the block portion, the recess is located the first bayonet socket department of box body, block portion activity set up in the first bayonet socket, the activity of show portion sets up in the box body outside, just the show board can overturn from top to bottom around first bayonet socket, and the minimum width of block portion and show portion all is greater than the width of first bayonet socket. The utility model discloses simple structure has the automatic display function of opening and close.

Description

Packing box capable of automatically showing along with opening and closing

Technical Field

The utility model relates to the field of packaging, especially, relate to a can be along with opening and close packing carton of automatic show.

Background

With the rapid development of modern industry and the continuous improvement of living standard of people, people not only have higher requirements on the quality of products, but also continuously improve the functional requirements on packaging boxes of the products. The packing carton on the market is mostly a common box body structure, does not have the display function, and pleasing to the eye effect is poor, and follow-up appreciation nature is not high. The competitiveness of a packaging box packaging enterprise can be improved only by continuously adapting to new changes of the market and meeting the requirements of different users.

Disclosure of Invention

The to-be-solved technical problem of the utility model is to provide a can be along with opening and close automatic display's packing carton, have automatic opening and close display function, elegant appearance.

The utility model provides a can be along with packing carton of opening and close automatic show, includes outer box, show part and interior box, outer box cover is located interior box is outer just outer box can be followed interior box and slided from top to bottom, interior box includes the box body, the show part sets up in the box body, the show part includes the show board and sets up the first bayonet socket on the box body, the show board includes show portion and block portion, be provided with the recess between show portion and the block portion, the recess is located the first bayonet socket department of box body, block portion activity set up in the first bayonet socket, the activity of show portion sets up in the box body outside, just the show board can overturn from top to bottom around first bayonet socket, the minimum width of block portion and show portion all is greater than the width of first bayonet socket.

Further, the upper end of box body is provided with the upper shed and is used for covering the open-ended lid of going up, go up lid and box body integrated into one piece, go up the lid and be provided with the crease with the box body junction.

Further, the box body lower extreme is provided with the under shed and is used for covering the lower lid that closes the under shed, lid and box body integrated into one piece down are provided with the crease with the box body junction down.

Further, the height of the outer box is less than half of the height of the inner box, and the display part is arranged at the upper part of the box body.

Furthermore, the upper box cover comprises an integrally formed cover plate and an insertion plate, a crease is arranged between the cover plate and the insertion plate, the insertion plate is provided with a notch and a crease, the notch and the crease separate the insertion plate into an upper insertion plate and a lower insertion plate, the lower insertion plate is provided with an insertion part, and the box body of the inner box is provided with a second bayonet for the insertion of the insertion part.

Furthermore, the packing box further comprises a first limiting portion, the first limiting portion comprises a first limiting tongue piece and a first stopping portion, the middle portion of the side wall of the box body is divided into the first limiting tongue piece, the first limiting tongue piece can rotate relative to the side wall of the box body, the lower end of the first limiting tongue piece is integrally connected with the box body, the first stopping portion is arranged at the upper end of the inner wall of the box body, and the first stopping portion is used for preventing the outer box from continuously sliding upwards along the inner box after the first stopping portion is abutted against the upper end of the first limiting tongue piece.

Further, packing carton still includes second restriction portion, and second restriction portion includes second restriction tongue piece and second stop portion, the lateral wall middle part of box body is through cutting out formation second restriction tongue piece, first restriction tongue piece can rotate for the lateral wall of box body, second restriction tongue piece upper end and box body coupling, second stop portion sets up in the lower extreme of the inner wall of box body, second stop portion is used for preventing second stop portion and second restriction tongue piece's lower extreme butt back, and outer box continues to follow interior box lapse.

Further, the number of the first limiting parts is two, and the two first limiting parts are symmetrically arranged.

Further, the number of the second limiting parts is two, and the two second limiting parts are symmetrically arranged.

The utility model has the advantages that: the utility model has simple structure, the display board automatically opens and closes the display function along with the up-and-down sliding of the outer box, and the appearance is elegant; the outer box is limited to slide between the box bodies, so that the outer box is effectively prevented from being separated from the inner box, and the display function can be better realized.

Drawings

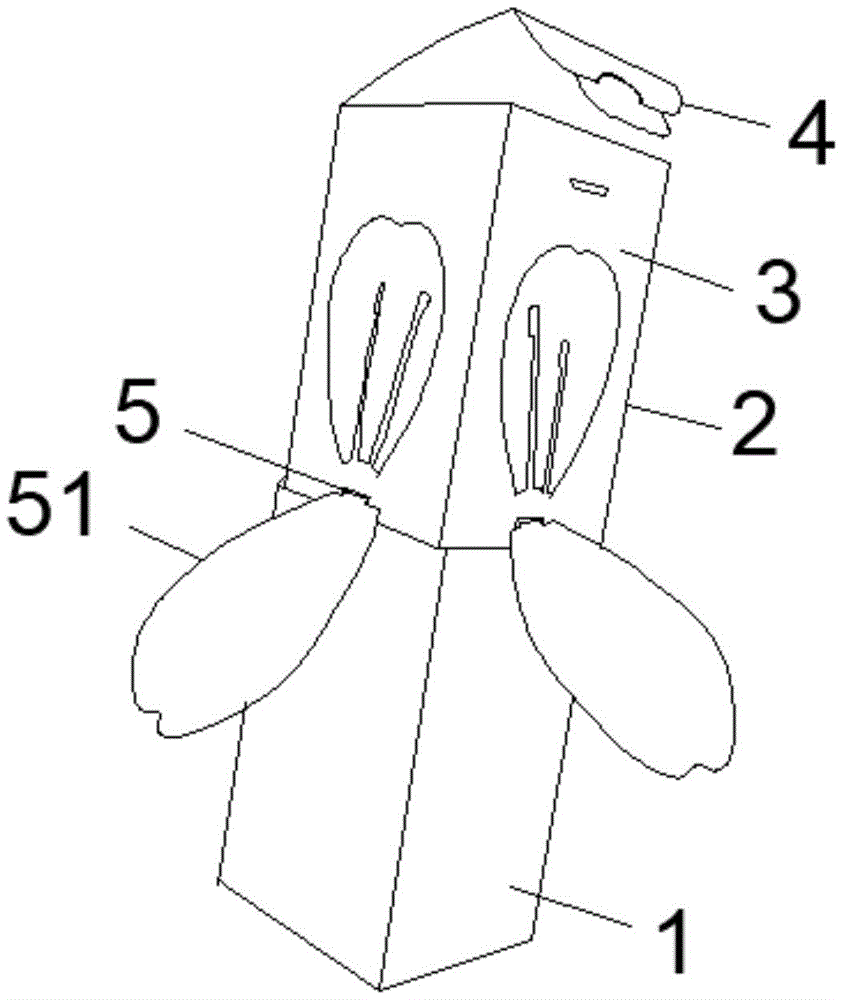

Fig. 1 is a schematic perspective view of the present invention.

Fig. 2 is a schematic view of the three-dimensional structure of the box body of the present invention.

Fig. 3 is a schematic structural view of the display board of the present invention.

Fig. 4 is a schematic structural diagram of the insertion plate of the present invention.

Fig. 5 is a schematic view of the expanded internal structure of the outer box of the present invention.

Fig. 6 is a schematic view of the fully expanded internal structure of the outer box of the present invention.

Description of reference numerals:

1-an outer box; 2-inner box; 3, a box body; 4, putting a box cover; 5-a display member; 51-a display board; 52-a first bayonet; 511-a presentation part; 512-engaging part; 513 — a groove; 6, putting the box cover; 41-cover plate; 42 — an insert plate; 421 — upper insertion plate; 422 — lower insert plate; 4221-arc insertion part; 7-a second bayonet; 8-a first restriction tongue; 9-a first stop; 10-a second restriction flap; 11 — second stopper portion.

Detailed Description

In order to facilitate understanding of those skilled in the art, the present invention will be further described with reference to the following examples and drawings, which are not intended to limit the present invention.

The utility model provides a can be along with packing carton of opening and close automatic show, includes outer box 1, show part 5 and interior box 2, outer box 1 cover is located interior box 2 is outer just outer box can be followed interior box and slided from top to bottom, interior box 2 includes box body 3, show part 5 sets up in box body 3, show part 5 includes show board 51 and sets up the first bayonet 52 on box body 3, show board 51 includes show portion 511 and block portion 512, be provided with recess 513 between show portion 511 and the block portion 512, recess 513 is located the first bayonet 52 department of box body 3, block portion 512 activity set up in first bayonet 52, the activity of show portion 511 sets up in the box body outside, just show board 51 can overturn from top to bottom around first bayonet 52, and the minimum width of block portion 512 and show portion 511 all is greater than the width of first bayonet 52.

The display part 511 of the display board 51 is turned upwards to be tightly attached to the outer side wall of the box body 3, the outer box 1 is sleeved outside the inner box 2 from top to bottom, the display part 511 is fixed between the outer box 1 and the inner box 2, and at the moment, the display function of the packing box is closed; the consumer receives the product after naturally with outer box 1 along box 3 gliding, when the restriction that the display portion 511 that is located the box 3 outside breaks away from outer box 1, because gravity reason, show board 51 is overturn downwards around first bayonet socket 52, the inside block portion 512 that is located box 3 supports and plays the supporting role on the first bayonet socket 52, and then restricts display portion 511 and continues to overturn downwards and unsettled outside, realizes the show function, push up along box 3 when outer box 1 with display portion 511 restricts can close the show function between outer box 1 and interior box 2. The utility model discloses simple structure, show board 51 slides from top to bottom along with outer box 1 and the automatically opened and close show function, elegant appearance.

Further, the upper end of box body 3 is provided with the upper shed and is used for covering open-ended upper box lid 4, upper box lid 4 and box body 3 integrated into one piece, upper box lid 4 and 3 junctions of box body are provided with the crease, through upper box lid 4 puts into the product or takes out.

Further, 3 lower extremes of box body are provided with the under shed and are used for the lid to close under shed lower lid 6, lid 6 and 3 integrated into one piece of box body down, lower lid 6 is provided with the crease with 3 junctions of box body, and it is more nimble to set up the position that lower lid 6 made the product of putting and get.

Further, the height of the outer box 1 is less than half of the height of the inner box 2, and the display part 5 is arranged on the upper part of the box body 3. When the outer box 1 slides to a position close to one end of the upper box cover, the display part 511 is fixed between the outer box 1 and the inner box 2, and the display function of the packing box is closed; box 2 in need not breaking away from in outer box 1, only glides to being close to lower box cover one end, and show portion 511 breaks away from the restriction of outer box 1 promptly, realizes the show function, this structure convenient operation, and material saving, environmental protection more.

Further, the upper box cover 4 comprises an integrally formed cover plate 41 and an insertion plate 42, a folding line is arranged between the cover plate 41 and the box body 3, a folding line is arranged between the cover plate 41 and the insertion plate 42, an arc-shaped notch and a folding line are arranged on the insertion plate 42, the insertion plate 42 is divided into an upper insertion plate 421 and a lower insertion plate 422 by the arc-shaped notch and the folding line, the lower insertion plate 422 is provided with an arc-shaped insertion portion 4221, and a second bayonet 7 for inserting the arc-shaped insertion portion is arranged on the box body 3 of the inner box 2.

Before the upper box cover 4 is closed, the upper insertion plate 421 and the lower insertion plate 422 are located on the same plane, the lower insertion plate 422 is turned by about 90 degrees counterclockwise by taking a crease arranged on the insertion plate 42 as a fulcrum, the arc-shaped insertion part 4221 is inserted into the box body 3 from the second bayonet 7, and the rest part of the lower insertion plate 422 and the upper insertion plate 421 are located outside the box body 3 and tightly attached to the outer side of the box body 3, so that the box cover is closed, and the function of covering the upper opening is realized. The insertion plate 42 can also be directly inserted from the upper opening of the box body 3 to realize the function of closing the box cover. The above structure makes the opening operation smoother, the function of closing the upper opening can be realized without inserting the inserting plate 42 into the box body 3, and the shape of the upper box cover 4 is more beautiful when the structure is in the closed state.

Further, the packing box further comprises a first limiting portion, the first limiting portion comprises a first limiting tongue piece 8 and a first stopping portion 9, the middle of the side wall of the box body 3 is cut to form the first limiting tongue piece 8, the first limiting tongue piece 8 can rotate relative to the side wall of the box body 3, the lower end of the first limiting tongue piece 8 is integrally connected with the box body 3, the first stopping portion 9 is arranged at the upper end of the inner wall of the box body 3, and the first stopping portion 9 is used for preventing the outer box from continuously sliding upwards along the inner box after the first stopping portion 9 is abutted to the upper end of the first limiting tongue piece.

The outer box is formed by folding and splicing the outer box panel, and the first blocking part is formed by folding the outer box panel positioned at the upper end of the outer box into the box body and bonding the outer box panel with the inner wall of the outer box. The outer box 1 slides downwards along the box 3, and after the upper end of the first limiting tongue piece 8 arranged in the middle of the side wall of the box 3 abuts against the first stopping part 9, the outer box 1 is limited to continuously slide downwards, so that the outer box 1 is prevented from downwards separating from the inner box 2.

Further, packing carton still includes second restriction portion, and second restriction portion includes second restriction tongue piece 10 and second stop portion 11, the lateral wall middle part of box body 3 is through drawing out formation second restriction tongue piece 10, second restriction tongue piece 10 can rotate for the lateral wall of box body, second restriction tongue piece 10 upper end and box body 3 body coupling, second stop portion 11 sets up in the lower extreme of the inner wall of box body, second stop portion is used for preventing second stop portion 11 and second restriction tongue piece 10's lower extreme butt back, and outer box continues to follow interior box lapse.

The second blocking part is formed by folding an outer box panel at the lower end of the outer box into the box body and bonding the outer box panel with the inner wall of the outer box. The outer box 1 slides up along the box body 3, and after the display part 511 is limited between the outer box 1 and the inner box 2, the lower end of the second limiting tongue piece 10 arranged in the middle of the side wall of the box body 3 is abutted against the second blocking part 11, so that the outer box 1 is limited to continue to push upwards, and the outer box 1 is prevented from being separated from the inner box 2.

The first limiting part and the second limiting part jointly limit the outer box 1 to slide between the box bodies 3, so that the outer box 1 is effectively prevented from being separated from the inner box 2, and the display function can be better realized.

Further, the number of the first limiting parts is two, and the two first limiting parts are symmetrically arranged.

Further, the number of the second limiting parts is two, and the two second limiting parts are symmetrically arranged.

The structure that above-mentioned symmetry set up makes interior box atress even, and the restriction effect is better.

All the technical features in the embodiment can be freely combined according to actual needs.

The above-mentioned embodiment is the utility model discloses the implementation scheme of preferred, in addition, the utility model discloses can also realize by other modes, any obvious replacement is all within the protection scope of the utility model under the prerequisite that does not deviate from this technical scheme design.

Claims (9)

1. The utility model provides a can be along with opening and close packing carton of automatic show which characterized in that: including outer box, show part and interior box, outer box establish the cover locate outer box just outer box can be followed interior box and slided from top to bottom, interior box includes the box body, the show part sets up in the box body, the show part includes the show board and sets up the first bayonet socket on the box body, the show board includes show portion and block portion, be provided with the recess between show portion and the block portion, the recess is located the first bayonet socket department of box body, block portion activity set up in the first bayonet socket, the show portion activity sets up in the box body outside, just the show board can overturn from top to bottom around first bayonet socket, the minimum width of block portion and show portion all is greater than the width of first bayonet socket.

2. The packing box capable of being automatically displayed along with opening and closing of claim 1, wherein: the upper end of box body is provided with the upper shed and is used for covering the open-ended lid, go up lid and box body integrated into one piece, go up the lid and be provided with the crease with the box body junction.

3. The packing box capable of being automatically displayed along with opening and closing of claim 1, wherein: the box body lower extreme is provided with the under shed and is used for covering the lower cover that closes the under shed, lid and box body integrated into one piece down, the lid is provided with the crease with the box body junction down.

4. The packing box capable of being automatically displayed along with opening and closing of claim 1, wherein: the height of the outer box is less than half of that of the inner box, and the display part is arranged on the upper part of the box body.

5. The packing box according to claim 2, which can be automatically displayed with opening and closing, wherein: the upper box cover comprises an integrally formed cover plate and an insertion plate, a crease is arranged between the cover plate and the insertion plate, the insertion plate is provided with a notch and a crease, the notch and the crease separate the insertion plate into an upper insertion plate and a lower insertion plate, the lower insertion plate is provided with an insertion part, and the box body of the inner box is provided with a second bayonet for inserting the insertion part.

6. The packing box capable of being automatically displayed along with opening and closing of claim 1, wherein: the packaging box further comprises a first limiting portion, the first limiting portion comprises a first limiting tongue piece and a first stopping portion, the middle portion of the side wall of the box body is divided into the first limiting tongue piece, the first limiting tongue piece can rotate relative to the side wall of the box body, the lower end of the first limiting tongue piece is integrally connected with the box body, the first stopping portion is arranged at the upper end of the inner wall of the box body, and the first stopping portion is used for preventing the outer box from continuously sliding upwards along the inner box after the first stopping portion is abutted to the upper end of the first limiting tongue piece.

7. The packing box capable of being automatically displayed along with opening and closing of claim 6, wherein: the packing carton still includes second restriction portion, and second restriction portion includes second restriction tongue piece and second stop portion, the lateral wall middle part of box body forms second restriction tongue piece through cutting out, first restriction tongue piece can be rotatory for the lateral wall of box body, second restriction tongue piece upper end and box body coupling, second stop portion sets up in the lower extreme of the inner wall of box body, second stop portion is used for preventing second stop portion and second restriction tongue piece's lower extreme butt back, and outer box continues to slide downwards along interior box.

8. The packing box capable of being automatically displayed along with opening and closing of claim 6, wherein: the number of the first limiting parts is two, and the two first limiting parts are symmetrically arranged.

9. The packing box capable of being automatically displayed along with opening and closing of claim 7, wherein: the number of the second limiting parts is two, and the two second limiting parts are symmetrically arranged.
