Abstract
The utility model discloses a nuclear medicine injection table relates to medical equipment technical field, including the table, two symmetrical lifter plates of bottom surface fixedly connected with of table, every the bottom surface of lifter plate all is equipped with the cover frame. The utility model relates to a rational in infrastructure, it can utilize the operation of motor, it is rotatory to make second bevel gear drive first bevel gear, and then make the threaded rod rotate, and control the movable plate and remove, thereby make connecting plate control table go up and down, so that not co-altitude patient's use, and then the practicality of the device has been improved, place the installing frame in the standing groove with sliding, and utilize stop gear to play spacing effect to the installing frame, avoid the installing frame to take place the landing, put through fixed frame and power after that, can utilize fixed frame to generate heat, thereby played the effect of heating to the heated board, effectually cold-proof effect has been played to the patient arm, and then guaranteed patient's comfort.
Description
Technical Field
The utility model relates to the technical field of medical equipment, specifically a nuclear medicine injection table.
Background
The injection of the medicine is to inject the sterile liquid medicine into the body to achieve the purpose of preventing and treating diseases, and the sterile liquid medicine is usually used together with an injection table, so that the arms of a patient are placed on the table surface to facilitate the injection of the medicine.
When injecting the medicine to the patient of different heights, because ordinary injection table is fixed integral type structure usually, is difficult to carry out the regulation of height to the injection table, also has certain limitation when consequently injecting patient's arm, and in chilly season, patient's arm can aggravate pain and numbness because temperature is lower, increases uncomfortable sense. Therefore, the nuclear medicine injection table is provided to solve the problems.
SUMMERY OF THE UTILITY MODEL
One) technical problem to be solved
The utility model aims at making up the deficiency of the prior art and providing a nuclear medicine injection table.
II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a nuclear medicine drug injection table comprises a table plate, wherein two symmetrical lifting plates are fixedly connected to the bottom surface of the table plate, a sleeve frame is arranged on the bottom surface of each lifting plate, the bottom surface of each lifting plate extends into the sleeve frame, the lifting plates are in sliding connection with the sleeve frames, a supporting mechanism is arranged on the bottom surface of each sleeve frame, a fixed frame is fixedly connected to one side surface of each sleeve frame, the two sleeve frames are close to each other, a motor is embedded in the front surface of the fixed frame, a lifting mechanism is arranged in the fixed frame, a guide mechanism is arranged on the front surface and the back surface of each sleeve frame, a placing groove is formed in the front surface of the table plate, a mounting frame is in sliding connection with the inner wall of the placing groove, heating wires are installed on the inner side wall of the mounting frame, two symmetrical sliding grooves are formed in the inner side wall of the placing groove, sliding plates are fixedly connected to the left side surface and the right side surface of the mounting frame, and the slide is connected with the chute in a sliding manner, the upper surface of the table plate is fixedly connected with a heat insulation plate, and the upper surface of the table plate is provided with two symmetrical limiting mechanisms.
Furthermore, the supporting mechanism comprises a fixed bottom plate, the upper surface of the fixed bottom plate is fixedly connected with the bottom surface of the sleeve frame, the upper surface of the supporting mechanism is fixedly connected with two symmetrical supporting plates, and one side surface, close to the sleeve frame, of each supporting plate is fixedly connected with the outer surface of the sleeve frame.
Furthermore, the bottom surface of the fixed bottom plate is fixedly connected with two symmetrical base plates, and a rubber pad is inlaid in the bottom surface of each base plate.
Furthermore, the lifting mechanism comprises two symmetrical threaded rods and two symmetrical movable plates, one end, far away from each other, of each threaded rod is rotatably connected with the inner side wall of the fixed frame through a bearing, the outer surface of each movable plate is inlaid with a threaded pipe and is in threaded connection with the threaded rods, the bottom surface of each movable plate is in sliding connection with the inner bottom wall of the fixed frame, the outer surface of each movable plate is in sliding connection with the inner wall of the fixed frame, the inner bottom wall of the fixed frame is fixedly connected with two symmetrical fixed plates, the outer surfaces of the two threaded rods are rotatably connected with the inner parts of the fixed plates through bearings, one end, close to each other, of each threaded rod is fixedly connected with a first bevel gear, the output end of the motor is fixedly connected with a second bevel gear, and the second bevel gear is meshed with the first bevel gear, every the upper surface of movable plate all articulates there is the connecting plate, every the upper surface of connecting plate all articulates with the bottom surface of table mutually.
Further, guiding mechanism includes the guide way, the surface of cover frame is seted up in the guide way, the inner wall sliding connection of guide way has the slider, a side that the cover frame was kept away from to the slider articulates there is the deflector, the top of deflector is articulated mutually with the bottom surface of table.
Further, stop gear includes inserted bar, first magnet and slot, the inner diapire of standing groove is seted up to the slot, the bottom of inserted bar runs through the table and extends to in the slot, and inserted bar and table sliding connection, the bottom surface of first magnet is connected with the last fixed surface of table, first magnet and fixedly connected with pull rod are run through on the top of inserted bar, and inserted bar and first magnet sliding connection, the upper portion fixedly connected with second magnet of inserted bar surface, and second magnet adsorbs with first magnet mutually.
Thirdly), the beneficial effects are as follows:
compared with the prior art, the nuclear medicine injection table has the following beneficial effects:
the utility model discloses a setting of fixed frame, motor and elevating system, the setting of fixed frame, motor, second bevel gear, first bevel gear, fixed plate, threaded rod, movable plate and connecting plate promptly can utilize the operation of motor for second bevel gear drives first bevel gear rotatory, and then makes the threaded rod rotate, and controls the movable plate and remove, thereby makes connecting plate control table go up and down, so that not co-altitude patient's use, and then improved the device's practicality.
Two, the utility model discloses a standing groove, the installing frame, the slide, the spout, fixed frame, cooperation setting between heated board and the stop gear, can place the installing frame slip in the standing groove, and utilize stop gear to play spacing effect to the installing frame, avoid the installing frame to take place the landing, with fixed frame and power switch-on after that, can utilize fixed frame to generate heat, thereby the effect of heating has been played the heated to the heated board, effectually cold-proof effect has been played the patient arm, and then patient's comfort has been guaranteed, and the installing frame has the effect of being convenient for to change.
Drawings

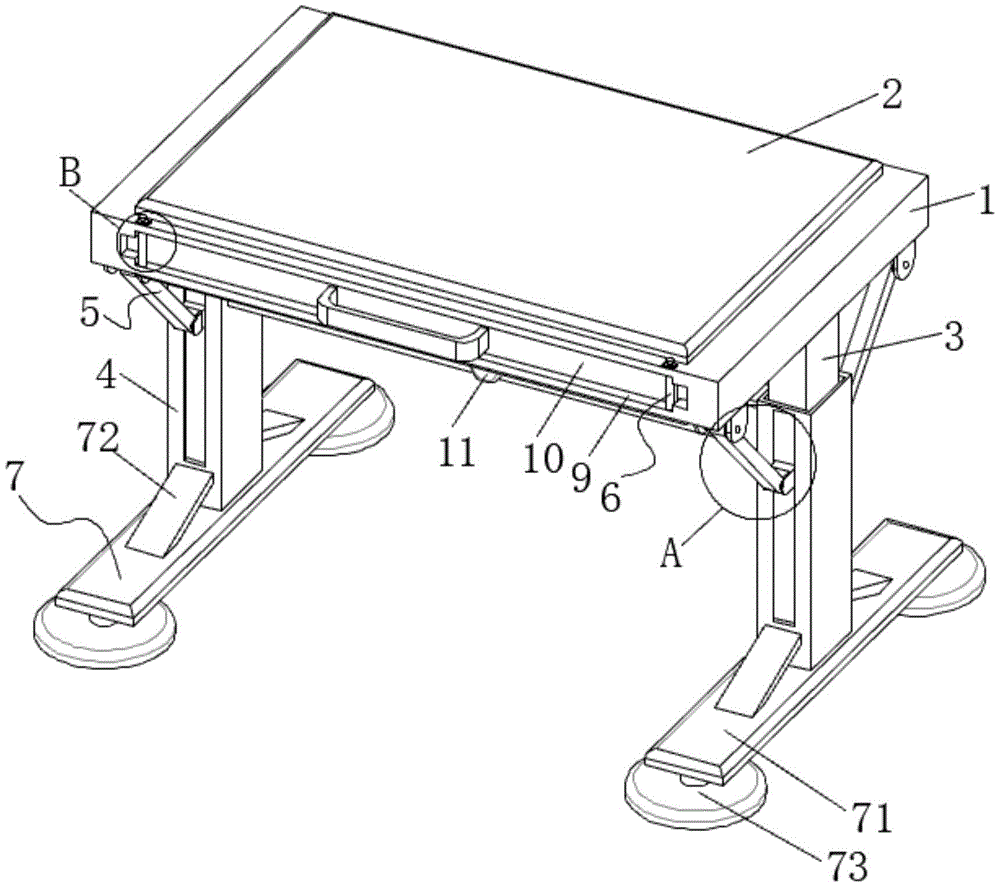

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic top sectional view of the present invention;
fig. 3 is a cross-sectional view of a front view of the present invention;
FIG. 4 is an enlarged schematic view of the structure at A in FIG. 1 according to the present invention;
fig. 5 is an enlarged schematic view of the structure at B in fig. 1 according to the present invention.
FIG. 6 is an enlarged schematic view of the structure at the position C in FIG. 3 according to the present invention
In the figure: 1. a table plate; 2. a thermal insulation board; 3. a lifting plate; 4. sleeving a frame; 5. a guide mechanism; 51. a guide plate; 52. a guide groove; 53. a slider; 6. a limiting mechanism; 61. inserting a rod; 62. a first magnet; 63. a second magnet; 64. a slot; 7. a support mechanism; 71. fixing the bottom plate; 72. a support plate; 73. a base plate; 8. a lifting mechanism; 81. a second bevel gear; 82. a first bevel gear; 83. a fixing plate; 84. a threaded rod; 85. moving the plate; 86. a connecting plate; 9. a placement groove; 10. installing a frame; 11. a motor; 12. a slide plate; 13. a chute; 14. a fixing frame; 15. an electric heating wire.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-6, the utility model provides a technical solution: a nuclear medicine injection table comprises a table plate 1, wherein two symmetrical lifting plates 3 are fixedly connected to the bottom surface of the table plate 1, a sleeve frame 4 is arranged on the bottom surface of each lifting plate 3, the bottom surface of each lifting plate 3 extends into the sleeve frame 4, the lifting plates 3 are in sliding connection with the sleeve frames 4, a supporting mechanism 7 is arranged on the bottom surface of each sleeve frame 4, a fixed frame 14 is fixedly connected to one side surface, close to each other, of each sleeve frame 4, a motor 11 is embedded in the front surface of the fixed frame 14, the motor 11 is ZGB37RG in model, a lifting mechanism 8 is arranged inside the fixed frame 14, a guide mechanism 5 is arranged on the front surface and the back surface of each sleeve frame 4, a placing groove 9 is formed in the front surface of the table plate 1, an installing frame 10 is slidably connected to the inner wall of the placing groove 9, an inner side wall 15 is installed on an electric heating wire of the installing frame 10, two symmetrical sliding grooves 13 are formed in the inner side wall of the placing groove 9, sliding plates 12 are fixedly connected to the left side surface and the right side surface of the installing frame 10, and slide 12 and spout 13 sliding connection, the upper surface fixed connection of table 1 has heated board 2, and the upper surface of table 1 is equipped with two symmetrical stop gear 6.
Further, the supporting mechanism 7 includes a fixed bottom plate 71, an upper surface of the fixed bottom plate 71 is fixedly connected with a bottom surface of the sleeve frame 4, two symmetrical supporting plates 72 are fixedly connected with an upper surface of the supporting mechanism 7, and one side surface of each supporting plate 72, which is close to the sleeve frame 4, is fixedly connected with an outer surface of the sleeve frame 4. Through the arrangement of the structure, the support stability of the device can be effectively guaranteed, and therefore the medicine can be better injected to the arm of a patient.
Further, two symmetrical backing plates 73 are fixedly connected to the bottom surface of the fixed bottom plate 71, and a rubber pad is embedded in the bottom surface of each backing plate 73. The arrangement of the backing plate 73 can improve the overall stability of the device and avoid the device from sliding.
Further, the lifting mechanism 8 comprises two symmetrical threaded rods 84 and two symmetrical moving plates 85, one ends of the two threaded rods 84, which are far away from each other, are rotatably connected with the inner side wall of the fixed frame 14 through bearings, the outer surface of each moving plate 85 is inlaid with a threaded pipe, which is in threaded connection with the threaded rods 84, the bottom surface of each moving plate 85 is slidably connected with the inner bottom wall of the fixed frame 14, the outer surface of each moving plate 85 is slidably connected with the inner wall of the fixed frame 14, the inner bottom wall of the fixed frame 14 is fixedly connected with two symmetrical fixed plates 83, the outer surfaces of the two threaded rods 84 are rotatably connected with the inner parts of the fixed plates 83 through bearings, one ends of the two threaded rods 84, which are close to each other, are fixedly connected with first bevel gears 82, the output end of the motor 11 is fixedly connected with second bevel gears 81, and the second bevel gears 81 are engaged with the first bevel gears 82, the upper surface of each moving plate 85 is hinged with a connecting plate 86, and the upper surface of each connecting plate 86 is hinged with the bottom surface of the table board 1. Through the setting of above structure, can utilize the operation of motor 11 for second bevel gear 81 drives first bevel gear 82 and rotates, and then makes threaded rod 84 rotate, and control movable plate 85 removes, thereby makes connecting plate 86 control table 1 go up and down, so that not co-altitude patient's use.
Further, the guide mechanism 5 comprises a guide groove 52, the guide groove 52 is arranged on the outer surface of the sleeve frame 4, a sliding block 53 is connected to the inner wall of the guide groove 52 in a sliding manner, a guide plate 51 is hinged to one side surface, away from the sleeve frame 4, of the sliding block 53, and the top end of the guide plate 51 is hinged to the bottom surface of the table board 1. Through the setting of above structure, can effectually play the direction effect to table 1, also improve table 1's overall stability simultaneously, avoid table 1 to take place to empty.
Further, stop gear 6 includes inserted bar 61, first magnet 62 and slot 64, the inner diapire of standing groove 9 is seted up to slot 64, the bottom of inserted bar 61 runs through table 1 and extends to in the slot 64, and inserted bar 61 and table 1 sliding connection, the bottom surface of first magnet 62 is connected with the last fixed surface of table 1, first magnet 62 and fixedly connected with pull rod are run through to the top of inserted bar 61, and inserted bar 61 and first magnet 62 sliding connection, the upper portion fixedly connected with second magnet 63 of inserted bar 61 surface, and second magnet 63 adsorbs mutually with first magnet 62. Through the setting of above structure, can effectually play spacing effect to installing frame 10, avoid installing frame 10 to take place to drop.
The working principle is as follows: when needs carry out altitude mixture control to table 1, at first the power of starter motor 11, utilize the operation of motor 11, it is rotatory to make second bevel gear 81 drive first bevel gear 82, and then make threaded rod 84 rotatory, and control movable plate 85 removes, thereby make connecting plate 86 control table 1 go up and down, so that not co-altitude patient's use, after that with fixed frame 14 and power switch-on, can utilize fixed frame 14 to generate heat, thereby the effect of heating has been played thermal-insulated effect to heated board 2, effectual cold-proof effect has been played to patient's arm, and then patient's comfort has been guaranteed, and installing frame 10 has the effect of being convenient for to change.
It should be noted that, in this document, the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "fixedly," "mounted," "connected," and "connected" are to be construed broadly, e.g., "mounted" may be fixedly connected, or detachably connected, or integrally connected; "connected" may be mechanically or electrically connected; "connected" may be directly connected or indirectly connected through an intermediate member, or may be internal or external to two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A nuclear medicine injection table, includes table (1), its characterized in that: the table is characterized in that two symmetrical lifting plates (3) are fixedly connected to the bottom surface of the table plate (1), a sleeve frame (4) is arranged on the bottom surface of each lifting plate (3), the bottom surface of each lifting plate (3) extends into the sleeve frame (4), the lifting plates (3) are slidably connected with the sleeve frames (4), a supporting mechanism (7) is arranged on the bottom surface of each sleeve frame (4), a fixed frame (14) is fixedly connected to one side surface of each sleeve frame (4) close to each other, a motor (11) is inlaid in the front surface of each fixed frame (14), a lifting mechanism (8) is arranged in the inner portion of each fixed frame (14), a guide mechanism (5) is arranged on the front surface and the back surface of each sleeve frame (4), a placement groove (9) is formed in the front surface of the table plate (1), a mounting frame (10) is slidably connected to the inner wall of each placement groove (9), and heating wires (15) are installed on the inner side wall of the mounting frame (10), two symmetrical chutes (13) are formed in the inner side wall of the placing groove (9), sliding plates (12) are fixedly connected to the left side face and the right side face of the mounting frame (10), the sliding plates (12) are connected with the chutes (13) in a sliding mode, the heat-insulating plate (2) is fixedly connected to the upper surface of the table plate (1), and two symmetrical limiting mechanisms (6) are arranged on the upper surface of the table plate (1).
2. The nuclear medicine injection table of claim 1, wherein: the supporting mechanism (7) comprises a fixed base plate (71), the upper surface of the fixed base plate (71) is fixedly connected with the bottom surface of the sleeve frame (4), the upper surface of the supporting mechanism (7) is fixedly connected with two symmetrical supporting plates (72), and each supporting plate (72) is fixedly connected with the outer surface of the sleeve frame (4) on one side close to the sleeve frame (4).
3. The nuclear medicine injection table of claim 2, wherein: the bottom surface of the fixed bottom plate (71) is fixedly connected with two symmetrical base plates (73), and a rubber pad is embedded in the bottom surface of each base plate (73).
4. The nuclear medicine injection table of claim 1, wherein: elevating system (8) include two symmetrical threaded rods (84) and two symmetrical movable plates (85), two the one end that threaded rod (84) kept away from each other all is rotated through the inside wall of bearing and fixed frame (14) and is connected, every the surface of movable plate (85) all inlays and has the screwed pipe, and screwed pipe and threaded rod (84) threaded connection, every the bottom surface of movable plate (85) all with the interior diapire sliding connection of fixed frame (14), and the surface of movable plate (85) and the inner wall sliding connection of fixed frame (14), the interior diapire fixedly connected with of fixed frame (14) has two symmetrical fixed plates (83), two the surface of threaded rod (84) all is connected through the inside rotation of bearing and fixed plate (83), two the equal fixedly connected with first conical gear (82) of one end that threaded rod (84) are close to each other, the output end of the motor (11) is fixedly connected with a second bevel gear (81), the second bevel gear (81) is meshed with the first bevel gear (82), each upper surface of the moving plate (85) is hinged with a connecting plate (86), and each upper surface of the connecting plate (86) is hinged with the bottom surface of the table (1).
5. The nuclear medicine injection table of claim 1, wherein: guiding mechanism (5) include guide way (52), the surface of cover frame (4) is seted up in guide way (52), the inner wall sliding connection of guide way (52) has slider (53), one side that cover frame (4) were kept away from in slider (53) articulates there is deflector (51), the top of deflector (51) is articulated mutually with the bottom surface of table (1).
6. The nuclear medicine injection table of claim 1, wherein: stop gear (6) are including inserted bar (61), first magnet (62) and slot (64), the interior diapire of standing groove (9) is seted up in slot (64), table (1) is run through and extends to in slot (64) in the bottom of inserted bar (61), and inserted bar (61) and table (1) sliding connection, the bottom surface of first magnet (62) is connected with the last fixed surface of table (1), first magnet (62) and fixedly connected with pull rod are run through on the top of inserted bar (61), and inserted bar (61) and first magnet (62) sliding connection, the upper portion fixedly connected with second magnet (63) of inserted bar (61) surface, and second magnet (63) adsorb mutually with first magnet (62).
