Abstract
The utility model discloses a take shield assembly's X-ray machine, including bottom plate, wallboard, roof, first connecting piece, second connecting piece and third connecting piece. This take shield assembly's X-ray machine, during the use, at first need assemble the device, place the bottom plate subaerial, then place the top surface middle part at the bottom plate with the X-ray machine, then take the wallboard in proper order, insert the slot with the wallboard in, simultaneously through first connecting piece with wallboard and bottom plate reciprocal anchorage, then take the second connecting piece with adjacent wallboard fixed in proper order, then take the roof and place the top at the wallboard, it is fixed with the wallboard simultaneously through the third connecting piece, the bottom plate this moment, wallboard and roof constitution work interval, then begin work through the on-off control fan, the fan blows off the air in the work interval through the flange pipe of giving vent to anger, outside air enters into the work interval through the bleeder vent simultaneously, take a breath to the work interval, ensure the good environment of work interval.
Description
Technical Field
The utility model relates to a X-ray machine field specifically is a take shield assembly's X-ray machine.
Background
The X-ray machine is a device for generating X-ray, mainly comprising an X-ray bulb tube, an X-ray machine power supply, a control circuit and the like, wherein the X-ray bulb tube comprises a cathode filament, an anode target and a vacuum glass tube, the X-ray machine power supply can be divided into a high-voltage power supply and a filament power supply, the filament power supply is used for heating the filament, the high-voltage output end of the high-voltage power supply is respectively clamped at two ends of the cathode filament and the anode target, a high-voltage electric field is provided to accelerate active electrons on the filament to flow to the anode target, a high-speed electron current is formed, 99% of the electrons are converted into heat after bombarding the anode target surface, and 1% of the X-ray is generated due to bremsstrahlung radiation.
The X-ray machine is usually used for carrying out X-ray detection on a patient, but the X-ray machine is usually installed in a building, and when the X-ray machine equipment needs to be added in an emergency, a using room of the X-ray machine needs to be newly built, so that the purpose of quickly adding the equipment cannot be achieved.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a take shield assembly's X-ray machine to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an X-ray machine with a shielding device comprises a bottom plate, wherein the top surface of the bottom plate is provided with a slot, a wall plate matched with the slot is arranged in the slot, the top surface of the wall plate is provided with a top plate, an inlet and an outlet are formed in one wall plate, the outer side of the inlet and the outlet is provided with a door body matched with the inlet and the outlet, the two sides of the top bottom of the door body are symmetrically provided with sliding chutes matched with the door body, the door body is in sliding connection with the sliding chutes, the sliding chutes are fixedly connected to the outer wall of the wall plate, the outer side of the sliding chutes is provided with a moving mechanism, the moving mechanism comprises a motor, a screw rod and a connecting block, a first connecting piece is arranged between the bottom plate and the wall plate and is fixedly connected with the bottom plate and the wall plate through bolts, a second connecting piece is arranged between the adjacent wall plates and is fixedly connected with the adjacent wall plates through bolts, a third connecting piece is arranged between the wall plate and the top plate through bolts, the top surface middle part of roof is equipped with exhaust mechanism, and exhaust mechanism includes outlet flange pipe, fan and ceiling, and the bleeder vent has been seted up to the bottom of wallboard, and the middle part outer wall fixed mounting of wallboard has the switch.
As a further aspect of the present invention: the wallboard is equipped with four, and bottom plate, wallboard, roof and the door body are all leaded panel, and bottom plate, wallboard and roof are inside to be equipped with the X-ray machine.
As a further aspect of the present invention: the motor is fixedly connected to the outer wall of the wallboard, the screw rod is rotatably connected with the wallboard, and one side of the connecting block is fixedly connected with the outer wall of the door body.
As a further aspect of the present invention: the connecting block sleeve is arranged on the outer side of the screw rod and is in threaded connection with the screw rod, and one end of the screw rod is fixedly connected with the output end of the motor through the coupler.
As a further aspect of the present invention: the air outlet flange pipe is fixedly installed on the top surface of the top plate through bolts and communicated with the inner side of the top plate, the fan is fixedly installed on the inner wall of the air outlet flange pipe, the ceiling is arranged above the air outlet flange pipe, and the ceiling is fixedly connected with the top surface of the top plate.
As a further aspect of the present invention: the motor and the fan are electrically connected with the switch through wires, and the switch is externally connected with a power supply.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a cooperation use between bottom plate, slot, wallboard, roof, first connecting piece, second connecting piece and the third connecting piece for detachable connects between bottom plate, wallboard and the roof, thereby makes this X-ray machine of taking shield assembly be assembled structure, can realize quick assembly when promptly using, adds to X-ray machine detection room, makes things convenient for medical personnel to use;
2. the utility model discloses a wallboard, import and export, the door body, the spout, including a motor, an end cap, a controller, and a cover plate, the lead screw, the cooperation is used between connecting block and the switch for can drive the door body through moving mechanism, convenient quick opening and sealing the business turn over, use through the cooperation between the flange pipe of giving vent to anger, fan, ceiling, bleeder vent and the switch, make and to carry out the air exchange in inboard and the outside through exhaust mechanism and bleeder vent, conveniently maintain the clean of inside air, thereby make this take shield assembly's X ray machine's use more convenient.
Drawings

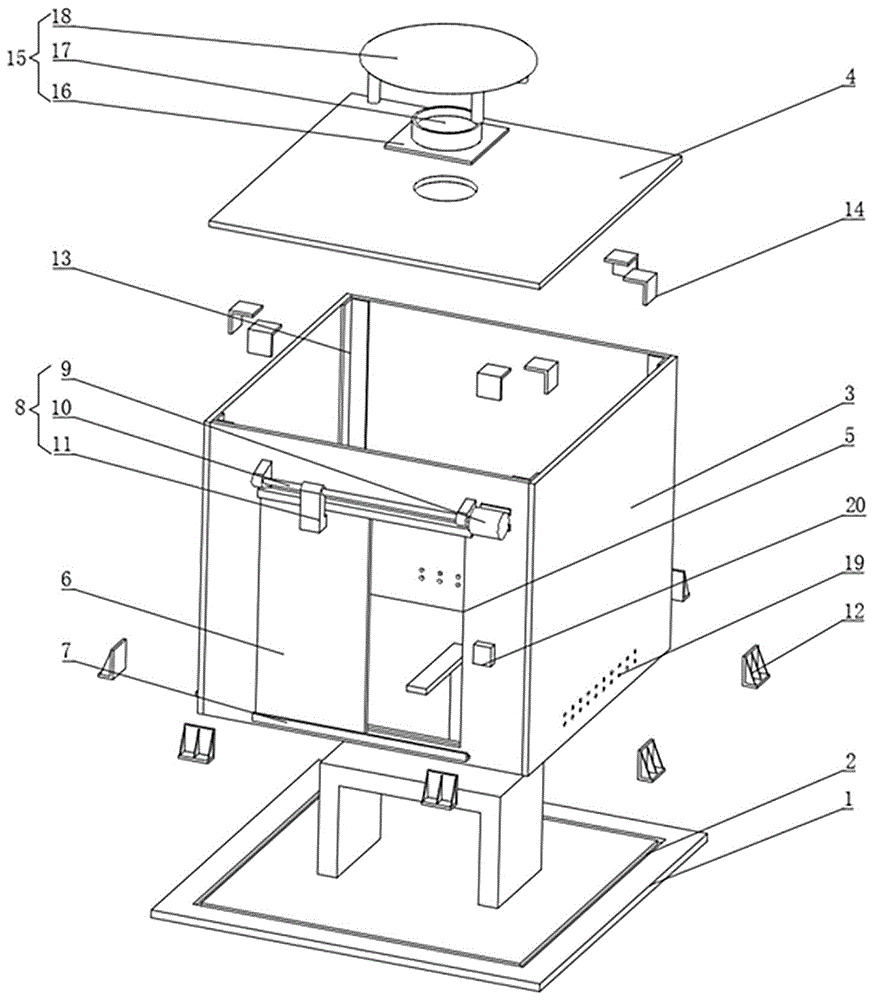

Fig. 1 is a schematic structural diagram of an X-ray machine with a shielding device.
Fig. 2 is a perspective view of an X-ray machine with a shielding device.
Fig. 3 is a cross-sectional view of an X-ray machine with a shielding device.
In the figure: the air conditioner comprises a base plate 1, slots 2, wall plates 3, a top plate 4, an inlet and an outlet 5, a door body 6, a sliding chute 7, a moving mechanism 8, a motor 9, a screw rod 10, a connecting block 11, a first connecting piece 12, a second connecting piece 13, a third connecting piece 14, an exhaust mechanism 15, an exhaust flange pipe 16, a fan 17, a ceiling 18, air holes 19 and switches 20.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, in the embodiment of the present invention, an X-ray machine with a shielding device comprises a bottom plate 1, a slot 2 is formed on a top surface of the bottom plate 1, a wall plate 3 adapted to the slot 2 is disposed in the slot 2, a top surface of the wall plate 3 is provided with a top plate 4, an inlet/outlet 5 is formed on one wall plate 3, a door body 6 adapted to the inlet/outlet 5 is disposed outside the inlet/outlet 5, sliding grooves 7 adapted to the door body 6 are symmetrically disposed on both sides of a top bottom of the door body 6, the door body 6 is slidably connected to the sliding grooves 7, the sliding grooves 7 are fixedly connected to an outer wall of the wall plate 3, a moving mechanism 8 is disposed outside the sliding grooves 7, the moving mechanism 8 comprises a motor 9, a lead screw 10 and a connecting block 11, a first connecting member 12 is disposed between the bottom plate 1 and the wall plate 3, the first connecting member 12 is fixedly connected to the bottom plate 1 and the wall plate 3 respectively through bolts, a second connecting member 13 is disposed between adjacent wall plates 3, the second connecting member 13 is fixedly connected to the adjacent wall plates 3 respectively through bolts, be equipped with third connecting piece 14 between wallboard 3 and roof 4, third connecting piece 14 pass through the bolt respectively with wallboard 3 and roof 4 fixed connection, the top surface middle part of roof 4 is equipped with exhaust mechanism 15, exhaust mechanism 15 includes outlet flange pipe 16, fan 17 and ceiling 18, bleeder vent 19 has been seted up to the bottom of wallboard 3, the middle part outer wall fixed mounting of wallboard 3 has switch 20.
Wallboard 3 is equipped with four, and bottom plate 1, wallboard 3, roof 4 and the door body 6 are leaded panel to make the X-ray machine shielded, bottom plate 1, wallboard 3 and roof 4 inside are equipped with the X-ray machine.
The connecting block 11 is sleeved on the outer side of the screw rod 10, the connecting block 11 is in threaded connection with the screw rod 10, and one end of the screw rod 10 is fixedly connected with the output end of the motor 9 through the coupler.
The air outlet flange pipe 16 is fixedly installed on the top surface of the top plate 4 through bolts, the air outlet flange pipe 16 is communicated with the inner side of the top plate 4, the fan 17 is fixedly installed on the inner wall of the air outlet flange pipe 16, the ceiling 18 is arranged above the air outlet flange pipe 16, and the ceiling 18 is fixedly connected with the top surface of the top plate 4.
The motor 9 and the fan 17 are electrically connected with the switch 20 through wires, and the switch 20 is externally connected with a power supply.
The utility model discloses a theory of operation is: when in use, the device is firstly assembled, the bottom plate 1 is placed on the ground, then the X-ray machine is placed in the middle of the top surface of the bottom plate 1, then the wall plate 3 is taken in sequence, the wall plate 3 is inserted into the slot 2, meanwhile, the wall plate 3 and the bottom plate 1 are mutually fixed through the first connecting piece 12, then the second connecting piece 13 is taken to sequentially fix the adjacent wall plates, then the top plate 4 is taken and placed at the top of the wall plate 3, meanwhile, the top plate 4 and the wall plate 3 are fixed through the third connecting piece 14, at the moment, the bottom plate 1, the wall plate 3 and the top plate 4 form a working interval, then the fan 17 is controlled to start working through the switch 20, the fan 17 blows air in the working interval through the air outlet flange pipe 16, meanwhile, external air enters the working interval through the air vent 19, the working interval is ventilated, the good environment of the working interval is ensured, and then the ceiling 18 plays a role of protecting the opening of the flange pipe 16 in the process, avoid outside debris to see through in the flange pipe 16 that gives vent to anger drops and enters into the work interval, when the patient needs to carry out X-ray detection, this medical staff passes through switch 20 control motor 9 and begins work, motor 9 drives lead screw 10 and begins to rotate, lead screw 10 drives door body 6 through connecting block 11 and slides in spout 7, thereby make exit 5 opened, then the position that the patient walked to the X-ray machine from exit 5 is detected, outside medical staff passes through switch 20 secondary control motor 9 and rotates this moment after the patient gets into, make door body 6 seal exit 5 again, avoid the big volume of X-ray to leak in the testing process.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. An X-ray machine with a shielding device comprises a bottom plate (1), and is characterized in that: the top surface of the bottom plate (1) is provided with a slot (2), a wall plate (3) matched with the slot (2) is arranged in the slot (2), the top surface of the wall plate (3) is provided with a top plate (4), one wall plate (3) is provided with an inlet and an outlet (5), the outer side of the inlet and the outlet (5) is provided with a door body (6) matched with the inlet and the outlet, the two sides of the top bottom of the door body (6) are symmetrically provided with sliding chutes (7) matched with the door body, the door body (6) is in sliding connection with the sliding chutes (7), the sliding chutes (7) are fixedly connected on the outer wall of the wall plate (3), the outer side of the sliding chutes (7) is provided with a moving mechanism (8), the moving mechanism (8) comprises a motor (9), a screw rod (10) and a connecting block (11), a first connecting piece (12) is arranged between the bottom plate (1) and the wall plate (3), and the first connecting piece (12) is respectively and fixedly connected with the bottom plate (1) and the wall plate (3) through bolts, be equipped with second connecting piece (13) between adjacent wallboard (3), second connecting piece (13) pass through the bolt respectively with adjacent wallboard (3) fixed connection, be equipped with third connecting piece (14) between wallboard (3) and roof (4), third connecting piece (14) pass through the bolt respectively with wallboard (3) and roof (4) fixed connection, the top surface middle part of roof (4) is equipped with exhaust mechanism (15), exhaust mechanism (15) are including giving vent to anger flange pipe (16), fan (17) and ceiling (18), bleeder vent (19) have been seted up to the bottom of wallboard (3), the middle part outer wall fixed mounting of wallboard (3) has switch (20).
2. The X-ray machine with shielding device of claim 1, wherein: wallboard (3) are equipped with four, and bottom plate (1), wallboard (3), roof (4) and the door body (6) are the panel that contains lead, and bottom plate (1), wallboard (3) and roof (4) inside are equipped with the X-ray machine.
3. The X-ray machine with shielding device of claim 1, wherein: the motor (9) is fixedly connected to the outer wall of the wallboard (3), the screw rod (10) is rotatably connected with the wallboard (3), and one side of the connecting block (11) is fixedly connected with the outer wall of the door body (6).
4. The X-ray machine with shielding device of claim 1, wherein: the outer side of the screw rod (10) is sleeved with the connecting block (11), the connecting block (11) is in threaded connection with the screw rod (10), and one end of the screw rod (10) is fixedly connected with the output end of the motor (9) through the coupler.
5. The X-ray machine with shielding device of claim 1, wherein: the exhaust flange pipe (16) is fixedly installed on the top surface of the top plate (4) through bolts, the exhaust flange pipe (16) is communicated with the inner side of the top plate (4), the fan (17) is fixedly installed on the inner wall of the exhaust flange pipe (16), the ceiling (18) is arranged above the exhaust flange pipe (16), and the ceiling (18) is fixedly connected with the top surface of the top plate (4).
6. The X-ray machine with shielding device of claim 1, wherein: the motor (9) and the fan (17) are electrically connected with the switch (20) through electric wires, and the switch (20) is externally connected with a power supply.
