CN214156051U

CN214156051U - Fresh-keeping degassing unit of egg

Info

Publication number: CN214156051U
Application number: CN202120146401.3U
Authority: CN
Inventors: 程丽霖; 程美霖; 程宝霖
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-01-20
Filing date: 2021-01-20
Publication date: 2021-09-10
Anticipated expiration: 2031-01-20

Abstract

The utility model provides an egg fresh-keeping degassing unit relates to articles for daily use technical field, which comprises a base, it holds in the palm to be provided with egg on the chassis, egg holds in the palm and is provided with the egg position that a plurality of is used for placing the egg, be provided with ozone generator and lithium cell in the chassis, the chassis still is provided with USB socket, USB socket with lithium cell electric connection, the lithium cell with ozone generator electric connection. The utility model discloses an useful part is, is provided with ozone generator and anion generator, produces ozone and anion combined action, can kill remaining the bacterial microorganism on the egg shell, reaches sterile effect to reach the effect of purification simultaneously, help keeping fresh to the storage of egg.

Description

Fresh-keeping degassing unit of egg

Technical Field

The utility model belongs to the technical field of articles for daily use technique and specifically relates to a fresh-keeping degassing unit of eggs.

Background

With the continuous development of society and the gradual improvement of living standard, people pay more and more attention to the nutrition supplement and the sanitation and safety of the body. The eggs contain a large amount of protein, and can supplement enough nutrition to human bodies and ensure the healthy development of the human bodies after being ingested, so that the eggs are popular with people; meanwhile, according to statistics, 10% of eggs eaten by consumers in China at present carry salmonella on the surface, 64% of the eggs on the surface exceed the standard, and the eggs are harmful to human health after being taken carelessly. Therefore, it is very urgent to develop a device capable of killing the bacteria microorganisms remained in the shell of the eggs.

SUMMERY OF THE UTILITY MODEL

The utility model overcomes shortcoming among the prior art provides a fresh-keeping degassing unit of eggs, is provided with ozone generator and anion generator, produces ozone and anion combined action, can kill remaining the bacterial microorganism on the egg shell, reaches sterile effect to reach the effect of purification simultaneously, help keeping fresh to the storage and transportation of egg.

In order to solve the technical problem, the utility model discloses a realize through following technical scheme:

the utility model provides an egg degassing unit that keeps fresh, includes the chassis, it holds in the palm to be provided with egg on the chassis, egg holds in the palm and is provided with the egg position that a plurality of is used for placing the egg, be provided with ozone generator and lithium cell in the chassis, the chassis still is provided with USB socket, USB socket with lithium cell electric connection, the lithium cell with ozone generator electric connection.

Preferably, a negative ion generator and a fan are further arranged in the chassis, and the negative ion generator and the fan are electrically connected with the lithium battery.

Preferably, an inductive switch is arranged in the egg position, and the inductive switch is electrically connected with the ozone generator, the negative ion generator and the fan.

Preferably, a switch and an indicator light are further arranged on the chassis, a timer is arranged in the chassis, and the indicator light and the timer are electrically connected with the switch.

Preferably, still be provided with the wifi module in the chassis, the wifi module with lithium cell electric connection.

Preferably, the left side and the right side of the egg support are provided with ventilation positions.

Preferably, still include the upper cover, the upper end edge ring-type on chassis is formed with the step position, the upper cover is installed on the step position, the step position includes the chimb, the upper end edge of egg support is outwards extended and is formed with the horizontal limit, the horizontal limit overlap joint is in on the chimb.

Preferably, the bottom of egg position is provided with the waterlogging caused by excessive rainfall hole, the below of egg support still is provided with the tray.

Preferably, be provided with the LED lamp in the egg holds in the palm, the LED lamp with lithium cell electric connection.

Preferably, the antiskid foot is arranged below the chassis.

Compared with the prior art, the beneficial effects of the utility model are that:

be provided with ozone generator and anion generator in this fresh-keeping degassing unit of egg's the chassis, produce ozone and anion combined action, can kill remaining the bacterial microorganism on the egg shell, reach sterile effect to reach the effect of purification simultaneously, help keeping fresh to the storage of egg fortune, the structure is ingenious.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, together with the embodiments of the invention, and do not constitute a limitation on the invention, in which:

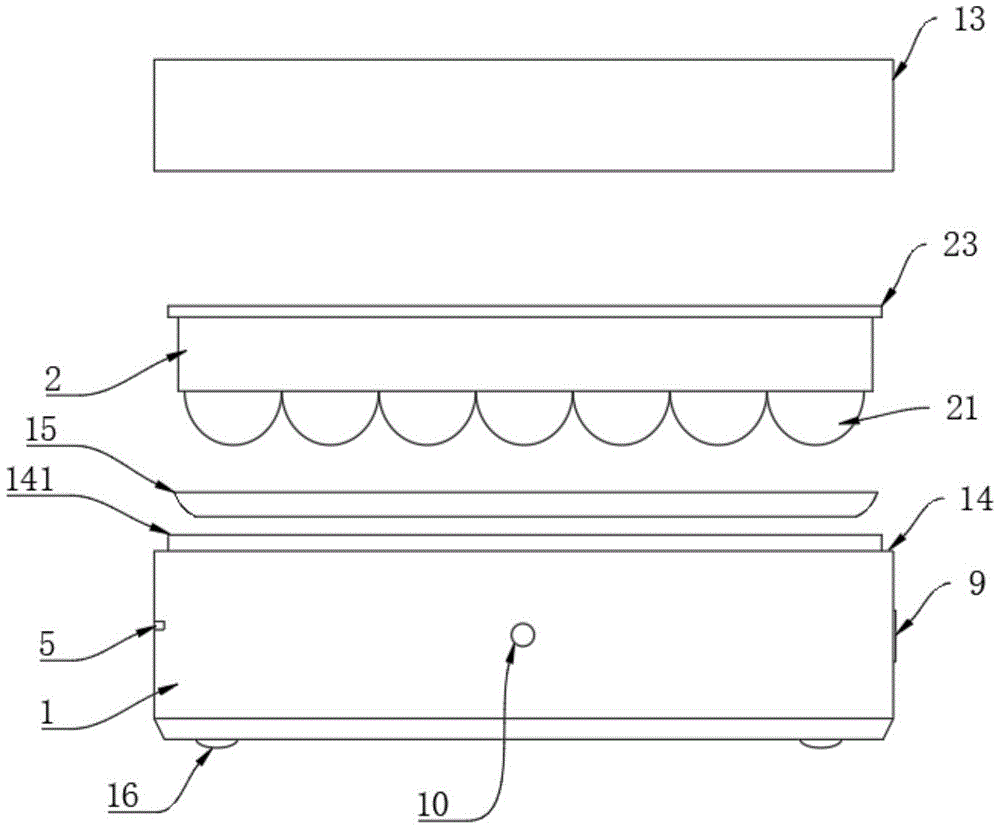

FIG. 1 is an exploded view of the egg fresh-keeping and sterilizing device of the present invention;

FIG. 2 is a top view of the base plate of the egg fresh-keeping and sterilizing device of the present invention;

FIG. 3 is a top view of the egg holder in the egg fresh-keeping and sterilizing device of the present invention;

fig. 4 is a side view of the egg support in the egg fresh-keeping and sterilizing device of the present invention.

In the figure: 1-chassis, 2-egg tray, 21-egg position, 22-ventilation position, 23-transverse edge, 24-draining hole, 25-LED lamp, 3-ozone generator, 4-lithium battery, 5-USB socket, 6-anion generator, 7-fan, 8-inductive switch, 9-switch, 10-indicator lamp, 11-timer, 12-wifi module, 13-upper cover, 14-step position, 141-convex edge, 15-tray, 16-anti-slip foot.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.

As shown in fig. 1 to 4, an egg fresh-keeping and sterilizing device comprises a chassis 1, anti-slip feet 16 are arranged below the chassis 1, the anti-slip feet 16 can be made of plastic materials, and have the functions of anti-slip, buffering and silencing when in use, an egg tray 2 is arranged on the chassis 1, a plurality of egg positions 21 for placing eggs are arranged on the egg tray 2, the egg positions 21 can be arranged to enable the eggs to be placed neatly and are not easy to collide with each other, an ozone generator 3 and a lithium battery 4 are arranged in the chassis 1, in practical application, the lithium battery 4 can be a terpolymer lithium battery, the terpolymer lithium battery is a material which is balanced in capacity and safety, the cycle performance is better than that of normal lithium cobalt oxide, and has the advantages of high energy density, large unit electric energy and the like, a USB socket 5 is further arranged on the chassis 1, and is electrically connected with the lithium battery 4, can charge for lithium cell 4 through the USB socket, it is very convenient,

lithium cell

4 and 3 electric connection of ozone generator give ozone generator 3 power supplies, and this egg fresh-keeping degassing unit uses for the complete machine power supply through adopting lithium cell 4 to make this device flexibility ratio high, it is convenient to remove.

Still be provided with anion generator 6 and fan 7 in the chassis 1, anion generator 6,

fan

7 and 4 electric connection of lithium cell, use through the power supply of lithium cell 4, ozone generator 3 and ion generator 6 are prior art, and the during operation can release ozone and anion, disinfect and purify the egg, and fan 7 can produce the air current, drives the flow of ozone and anion, strengthens the effect of disinfection and purification. In this embodiment, the ozone generator 3 is a mini ozone generator made by Sengslon and model AG-O200B, the ionizer 6 is a mini ionizer made by Tokyo and model TFB-Y74, and the fan 7 is a mini fan made by STORM and model 6015.

An induction switch 8 is arranged in the egg position 21, the induction switch 8 can be a gravity sensor or a contact switch, the induction switch 8 is electrically connected with the ozone generator 6, the negative ion generator 7 and the fan 7, when eggs are placed in the egg position 21, the induction switch 8 receives signals and transmits the signals to the ozone generator 6, the negative ion generator 7 and the fan 7 to be started for working; still be provided with switch 9 and pilot lamp 10 on the chassis 1, switch 9 is used for controlling opening and close of whole circuit, be provided with timer 11 in the chassis 1, pilot lamp 10 and timer 11 and switch 9 electric connection, in the course of the work, pilot lamp 10 can shine, the suggestion is working, finish when the work, pilot lamp 10 can extinguish, be provided with LED lamp 25 in the egg holds in the palm 2,

LED lamp

25 and 4 electric connection of lithium cell, in the course of the work, LED lamp 25 also can shine, the people of being convenient for are to the inside observation of this device. In circuit connection, the lithium battery 4, the ozone generator 3, the negative ion generator 6, the fan 7, the indicator light 10, the timer 11, the LED light 25 and the switch 9 are connected to form a series circuit, when the switch 9 is pressed down, the circuit is switched on, all parts start to work, and when the working duration reaches the working duration of the timer 11, the timer 11 is powered off, so that the whole circuit is powered off, and the next round of work is waited. Still be provided with wifi module 12 in the chassis 1, wifi module 12 and lithium cell 4 electric connection, wifi module 12 is prior art, can directly utilize Wi-Fi to ally oneself with into the internet through wifi module 12, inserts the same network through cell-phone App, alright control through the cell-phone, and intelligent degree is high.

The left side and the right side of the egg tray 2 are provided with air permeable positions 22, the air permeable positions 22 are air permeable holes, so that ozone and negative ions can conveniently enter and exit, the bottom end of the egg position 21 is provided with a water draining hole 24, a tray 15 is further arranged below the egg tray 2, and a gap is reserved between the edge of the tray 15 and the inner wall of the chassis 1 for the ozone and the negative ions to pass through; because the shell of the eggs may be cleaned during the sterilization process, the residual water on the surface of the eggs will fall into the tray 15 through the draining holes 24 for collection.

The egg tray further comprises an upper cover 13, the upper cover 13 can be made of transparent plastics such as polymethyl methacrylate, polystyrene or polycarbonate and the like so as to be convenient for observing the internal conditions, the upper cover 13 helps to prevent ozone and negative ions from leaking, a step 14 is annularly formed on the upper end edge of the chassis 1, the upper cover 13 is installed on the step 14, the structure is compact, mutual sliding is not easy to occur, the step 14 comprises a convex edge 141, a transverse edge 23 is formed by extending the upper end edge of the egg tray 2 outwards, and the egg tray 2 is installed on the convex edge 141 through the transverse edge 23 in a lap joint mode, so that the egg tray 2 can be conveniently drawn and placed.

The working principle of the egg fresh-keeping and sterilizing device is that eggs are orderly placed in an egg position 21 of an egg tray 2, an upper cover 13 is installed, then a switch 9 is switched on, ozone and negative ions generated by an ozone generator 6 and a negative ion generator 7 can purify and sterilize the eggs, bacterial microorganisms on egg shells are eliminated, a fan 7 can generate air flow to enhance the sterilizing effect, and when the working duration reaches the working duration of a timer 11, the timer 11 is powered off, so that the whole circuit is powered off, and the next round of work is waited; when moisture and impurity in the tray 15 are cleared away to needs, the egg tray 2 is integrally taken out, and then the tray 15 is taken out for cleaning, so that the egg tray is very convenient.

Finally, it should be noted that: although the present invention has been described in detail with reference to the embodiments, it will be apparent to those skilled in the art that modifications, equivalents, improvements and the like can be made in the technical solutions of the foregoing embodiments or in some technical features of the foregoing embodiments, but all modifications, equivalents, improvements and the like within the spirit and principle of the present invention are intended to be included in the scope of the present invention.

Claims

1. The utility model provides an egg degassing unit that keeps fresh, its characterized in that, includes the chassis, it holds in the palm to be provided with egg on the chassis, egg holds in the palm and is provided with the egg position that a plurality of is used for placing the egg, be provided with ozone generator and lithium cell in the chassis, the chassis still is provided with USB socket, USB socket with lithium cell electric connection, the lithium cell with ozone generator electric connection.

2. The egg fresh-keeping and disinfecting device of claim 1, wherein a negative ion generator and a fan are further arranged in the chassis, and the negative ion generator and the fan are electrically connected with the lithium battery.

3. The egg preservation and disinfection device of claim 2, wherein an inductive switch is disposed in the egg location, and the inductive switch is electrically connected to the ozone generator, the negative ion generator and the fan.

4. The egg fresh-keeping and disinfecting device of claim 3, wherein a switch and an indicator light are further arranged on the chassis, a timer is arranged in the chassis, and the indicator light and the timer are electrically connected with the switch.

5. The egg fresh-keeping and disinfecting device of claim 4, wherein a wifi module is further arranged in the chassis, and the wifi module is electrically connected with the lithium battery.

6. The egg fresh-keeping and sterilizing device as claimed in claim 1, wherein air permeable positions are provided on left and right sides of the egg tray.

7. The egg fresh-keeping and disinfecting device of any one of claims 1 to 6, further comprising an upper cover, wherein a step is annularly formed on the upper end edge of the chassis, the upper cover is mounted on the step, the step comprises a convex edge, a transverse edge is formed by extending the upper end edge of the egg tray outwards, and the transverse edge is lapped on the convex edge.

8. The egg fresh-keeping and disinfecting device of claim 1, wherein the bottom end of the egg position is provided with a draining hole, and a tray is further arranged below the egg tray.

9. The egg preservation and disinfection device according to claim 1, wherein an LED lamp is arranged in the egg tray and electrically connected with the lithium battery.

10. An egg fresh-keeping and disinfecting device as recited in claim 1, wherein anti-slip feet are arranged below the chassis.
