Abstract

The utility model discloses a memory-imitating fabric with good comfort, which comprises a fabric body, the soybean fiber is arranged, so that the fabric has the excellent performances of cashmere-like soft hand feeling, silk-like soft luster, cotton heat retention, good skin-friendly property and the like, and also has an obvious antibacterial function, the cotton fiber is a pure natural fiber, so that the cotton fiber has excellent softness and moisture absorption performance, and has no any adverse stimulation to skin, and the beneficial silk fiber is arranged, and contains 18 amino acids, has obvious nutrition and health care effects on the skin, can maintain the water wettability of the skin, keep moisture and is breathable, and by arranging the vinylon fibers which are white like snow and soft like cotton, and the moisture absorption performance of the vinylon fiber is the best moisture absorption performance in the synthetic fiber, and the abrasion resistance and the corrosion resistance are better. The utility model discloses, simple structure is reasonable, to the imitative memory surface fabric that has good travelling comfort, has higher practicality.

Description

Memory-imitation fabric with good comfort
Technical Field
The utility model relates to a surface fabric technical field specifically is an imitative memory surface fabric with good travelling comfort.
Background
The memory fabric refers to fabric with a shape memory function, the used raw material is PTT of DuPont in the United states, the raw material contains 1, 3-propylene glycol made of cereal starch (glucose), and the raw material has the functions of moisture absorption and perspiration. The clothes made of the fabric are not supported by external force, can independently keep any shape and can present any wrinkles, can completely recover the flat state after being flicked by hands, can not leave any crease, is shape-preserving and permanent, and is deeply favored by consumers. However, the memory fabric is limited in its application due to the high cost of the raw materials for production.
In the modern society, the living standard of people is continuously improved, the requirements on clothes are higher and higher, and the requirements of people on the clothes can not be met by the warm keeping and shielding body. With the continuous deterioration of the environment and the global warming, the environmental protection and comfort become new pursuits of people for the garment materials. Common fabrics have certain warmth retention property and air permeability, but due to different materials, the softness and air permeability of the fabrics are different, so that the difference of wearing comfort is caused. Even some fibers have poor irritation to human bodies, thereby causing allergic symptoms, are not suitable for wearing of partial people, and particularly as fabrics of underwear, the requirements on raw material fibers are more strict. Therefore, the memory-imitating fabric with good comfort is provided.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a following technical scheme:
the utility model relates to an imitative memory surface fabric with good travelling comfort, which comprises a fabric body, the equal fixedly connected with in both ends bordures about the surface fabric body, the surface fabric body includes the comfortable layer of close skin, stand wear and tear layer, antistatic backing, the ventilative layer of moisture absorption, crease-resistant fibrous layer, elastic fiber layer, the comfortable layer bottom of close skin is connected with stand wear and tear layer, stand wear and tear layer bottom is connected with antistatic backing, antistatic backing bottom is connected with the ventilative layer of moisture absorption, the ventilative layer bottom of moisture absorption is connected with crease-resistant fibrous layer, crease-resistant fibrous layer bottom is provided with elastic fiber layer.
As an optimal technical scheme of the utility model, the comfortable layer of close skin is made by warp and weft kink, warp is made by soybean fibre and silk fibre material, weft is made by cotton fiber and vinylon fibre material.
As an optimized technical scheme of the utility model, the inside on antistatic backing evenly is provided with the conductive fiber silk, just mutually support between the conductive fiber silk and constitute antistatic backing, still be provided with antistatic teflon coating on the antistatic backing.
As an optimal technical scheme of the utility model, moisture absorption ventilative layer is weaving the weaving layer that forms for dacron moisture absorption fibre and nylon moisture absorption fibre stripe alternate arrangement, and the upper end surface is equipped with a plurality of bleeder vent.
As an optimal technical scheme of the utility model, crease-resistant fibrous layer is made by mulberry silk, just polyester-cotton and flax have been added in the mulberry silk, crease-resistant fibrous layer's fabric tissue form is 2/4 twill tissue.
As a preferable technical solution of the present invention, the elastic fiber layer is made of polyurethane fiber.
The utility model has the advantages that:
1. the memory-imitating fabric with good comfort has the advantages that the soybean fibers are arranged, so that the memory-imitating fabric has cashmere-like soft hand feeling, silk-like soft gloss, cotton heat retention, good skin-friendly performance and other excellent performances, and also has an obvious antibacterial function, the cotton fibers are pure natural fibers, so that the memory-imitating fabric has excellent softness and moisture absorption performance, and does not have any adverse stimulation to skin, the beneficial silk fibers are arranged, the silk fibers contain 18 amino acids, so that the skin nutrition and health care effects are obvious, the skin wettability can be maintained, the moisture can be kept and the air permeability is high, the vinylon fibers are arranged, the vinylon fibers are white as snow, soft and cotton-like, the moisture absorption performance of the vinylon fibers is the best in synthetic fibers, and the wear resistance and the corrosion resistance are good;
2. the memory-imitation fabric with good comfort is convenient to use and good in antistatic performance due to the antistatic layer, the wrinkle resistance of the fabric is enhanced, the memory-imitation fabric is green and environment-friendly and does no harm to a human body, the smoothness of the fabric and the skin is greatly improved due to the elastic fiber layer, the wearing comfort is improved, and the memory-imitation fabric with good comfort embodies superior performances of moisture absorption, sweat releasing, air permeability and the like;
3. this kind of imitative memory surface fabric with good travelling comfort through being provided with stand wear and tear layer, makes the cloth have stand wear and tear, the utility model discloses, simple structure is reasonable, and the modern design is at the imitative memory surface fabric to having good travelling comfort, has higher practicality.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

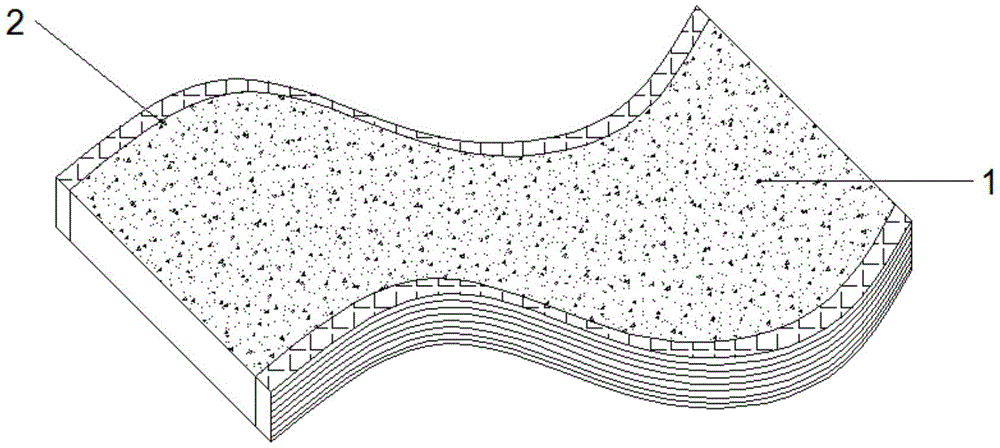

FIG. 1 is a perspective view of a memory-like fabric with good comfort of the present invention;
FIG. 2 is a schematic structural view of a memory-like fabric with good comfort of the present invention;
fig. 3 is a schematic structural view of a skin-friendly comfortable layer of the memory-like fabric of the present invention with good comfort.
In the figure: 1. a fabric body; 2. edge covering; 3. a skin-friendly comfortable layer; 4. a wear-resistant layer; 5. An antistatic layer; 6. a moisture-absorbing breathable layer; 7. a crease resistant fibrous layer; 8. an elastic fiber layer; 9. warp threads; 10. and a weft thread.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Example (b): as shown in fig. 1-3, the utility model relates to an imitative memory surface fabric with good travelling comfort, including surface fabric body 1, its characterized in that, the equal fixedly connected with in both ends is bordured 2 about surface fabric body 1, surface fabric body 1 includes comfortable layer 3 of close skin, stand wear and tear layer 4, antistatic backing 5, moisture absorption ventilative layer 6, crease-resistant fibrous layer 7, elastic fiber layer 8, the comfortable layer 3 bottom of close skin is connected with stand wear and tear layer 4, stand wear and tear layer 4 bottom is connected with antistatic backing 5, antistatic backing 5 bottom is connected with moisture absorption ventilative layer 6, moisture absorption ventilative layer 6 bottom is connected with crease-resistant fibrous layer 7, crease-resistant fibrous layer 7 bottom is provided with elastic fiber layer 8.
Wherein, comfortable layer 3 of parent's skin is twisted by warp 9 and weft 10 and is made, warp 9 is made by soybean fibre and silk fibre material, weft 10 is made by cotton fiber and vinylon fibre material.
The antistatic layer 5 is characterized in that conductive fiber yarns are uniformly arranged inside the antistatic layer 5, the conductive fiber yarns are matched with one another to form an antistatic structure, and an antistatic Teflon coating is further arranged on the antistatic layer 5.
Wherein, the moisture absorption and ventilation layer 6 is a textile layer formed by alternately arranging and weaving terylene moisture absorption fibers and nylon moisture absorption fiber stripes, and the upper end surface is provided with a plurality of ventilation holes.
The anti-wrinkle fiber layer 7 is made of mulberry silk, polyester cotton and flax are added into the mulberry silk, and the fabric tissue form of the anti-wrinkle fiber layer 7 is 2/4 twill tissue.
Wherein the elastic fiber layer 8 is made of polyurethane fiber.
The working principle is as follows: the memory-imitating fabric with good comfort has the advantages that the soybean fiber is arranged, so that the memory-imitating fabric has cashmere-like soft hand feeling, silk-like soft luster, cotton heat retention, good skin-friendly performance and other excellent performances, and also has an obvious antibacterial function, the cotton fiber is arranged, so that the memory-imitating fabric has excellent softness and moisture absorption performance, does not have any adverse stimulation to skin, the beneficial silk fiber is arranged, the silk fiber contains 18 amino acids, has obvious nutrition and health care effects on skin, can maintain the skin wettability, keeps moisture and is breathable, the vinylon fiber is arranged, the vinylon fiber is white as well as snow, is soft like cotton, the moisture absorption performance of the vinylon fiber is the best performance in synthetic fiber, the wear resistance and the corrosion resistance are good, the use is convenient by the arrangement of the antistatic layer 5, have good antistatic performance, strengthened the crease resistance of surface fabric, green does not have harm to the human body, through being provided with elastic fiber layer 8, very big increase the silky sense of surface fabric and skin, has improved the travelling comfort of dress simultaneously, has embodied superior moisture absorption, perspire, performances such as ventilative more, through being provided with stand wear and tear layer 4, makes the cloth have stand wear and tear property, the utility model discloses, simple structure is reasonable, and the modern design has higher practicality to the imitative memory surface fabric that has good travelling comfort.
Finally, it should be noted that: in the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (6)

1. The utility model provides an imitative memory surface fabric with good travelling comfort, includes surface fabric body (1), its characterized in that, the equal fixedly connected with in both ends bordures (2) about surface fabric body (1), surface fabric body (1) is including close comfortable layer (3), stand wear layer (4), antistatic backing (5), moisture absorption ventilative layer (6), crease-resistant fibrous layer (7), elastic fiber layer (8), close comfortable layer (3) bottom is connected with stand wear layer (4), stand wear layer (4) bottom is connected with antistatic backing (5), antistatic backing (5) bottom is connected with moisture absorption ventilative layer (6), moisture absorption ventilative layer (6) bottom is connected with crease-resistant fibrous layer (7), crease-resistant fibrous layer (7) bottom is provided with elastic fiber layer (8).
2. The memory-like fabric with good comfort performance according to claim 1, wherein the skin-friendly comfort layer (3) is formed by twisting warp threads (9) and weft threads (10), the warp threads (9) are made of soybean fibers and silk fibers, and the weft threads (10) are made of cotton fibers and vinylon fibers.
3. The memory-like fabric with good comfort performance according to claim 1, wherein the antistatic layer (5) is uniformly provided with conductive fiber yarns, the conductive fiber yarns are matched with each other to form an antistatic structure, and the antistatic layer (5) is further provided with an antistatic Teflon coating.
4. The memory-like fabric with good comfort property according to claim 1, wherein the moisture-absorbing and air-permeable layer (6) is a woven layer formed by alternately weaving polyester moisture-absorbing fibers and nylon moisture-absorbing fibers, and a plurality of air holes are formed in the upper end surface of the moisture-absorbing and air-permeable layer.
5. The memory imitation fabric with good comfort according to claim 1, wherein the anti-wrinkle fiber layer (7) is made of mulberry silk, polyester cotton and flax are added into the mulberry silk, and the fabric weave of the anti-wrinkle fiber layer (7) is 2/4 twill weave.
6. The memory-like fabric with good comfort according to claim 1, wherein the elastic fiber layer (8) is made of polyurethane fibers.
