Abstract
本实用新型公开了一种工业机电运输传动装置，包括底板，所述底板上表面的四角处均固定连接有电动推杆，所述电动推杆的顶端固定连接有固定座，所述固定座的内部通过转轴活动连接有固定块，所述固定块的上表面固定连接有支撑框。该工业机电运输传动装置，通过底板、毛刷、第二电机、收集槽、波纹软管和收集管等结构的设置，启动第二电机带动毛刷转动，从而可以对传送带表面附着的煤渣进行清理，同时，清理后的煤渣通过过滤网板过滤掉落于储存箱内，从而可以对煤渣进行收集再利用，且启动抽风机又可以对清理时产生的灰尘颗粒进行收集，通过储液箱的配合使用，又可以对收集的灰尘颗粒进行有效的降尘，增强了该装置的实用性。
The utility model discloses an industrial electromechanical transport transmission device, which comprises a bottom plate, electric push rods are fixedly connected to the four corners of the upper surface of the bottom plate, and the top of the electric push rod is fixedly connected with a fixed seat, A fixed block is movably connected inside through a rotating shaft, and a support frame is fixedly connected to the upper surface of the fixed block. The industrial electromechanical transport transmission device, through the arrangement of the bottom plate, brush, second motor, collecting tank, corrugated hose and collecting pipe, etc., starts the second motor to drive the brush to rotate, so as to clean the cinder attached to the surface of the conveyor belt At the same time, the cleaned cinder is filtered and dropped into the storage box through the filter screen plate, so that the cinder can be collected and reused, and the dust particles generated during cleaning can be collected by starting the exhaust fan. In addition, the collected dust particles can be effectively dedusted, which enhances the practicability of the device.
Description
Technical Field
The utility model relates to an electromechanical technical field specifically is an industry electromechanical transportation transmission.
Background
Coal mines are inevitably not reserved in industrial development, and coal mine electromechanical equipment is a necessary condition in the coal mine mining process, so that a large amount of coal mine mechanical equipment, electrical equipment and electromechanical equipment are required to operate, wherein the coal mine mechanical equipment, the electrical equipment and the electromechanical equipment mainly comprise lifting equipment, ventilation equipment, air compression equipment, drainage equipment, excavating equipment, transportation equipment and the like, and transportation transmission equipment of coal mines is very important and is related to the stability and safety of coal mine transportation.
When the coal mine is transported, a small amount of coal cinder is often accumulated on the surface of the conveyor belt, the coal cinder is inconvenient to clean after long-time use, and the waste of coal is easily caused, so that the industrial electromechanical transportation transmission device is provided.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an industry electromechanical transportation transmission has solved the problem of proposing in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: an industrial electromechanical transportation transmission device comprises a bottom plate, wherein four corners of the upper surface of the bottom plate are fixedly connected with electric push rods, the top ends of the electric push rods are fixedly connected with a fixed seat, the inside of the fixed seat is movably connected with a fixed block through a rotating shaft, the upper surface of the fixed block is fixedly connected with a supporting frame, two sides of the inner side wall of the supporting frame are movably connected with transmission rollers through bearings, one end of each transmission roller penetrates through the supporting frame and is fixedly connected with a driven wheel, the surface of the driven wheel is connected with a driving wheel through transmission of a transmission belt, one side of the driving wheel is provided with a first motor, one side of the supporting frame is fixedly connected with a second motor through a fixed plate, the output end of the second motor is fixedly connected with a brush, the inner bottom wall of the supporting frame is provided with a brush close to the inner bottom wall of the supporting frame, a corrugated hose is fixedly connected to the lower surface of a collecting tank of the supporting frame, the lower fixed surface of corrugated hose is connected with the collecting pipe, the inside wall fixedly connected with of collecting pipe crosses filter plate, one side of collecting pipe is through passage fixedly connected with bin, the lower surface of collecting pipe is through connecting pipe fixedly connected with air exhauster.
Optionally, the center of the upper surface of the bottom plate is fixedly connected with a liquid storage tank, and the lower surface of the exhaust fan is fixedly connected to the upper surface of the liquid storage tank.
Optionally, the output of air exhauster passes through honeycomb duct fixed connection in the inside of liquid reserve tank, the inside of liquid reserve tank is provided with water.
Optionally, the back swing joint of bin has the chamber door, the equal fixedly connected with universal wheel in four corners department of bottom plate lower surface.
Optionally, a conveying belt is arranged on the surface of the driving roller, and a rolling shaft is movably connected to the inner side wall of the supporting frame through a shaft seat.
Optionally, the two sides of the upper surface of the supporting frame are fixedly connected with protection plates, and the two sides of the bottom plate are in threaded connection with positioning bolts.
(III) advantageous effects
The utility model provides an industry electromechanical transportation transmission possesses following beneficial effect:
1. this industry electromechanical transportation transmission, through the bottom plate, the brush, the second motor, the collecting vat, the setting of bellows and collecting pipe isotructure, it drives the brush rotation to start the second motor, thereby can clear up conveying belt surface adnexed cinder, and simultaneously, the cinder after the clearance drops in the bin through filtering filter plate filtration, thereby can collect the reuse to the cinder, and start the air exhauster and can collect the dust granule that produces when clearing up again, cooperation through the liquid reserve tank is used, can carry out effectual dust fall to the dust granule of collecting again, the device's practicality has been strengthened.
2. This industry electromechanical transportation transmission, through electric putter, fixing base, fixed block, carriage, driving roller and the setting of first motor isotructure, start first motor and drive the driving roller and rotate to can drive the conveyer belt and rotate, and then can carry out effectual transportation to coal, and use through electric putter's cooperation, again can be according to the reasonable adjustment the device's of actual conditions use height, improved the device's application scope, made things convenient for staff's use.
Drawings

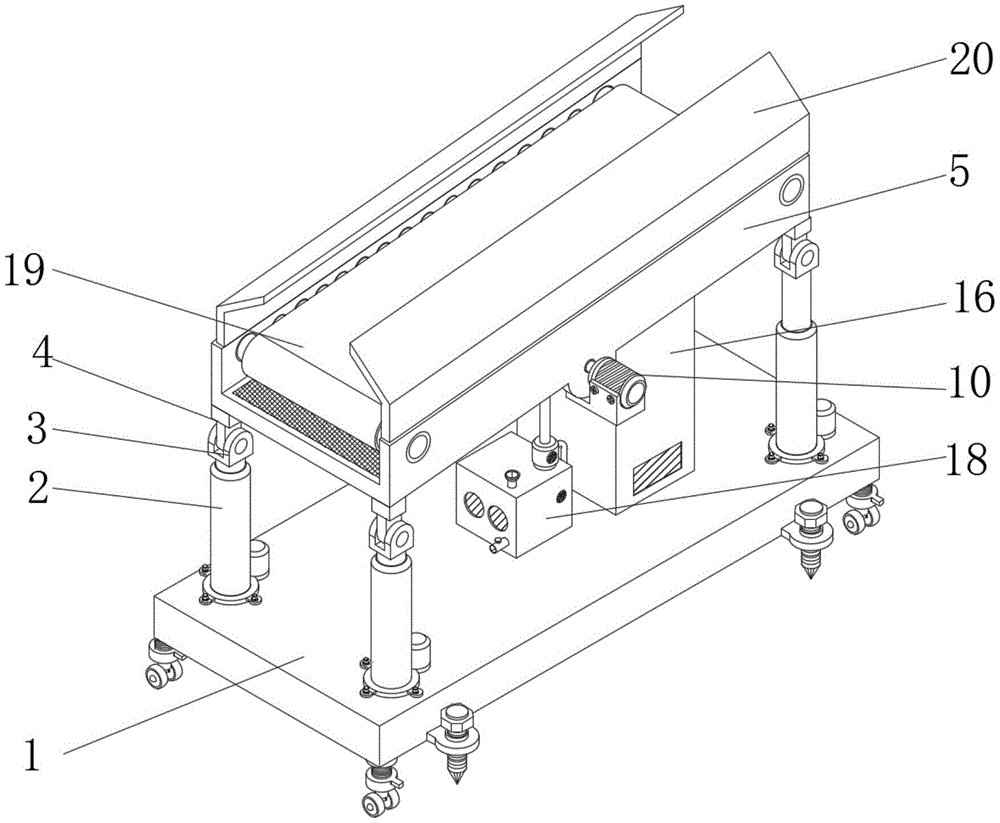

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic side sectional view of the present invention;
FIG. 3 is a front sectional view of the present invention;
FIG. 4 is a schematic view of the top-down structure of the present invention;
fig. 5 is an enlarged schematic view of a portion a in fig. 2 according to the present invention.
In the figure: 1. a base plate; 2. an electric push rod; 3. a fixed seat; 4. a fixed block; 5. a support frame; 6. a driving roller; 7. a driven wheel; 8. a driving wheel; 9. a first motor; 10. a second motor; 11. a brush; 12. Collecting tank; 13. a corrugated hose; 14. a collection pipe; 15. a filter screen plate; 16. a storage tank; 17. an exhaust fan; 18. a liquid storage tank; 19. a conveyor belt; 20. and (4) a protective plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 5, the present invention provides a technical solution: an industrial electromechanical transportation transmission device comprises a bottom plate 1, wherein positioning bolts are in threaded connection with two sides of the bottom plate 1, universal wheels are fixedly connected with four corners of the lower surface of the bottom plate 1, brake pads are arranged inside the universal wheels, electric push rods 2 are fixedly connected with four corners of the upper surface of the bottom plate 1, fixing seats 3 are fixedly connected with the top ends of the electric push rods 2, fixing blocks 4 are movably connected inside the fixing seats 3 through rotating shafts, supporting frames 5 are fixedly connected with the upper surfaces of the fixing blocks 4, protection plates 20 are fixedly connected with two sides of the upper surface of the supporting frames 5, rolling shafts are movably connected with the inner side walls of the supporting frames 5 through shaft seats, the stability of a transmission belt 19 during rotation is improved through the arrangement of the rolling shafts, transmission rollers 6 are movably connected with two sides of the inner side walls of the supporting frames 5 through bearings, a transmission belt 19 is arranged on the surface of the transmission rollers, the surface of the driven wheel 7 is connected with a driving wheel 8 through transmission of a transmission belt, one side of the driving wheel 8 is provided with a first motor 9, one side of a support frame 5 is fixedly connected with a second motor 10 through a fixing plate, the output end of the second motor 10 is fixedly connected with a brush 11, the inner bottom wall of the support frame 5 is provided with a collecting tank 12 close to the brush 11, the lower surface of the support frame 5 is fixedly connected with a corrugated hose 13, the lower surface of the corrugated hose 13 is fixedly connected with a collecting pipe 14, the inner side wall of the collecting pipe 14 is fixedly connected with a filter screen plate 15, one side of the collecting pipe 14 is fixedly connected with a storage tank 16 through a guide pipe, the back of the storage tank 16 is movably connected with a tank door, the lower surface of the collecting pipe 14 is fixedly connected with an exhaust fan 17 through a connecting pipe, the center of the upper surface of the bottom plate 1 is fixedly connected with a liquid storage tank 18, and the lower surface of the exhaust fan 17 is fixedly connected with the upper surface of the liquid storage tank 18, the output of air exhauster 17 passes through honeycomb duct fixed connection in the inside of liquid reserve tank 18, and the last fixed surface of liquid reserve tank 18 is connected with the permeability cell, and the inside of liquid reserve tank 18 is provided with water, starts in the dust suction liquid reserve tank 18 that air exhauster 17 will produce when clearing up, and water in the liquid reserve tank 18 can carry out effectual dust fall to the dust, and the permeability cell of the air from liquid reserve tank 18 upper surface after the dust fall discharges.
The electrical components appearing in the paper are all electrically connected with an external master controller and 380V mains supply, the master controller can be a conventional known device controlled by a computer and the like, detailed description of known functions and known components is omitted in the specific embodiment of the disclosure, and in order to ensure compatibility of the device, all adopted operation means are consistent with parameters of instruments in the market.
In summary, the industrial electro-mechanical transport transmission operates as follows;
1. when the device is used, a user moves the device to a proper position, the positioning bolt on the rotating bottom plate 1 fixes the device, the first motor is started to drive the driving wheel 9 to drive the driving wheel 8 to rotate, the driving wheel 8 drives the driven wheel 7 to rotate through the driving belt, the driven wheel 7 drives the driving belt 19 to rotate through the driving roller 6, so that coal can be transported, and the electric push rod 2 is started to adjust the use height of the device;
2. start second motor 10 and drive brush 11 and rotate to can clear up 19 adnexed cinder of surface to conveying, the cinder after the clearance drops in collecting pipe 14 through collecting vat 12, the cinder filters through filtering otter board 15 and drops in bin 16, thereby can collect the cinder and recycle, the dust that produces when starting air exhauster 17 will clear up inhales the liquid reserve tank 18 in, water in the liquid reserve tank 18 can carry out effectual dust fall to the dust.
The above description is only a preferred embodiment of the present invention, but the scope of protection of the present invention is not limited thereto, and any person skilled in the art should be covered by the scope of protection of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the concept thereof, wherein the standard parts used can be purchased from the market, and can be customized according to the description of the specification and the drawings, the specific connection manner of each part adopts the conventional means of bolt, rivet, welding, etc. developed in the prior art, the machinery, parts and equipment all adopt the conventional models in the prior art, and the parts known to those skilled in the art, the structure and principle thereof can be known to the person skilled in the art through technical manuals or through conventional experimental methods in the description of the present invention, the terms "connect", "mount", "fix", "set" and the like are used in a broad sense, for example, the term "connect" may be a fixed connection or an indirect connection through intermediate components without affecting the relationship and technical effects of the components, or may be an integral connection or a partial connection, and as in this case, for a person skilled in the art, the specific meaning of the above terms in the present invention or the present invention can be understood according to specific situations.
Claims (6)
1. An industrial electromechanical transport transmission device, comprising a base plate (1), characterized in that: the electric hair dryer is characterized in that electric push rods (2) are fixedly connected to four corners of the upper surface of the bottom plate (1), a fixing seat (3) is fixedly connected to the top end of each electric push rod (2), a fixing block (4) is movably connected to the inside of each fixing seat (3) through a rotating shaft, a supporting frame (5) is fixedly connected to the upper surface of each fixing block (4), driving rollers (6) are movably connected to two sides of the inner side wall of each supporting frame (5) through bearings, one end of each driving roller (6) penetrates through the corresponding supporting frame (5) and is fixedly connected with a driven wheel (7), the surface of each driven wheel (7) is connected with a driving wheel (8) through driving belt transmission, a first motor (9) is arranged on one side of each driving wheel (8), a second motor (10) is fixedly connected to one side of each supporting frame (5) through a fixing plate, and a brush (11) is fixedly connected to the output end of each second motor (10), collecting vat (12) have been seted up near brush (11) to the inner diapire of carriage (5), the lower fixed surface of carriage (5) has connect corrugated hose (13), the lower fixed surface of corrugated hose (13) is connected with collecting pipe (14), the inside wall fixedly connected with filter plate board (15) of collecting pipe (14), guide tube fixedly connected with bin (16) is passed through to one side of collecting pipe (14), the lower surface of collecting pipe (14) passes through connecting pipe fixedly connected with air exhauster (17).
2. An industrial electro-mechanical transport transmission as claimed in claim 1 wherein: the center department fixedly connected with liquid reserve tank (18) of bottom plate (1) upper surface, the lower surface fixed connection in liquid reserve tank (18) of air exhauster (17).
3. An industrial electro-mechanical transport transmission as claimed in claim 2 wherein: the output end of the exhaust fan (17) is fixedly connected to the inside of the liquid storage tank (18) through a guide pipe, and water is arranged inside the liquid storage tank (18).
4. An industrial electro-mechanical transport transmission as claimed in claim 1 wherein: the back of the storage box (16) is movably connected with a box door, and the four corners of the lower surface of the bottom plate (1) are fixedly connected with universal wheels.
5. An industrial electro-mechanical transport transmission as claimed in claim 1 wherein: the surface of the driving roller (6) is provided with a conveyor belt (19), and the inner side wall of the supporting frame (5) is movably connected with a roller through a shaft seat.
6. An industrial electro-mechanical transport transmission as claimed in claim 1 wherein: the protection plate is fixedly connected to two sides of the upper surface of the supporting frame (5), and positioning bolts are connected to two sides of the bottom plate (1) in a threaded mode.
