Abstract
本实用新型公开了一种可塑形心电图机胸导联防脱落及防绕线装置，具体涉及心电图技术领域，包括基座、转轴、固定块、固定杆、夹臂、弹簧、夹子以及电极片，所述基座转动连接在可塑形底座下侧面，所述基座下侧连接有转轴一端，所述转轴另一端与固定块相连接，所述固定块下侧面固定连接有固定杆，所述固定杆下侧连接有夹臂，所述夹臂下侧面固定连接有夹子，所述夹子内侧面镶嵌固定有电极片，所述夹臂之间设置有弹簧。本实用新型具有结构简单、使用方便、操作便捷、使用范围广、使用寿命长、工作效率高等优点，缩短医护人员判断病情的时间，为抢救生命赢得了宝贵时间。
The utility model discloses an anti-dropping and anti-winding device for a chest lead of a shapeable electrocardiograph, in particular to the technical field of electrocardiography, comprising a base, a rotating shaft, a fixing block, a fixing rod, a clamping arm, a spring, a clip and an electrode sheet. The base is rotatably connected to the lower side of the plastic base, the lower side of the base is connected with one end of a rotating shaft, the other end of the rotating shaft is connected with a fixing block, and a fixing rod is fixedly connected to the lower side of the fixing block, and the fixing rod is A clip arm is connected to the lower side, a clip is fixedly connected to the lower side of the clip arm, an electrode sheet is embedded and fixed on the inner side of the clip, and a spring is arranged between the clip arms. The utility model has the advantages of simple structure, convenient use, convenient operation, wide use range, long service life and high work efficiency, shortens the time for medical staff to judge the disease condition, and wins precious time for saving lives.
Description
Technical Field
The utility model relates to an electrocardiogram technical field, more specifically say, the utility model relates to a shapeable electrocardiograph chest leads anti-drop and anti-winding device.
Background
With the aging of population, the change of dietary structure and the increase of unhealthy living habits, cardiovascular diseases become the first significant disease of fatality rate in China. The electrocardiograph is the most common and powerful device for recording the electrocardio-activity and assisting medical staff to quickly judge the cardiac function. Under emergency conditions, the rapid understanding of cardiac function is an important prerequisite for effective rescue of clinical medical personnel in time. The current clinical electrocardiograph lead wires V1-V6 of various types are chest leads, and are sucked on the chest wall of a patient by suction by using an electrocardiograph chest ball. For patients with dry skin, thin body, little subcutaneous fat or obvious ribs, the condition that the suction bulb of the electrocardiogram often falls off or cannot be sucked on the chest wall of the patient can occur, thereby seriously influencing the accuracy of the electrocardiogram and delaying the clinical diagnosis and treatment. In addition, the existing lead wires of electrocardiographs, especially chest lead wires, are often twisted and distorted in clinical use due to their large number and relative concentration. And because the length of the lead wire is fixed, when the patient with obesity is met, the lead wire is often excessively pulled, the lead wire can be damaged, and the service life of the lead wire is shortened. Before the electrocardiographic examination, a long time is needed for repeatedly fixing the electrocardiographic suction ball and arranging the lead wire, and particularly when a critically ill patient urgently examines the electrocardiography, the more urgent and the more disorderly the electrocardiography is, the working efficiency of medical care personnel is seriously influenced, and the rescue time is delayed.
SUMMERY OF THE UTILITY MODEL
In order to overcome the above-mentioned defect of prior art, the embodiment of the utility model provides a shapeable electrocardiograph chest leads anti-drop and anti-winding device, the utility model aims to solve the technical problem that: the existing lead wires of electrocardiographs, especially chest lead wires, are often twisted and distorted in clinical use due to their large number and relative concentration.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a mouldable electrocardiograph chest leads anti-drop and prevent winding device, inhales the ball fixation clamp including mouldable base and rotatable electrocardio, mouldable base downside is connected with rotatable electrocardio and inhales the ball fixation clamp, rotatable electrocardio is inhaled the ball fixation clamp and is included base, pivot, fixed block, dead lever, arm lock, spring, clip and electrode piece, the base rotates and connects miscellaneous mouldable base downside, the base downside is connected with pivot one end, the pivot other end is connected with the fixed block, fixed block downside fixedly connected with dead lever, the dead lever downside is connected with the arm lock, arm lock downside fixedly connected with clip, the clip medial surface is inlayed and is fixed with the electrode piece, be provided with the spring between the arm lock.
In a preferred embodiment, the joint of the inner side surfaces of the clamping arms is rotatably connected with the fixing rod through a hinge, so that the clamping arms can be conveniently rotated.
In a preferred embodiment, the number of the clamping arms and the number of the clamps are two, and a spring is connected between the two clamping arms, so that the clamping arms can be conveniently reset through the spring.
In a preferred embodiment, electrode plates are embedded and fixed on the inner side surfaces of the two clips, and the two clips correspond to the two electrode plates one to one, so that the electrode plates can be conveniently and stably placed.
In a preferred embodiment, the shapeable base is made of flexible plastic tubing and can rotate 360 °.
In a preferred embodiment, plastic base downside is processed there is annular clamping groove, annular clamping groove goes up the joint has annular card strip, annular card strip a body coupling is to keeping off the ring side of going up, keep off the ring and cup joint in the pivot, and be located the base downside, be convenient for carry on spacingly through keeping off the ring to the base, improved the anticreep effect, also make things convenient for to keep off the ring in addition and carry out the dismouting change.
In a preferred embodiment, the retaining ring is formed by combining a left half ring and a right half ring, and the right side surface of the left half ring is clamped with the right half ring through a convex strip and a groove.
In a preferred embodiment, the base is equipped with more than two, and more than two the equal equidistance of base sets up at the shapeable base downside, has realized supporting and placing a plurality of clips.
The utility model discloses a technological effect and advantage:
the utility model can be shaped according to the body types of different patients, can be applied to the patients with dry skin, thin body type, little subcutaneous fat or obvious ribs, and can reduce the falling off of the chest lead electrocardio suction ball; the device can be applied to obese patients, and the traction of the electrocardiograph lead wire is reduced; the design of the rotatable electrocardio suction ball fixing clamp can reduce the winding of the lead wire and avoid the influence of the winding on use; but wide adaptation in the multiple model electrocardiograph of clinical use, the chest lead electrocardio suction ball that the centre gripping electrocardiograph was equipped with has thereby the electrode slice on the clip can carry out electrocardio conduction, carries out the drawing of electrocardio-graph on the electrocardio-graph paper, the utility model has the advantages of simple structure, convenient to use, simple operation, application range are wide, long service life, work efficiency height shorten the time that medical personnel judge the state of an illness, have won the valuable time for rescuing the life.
Drawings

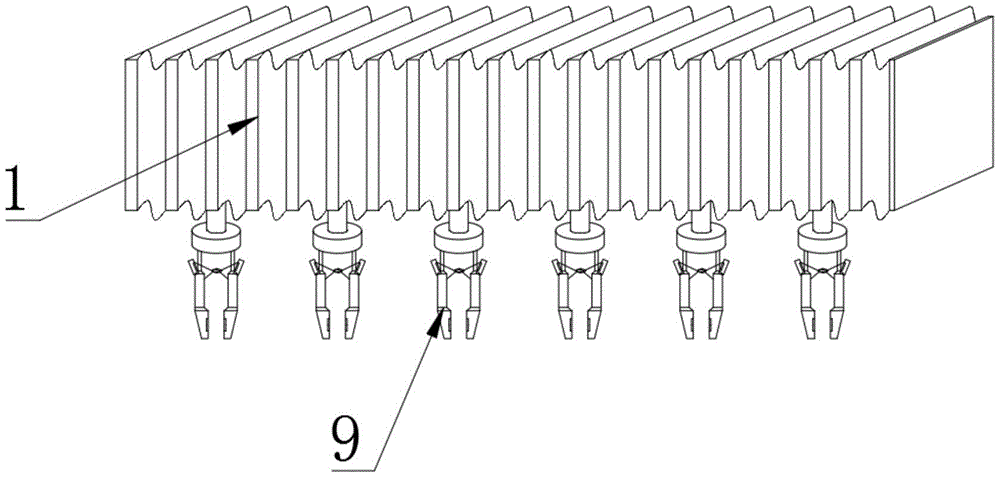

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic view of the unfolding structure of the present invention.
Fig. 3 is a schematic view of the partial cross-sectional structure of the present invention.
Fig. 4 is a schematic view of the overall structure of the rotatable electrocardiograph suction ball fixing clamp of the present invention.
Fig. 5 is a schematic sectional view of the middle baffle ring of the present invention.
Fig. 6 is a schematic top view of the middle stop ring of the present invention.
The reference signs are: 1. a shapeable base; 2. the rotatable electrocardio suction ball fixing clamp; 3. a base; 4. a rotating shaft; 5. a fixed block; 6. a joint; 7. fixing the rod; 8. clamping arms; 9. a spring; 10. a clip; 11. an electrode sheet; 12. an annular neck; 13. a baffle ring; 14. and an annular clamping strip.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a can shape electrocardiograph chest lead anti-drop and anti-winding device, including can shape base 1 and rotatable electrocardio suction ball fixation clamp 2, can shape base 1 downside is connected with rotatable electrocardio suction ball fixation clamp 2, can shape base 1 can compress as required, tensile, moulding to corresponding shape.
Rotatable electrocardio suction ball fixation clamp 2 includes base 3, pivot 4, fixed block 5, dead lever 7, arm lock 8, spring 9, clip 10 and electrode piece 11, base 3 rotates and connects the miscellaneous 1 downside that can shape base, 3 downside of base is connected with pivot 4 one end, the 4 other ends in pivot are connected with fixed block 5, 5 downside fixedly connected with dead lever 7 of fixed block, 7 downside of dead lever are connected with arm lock 8, 8 downside fixedly connected with clips 10 of arm lock, make clip 10 stable in structure itself, leave certain angle and interval between dead lever 7 and arm lock 8 simultaneously, do not influence opening and shutting of arm lock 8, 10 medial surfaces of clip are inlayed and are fixed with electrode piece 11, can realize the conduction, be provided with spring 9 between the arm lock 8, be convenient for open and close clip 10.
The joint 6 of the inner side surface of the clamping arm 8 is rotatably connected with the fixed rod 7 through a hinge.
Two clamping arms 8 and two clamps 10 are arranged, and a spring 9 is connected between the two clamping arms 8.
The plastic base 1 is made of flexible plastic hose.
The baffle ring 13 is formed by combining a left half ring and a right half ring, and the right side surface of the left half ring is connected with the right half ring in a clamping way through a raised line and a groove.
The base 3 is provided with more than two, and the base 3 is arranged on the lower side surface of the plastic base 1 at equal distance.
As shown in fig. 1 to 6, the embodiment specifically is as follows: can refer to chest lead V1-V6 position extension for "S" shape to can be according to the flexible moulding of patient 'S size to different length and shape, in order to satisfy all kinds of demands, can contract as far as possible whole device through plastic base 1, be convenient for deposit, can save space, when using, arrange patient' S chest wall in with plastic base 1, according to not using flexible moulding to suitable shape and length of size of body and thorax, later with each chest lead electrocardio suction ball centre gripping on rotatable electrocardio suction ball fixation clamp 2, rotatable electrocardio suction ball fixation clamp 2 accessible pivot 4 realizes 360 rotations in order to adjust suitable angle and position.
The plastic base 1 is made of a telescopic plastic hose material, has the characteristics of being telescopic, and has the advantages of low cost, light weight, no oppression feeling to patients and the like, and can be applied to patients with dry skin, thin body, less subcutaneous fat, obvious ribs or fat body and more subcutaneous fat, and can be widely applied to clinic application, when equipment is manufactured, the rotatable electrocardio suction ball fixing clamp 2 is installed and fixed on the plastic base 1 through the base 3, when the equipment is used, the plastic base 1 is stretched according to specific conditions and requirements, the rotatable electrocardio suction ball fixing clamp 2 can be driven to move to a proper position along with the stretching, the rotatable electrocardio suction ball fixing clamp 2 is in a horizontal relation with a chest wall, when the rotatable electrocardio suction ball fixing clamp 2 is used for clamping a chest lead electrocardio suction ball, the suction ball is in a vertical position with the chest wall, so that the fixing clamp can fix the suction ball, still can provide the holding power for inhaling the ball, make it be difficult for droing, the electrocardio is inhaled the ball fixation clamp and can 360 rotations, can adjust direction and angle according to actual conditions to this can improve the utility model discloses a practicality, simple structure, convenient to use, long service life is convenient for popularize and promote.
When going the electrocardiographic examination and chest lead electrocardiographic suction ball can't adsorb in the skin surface for special crowd like skin drying, thin, the less or obvious patient of rib of subcutaneous fat, the utility model discloses the accessible is put in patient chest wall plastic shape device, adjusts the length and the position of plastic shape base 1 according to size and thorax size, uses rotatable electrocardiographic suction ball fixation clamp 2 to clip the chest lead electrocardiographic suction ball of original electrocardiograph and carry out the conduction of electrocardio to carry out the drawing of electrocardiographic on the electrocardiographic paper. In addition, when the patient with obesity is subjected to electrocardiographic examination, the plastic base 1 is stretched to the length matched with the size of the thorax, so that the traction damage of the electrocardiograph lead wire can be reduced, and the service life is prolonged. The design of the rotatable electrocardio suction ball fixing clamp 2 reduces the winding of the lead wire and avoids the influence of the winding on use. And simultaneously, the utility model discloses do not receive the influence of clinical use's electrocardiogram machine type, only need hold the electrocardio suction ball alright carry out the electrocardio conduction of the chest lead electrocardio of original electrocardiogram machine with rotatable electrocardio suction ball fixation clamp 2, but extensive adaptation in the electrocardiogram machine of arbitrary model.
When the device is stored, the whole device can be contracted as much as possible through the plastic base 1, so that the space can be saved. Because the rotatable electrocardio suction ball fixing clamp 2 is fixed on the plastic base 1 through the base 31, the two are in a stable state and can not slide randomly, when the plastic base 1 moves, the rotatable electrocardio suction ball fixing clamp 2 can be driven to move together, when a patient needing electrocardiographic examination meets, a medical worker holds the plastic base 1 to stretch the whole device to a proper length, places the device on the chest wall of the patient and finely adjusts the length to be matched with the size of the chest of the patient, then uses the rotatable electrocardio suction ball fixing clamp 2 to clamp the chest electrocardio lead suction ball of the original electrocardiograph machine, rotates the electrocardio suction ball fixing clamp to a proper angle according to different conditions for use, is convenient for electrocardiographic examination of patients with different body types such as dry skin, thin body, less subcutaneous fat, obvious ribs or fat body types and the like, and reduces the time for arranging lead wires, the labor and the material resources are saved, the medical care personnel can operate more easily, the working efficiency is improved, the time for judging the state of an illness is shortened, and the precious time is won for rescuing the life.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;
and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (8)
1. The utility model provides a shapeable electrocardiograph chest leads anti-drop and anti-winding device, includes shapeable base (1) and rotatable electrocardio suction ball fixation clamp (2), its characterized in that: the lower side of the plastic base (1) is connected with a rotatable electrocardio suction ball fixing clamp (2);
rotatable heart electricity is inhaled ball fixation clamp (2) and is included base (3), pivot (4), fixed block (5), dead lever (7), arm lock (8), spring (9), clip (10) and electrode piece (11), base (3) are rotated and are connected miscellaneous plastic base (1) downside, base (3) downside is connected with pivot (4) one end, the pivot (4) other end is connected with fixed block (5), fixed block (5) downside fixedly connected with dead lever (7), dead lever (7) downside is connected with arm lock (8), arm lock (8) downside fixedly connected with clip (10), clip (10) medial surface is inlayed and is fixed with electrode piece (11), be provided with spring (9) between arm lock (8).
2. The anti-drop and anti-winding device for chest leads of shapeable electrocardiographs according to claim 1, wherein: and the joint (6) of the inner side surface of the clamping arm (8) is rotatably connected with the fixed rod (7) through a hinge.
3. The anti-drop and anti-winding device for chest leads of shapeable electrocardiographs according to claim 2, wherein: both the clamping arms (8) and the clamps (10) are provided with two clamping arms (8), and springs (9) are connected between the two clamping arms (8).
4. The anti-drop and anti-winding device for chest leads of shapeable electrocardiographs according to claim 3, wherein: electrode plates (11) are fixedly embedded on the inner side surfaces of the two clips (10), and the two clips (10) correspond to the two electrode plates (11) one by one.
5. The anti-drop and anti-winding device for chest leads of shapeable electrocardiographs according to claim 1, wherein: the plastic base (1) is made of a telescopic plastic hose material.
6. The anti-drop and anti-winding device for chest leads of shapeable electrocardiographs according to claim 5, wherein: annular groove (12) have been processed to mouldable base (1) downside, the joint has annular card strip (14) on annular groove (12), annular card strip (14) a body coupling is gone up the side in fender ring (13), keep off ring (13) and cup joint in pivot (4), and be located base (3) downside.
7. The anti-drop and anti-winding device for chest leads of shapeable electrocardiographs according to claim 6, wherein: keep off ring (13) and form by left semi-ring and right semi-ring combination, and left semi-ring right flank passes through sand grip and recess and right semi-ring joint together.
8. The anti-drop and anti-winding device for chest leads of shapeable electrocardiographs according to claim 6, wherein: the base (3) is provided with more than two, more than two the base (3) is equally spaced and arranged on the lower side surface of the plastic base (1).
