Abstract
本实用新型公开了一种基于环境监理的水体含沙量检测装置，包括主壳体、第一过滤盒、第二过滤盒和排水管，所述主壳体的内部设置有第一过滤盒，且第一过滤盒的下方设置有第二过滤盒，并且第二过滤盒的上方固定有连接块，所述连接块螺纹安装在第一过滤盒的下方，且第一过滤盒的内部固定有第一过滤板，并且第一过滤板的下方设置有第二过滤板，所述第二过滤板镶嵌在第二过滤盒的内壁。该基于环境监理的水体含沙量检测装置设置有限位板和传动板，可通过传动板的移动带动限位板进行移动，使限位板能通过传动板和连接槽的连接带动第一过滤盒和第二过滤盒进行上下的移动，避免第一过滤板和第二过滤板的表面发生堵塞，提高后续水体的过滤效率。
The utility model discloses a water body sand content detection device based on environmental supervision, comprising a main casing, a first filter box, a second filter box and a drainage pipe, wherein a first filter box is arranged inside the main casing, And a second filter box is arranged below the first filter box, and a connection block is fixed above the second filter box, the connection block is threadedly installed below the first filter box, and the first filter box is fixed inside the first filter box. A filter plate, and a second filter plate is arranged below the first filter plate, and the second filter plate is embedded in the inner wall of the second filter box. The environmental supervision-based water sand content detection device is provided with a limit plate and a transmission plate, which can drive the limit plate to move through the movement of the transmission plate, so that the limit plate can drive the first filter box through the connection between the transmission plate and the connecting groove It moves up and down with the second filter box to avoid clogging on the surfaces of the first filter plate and the second filter plate, and to improve the filtration efficiency of the subsequent water body.
Description
Technical Field
The utility model relates to a water sand content detects technical field, specifically is a water sand content detection device based on environment prison.
Background
Environmental monitoring indicates the inspection to the environment, is a government administrative action, and at the environmental monitoring in-process to water environment testing process, the sand content in the water needs to be detected sometimes to judge the environmental aspect of water, can sieve the grit through sand content detection device with the water of sample during the detection, and then judge the sand content of water, but current water sand content detection device still has some weak points when using:
the filter efficiency of current water sand content detection device when filtering the water is lower, and the filter surface takes place to block up easily to grit after filtering is not convenient for clear up from the filter, thereby is not convenient for follow-up quality to the grit calculate, has reduced the practicality of device.
Aiming at the problems, innovative design is urgently needed on the basis of the original water sand content detection device.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a water sand content detection device based on environment monitoring to the filtration efficiency of current water sand content detection device when filtering the water on solving the existing market that above-mentioned background art provided is lower, and the filter surface takes place to block up easily, and the grit after filtering is not convenient for clear up from the filter, thereby is not convenient for follow-up quality to the grit calculate the problem.
In order to achieve the above object, the utility model provides a following technical scheme: a water sand content detection device based on environment supervision comprises a main shell, a first filter box, a second filter box and a drain pipe, wherein the first filter box is arranged inside the main shell, the second filter box is arranged below the first filter box, a connecting block is fixed above the second filter box, the connecting block is arranged below the first filter box in a threaded mode, a first filter plate is fixed inside the first filter box, a second filter plate is arranged below the first filter plate and embedded in the inner wall of the second filter box, the drain pipe is installed at the bottom of the main shell, a connecting groove is formed in the outer surface of the first filter box, a limiting plate is arranged on the outer side of the connecting groove, a first reset spring is embedded in the surface of the limiting plate, a mounting plate penetrates through the outer end of the limiting plate, and a second reset spring is connected above the mounting plate, and the top of second reset spring is connected with the fixed plate, the outside surface at the main casing body is inlayed to the fixed plate, the below of mounting panel is fixed with the driving plate, and the below of driving plate is provided with the carousel.
Preferably, the inner diameter of the first filter box is equal to the inner diameter of the second filter box, and the first filter box is in threaded connection with the second filter box through the connecting block.
Preferably, the inside of first filter is inlayed and is had the installation piece, and the fixed surface of installation piece has the handle to the upper surface of first filter and the upper surface of second filter all are circular-arc structural design.
Preferably, the surface of the limiting plate is fixed with a baffle which is positioned at the inner side of the first return spring, and a left-right telescopic structure is formed between the limiting plate and the mounting plate.
Preferably, the limiting plate and the connecting groove form sliding connection, and the overlooking section of the connecting groove is designed in a circular ring-shaped structure.
Preferably, an output shaft is fixed on the right side of the rotary table, the right end of the output shaft is connected with a motor, and the circle center of the rotary table and the circle center of the output shaft are arranged in a staggered mode.
Compared with the prior art, the beneficial effects of the utility model are that: the water sand content detection device based on the environmental supervision;
(1) the limiting plate and the transmission plate are arranged, the limiting plate can be driven to move through the movement of the transmission plate, the limiting plate can drive the first filter box and the second filter box to move up and down through the connection of the transmission plate and the connection groove, the surfaces of the first filter plate and the second filter plate are prevented from being blocked, and the filtering efficiency of a subsequent water body is improved;
(2) be provided with connecting block and spread groove, the accessible is relieved the connection between stopper and the spread groove and is taken out first filter cartridge and second filter cartridge from the main casing internal, then relieves the connection between connecting block and the first filter cartridge through rotatory mode, can empty or take out the grit in the second filter cartridge, and convenient follow-up is handled it, increases the practicality of device.
Drawings

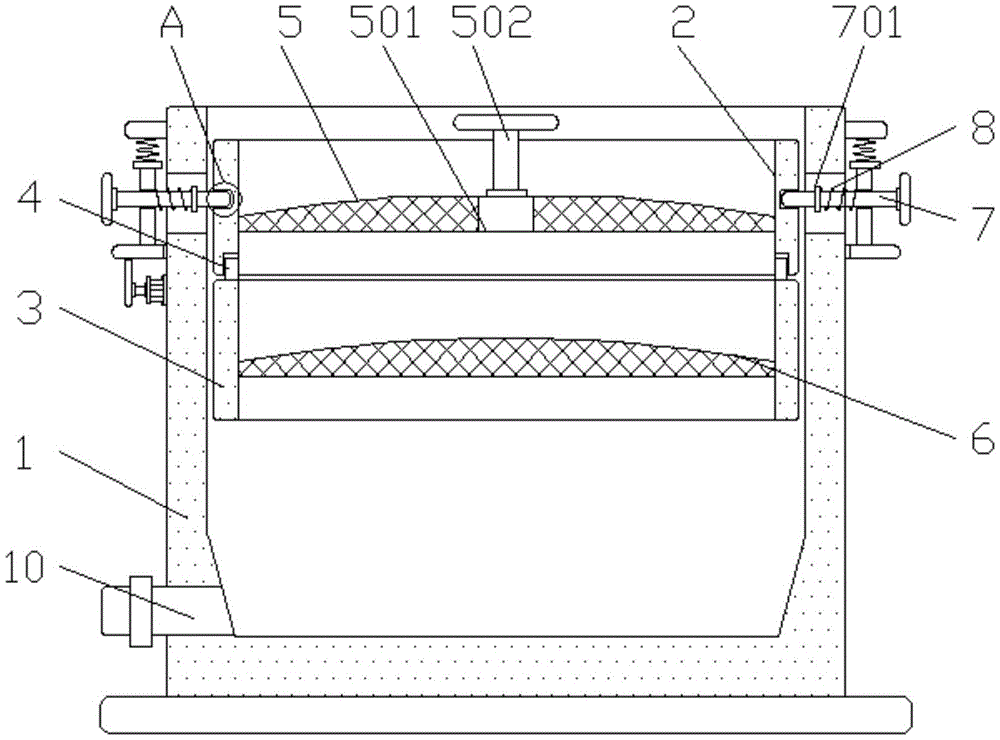

FIG. 1 is a schematic view of the main sectional structure of the present invention;
FIG. 2 is a schematic view of the driving plate of the present invention;
FIG. 3 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
fig. 4 is the utility model discloses the connecting groove structural schematic diagram of diving down.
In the figure: 1. a main housing; 2. a first filter cassette; 3. a second filter cassette; 4. connecting blocks; 5. a first filter plate; 501. mounting blocks; 502. a handle; 6. a second filter plate; 7. a limiting plate; 701. a baffle plate; 8. a first return spring; 9. connecting grooves; 10. a drain pipe; 11. mounting a plate; 12. a second return spring; 13. a fixing plate; 14. a drive plate; 15. a turntable; 1501. an output shaft; 1502. an electric motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a water sand content detection device based on environment supervision comprises a main shell 1, a first filter box 2, a second filter box 3, a connecting block 4, a first filter plate 5, a second filter plate 6, a limiting plate 7, a first reset spring 8, a connecting groove 9, a drain pipe 10, a mounting plate 11, a second reset spring 12, a fixing plate 13, a transmission plate 14 and a rotary table 15, wherein the first filter box 2 is arranged inside the main shell 1, the second filter box 3 is arranged below the first filter box 2, the connecting block 4 is fixed above the second filter box 3, the connecting block 4 is arranged below the first filter box 2 in a threaded manner, the first filter plate 5 is fixed inside the first filter box 2, the second filter plate 6 is arranged below the first filter plate 5, the second filter plate 6 is embedded in the inner wall of the second filter box 3, the drain pipe 10 is arranged at the bottom of the main shell 1, the outer surface of the first filter box 2 is provided with a connecting groove 9, a limiting plate 7 is arranged on the outer side of the connecting groove 9, a first return spring 8 is nested on the surface of the limiting plate 7, an installing plate 11 penetrates through the outer end of the limiting plate 7, a second return spring 12 is connected above the installing plate 11, a fixing plate 13 is connected above the second return spring 12, the fixing plate 13 is embedded on the outer side surface of the main shell 1, a transmission plate 14 is fixed below the installing plate 11, and a turntable 15 is arranged below the transmission plate 14;
the inner diameter of the first filter box 2 is equal to that of the second filter box 3, the first filter box 2 is in threaded connection with the second filter box 3 through the connecting block 4, the structural design facilitates subsequent filtering of impurities in the water body through the first filter box 2, the second filter box 3 filters sand bodies in the water body, and meanwhile, the second filter box 3 can be unscrewed from the first filter box 2 to facilitate subsequent dumping of the sand bodies;
the installation block 501 is embedded in the first filter plate 5, the handle 502 is fixed on the upper surface of the installation block 501, the upper surfaces of the first filter plate 5 and the second filter plate 6 are both in arc-shaped structural design, the first filter box 2 can be subsequently installed and disassembled through the handle 502, meanwhile, the contact area between a water body and the filter plates is increased, and the filtering efficiency is improved;
the baffle 701 is fixed on the surface of the limiting plate 7, the baffle 701 is positioned on the inner side of the first return spring 8, a left-right telescopic structure is formed between the limiting plate 7 and the mounting plate 11, and the subsequent limiting plate 7 can be moved in a telescopic manner through the structural design, so that the first filter box 2 can be mounted or dismounted by controlling the position of the limiting plate 7;
the limiting plate 7 and the connecting groove 9 form sliding connection, the overlooking section of the connecting groove 9 is in a circular ring-shaped structural design, and the structural design can support the first filter box 2 through the connection between the limiting plate 7 and the connecting groove 9, so that the first filter box 2 is positioned inside the main shell 1;
the right side of carousel 15 is fixed with output shaft 1501, and the right-hand member of output shaft 1501 is connected with motor 1502 to the centre of a circle of carousel 15 and the centre of a circle of output shaft 1501 are the setting of staggering mutually, and the rotation of above-mentioned structural design accessible output shaft 1501 drives carousel 15 and rotates, thereby drives driving plate 14 through carousel 15 and removes.
The working principle is as follows: when the device for detecting the sand content in the water body based on the environmental supervision is used, firstly, as shown in figure 1, the water body to be detected can be poured into the main shell 1 through the first filter box 2, the water body is sequentially filtered through the first filter plate 5 and the second filter plate 6, the first filter plate 5 filters large granular impurities in the water body, the second filter plate 6 filters sand, when the water body is filtered, the motor 1502 can be started by combining the figures 2, 3 and 4, the motor 1502 drives the turntable 15 to eccentrically rotate through the output shaft 1501, the driving plate 14 is driven to vertically reciprocate by matching with the second reset spring 12, the driving plate 14 drives the limiting plate 7 to move, the limiting plate 7 drives the first filter box 2 to move through the connection with the connection groove 9, so that the first filter box 2 and the second filter box 3 can vertically reciprocate, thereby improving the filtering efficiency of the water body and avoiding the first filter plate 5 or the second filter plate 6 from being blocked;
after filtering the completion, accessible handle 502 takes out first filter cartridge 2 and second filter cartridge 3 from main casing body 1, can pull limiting plate 7 when taking out, make limiting plate 7 remove to the outside, remove the connection of limiting plate 7 and spread groove 9, can pull out first filter cartridge 2, then rotatable first filter cartridge 2 or second filter cartridge 3, remove the threaded connection between connecting block 4 and the first filter cartridge 2, can separate first filter cartridge 2 and second filter cartridge 3, can handle the grit of crossing out after the separation, increase the practicality of device.
