Abstract
The utility model provides a sports glasses that mirror leg can be dismantled and adjust, hold in the palm, a pair of mirror leg and a pair of lens including spectacle frame, nose, the nose holds in the palm and locates on the spectacle frame, a pair of lens detachably card is located in the picture frame, be swing joint between picture frame and a pair of mirror leg, a pair of mirror leg is including swing mirror leg and slip mirror leg, swing mirror leg passes through hinged joint with the one end of spectacle frame, swing mirror leg's the other end and slip mirror leg detachably swing joint, all inwards open along the terminal surface on a pair of one end terminal surface of slip mirror leg have with swing mirror leg assorted sliding tray, it has a plurality of to follow the same shrinkage pool of the direction equidistance distribution of sliding tray extension mirror leg to open on one side cell wall of sliding tray, be equipped with one and through-hole assorted arch on the side of a pair of swing and through-hole laminating.
Description
Technical Field
The utility model belongs to glasses design field, in particular to motion glasses that regulation can be dismantled to mirror leg.
Background
Most of the existing sports glasses are integrated glasses, namely the sizes and styles of the existing sports glasses are determined by a certain type, so that the existing sports glasses have many limitations, different wearers can only select specific types to meet the wearing size requirements of the glasses, the existing sports glasses also have glasses with adjustable glasses legs, but the unpredictable problems of shaking and the like can be generated inevitably in the process of sports, so that the stability of the existing sports glasses is still to be improved, in addition, the head of the face can sweat inevitably during sports, and most of the glasses with adjustable glasses legs are not convenient to detach at any time for cleaning.
SUMMERY OF THE UTILITY MODEL
The utility model provides a pair of sport glasses with detachable and adjustable glasses legs, which comprises a glasses frame, a nose support, a pair of glasses legs and a pair of lenses, wherein the nose support is arranged on the glasses frame, the pair of lenses is detachably clamped in the glasses frame, the glasses frame is movably connected with the pair of glasses legs, the pair of glasses legs comprises a swing glasses leg and a sliding glasses leg, the swing glasses leg is connected with one end of the glasses frame through a hinge, the other end of the swing glasses leg is detachably and movably connected with the sliding glasses leg, a sliding groove matched with the swing glasses leg is inwards arranged on the end face of one end of the pair of sliding glasses leg along the end face, a plurality of concave holes which are equidistantly distributed along the extending direction of the sliding groove are arranged on the groove wall on one side of the sliding groove, a protrusion matched with the through hole is arranged on the side face of the pair of swing glasses leg, which is attached with the through hole, the sliding glasses legs are arranged on the swinging glasses legs through sliding groove sleeves to do sliding movement and are fixed on the swinging glasses legs through concave holes and the convex clamping.
Adopt above-mentioned technical scheme, through becoming swing mirror leg and slip mirror leg with a pair of mirror leg split and set up the sliding tray on the slip mirror leg, can realize the dismantlement of mirror leg, through set up the arch on swing mirror leg, set up a plurality of and protruding assorted shrinkage pool in the sliding tray, can realize the regulation of mirror leg degree through the slip of slip mirror leg and the cooperation of protruding and the shrinkage pool of different positions.
The utility model discloses a further setting: open the breach that has a symmetry to run through arch and swing mirror leg itself on a pair of swing mirror leg, all inwards open the elongated slot that has a plurality of shrinkage pools of intercommunication along the terminal surface on the one end terminal surface of a pair of slip mirror leg, the width of elongated slot is less than the diameter of shrinkage pool and is located the centre of a circle line of a plurality of shrinkage pools.
Adopt above-mentioned technical scheme, because it has a symmetry to run through the breach protruding and swing mirror leg itself to open on a pair of swing mirror leg for the slip mirror leg resistance is littleer when slide adjusting, all inwards open the elongated slot that has a plurality of shrinkage pools of a intercommunication along the terminal surface on the one end terminal surface of a pair of slip mirror leg for the arch can remove in the elongated slot, and the time spent work time that has significantly reduced when adjusting the width of elongated slot is less than the diameter of shrinkage pool and is located the centre of a circle line of a plurality of shrinkage pools, makes whole elongated slot and shrinkage pool perfect adaptation, and the structure is more reasonable.
The utility model discloses a further setting: the utility model discloses a pair of slip mirror leg, including a plurality of shrinkage pools and the part elongated slot that communicates a plurality of shrinkage pools all runs through the sliding tray cell wall, all be equipped with the spacing clamp of U-shaped on a pair of slip mirror leg, the spacing clamp of U-shaped includes base and elasticity clamping piece, the base shape cooperatees with the elongated slot, elasticity clamping piece one end is opened has semi-circular breach, be equipped with shape and shrinkage pool outline assorted stopper on the medial surface of elasticity clamping piece, the base of the spacing clamp of U-shaped is inserted and is established on the elongated slot notch and fix on the slip mirror leg through the block of spacing piece and shrinkage pool on the elasticity clamping piece.
Adopt above-mentioned technical scheme, because the partial elongated slot of a plurality of shrinkage pools and a plurality of shrinkage pools of intercommunication all runs through the sliding tray cell wall, all be equipped with the U-shaped spacing clamp on a pair of slip mirror leg, the U-shaped spacing clamp includes base and elasticity clamping piece, the base shape cooperatees with the elongated slot, elasticity clamping piece one end is opened has semi-circular breach, be equipped with shape and shrinkage pool outline assorted stopper on the medial surface of elasticity clamping piece, the base of U-shaped spacing clamp is inserted and is established on the elongated slot notch and fix on the slip mirror leg through the block of spacing piece and shrinkage pool on the elasticity clamping piece for can restrict the slip of slip mirror leg through the U-shaped spacing clamp, prevent to extract the slip mirror leg because of the user's operation is improper, also can prevent simultaneously because the unexpected landing of the vigilance that self trembles caused when the motion.
The utility model discloses a further setting: the pair of lenses are both polarized lenses.
Adopt above-mentioned technical scheme, because a pair of lens are polarizing lens for can filter harmful light by a wide margin, play the effect of protection eyes, can make the environment field of vision clearer simultaneously, be favorable to strengthening human dynamic eyesight when the motion, make the motion safer.
The utility model discloses a further setting: the spectacle frame and the pair of swinging spectacle legs are made of PC materials, the pair of sliding spectacle legs are made of rubber materials, and the pair of lenses are made of resin materials.
Adopt above-mentioned technical scheme, because picture frame and a pair of swing mirror leg are the PC material, a pair of slip mirror leg is the rubber material, a pair of lens are the resin material for the glasses body is applicable to the motion more and wears, in light comfortable, also loses holistic intensity, makes glasses safe and reliable more.
Drawings

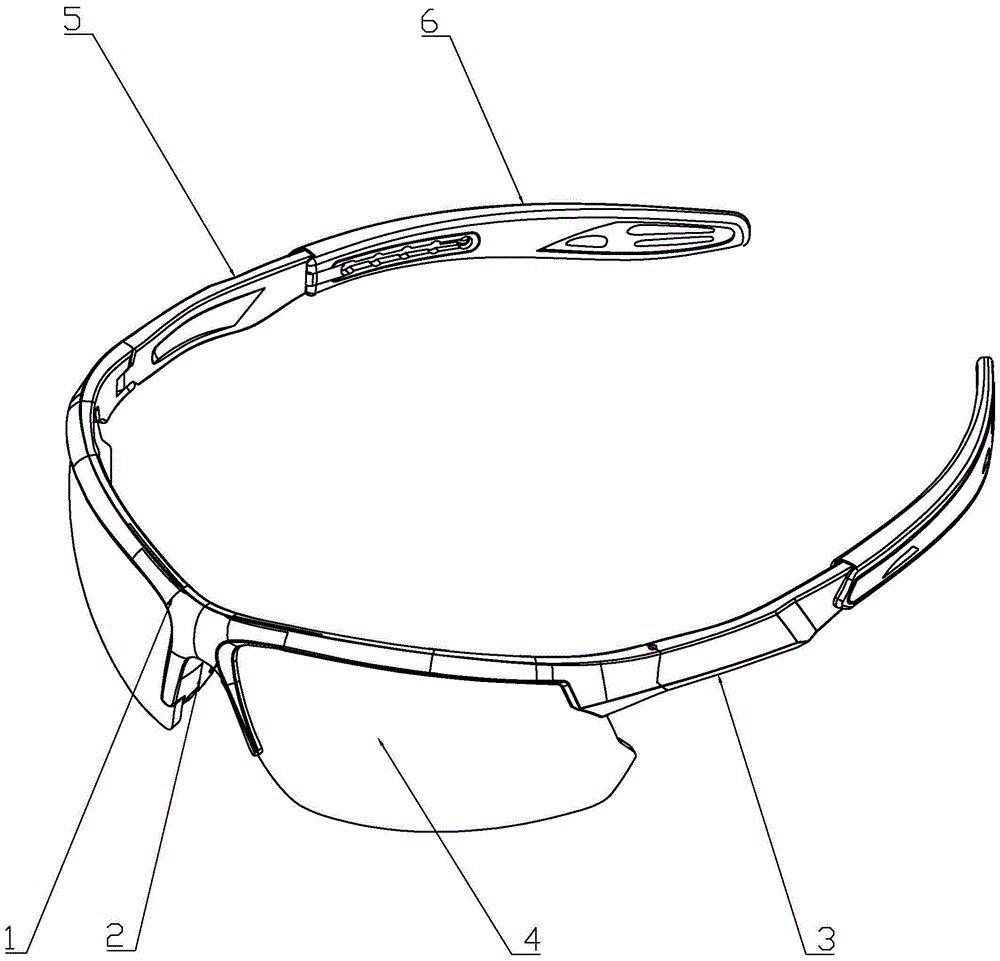

Fig. 1 is a schematic structural view of sports glasses with detachable and adjustable glasses legs according to an embodiment of the present invention.
Fig. 2 is an explosion structure diagram of a glasses leg in the sports glasses with the detachable adjustment of the glasses leg according to the embodiment of the present invention.
Fig. 3 is a schematic structural view of a U-shaped spacing clip in sports glasses with detachable and adjustable glasses legs according to an embodiment of the present invention.
The glasses comprise, by weight, 1-a glasses frame, 2-a nose pad, 3-glasses legs, 4-glasses, 5-swinging glasses legs, 6-sliding glasses legs, 7-a sliding groove, 8-a concave hole, 9-a protrusion, 10-a notch, 11-a long groove, 12-a U-shaped limiting clamp, 121-a base, 122-an elastic clamping piece and 13-a limiting block.
Detailed Description
As shown in fig. 1-3, a sports glasses that mirror leg can be dismantled and adjusted, including spectacle frame 1, nose support 2, a pair of mirror leg 3 and a pair of lens 4, the nose supports and locates on the spectacle frame, a pair of lens detachably card is located in the picture frame, be swing joint between picture frame and a pair of mirror leg, a pair of mirror leg includes swing mirror leg 5 and slip mirror leg 6, swing mirror leg passes through hinged joint with the one end of spectacle frame, the other end and the slip mirror leg detachably swing joint of swing mirror leg, all inwards open along the terminal surface on the terminal surface of a pair of slip mirror leg have with swing mirror leg assorted sliding tray 7, it has a plurality of shrinkage pools 8 along the direction equidistance distribution that the sliding tray extends to open on one side cell wall of sliding tray, be equipped with one on a pair of swing mirror leg and the side of through-hole laminating and through-hole assorted arch 9, the sliding glasses legs are arranged on the swinging glasses legs through sliding groove sleeves to do sliding movement and are fixed on the swinging glasses legs through concave holes and the convex clamping.
Through with a pair of mirror leg split swing mirror leg and slip mirror leg and set up the sliding tray on slip mirror leg, can realize the dismantlement of mirror leg, through set up the arch on swing mirror leg, set up a plurality of and protruding assorted shrinkage pool in the sliding tray, can realize the regulation of mirror leg degree through the slip of slip mirror leg and the cooperation of protruding shrinkage pool with different positions.
Open the breach 10 that has a symmetry to run through arch and swing mirror leg itself on a pair of swing mirror leg, all inwards open the elongated slot 11 that has a plurality of shrinkage pools of a intercommunication along the terminal surface on the one end terminal surface of a pair of slip mirror leg, the width of elongated slot is less than the diameter of shrinkage pool and is located the centre of a circle line of a plurality of shrinkage pools.
Because it has a symmetry to run through the breach protruding and swing mirror leg itself to open on a pair of swing mirror leg for the slip mirror leg resistance is littleer when slide adjusting, all inwards open the elongated slot that has a plurality of shrinkage pools of intercommunication along the terminal surface on the one end terminal surface of a pair of slip mirror leg for the arch can remove in the elongated slot, and the time spent work time that has significantly reduced when adjusting the width of elongated slot is less than the diameter of shrinkage pool and is located the centre of a circle line of a plurality of shrinkage pools, makes whole elongated slot and shrinkage pool perfect adaptation, and the structure is more reasonable.
The utility model discloses a pair of slip mirror leg, including a plurality of shrinkage pools and the part elongated slot that communicates a plurality of shrinkage pools all runs through the sliding tray cell wall, all be equipped with U-shaped spacing clamp 12 on a pair of slip mirror leg, U-shaped spacing clamp includes base 121 and elasticity clamping piece 122, the base shape cooperatees with the elongated slot, elasticity clamping piece one end is opened has semi-circular breach, be equipped with shape and shrinkage pool outline assorted stopper 13 on the medial surface of elasticity clamping piece, the base of U-shaped spacing clamp is inserted and is established the elongated slot notch and fix on the slip mirror leg through the block of stopper and shrinkage pool on the elasticity clamping piece.
Because the partial elongated slot of a plurality of shrinkage pools and a plurality of shrinkage pools of intercommunication all runs through the sliding tray cell wall, all be equipped with the spacing clamp of U-shaped on a pair of slip mirror leg, the spacing clamp of U-shaped includes base and elasticity clamping piece, the base shape cooperatees with the elongated slot, elasticity clamping piece one end is opened semicircular notch, be equipped with shape and shrinkage pool outline assorted stopper on the medial surface of elasticity clamping piece, the base of the spacing clamp of U-shaped is inserted and is established on the elongated slot notch and fix on the slip mirror leg through the block of spacing piece and shrinkage pool on the elasticity clamping piece for can restrict the slip of slip mirror leg through the spacing clamp of U-shaped, prevent to extract the slip mirror leg because of the user's operation is improper, also can prevent simultaneously because the unexpected landing of the vigilance that self trembles and cause when the motion.
The pair of lenses are both polarized lenses.
Because a pair of lenses are polarizing lenses, harmful light can be greatly filtered, the effect of protecting eyes is achieved, the environmental visual field is clearer, the dynamic vision of a human body is enhanced during movement, and the movement is safer.
The spectacle frame and the pair of swinging spectacle legs are made of PC materials, the pair of sliding spectacle legs are made of rubber materials, and the pair of lenses are made of resin materials.
Because picture frame and a pair of swing mirror leg are the PC material, a pair of slip mirror leg is the rubber material, a pair of lens are the resin material for the motion that is applicable to more of glasses body is worn, and light comfortable in, also loses holistic intensity, makes the safe and reliable more of glasses.
Claims (5)
1. The utility model provides a sports glasses that regulation can be dismantled to mirror leg, includes that spectacle frame, nose hold in the palm, a pair of mirror leg and a pair of lens, the nose holds in the palm and locates on the spectacle frame, a pair of lens detachably card is located in the picture frame, be swing joint, its characterized in that between picture frame and a pair of mirror leg: a pair of mirror leg is including swing mirror leg and slip mirror leg, swing mirror leg passes through hinged joint with the one end of spectacle frame, swing mirror leg's the other end and slip mirror leg detachably swing joint, all inwards open along the terminal surface on a pair of one end terminal surface of slip mirror leg have with swing mirror leg assorted sliding tray, it has a plurality of shrinkage pools along the direction equidistance distribution that the sliding tray extends to open on one side cell wall of sliding tray, be equipped with one on the side of a pair of swing mirror leg and through-hole laminating and through-hole assorted arch, the slip mirror leg is established through the sliding tray cover and is fixed on the swing mirror leg through shrinkage pool and bellied block.
2. Sports eyeglasses with removable adjustable temples, according to claim 1, wherein: open the breach that has a symmetry to run through arch and swing mirror leg itself on a pair of swing mirror leg, all inwards open the elongated slot that has a plurality of shrinkage pools of intercommunication along the terminal surface on the one end terminal surface of a pair of slip mirror leg, the width of elongated slot is less than the diameter of shrinkage pool and is located the centre of a circle line of a plurality of shrinkage pools.
3. Sports eyeglasses with removable adjustable temples, according to claim 1, wherein: the utility model discloses a pair of slip mirror leg, including a plurality of shrinkage pools and the part elongated slot that communicates a plurality of shrinkage pools all runs through the sliding tray cell wall, all be equipped with the spacing clamp of U-shaped on a pair of slip mirror leg, the spacing clamp of U-shaped includes base and elasticity clamping piece, the base shape cooperatees with the elongated slot, elasticity clamping piece one end is opened has semi-circular breach, be equipped with shape and shrinkage pool outline assorted stopper on the medial surface of elasticity clamping piece, the base of the spacing clamp of U-shaped is inserted and is established on the elongated slot notch and fix on the slip mirror leg through the block of spacing piece and shrinkage pool on the elasticity clamping piece.
4. Sports eyeglasses with removable adjustable temples, according to claim 1, wherein: the pair of lenses are both polarized lenses.
5. Sports eyeglasses with removable adjustable temples, according to claim 1, wherein: the spectacle frame and the pair of swinging spectacle legs are made of PC materials, the pair of sliding spectacle legs are made of rubber materials, and the pair of lenses are made of resin materials.
