CN213947658U

CN213947658U - Warm-keeping knitted fabric

Info

Publication number: CN213947658U
Application number: CN202022894945.6U
Authority: CN
Inventors: 周善派; 张乐义; 周瑜
Original assignee: Fujian Xintongxing Needles Textiles Co ltd
Current assignee: Fujian Xintongxing Needles Textiles Co ltd
Priority date: 2020-12-04
Filing date: 2020-12-04
Publication date: 2021-08-13
Anticipated expiration: 2030-12-04

Abstract

The application relates to a warm-keeping knitted fabric which comprises a base fabric layer and a warm-keeping layer, wherein the base fabric layer is positioned on one side of the warm-keeping layer; the base cloth layer is formed by interweaving warm-keeping yarns serving as warp yarns and antibacterial yarns serving as weft yarns, so that the base cloth layer has double effects of warm keeping and antibiosis; the warm-keeping yarn is formed by blending milk filaments and sarcandra glabra fibers; the warm-keeping yarn has the softness, skin-friendly property, air permeability and warm-keeping property of the milk yarn, so that the base cloth has good hand feeling and warm-keeping effect; the warm-keeping yarn also has the pharmacological effect of the sarcandra glabra fiber, and the base cloth layer is abutted against the skin of a human body, so that the immunity of the human body can be improved, and the warm-keeping yarn has good bacteriostatic and antibacterial effects.

Description

Warm-keeping knitted fabric

Technical Field

The application relates to the field of knitted fabrics, in particular to a warm-keeping knitted fabric.

Background

The knitted fabric is a fabric formed by bending yarns into loops by using a knitting needle and mutually stringing and sleeving the loops, namely a warp knitted fabric and a weft knitted fabric; the knitted fabrics have the characteristic of soft texture, and most of the knitted fabrics have excellent elasticity and extensibility, so that the knitted garment is close to the body and free of the sense of tightness when being worn, and can fully embody the curve of the human body.

However, most of the knitted fabrics on the market have poor hand feeling, and the wearing comfort of people is reduced.

SUMMERY OF THE UTILITY MODEL

In order to improve the travelling comfort when this knitted fabric dresses, this application provides a cold-proof looped fabric.

The application provides a cold-proof looped fabric adopts following technical scheme:

a warm knitted fabric comprises a base fabric layer and a warm layer, wherein the base fabric layer is positioned on one side of the warm layer; the base cloth layer is formed by interweaving warm-keeping yarns serving as warp yarns and antibacterial yarns serving as weft yarns, and the warm-keeping yarns are formed by blending milk yarns and sarcandra glabra fibers; the warm-keeping layer is a pure cotton fabric layer.

By adopting the technical scheme, the base cloth layer is used as a layer contacting with the skin of a human body, the base cloth layer is formed by interweaving the heat-preservation yarns and the antibacterial yarns, so that the heat-preservation yarns have double effects of heat preservation and antibiosis, the heat-preservation yarns are formed by blending the milk yarns and the sarcandra glabra fibers, and the heat-preservation yarns have softness, skin-friendly property, air permeability and heat preservation of the milk yarns, so that the base cloth layer has good hand feeling and heat preservation effect; the warm-keeping yarn also has the pharmacological effect of the sarcandra glabra fiber, and the base cloth layer can improve the immunity of a human body when being attached to the skin of the human body and has good bacteriostatic and antibacterial effects.

The warm-keeping layer is made of pure cotton fabric, so that the warm-keeping effect of the base cloth layer can be improved in an auxiliary manner, and the overall warm-keeping effect of the knitted fabric is improved; meanwhile, the pure cotton fabric can absorb sweat stains of a human body, and the comfort of wearing the knitted fabric is improved.

Optionally, an antibacterial layer is bonded to one side of the heat-insulating layer, which is far away from the base cloth layer, and the antibacterial layer is formed by interweaving yarns, of which warp yarns and weft yarns are bamboo charcoal fibers.

By adopting the technical scheme, the antibacterial effect of the base fabric layer can be improved in an auxiliary manner by arranging the antibacterial layer, so that the integral antibacterial effect of the knitted fabric is improved; the antibacterial layer is formed by interweaving yarns of bamboo charcoal fibers, so that the antibacterial layer has good air permeability, and the wearing comfort of the knitted fabric is improved; the bamboo charcoal fiber also has certain energy storage and warm keeping capacity, and the overall warm keeping effect of the knitted fabric can be further improved.

Optionally, the base cloth layer and the antibacterial layer are fixedly connected through connecting wires, and the base cloth layer and the antibacterial layer are fixedly connected through a loop structure formed by weaving woven wires.

By adopting the technical scheme, the coil structure formed by weaving the knitting yarns is used for allowing the connecting yarns to penetrate, so that the base cloth layer and the antibacterial layer are fixedly connected, and the heat-insulating layer positioned between the base cloth layer and the antibacterial layer is fixed; compared with the mode of bonding all layers of fabrics by using adhesives, the mode of fixedly connecting all layers of fabrics by matching the connecting yarns and the weaving yarns is more environment-friendly, and substances harmful to human bodies are not easily brought in the connecting process.

Optionally, the knitting yarns and the connecting yarns are formed by blending spandex and chinlon.

By adopting the technical scheme, the knitting yarns and the connecting yarns formed by blending the spandex and the chinlon have good rebound resilience and flexibility, are not easy to wrinkle, have good body shaping effect, and can further improve the comfort of the knitted fabric when being worn; the knitting yarns and the connecting yarns with good rebound resilience can also reduce the condition that each layer of fabric is separated due to the breakage of the connecting yarns when the knitted fabric is pulled.

Optionally, the antibacterial layer is internally provided with silver ion antibacterial particles.

Through adopting foretell technical scheme, the antibiotic effect of antibiotic layer can further be improved in the setting of the antibiotic granule of silver ion to improve the holistic antibiotic effect of looped fabric.

Optionally, one side of the antibacterial layer, which is far away from the thermal insulation layer, is provided with a wear-resistant layer, and the wear-resistant layer is formed by interweaving yarns formed by blending polyester fibers and acrylic fibers.

By adopting the technical scheme, the wear-resistant layer can improve the integral wear resistance of the knitted fabric, so that the integral service life of the knitted fabric is prolonged; the wear-resistant layer is formed by interweaving yarns formed by blending polyester fibers and acrylic fibers, has wear resistance and is not easy to hook and pilling.

Optionally, lavender particles are arranged in the wear-resistant layer.

By adopting the technical scheme, the lavender particles can play a certain role in inhibiting bacteria; the lavender particles can also enable the knitted fabric to emit light faint scent, so that the effect of refreshing and restoring consciousness is achieved, and people feel comfortable.

Optionally, the antibacterial yarn is formed by blending bamboo charcoal fibers and pure cotton fibers.

By adopting the technical scheme, the antibacterial yarn is formed by blending the bamboo charcoal fiber and the pure cotton fiber, wherein the bamboo charcoal fiber has antibacterial and bacteriostatic effects, so that the base cloth layer has antibacterial effect; the bamboo charcoal fiber material is brittle and is easy to damage when the bamboo fiber fabric is twisted and kneaded forcibly, so that the antibacterial yarn is prepared by blending the bamboo charcoal limiting yarn and the pure cotton fiber and is used for improving the twisting and kneading strength of the bamboo charcoal fiber.

In summary, the present application includes at least one of the following beneficial technical effects:

1. the base cloth layer is formed by interweaving heat-preservation yarns and antibacterial yarns, so that the base cloth layer has double effects of heat preservation and bacteria resistance;

2. the heat-preservation yarn is formed by blending the milk yarn and the sarcandra glabra fiber, has the softness, skin-friendly property and heat preservation property of the milk yarn, also has the pharmacological effect of the sarcandra glabra fiber, can improve the immunity of a human body, and has good antibacterial and antibacterial effects;

3. the mode of fixedly connecting the fabrics of each layer through the matching of the connecting wires and the weaving wires is more environment-friendly, and substances harmful to human bodies are not easily brought in the connecting process.

Drawings

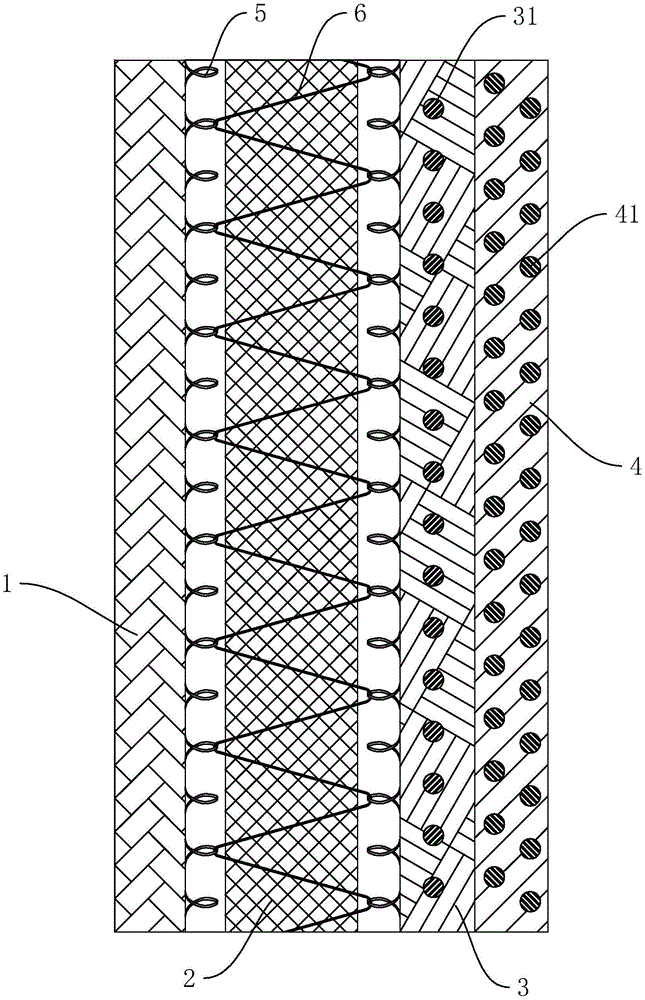

FIG. 1 is a schematic structural diagram of an embodiment of the present application;

FIG. 2 is a schematic view of the woven structure of the base fabric layer in the example of the present application.

Description of reference numerals: 1. a base cloth layer; 11. a warm-keeping yarn; 12. an antimicrobial yarn; 2. a thermal insulation layer; 3. an antimicrobial layer; 31. silver ion antibacterial particles; 4. a wear layer; 41. lavender particles; 5. weaving silk; 6. and connecting wires.

Detailed Description

The present application is described in further detail below with reference to figures 1-2.

The embodiment of the application discloses a warm-keeping knitted fabric.

Referring to fig. 1 and 2, the warm knitted fabric comprises a base fabric layer 1, a warm layer 2, an antibacterial layer 3 and an abrasion-resistant layer 4 which are sequentially arranged from inside to outside, wherein the base fabric layer 1 is used as a contact layer with human skin; the base cloth layer 1 is formed by interweaving warm-keeping yarns 11 serving as warp yarns and antibacterial yarns 12 serving as weft yarns and has good air permeability; the weaving angles of the warm-keeping yarns 11 and the antibacterial yarns 12 are 90 degrees.

Referring to fig. 2, the thermal yarn 11 is formed by blending milk filaments and sarcandra glabra fibers according to a ratio of 8: 2; the warm-keeping yarn 11 formed by blending has the flexibility, skin-friendly property, air permeability and warm-keeping property of milk silk, so that the base cloth has good hand feeling and warm-keeping effect; meanwhile, the sarcandra glabra fiber has pharmacological effects of sarcandra glabra fiber, can improve the immunity of a human body, and has good antibacterial and antibacterial effects.

Referring to fig. 2, the antibacterial yarn 12 is formed by blending bamboo charcoal fiber and pure cotton fiber according to a ratio of 7: 3; the blended antibacterial yarn 12 enables the base fabric layer 1 to have an antibacterial effect, can improve the twisting strength of the bamboo charcoal fiber, and is used for reducing the cracking of the bamboo charcoal fiber after washing and twisting.

Referring to fig. 1, the warm-keeping layer 2 is made of pure cotton fabric, and the pure cotton fabric has good warm-keeping effect and air permeability and is used for assisting in improving the overall warm-keeping effect of the knitted fabric; meanwhile, the pure cotton fabric can absorb sweat stains of a human body, and the comfort of wearing the knitted fabric is improved.

Referring to fig. 1, the antibacterial layer 3 is formed by interweaving yarns of bamboo charcoal fibers, so that the antibacterial layer 3 has good air permeability; the weaving angles of the bamboo carbon fiber as warp yarn and the bamboo carbon fiber as weft yarn are 90 degrees; the bamboo charcoal fiber can assist in improving the overall antibacterial effect of the knitted fabric, has certain energy storage and warm keeping capacity and can also assist in improving the overall warm keeping effect of the knitted fabric; the antibacterial layer 3 is also internally provided with silver ion antibacterial particles 31, and the silver ion antibacterial particles 31 are embedded in the bamboo charcoal fibers, so that the overall antibacterial effect of the knitted fabric is further improved.

Referring to fig. 1, a plurality of uniformly arranged coil structures are arranged on one side of the base fabric layer 1 facing the thermal insulation layer 2 and one side of the antibacterial layer 3 facing the thermal insulation layer 2, and each coil structure is formed by weaving yarns 5; the base cloth layer 1 and the antibacterial layer 3 are fixedly connected through the connecting wire 6 in a penetrating mode through the coil structure, the connecting wire 6 penetrates through the heat preservation layer 2 back and forth, and the connecting wire 6 is inserted into the coil structure located on the base cloth layer 1 and the coil structure located on the antibacterial layer 3 in a staggered mode.

Referring to fig. 1, the knitting yarn 5 and the connecting yarn 6 are formed by blending spandex and chinlon according to the ratio of 1:9, the knitting yarn 5 and the connecting yarn 6 formed by blending the spandex and the chinlon have good rebound resilience and flexibility, are not easy to wrinkle, have good body shaping effect, and can further improve the comfort of the knitted fabric during wearing; the base cloth layer 1 and the thermal insulation layer 2 are fixedly connected through the weaving wires 5 and the connecting wires 6 with good rebound resilience, so that the situation that the base cloth layer 1 and the thermal insulation layer 2 are separated from each other due to the fact that the weaving wires 5 or the connecting wires 6 are broken under tension when the base cloth layer 1 or the thermal insulation layer 2 is pulled can be reduced.

Referring to fig. 1, the abrasion resistant layer 4 is adhered to the antibiotic layer 3 by pvc adhesive; the wear-resistant layer 4 is formed by polyester fibers and acrylic fibers according to the weight ratio of 1: 1, and the weaving angle of the warp and weft of the wear-resistant layer 4 is also 90 degrees; the yarn formed by blending the polyester fiber and the acrylic fiber has wear resistance, is not easy to hook and ball, and can prolong the service life of the knitted fabric; lavender particles 41 are further arranged in the wear-resistant layer 4, the lavender particles 41 are embedded in yarns formed by blending polyester fibers and acrylic fibers, when people wear the knitted fabric, the lavender particles 41 can emit light faint scent, the refreshing effect is achieved, and people feel comfortable.

The implementation principle of the warm knitted fabric in the embodiment of the application is as follows:

the base cloth layer 1 is used as a layer contacting with human skin, and the warm-keeping yarns 11 of the base cloth layer 1 are formed by blending the milk fibers and the sarcandra glabra fibers, so that the base cloth layer 1 has the softness, skin-friendly property, air permeability and warm-keeping property of the milk fibers, and meanwhile has the pharmacological effect of the sarcandra glabra fibers, can improve the immunity of a human body, and has good bacteriostatic and antibacterial effects.

The base cloth layer 1, the antibacterial layer 3 and the wear-resistant layer 4 of the knitted fabric are all formed by interweaving warp yarns and weft yarns, so that the knitted fabric has good air permeability; the milk filaments of the base cloth layer 1, the pure cotton fabric of the heat preservation layer 2 and the bamboo charcoal fibers of the antibacterial layer 3 have heat preservation capability, so that the heat preservation property of the knitted fabric can be greatly improved, and the comfort of the knitted fabric when the knitted fabric is worn is improved; the sarcandra glabra fibers and the antibacterial yarns 12 of the base cloth layer 1, the bamboo charcoal fibers and the silver ion antibacterial particles 31 of the antibacterial layer 3 and the lavender particles 41 of the wear-resistant layer 4 have antibacterial effects, and the antibacterial capability of the knitted fabric can be greatly improved.

The above is a preferred embodiment of the present application, and the scope of protection of the present application is not limited by the above, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. A warm-keeping knitted fabric is characterized in that: the thermal insulation fabric comprises a base fabric layer (1) and a thermal insulation layer (2), wherein the base fabric layer (1) is positioned on one side of the thermal insulation layer (2); the base cloth layer (1) is formed by interweaving warm-keeping yarns (11) serving as warp yarns and antibacterial yarns (12) serving as weft yarns, and the warm-keeping yarns (11) are formed by blending milk yarns and sarcandra glabra fibers; the warm-keeping layer (2) is a pure cotton fabric layer.

2. A warm knitted fabric according to claim 1, characterized in that: the side, away from the base cloth layer (1), of the heat-insulating layer (2) is bonded with the antibacterial layer (3), and the antibacterial layer (3) is formed by interweaving yarns, wherein warp yarns and weft yarns are bamboo charcoal fibers.

3. A warm knitted fabric according to claim 2, characterized in that: one side of the base cloth layer (1) facing the warm-keeping layer (2) and one side of the antibacterial layer (3) facing the warm-keeping layer (2) are both provided with coil structures woven by weaving yarns (5), and the base cloth layer (1) and the antibacterial layer (3) are fixedly connected through the coil structures by penetrating through connecting yarns (6).

4. A warm knitted fabric according to claim 3, characterized in that: the knitting yarns (5) and the connecting yarns (6) are formed by blending spandex and chinlon.

5. A warm knitted fabric according to claim 2, characterized in that: the antibacterial layer (3) is internally provided with silver ion antibacterial particles (31).

6. A warm knitted fabric according to claim 2, characterized in that: one side of the antibacterial layer (3) far away from the warm-keeping layer (2) is provided with a wear-resistant layer (4), and the wear-resistant layer (4) is formed by interweaving yarns formed by blending polyester fibers and acrylic fibers.

7. A warm knitted fabric according to claim 6, characterized in that: lavender particles (41) are arranged in the wear-resistant layer (4).

8. A warm knitted fabric according to claim 1, characterized in that: the antibacterial yarn (12) is formed by blending bamboo charcoal fibers and pure cotton fibers.
