Abstract

The utility model discloses a special burr removing device for an upper plate of a guide rail, which comprises a working chamber, wherein the outer surface of the working chamber is provided with a glass sliding door, the inner side of the working chamber is provided with a slide rail, the outer side of the slide rail is provided with a slide block, a hydraulic cylinder is fixedly arranged below the slide block, the lower end of the hydraulic cylinder is provided with a connecting rod, the lower end of the connecting rod is provided with a working plate, the outer surface of the connecting rod is provided with a compression spring, the inner side of the working plate is provided with a groove, the inner side of the groove is provided with a polishing rod, both sides of the lower end of the working plate are provided with stoppers, the inner side of each stopper is provided with a roller, one of the stoppers is provided with a motor above the stopper, the motor is connected with the polishing rod through a connecting shaft, a placing plate is arranged below the working plate, and the upper surface of the placing plate is provided with a placing groove, the inner side of the placing groove is provided with a spring. The utility model discloses convenient operation and clearance have improved the work effect of device.

Description

Special burr remove device of guide rail upper plate
Technical Field
The utility model relates to a burring equipment technical field specifically is a special burr remove device of guide rail upper plate.
Background
The deburring machine has a plurality of types, and can be divided into physical deburring and chemical deburring according to the mode, and the chemical deburring mode mainly has two kinds at present: a pure chemical corrosion deburring, B electrolysis deburring, the physics burring mode is mainly: A. vibration grinding for deburring, rolling for deburring, magnetic deburring, and powerful ultrasonic deburring.
However, the existing burr removing device has low working efficiency and is inconvenient to clean; therefore, the existing requirements are not met, and a special burr removing device for the upper plate of the guide rail is provided for the burr removing device.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a special burr remove device of guide rail upper plate to current burr remove device work efficiency who proposes among the above-mentioned background of solution is low, inconvenient clearance scheduling problem.
In order to achieve the above object, the utility model provides a following technical scheme: a special burr removing device for an upper plate of a guide rail comprises a working bin, wherein a glass sliding door is installed on the outer surface of the working bin, a slide rail is arranged on the inner side of the working bin, a slide block is installed on the outer side of the slide rail, a hydraulic cylinder is fixedly installed below the slide block, a connecting rod is arranged at the lower end of the hydraulic cylinder, a working plate is installed at the lower end of the connecting rod, a compression spring is arranged on the outer surface of the connecting rod, a groove is formed in the inner side of the working plate, a polishing rod is installed on the inner side of the groove, limiting blocks are arranged on two sides of the lower end of the working plate respectively, idler wheels are arranged on the inner sides of the limiting blocks, a motor is installed above one limiting block and connected with the polishing rod through a connecting shaft, a placing plate is installed below the working plate, a placing groove is formed in the upper surface of the placing plate, and a spring is arranged on the inner side of the placing groove, the backup pad is installed to the upper end of spring, the dust absorption mouth is all installed to the both sides of standing groove, place the inboard of board and install the dust catcher, the dust catcher passes through the connecting pipe with the dust absorption mouth and is connected, the surface of dust catcher is provided with collects the storehouse.
Preferably, the connecting rod comprises a movable sleeve and a thin rod, a compression spring is arranged on the outer surface of the thin rod, and the upper end of the compression spring is fixed with the movable sleeve through welding.
Preferably, the upper surfaces of the two sides of the placing groove are provided with sliding grooves, the sliding grooves correspond to the limiting blocks, and the limiting blocks are connected with the sliding grooves in a sliding mode.
Preferably, the lower end of the spring is completely attached to the inner surface of the placing groove, the spring and the placing groove are fixed through welding, and the rubber pad is arranged on the upper surface of the supporting plate.
Preferably, the placing plate penetrates through two sides of the working bin and is fixed with the working bin through screws, and the motor is electrically connected with an external power supply.
Preferably, the lower surface of the dust suction port is completely attached to the upper surface of the placing plate, and the dust suction port and the placing plate are fixed through screws.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a spring and the backup pad that set up in the standing groove utilize the elasticity of spring, increased the adaptability to different guide rails, improved the stability of device deburring work, after the installation, open the motor, drive the stick of polishing through the motor and rotate, utilize the pneumatic cylinder to put down the work board, make limiting plate and gyro wheel correspond with the spout, will polish stick and guide rail contact, deburring guide rail upper plate, be provided with the slider above the pneumatic cylinder, be connected with the slide rail through the slider, make the work board can slowly move, deburring guide rail, alleviate staff's intensity of labour, improved the work effect of device;
2. the utility model discloses be provided with compression spring in the top of work board, utilize compression spring's elasticity, increased the stability of work board work, improved the stick of polishing to the working effect of guide rail, when the device deburring, the dust catcher is opened, installs the dust absorption mouth in the both sides of standing groove, can make things convenient for the staff to clear up the burr suction that the during operation produced, has alleviateed staff's intensity of labour.
Drawings

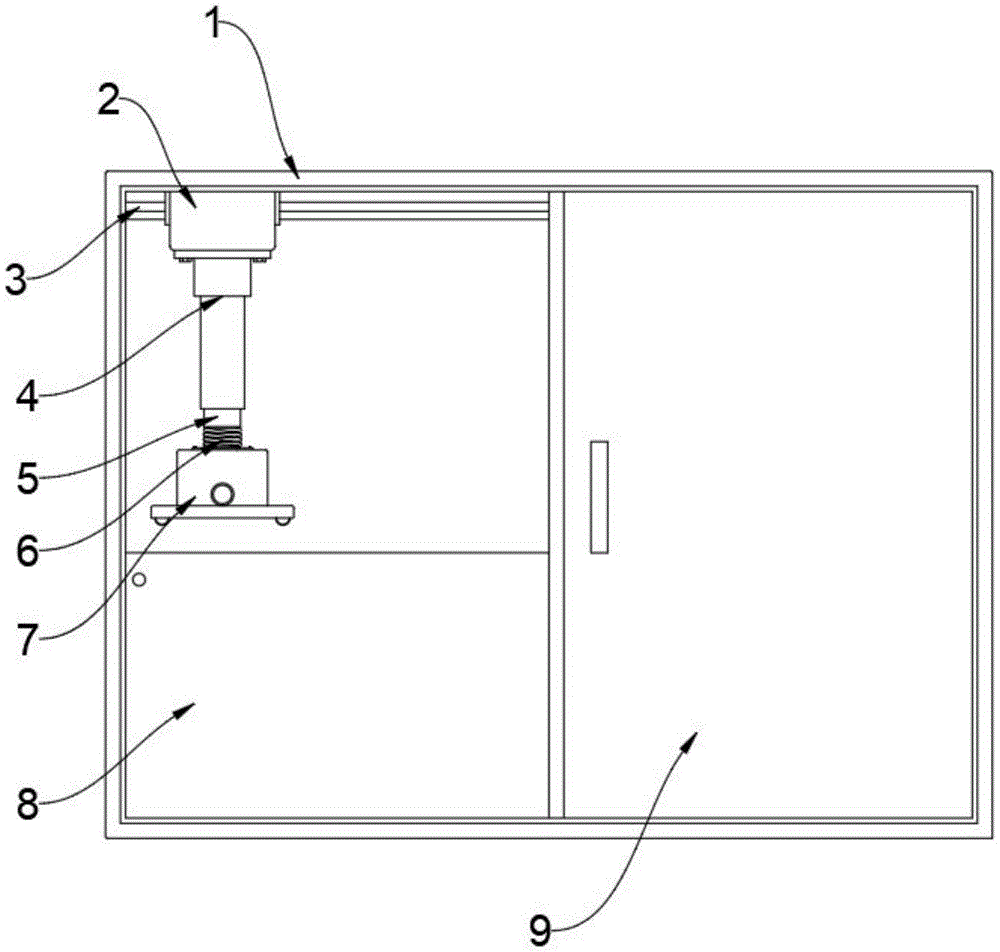

Fig. 1 is a schematic overall structure diagram of the present invention;
fig. 2 is a side view of the utility model in its entirety;
fig. 3 is a schematic view of a partial structure of the fixing table of the present invention.
In the figure: 1. a working bin; 2. a slider; 3. a slide rail; 4. a hydraulic cylinder; 5. a connecting rod; 6. a compression spring; 7. a working plate; 8. placing the plate; 9. a glass sliding door; 10. a vacuum cleaner; 11. a collection bin; 12. a placement groove; 13. a motor; 14. a groove; 15. grinding a rod; 16. a limiting block; 17. a roller; 18. a connecting pipe; 19. a spring; 20. a support plate; 21. a dust suction port.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
The motor 13 (model is T71B4), the dust collector 10 (model is PA-3600DA-X) and the hydraulic cylinder 4 (model is YGX20X25-LB-T) mentioned in the utility model can all be purchased from the market or obtained from private customization.
Referring to fig. 1 to fig. 3, the present invention provides an embodiment: a special burr removing device for an upper plate of a guide rail comprises a working bin 1, a glass sliding door 9 is installed on the outer surface of the working bin 1, a sliding rail 3 is arranged on the inner side of the working bin 1, a sliding block 2 is installed on the outer side of the sliding rail 3, a hydraulic cylinder 4 is fixedly installed below the sliding block 2, a connecting rod 5 is arranged at the lower end of the hydraulic cylinder 4, a working plate 7 is installed at the lower end of the connecting rod 5, a compression spring 6 is arranged on the outer surface of the connecting rod 5, a groove 14 is formed in the inner side of the working plate 7, a polishing rod 15 is installed on the inner side of the groove 14, limiting blocks 16 are arranged on two sides of the lower end of the working plate 7, a roller 17 is arranged on the inner side of each limiting block 16, a motor 13 is installed above one limiting block 16, the motor 13 is connected with the polishing rod 15 through a connecting shaft, a placing plate 8 is installed below the working plate 7, a placing groove 12 is formed in the upper surface of the placing plate 8, and a spring 19 is arranged on the inner side of the placing groove 12, the upper end of the spring 19 is provided with a supporting plate 20, the two sides of the placing groove 12 are provided with dust suction ports 21, the inner side of the placing plate 8 is provided with a dust collector 10, the dust collector 10 is connected with the dust suction ports 21 through a connecting pipe 18, and the outer surface of the dust collector 10 is provided with a collection bin 11.
Further, connecting rod 5 includes movable sleeve and pin, and the surface of pin is provided with compression spring 6, and compression spring 6's upper end and movable sleeve pass through welded fastening, have increased the effect of device burring.
Further, the upper surface of standing groove 12 both sides all is provided with the spout, and the spout is corresponding with stopper 16, stopper 16 and spout sliding connection make things convenient for work 7 work, have improved the stable form of device work.
Further, the lower end of the spring 19 is completely attached to the inner surface of the placing groove 12, the spring 19 is fixed to the placing groove 12 through welding, and the rubber pad is arranged on the upper surface of the supporting plate 20, so that the protection of the guide rail is increased.
Further, place board 8 and pass through the fix with screw with working bin 1 in the both sides that pass working bin 1, motor 13 and external power source electric connection make things convenient for the dismouting of staff to the material, have improved the working effect of device.
Further, the lower surface of dust absorption mouth 21 and the upper surface of placing board 8 laminate completely, and dust absorption mouth 21 passes through the fix with screw with placing board 8, makes things convenient for the staff to clear up, has alleviateed staff's intensity of labour.
The working principle is as follows: when in use, the power is switched on, the guide rail is placed in the placing groove 12, the elasticity of the spring 19 and the supporting plate 20 are utilized to increase the adaptability to different guide rails and improve the stability of the deburring work of the device through the spring 19 and the supporting plate 20 arranged in the placing groove 12, after the installation is finished, the motor 13 is switched on, the grinding rod 15 is driven to rotate through the motor 13, the working plate 7 is put down through the hydraulic cylinder 4, the limiting block 16 and the roller 17 correspond to the sliding groove, the grinding rod 15 is contacted with the guide rail to deburr the upper plate of the guide rail, the slide block 2 is arranged above the hydraulic cylinder 4 and is connected with the slide rail 3 through the slide block 2, the working plate 7 can slowly move to deburr the guide rail, the labor intensity of workers is reduced, the work effect of the device is improved, the compression spring 6 is arranged above the working plate 7, and the work stability of the working plate 7 is improved through the elasticity of the compression spring 6, the working effect of the polishing rod 15 on the guide rail is improved, the dust collector 10 is opened while burrs are removed, dust suction ports 21 are installed on two sides of the placing groove 12, burrs generated during working can be sucked out, cleaning of workers is facilitated, and the labor intensity of the workers is reduced.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (6)

1. The utility model provides a special burr remove device of guide rail upper plate, includes working bin (1), its characterized in that: the glass sliding door (9) is installed on the outer surface of the working bin (1), a sliding rail (3) is arranged on the inner side of the working bin (1), a sliding block (2) is installed on the outer side of the sliding rail (3), a hydraulic cylinder (4) is fixedly installed below the sliding block (2), a connecting rod (5) is arranged at the lower end of the hydraulic cylinder (4), a working plate (7) is installed at the lower end of the connecting rod (5), a compression spring (6) is arranged on the outer surface of the connecting rod (5), a groove (14) is formed in the inner side of the working plate (7), a polishing rod (15) is installed on the inner side of the groove (14), limiting blocks (16) are arranged on two sides of the lower end of the working plate (7), idler wheels (17) are arranged on the inner sides of the limiting blocks (16), and a motor (13) is installed above one of the limiting blocks (16), the utility model discloses a dust collector, including motor (13), working plate (7), backup pad (20), dust absorption mouth (21) are all installed to the upper surface of placing board (8), place inboard of board (8) and install dust catcher (10), dust catcher (10) are connected through connecting pipe (18) with dust absorption mouth (21), the surface of dust catcher (10) is provided with collects storehouse (11), the below of working plate (7) is installed and is placed board (8), the upper surface of placing board (8) is provided with standing groove (12), the inboard of standing groove (12) is provided with spring (19), backup pad (20) are installed to the upper end of spring (19), dust absorption mouth (21) are all installed to the both sides of standing groove (12), dust catcher (10) are installed to the inboard of placing board (8).
2. The special burr removing device for the guide rail upper plate according to claim 1, wherein: the connecting rod (5) comprises a movable sleeve and a thin rod, a compression spring (6) is arranged on the outer surface of the thin rod, and the upper end of the compression spring (6) is fixed with the movable sleeve through welding.
3. The special burr removing device for the guide rail upper plate according to claim 1, wherein: the upper surfaces of the two sides of the placing groove (12) are provided with sliding grooves, the sliding grooves correspond to the limiting blocks (16), and the limiting blocks (16) are connected with the sliding grooves in a sliding mode.
4. The special burr removing device for the guide rail upper plate according to claim 1, wherein: the lower end of the spring (19) is completely attached to the inner surface of the placing groove (12), the spring (19) and the placing groove (12) are fixed through welding, and a rubber pad is arranged on the upper surface of the supporting plate (20).
5. The special burr removing device for the guide rail upper plate according to claim 1, wherein: the placing plate (8) penetrates through two sides of the working bin (1) and is fixed with the working bin (1) through screws, and the motor (13) is electrically connected with an external power supply.
6. The special burr removing device for the guide rail upper plate according to claim 1, wherein: the lower surface of the dust collection opening (21) is completely attached to the upper surface of the placing plate (8), and the dust collection opening (21) and the placing plate (8) are fixed through screws.
