Shoulder and armpit fixing pad for lateral position operation Download PDFInfo
- Publication number
- CN213941375U CN213941375U CN202023099899.7U CN202023099899U CN213941375U CN 213941375 U CN213941375 U CN 213941375U CN 202023099899 U CN202023099899 U CN 202023099899U CN 213941375 U CN213941375 U CN 213941375U
- Authority
- CN
- China
- Prior art keywords
- shoulder
- pad
- lateral position
- position operation
- armpit
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 229920000742 Cotton Polymers 0.000 claims abstract description 21
- 239000004744 fabric Substances 0.000 claims description 19
- 239000007787 solid Substances 0.000 claims description 7
- VYPSYNLAJGMNEJ-UHFFFAOYSA-N Silicium dioxide Chemical compound O=[Si]=O VYPSYNLAJGMNEJ-UHFFFAOYSA-N 0.000 claims description 3
- 239000000741 silica gel Substances 0.000 claims description 3
- 229910002027 silica gel Inorganic materials 0.000 claims description 3
- 210000001099 axilla Anatomy 0.000 claims 2
- 230000003044 adaptive effect Effects 0.000 claims 1
- 230000000694 effects Effects 0.000 abstract description 4
- 230000037237 body shape Effects 0.000 abstract description 3
- 238000002360 preparation method Methods 0.000 abstract description 2
- 230000007423 decrease Effects 0.000 abstract 1
- 238000000034 method Methods 0.000 abstract 1
- 238000001356 surgical procedure Methods 0.000 abstract 1
- 210000000038 chest Anatomy 0.000 description 3
- 238000005034 decoration Methods 0.000 description 2
- 230000004048 modification Effects 0.000 description 2
- 238000012986 modification Methods 0.000 description 2
- 230000000172 allergic effect Effects 0.000 description 1
- 208000010668 atopic eczema Diseases 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000006835 compression Effects 0.000 description 1
- 238000007906 compression Methods 0.000 description 1
- 238000010586 diagram Methods 0.000 description 1
- 238000010030 laminating Methods 0.000 description 1
- 210000005036 nerve Anatomy 0.000 description 1
- 230000035479 physiological effects, processes and functions Effects 0.000 description 1
Images
Landscapes
- Orthopedics, Nursing, And Contraception (AREA)
Abstract
本实用新型公开了侧卧位手术用固肩腋垫，包括腋下垫和绑肩带，腋下垫上表面呈由腋部向腰部逐渐变低的坡形面，腋下垫外套设棉布套，两根弹力绑肩带一端分别连接在腋下垫厚端两边的棉布套上，另一端为自由端，两自由端分别从病人身体两侧压束病人肩膀部延伸至对侧连接在床栏上。本实用新型将腋下垫与绑肩带连成一体，坡形腋下垫贴合人体侧卧位身形，使患者腰部不悬空，减轻患者不适感；连接在垫子上的绑肩带交叉牵拉患者肩部后连接于床栏上，牵拉效果好，不易滑脱，且固定方式简单，操作省事，减少手术位准备时间，提高效率。
The utility model discloses a shoulder-fixing axillary pad for side-lying position surgery, which comprises an underarm pad and a shoulder strap. The upper surface of the underarm pad is a slope-shaped surface that gradually decreases from the armpit to the waist, and the underarm pad is covered with a cotton cover. One end of the two elastic straps is connected to the cotton cover on both sides of the thick end of the underarm pad, and the other end is the free end. . The utility model integrates the underarm pad and the straps, and the slope-shaped underarm pad fits the body shape of the human body in the lateral position, so that the patient's waist is not suspended, and the patient's discomfort is relieved; After pulling the patient's shoulder, it is connected to the bed rail, the pulling effect is good, it is not easy to slip off, and the fixing method is simple, the operation is convenient, the preparation time of the operation position is reduced, and the efficiency is improved.
Description
Technical Field
The utility model relates to the field of medical supplies, more specifically say, it relates to a side clinostatism operation is with solid shoulder armpit pad.
Background
The position of often needing patient side to lie in neurosurgery clinical medical treatment is operated, and general operation is filled up a cuboid soft pillow at patient armpit and is raised the thorax to do benefit to the patient and breathe, prevent that rib nerve, the excessive pressurized of bed-attached shoulder, the sick side upper arm tie-up pressure of top is pressed with rectangular bandage in addition simultaneously, and the appropriate tractive downwards of exerting oneself fully exposes patient's neck, increase the operation field of vision. The existing problems are that the matching degree of a cuboid axillary pad and a human body is not good, the waist is suspended to a certain extent, and a patient feels uncomfortable; the patient will move by twisting the cushion; meanwhile, the fixation of the shoulder binding band is difficult to achieve, and the shoulder binding band often slips off and is poor in fixation and traction effects.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art exists, the utility model aims to provide a solve the lateral position operation of above-mentioned problem with gu shouldering armpit pad, slope shape armpit pad with tie up baldric disjunctor structure, the human lateral position of armpit pad laminating body shape alleviates patient uncomfortable and feels, connect on the mat tie up behind the baldric cross tractive patient shoulder connect on the bedrail, not only the tractive is effectual, the operation of also being convenient for.
In order to achieve the above purpose, the utility model provides a following technical scheme:
the shoulder fixing and armpit pad for the lateral position operation comprises an armpit pad and shoulder binding belts, wherein the upper surface of the armpit pad is a slope surface gradually changing from an armpit to a waist, a cotton cloth sleeve is sleeved outside the armpit pad, one ends of the two elastic shoulder binding belts are respectively connected to the cotton cloth sleeves on two sides of the thick end of the armpit pad, the other ends of the two elastic shoulder binding belts are free ends, and the two free ends respectively extend to the opposite side from the shoulders of a patient pressed on two sides of the body of the patient and are connected to a bed fence.
The utility model discloses further improve technical scheme and be, the solid flap is connected respectively to the cotton cover base of armpit pad both sides, and solid flap one end is the free end for connect on the bedrail of avris. The armpit pad is fixedly connected to the operating bed through the belt, so that the sliding caused by the twisting of the patient is effectively prevented.
The utility model discloses further improve technical scheme be, the solid area of filling up of armpit pad both sides has two respectively, is located armpit pad avris both ends position respectively. The connection is firmer.
The utility model discloses the further improvement technical scheme is, two the interval of tying up the baldric is close to human chest thickness. Close to the human body, the fixation is more stable.
The utility model discloses further improve technical scheme and be equipped with the shoulder fixed part on one of them tie up the baldric, shoulder fixed part internal surface has the arc parcel structure that suits with the physiological radian of people's shoulder, and should tie up one section of shoulder fixed part connection armpit pad of baldric and be equipped with length adjustment and detain. The shoulder fixing part is attached to the shoulder of a human body, the traction and compression effect is better, and meanwhile, the adjusting buckle can adjust the length of the shoulder strap according to the size of the patient, so that the shoulder fixing part is just positioned at the shoulder of the patient.
The utility model discloses the further improvement technical scheme is, the shoulder fixed part comprises elasticity cloth outer layer, sponge filling layer and sweat-absorbing cotton elasticity cloth layer.
The utility model discloses the further improvement technical scheme is, it is sweat-absorbing cotton elasticity cloth to tie up the inlayer of baldric.
The utility model discloses further improve technical scheme and be, tie up shoulder bandwidth 5-8 cm.
The utility model discloses further improve technical scheme and be, the armpit pad adopts silica gel or sponge to make.
The utility model discloses further improve technical scheme and be, the armpit fills up the cotton of thick end position and sheathes in and sets up the suit mouth, is equipped with the connecting piece on the suit mouth. Is convenient to disassemble, wash and sterilize.
The utility model discloses beneficial effect:
the utility model integrates the armpit cushion and the shoulder straps, and the slope-shaped armpit cushion is attached to the body shape of the lateral lying position of the human body, so that the waist of the patient is not suspended, and the discomfort of the patient is relieved; the shoulder straps connected to the cushion are connected to the bed fence after the shoulders of the patient are pulled in a crossed manner, so that the pulling effect is good, the patient is not easy to slip, the fixing mode is simple, the operation is trouble-saving, the operation standard preparation time is shortened, and the efficiency is improved.
Drawings

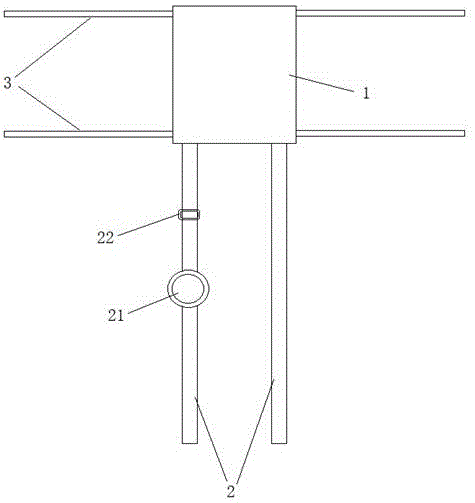

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a usage state diagram of the present invention.
Detailed Description
As shown in fig. 1 and 2, the utility model comprises an armpit cushion 1 and a shoulder strap 2, wherein the upper surface of the armpit cushion 1 made of silica gel or sponge is a slope surface which gradually becomes lower from armpit to waist, when a patient lies on side, the cushion extends towards the slope surface of waist at the armpit, the body is not empty, and the comfort level is good; the armpit pad 1 overcoat is established the cotton cloth cover, sets up the suit mouth on the cotton cloth cover of armpit pad thick end position, is equipped with zip fastener or magic on the suit mouth and pastes the connection, and the cotton cloth cover can be unpicked and washed, and 2 one end of two elasticity shoulder straps are connected respectively on the cotton cloth cover on armpit pad thick end both sides, and the other end is the free end, two the interval of tying up shoulder strap 2 is close to human chest thickness, and one of them is tied up and is equipped with shoulder fixed part 21 on 2, and the internal surface of shoulder fixed part 21 has the arc parcel structure that suits with people's shoulder physiology radian, and should tie up the shoulder fixed part of tying up and be equipped with length adjustment on one section of armpit pad and detain 22, and two free ends are from patient's two side pressure respectively shoulder portion, and shoulder fixed part 21 card is on patient's side shoulder just, extends to the offside and connects on the bedrail, can directly buckle.
For preventing that the armpit pad from shifting under patient's wrench movement, the cotton cover base both ends of armpit pad both sides are connected with solid flap 3 respectively, and 3 one end of solid flap are the free end for connect on the bedrail of avris.
The free ends of the shoulder straps 2 and the fixing cushion straps 3 can be directly fastened on the bed fence, magic tapes can be arranged at the free ends, and the free ends can be self-adhered after bypassing the bed fence.
In order to tie the shoulder strap without pressing the patient and make the skin of the contact surface not allergic, the shoulder fixing part 21 is composed of an elastic cloth outer layer, a sponge filling layer and a sweat-absorbing all-cotton elastic cloth layer. The inner layer of the shoulder strap 2 is made of sweat-absorbing cotton elastic cloth. The width of the shoulder strap 2 is 5-8 cm.
It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.
Claims (10)
1. The side position operation is with solid shoulder axillary pad, its characterized in that: the armpit cushion comprises an armpit cushion body (1) and shoulder straps (2), wherein the upper surface of the armpit cushion body (1) is a slope surface gradually reduced from armpit parts to waist parts, cotton cloth sleeves are sleeved outside the armpit cushion body (1), one ends of the two elastic shoulder straps (2) are connected to the cotton cloth sleeves on two sides of the thick end of the armpit cushion body respectively, the other ends of the two elastic shoulder straps are free ends, and the two free ends extend to opposite sides from the shoulders of a patient to be connected to a bed fence respectively.
2. The shoulder and axillary pad for lateral position operation according to claim 1, wherein: the bottom edges of the cotton cloth sleeves on the two sides of the underarm pad are respectively connected with a pad fixing belt (3), and one end of the pad fixing belt (3) is a free end and is used for being connected to a side bed fence.
3. The shoulder and axillary pad for lateral position operation according to claim 2, wherein: two fixing cushion belts (3) at the two sides of the armpit cushion are respectively positioned at the two ends of the side of the armpit cushion.
4. The shoulder and axillary pad for lateral position operation according to claim 1, wherein: the distance between the two shoulder straps (2) is close to the thickness of the chest of a human body.
5. The shoulder and axillary pad for lateral position operation according to claim 1, wherein: one of the shoulder straps (2) is provided with a shoulder fixing part (21), the inner surface of the shoulder fixing part (21) is provided with an arc wrapping structure which is adaptive to the physiological radian of the shoulder of a person, and one section of the shoulder fixing part of the shoulder strap, which is connected with the axilla pad, is provided with a length adjusting buckle (22).
6. The shoulder and axillary pad for lateral position operation according to claim 5, wherein: the shoulder fixing part (21) is composed of an elastic cloth outer layer, a sponge filling layer and a sweat-absorbing all-cotton elastic cloth layer.
7. The shoulder and axillary pad for lateral position operation according to claim 1, wherein: the inner layer of the shoulder strap (2) is made of sweat-absorbing cotton elastic cloth.
8. The shoulder and axillary pad for lateral position operation according to claim 1, wherein: the width of the shoulder strap (2) is 5-8 cm.
9. The shoulder and axillary pad for lateral position operation according to claim 1, wherein: the underarm pad (1) is made of silica gel or sponge.
10. The shoulder and axillary pad for lateral position operation according to claim 1, wherein: the cotton cloth sleeve at the thick end position of the axilla pad is provided with a sleeve opening, and the sleeve opening is provided with a connecting piece.
