The utility model discloses an acquisition device mounting structure for image processing, including base, pillar, backup pad, spout, first slider, first fixed block, camera device, second fixed block, first pivot, first limiting plate, face gear, guard box, worm, third fixed block, first motor, transfer line, delivery rod, first bracing piece, second bracing piece, screw rod, second limiting plate, second slider, third slider, first connecting rod, place platform, fixed plate, second pivot, third pivot, second connecting rod and second motor, base bottom fixed surface installs the pillar. The utility model discloses be provided with the spout, when the paper of shooting is great, camera device's position is adjusted to the first slider of horizontal slip, avoids manual pulling paper to cause to overlap to type, through being provided with face gear and screw rod, can make and place the platform rotatory and go up and down, will place the platform and adjust to suitable high back, can make the paper content by whole types.
Description
Technical Field
The utility model relates to an image processing technology field specifically is an acquisition device mounting structure for image processing.
Background
Image processing, which is a technique of analyzing an image with a computer to achieve a desired result, is also called image processing, and generally refers to digital image processing, in which a digital image is a large two-dimensional array obtained by shooting with an industrial camera, a video camera, a scanner, or the like, and elements of the array are called pixels, and values thereof are called gray values.
Its mounting structure of collection system is single for current most image processing, can not satisfy current user demand, firstly, the recording device that makes a video recording that present most image processing set up with its mounting structure of collection system can not remove about, paper can only be removed, nevertheless remove the paper and easily cause the recording content to have the overlap portion, the content of typeeing shows the effect relatively poor, secondly, the platform of placing of present most image processing with its mounting structure of collection system is fixed mounting, can not go up and down, can not rotate, the great or less all adjustable picture of making a video recording of paper, it is low excessively to cause to type the content pixel, the content shows not clearly.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an image processing is with collection system mounting structure to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an image processing acquisition device mounting structure comprises a base, a support column, a support plate, a sliding groove, a first sliding block, a first fixed block, a camera device, a second fixed block, a first rotating shaft, a first limiting plate, a plane gear, a protective box, a worm, a third fixed block, a first motor, a transmission rod, an output rod, a first supporting rod, a second supporting rod, a screw rod, a second limiting plate, a second sliding block, a third sliding block, a first connecting rod, a placing table, a fixed plate, a second rotating shaft, a third rotating shaft, a second connecting rod and a second motor, wherein the support column is fixedly mounted on the surface of the bottom of the base, the support plate is fixedly mounted on the surface of the top of the base, the sliding groove is fixedly mounted on the right side of the support plate, the sliding groove is connected with the first sliding block in a surface sliding manner, the first fixed block is fixedly mounted on the surface of the bottom of the first sliding block, the camera device is fixedly mounted on the surface of the bottom of the first fixed block, the surface of the top of the base is fixedly provided with a second fixed block, the surface of the inside of the second fixed block is movably connected with a first rotating shaft, the surface of the bottom of the first rotating shaft is fixedly provided with a first limiting plate, the surface of the top of the second fixed block is movably connected with a plane gear, the surface of the top of the base is fixedly provided with a protection box, the surface of the top of the plane gear is meshed with a worm, the surface of the inside of the protection box is fixedly provided with a third fixed block, the right surface of the inside of the protection box is fixedly provided with a first motor, the surface of the left end of the first motor is fixedly provided with an output rod, the surface of the right end of the worm is fixedly provided with a transmission rod, the surface of the top of the plane gear is fixedly provided with a first supporting rod, the surface of the rear side of the first supporting rod is fixedly provided with a second supporting rod, the surface of the inside of the second supporting rod is movably connected with a screw rod, and the surface of the left end of the screw rod is fixedly provided with a second limiting plate, the screw rod surface swing joint has the second slider, screw rod surface swing joint has the third slider, second slider surface swing joint has first connecting rod, guard box top parallel arrangement has the platform of placing, it installs the fixed plate to place platform bottom fixed surface, fixed plate front side surface fixed mounting has the second pivot, fixed plate front side surface fixed mounting has the third pivot, third slider surface swing joint has the second connecting rod, screw rod right-hand member fixed mounting has the second motor.
Preferably, a groove matched with the axis of the worm is formed in the third fixing block.
Preferably, a through hole matched with the first rotating shaft is formed in the second fixing block.
Preferably, the bottom surface of the protection box is provided with a through hole matched with the second fixing block.
Preferably, the surface of the middle part of the second supporting rod is provided with a hole matched with the screw rod.
Preferably, the screw rod takes the middle part as the center, and two sides of the screw rod are provided with threads in opposite directions.
Compared with the prior art, the beneficial effects of the utility model are that: this collection system mounting structure for image processing is provided with the spout, when the paper of shooting is great, can the first slider of horizontal slip adjust camera device's position, avoid manual pulling paper to cause the content to overlap and type in, through being provided with face gear and screw rod, can make and place the platform rotation and go up and down, will place the platform and adjust suitable high back, can make the paper content by whole types in, the image pixel has been improved, the convenience is to image processing, this mounting structure has both satisfied the functional requirement, it is also very simple to install.
Drawings

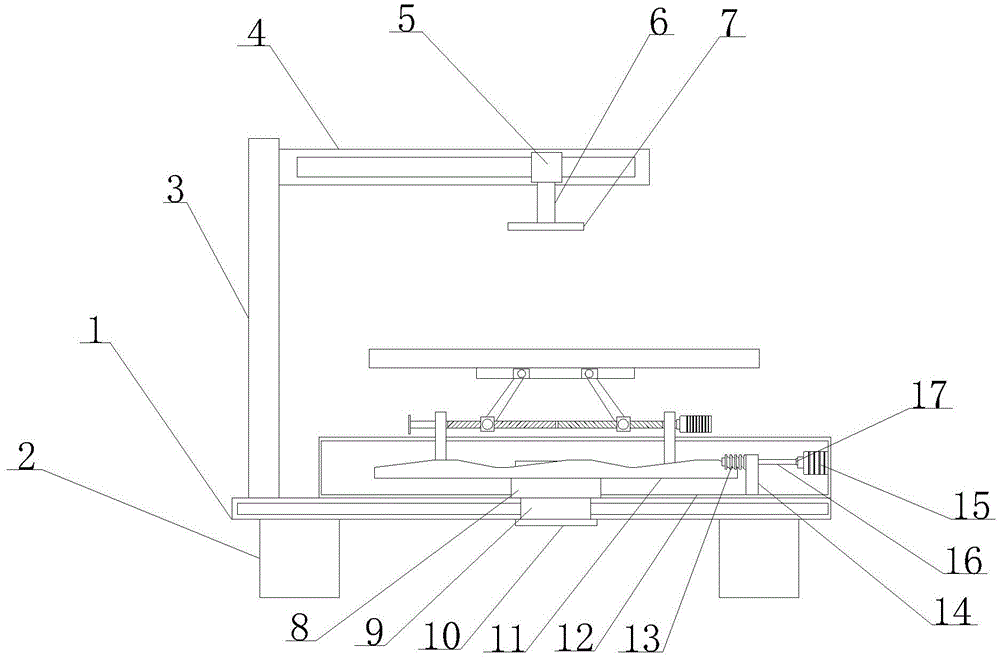

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic view of a partial structure of the present invention;
FIG. 3 is a left side view of the structure of the present invention;
fig. 4 is a schematic view of a partial structure of the present invention.
In the figure: 1. a base; 2. a pillar; 3. a support plate; 4. a chute; 5. a first slider; 6. a first fixed block; 7. a camera device; 8. a second fixed block; 9. a first rotating shaft; 10. a first limit plate; 11. a face gear; 12. a protection box; 13. a worm; 14. a third fixed block; 15. a first motor; 16. a transmission rod; 17. an output rod; 18. a first support bar; 19. a second support bar; 20. a screw; 21. a second limiting plate; 22. a second slider; 23. a third slider; 24. a first link; 25. a placing table; 26. a fixing plate; 27. a second rotating shaft; 28. a third rotating shaft; 29. a second link; 30. a second motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides an embodiment: an image processing acquisition device mounting structure comprises a base 1, a support column 2, a support plate 3, a sliding groove 4, a first sliding block 5, a first fixed block 6, a camera device 7, a second fixed block 8, a first rotating shaft 9, a first limiting plate 10, a plane gear 11, a protective box 12, a worm 13, a third fixed block 14, a first motor 15, a transmission rod 16, an output rod 17, a first supporting rod 18, a second supporting rod 19, a screw rod 20, a second limiting plate 21, a second sliding block 22, a third sliding block 23, a first connecting rod 24, a placing table 25, a fixed plate 26, a second rotating shaft 27, a third rotating shaft 28, a second connecting rod 29 and a second motor 30, wherein the support column 2 is fixedly mounted on the bottom surface of the base 1, the support plate 3 is fixedly mounted on the top surface of the base 1, the sliding groove 4 is fixedly mounted on the right side surface of the support plate 3, the sliding groove 4 is connected with the first sliding block 5 in a surface sliding manner, the first fixed block 6 is fixedly mounted on the bottom surface of the first sliding block 5, the bottom surface of the first fixed block 6 is fixedly provided with a camera device 7 which is provided with a chute 4, when the shot paper is large, the first slide block 5 can slide left and right to adjust the position of the camera device 7, thereby avoiding the content overlapping input caused by manually pulling the paper, the top surface of the base 1 is fixedly provided with a second fixed block 8, the inner surface of the second fixed block 8 is movably connected with a first rotating shaft 9, the inner part of the second fixed block 8 is provided with a through hole matched with the first rotating shaft 9, the bottom surface of the protection box 12 is provided with a through hole matched with the second fixed block 8, the bottom surface of the first rotating shaft 9 is fixedly provided with a first limiting plate 10, the top surface of the second fixed block 8 is movably connected with a plane gear 11, the top surface of the base 1 is fixedly provided with a protection box 12, the top surface of the plane gear 11 is engaged with a worm 13, and the inner lower surface of the protection box 12 is fixedly provided with a third fixed block 14, a groove matched with the axis of the worm 13 is formed in the third fixed block 14, a first motor 15 is fixedly arranged on the right surface in the protection box 12, an output rod 17 is fixedly arranged on the left end surface of the first motor 15, a transmission rod 16 is fixedly arranged on the right end surface of the worm 13, a first supporting rod 18 is fixedly arranged on the top surface of the plane gear 11, a second supporting rod 19 is fixedly arranged on the rear side surface of the first supporting rod 18, a screw rod 20 is movably connected on the inner surface of the second supporting rod 19, threads with opposite directions are arranged on two sides of the screw rod 20 by taking the middle part as the center, a hole matched with the screw rod 20 is formed in the middle surface of the second supporting rod 19, a second limiting plate 21 is fixedly arranged on the left end surface of the screw rod 20, a second sliding block 22 is movably connected on the surface of the screw rod 20, a third sliding block 23 is movably connected on the surface of the screw rod 20, and a first connecting rod 24 is movably connected on the surface of the second sliding block 22, protection case 12 top parallel arrangement places platform 25, through being provided with face gear 11 and screw rod 20, can make and place platform 25 rotatory and go up and down, will place platform 25 and adjust suitable height after, can make the paper content by whole types, image pixel has been improved, it is convenient to image processing, this mounting structure has both satisfied the functional requirement, it is also very simple to install, place platform 25 bottom fixed surface and install fixed plate 26, fixed plate 26 front side fixed surface has second pivot 27, fixed plate 26 front side fixed surface has third pivot 28, third slider 23 surface swing joint has second connecting rod 29, screw rod 20 right-hand member fixed mounting has second motor 30.
The working principle is as follows: the second motor 30 is started, when the output shaft of the second motor 30 rotates clockwise, the screw rod 20 is driven to rotate clockwise, the second slider 22 slides leftward, the third slider 23 slides rightward, the height of the placing table 25 is reduced at the moment, when the output shaft of the second motor 30 rotates counterclockwise, the second slider 22 slides rightward, the third slider 23 slides leftward, the height of the placing table 25 is increased at the moment, the first motor 15 is started, when the output rod 17 drives the transmission rod 16 to rotate clockwise, the worm 13 rotates clockwise, the plane gear 11 meshed with the worm 13 rotates counterclockwise, the first support rod 18 rotates counterclockwise along with the plane gear 11, at the moment, the placing table 25 rotates counterclockwise, and on the contrary, when the output rod 17 drives the transmission rod 16 to rotate counterclockwise, the placing table 25 rotates clockwise.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or scope of the present invention. Accordingly, the embodiments of the present invention are exemplary, and not limiting. The scope of the invention is indicated by the appended claims rather than by the foregoing description, and all changes that come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. An acquisition device mounting structure for image processing comprises a base (1), a support column (2), a support plate (3), a sliding chute (4), a first sliding block (5), a first fixed block (6), a camera device (7), a second fixed block (8), a first rotating shaft (9), a first limiting plate (10), a plane gear (11), a protection box (12), a worm (13), a third fixed block (14) and a first motor (15), transfer line (16), output lever (17), first bracing piece (18), second bracing piece (19), screw rod (20), second limiting plate (21), second slider (22), third slider (23), first connecting rod (24), place platform (25), fixed plate (26), second pivot (27), third pivot (28), second connecting rod (29) and second motor (30), its characterized in that: the utility model discloses a camera fixing device, including base (1), spout (4), spout (5), first slider (5), first fixed block (6) are installed to base (1) bottom fixed surface, spout (3) right side fixed surface installs spout (4), spout (4) sliding surface is connected with first slider (5), first slider (5) bottom fixed surface installs first fixed block (6), first fixed block (6) bottom fixed surface installs camera device (7), base (1) top fixed surface installs second fixed block (8), second fixed block (8) inside surface swing joint has first pivot (9), first pivot (9) bottom fixed surface installs first limiting plate (10), second fixed block (8) top surface swing joint has face gear (11), base (1) top fixed surface installs guard box (12), the utility model discloses a surface mounting structure of a motor, including face gear (11), worm (13), protection case (12), third fixed block (14) are installed to the inside lower fixed surface of protection case (12), the inside right fixed surface of protection case (12) installs first motor (15), first motor (15) left end fixed surface installs output pole (17), worm (13) right-hand member fixed surface installs transfer line (16), face gear (11) top fixed surface installs first bracing piece (18), first bracing piece (18) rear side fixed surface installs second bracing piece (19), second bracing piece (19) inside surface swing joint has screw rod (20), screw rod (20) left end fixed surface installs second limiting plate (21), screw rod (20) surface swing joint has second slider (22), screw rod (20) surface swing joint has third slider (23), second slider (22) surface swing joint has first connecting rod (24), guard box (12) top parallel arrangement has places platform (25), place platform (25) bottom fixed surface and install fixed plate (26), fixed plate (26) front side fixed surface installs second pivot (27), fixed plate (26) front side fixed surface installs third pivot (28), third slider (23) surface swing joint has second connecting rod (29), screw rod (20) right-hand member fixed mounting has second motor (30).
2. The image processing-use acquisition device mounting structure according to claim 1, characterized in that: and a groove matched with the axis of the worm (13) is formed in the third fixing block (14).
3. The image processing-use acquisition device mounting structure according to claim 1, characterized in that: and a through hole matched with the first rotating shaft (9) is formed in the second fixing block (8).
4. The image processing-use acquisition device mounting structure according to claim 1, characterized in that: the bottom surface of the protection box (12) is provided with a through hole matched with the second fixing block (8).
5. The image processing-use acquisition device mounting structure according to claim 1, characterized in that: the middle surface of the second supporting rod (19) is provided with a hole matched with the screw rod (20).
6. The image processing-use acquisition device mounting structure according to claim 1, characterized in that: the screw rod (20) takes the middle part as the center, and two sides are provided with threads in opposite directions.
