The utility model belongs to the technical field of die-cut, specific die-cut all-in-one of can saying so. This die-cut all-in-one, comprises a workbench, fixed surface installs the dead lever on the workstation, ann has the lower bolster in the middle of the workstation upper surface, workstation upper surface both sides movable mounting fixed block, workstation upper surface still movable mounting has the push pedal, dead lever top fixed mounting diaphragm, a cylinder of fixed surface installation on the diaphragm, a cylinder output and depression bar upper end fixed connection, depression bar lower extreme and clamp plate fixed connection No. one, clamp plate lower surface mounting has cope match-plate pattern and blade. The utility model discloses No. two cylinder output drives No. two clamp plates forward, and No. two clamp plates drive the push rod, and the push rod drives push pedal formation push-and-pull effect, accomplishes the automatic release of article when the punching press is accomplished to the raw materials, and the completion during operation does not need the manual finished product of having taken out of staff, guarantees staff's personal safety.
Description
Technical Field
The utility model relates to a die-cut technical field particularly, is a die-cut all-in-one.
Background
In short, the die is a tool for manufacturing a molded article, the tool is composed of various parts, different dies are composed of different parts, the processing of the appearance of the article is realized mainly by changing the physical state of the molded material, and the die cutting is needed in the manufacturing process of the product, so that the later processing of the product is facilitated.
The existing punching all-in-one machine is used for horizontal transportation of most products after semi-finished products are processed, the semi-finished products cannot be stacked, the semi-finished products need to be taken out ceaselessly in the process of placement, a large amount of manpower and sites are occupied simultaneously, the using effect is poor, and workers can be injured possibly.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a main aim at provides a die-cut all-in-one can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a die-cut all-in-one, includes the workstation, fixed surface installs the dead lever on the workstation, ann has the lower bolster in the middle of the workstation upper surface, workstation upper surface both sides movable mounting fixed block, workstation upper surface still movable mounting has the push pedal, dead lever top fixed mounting diaphragm, a cylinder of fixed surface mounting on the diaphragm, a cylinder output and depression bar upper end fixed connection, depression bar lower extreme and clamp plate fixed connection No. one, clamp plate lower surface mounting has cope match-plate pattern and blade, the control box has been put on the workstation next door, workstation bottom movable mounting sweeps collecting box.
Preferably, the fixing rod is provided with four mutually parallel fixing rods arranged on the upper surface of the workbench, and the fixing rod movably penetrates through the first pressing plate.
Preferably, a motor is fixedly installed below the workbench, the output end of the motor is fixedly connected with a shaft rod through a connector, a first helical gear is fixedly connected above the shaft rod, the first helical gear is meshed with a second helical gear, the second helical gear is fixedly connected with a screw rod, and the screw rod is installed below the workbench through a bearing seat.
Preferably, a sliding plate is installed on the screw rod through threads, the sliding plate is installed on a sliding groove, the sliding groove is formed in the surface of the workbench, a telescopic rod is fixedly installed on the upper portion of the sliding plate and fixedly connected with a fixed block, and a first spring is installed between the telescopic rod and the fixed block.
Preferably, the first cylinder is fixedly installed on the upper surface of the transverse plate through an inverted L-shaped fixing frame, a cutter groove is formed in the workbench below the blade, the upper template is parallel to the lower template, a second spring is installed between the lower template and the upper surface of the workbench, and five springs are installed in grooves of the workbench.
Preferably, the push plate is fixedly connected with the push rod, the push rod is provided with two parallel pressing plates fixedly connected with the second pressing plate, the second pressing plate is fixedly connected with the output end of the second air cylinder, and the second air cylinder is fixedly arranged behind the workbench.
Compared with the prior art, the utility model discloses following beneficial effect has:
(1) the motor output end drives the shaft lever to rotate through the connector, the shaft lever drives the first helical gear, the first helical gear is connected with the second helical gear in an occluded mode and starts to rotate, the second helical gear drives the screw rod to rotate, the screw rod rotates to drive the sliding plate to move, the sliding plate moves towards the center of the lower template, the sliding plate drives the telescopic rod to move inwards, the telescopic rod drives the fixed block to clamp the raw materials inwards, and the raw materials are enabled not to shift in the stamping process.
(2) No. two cylinder output drives No. two clamp plates forward, and No. two clamp plates drive the push rod, and the push rod drives the push pedal and forms a push-and-pull effect, accomplishes the automatic release of article when the punching press is accomplished to the raw materials, does not need during the completion work that the staff has manually taken out the finished product, guarantees staff's personal safety.
Drawings

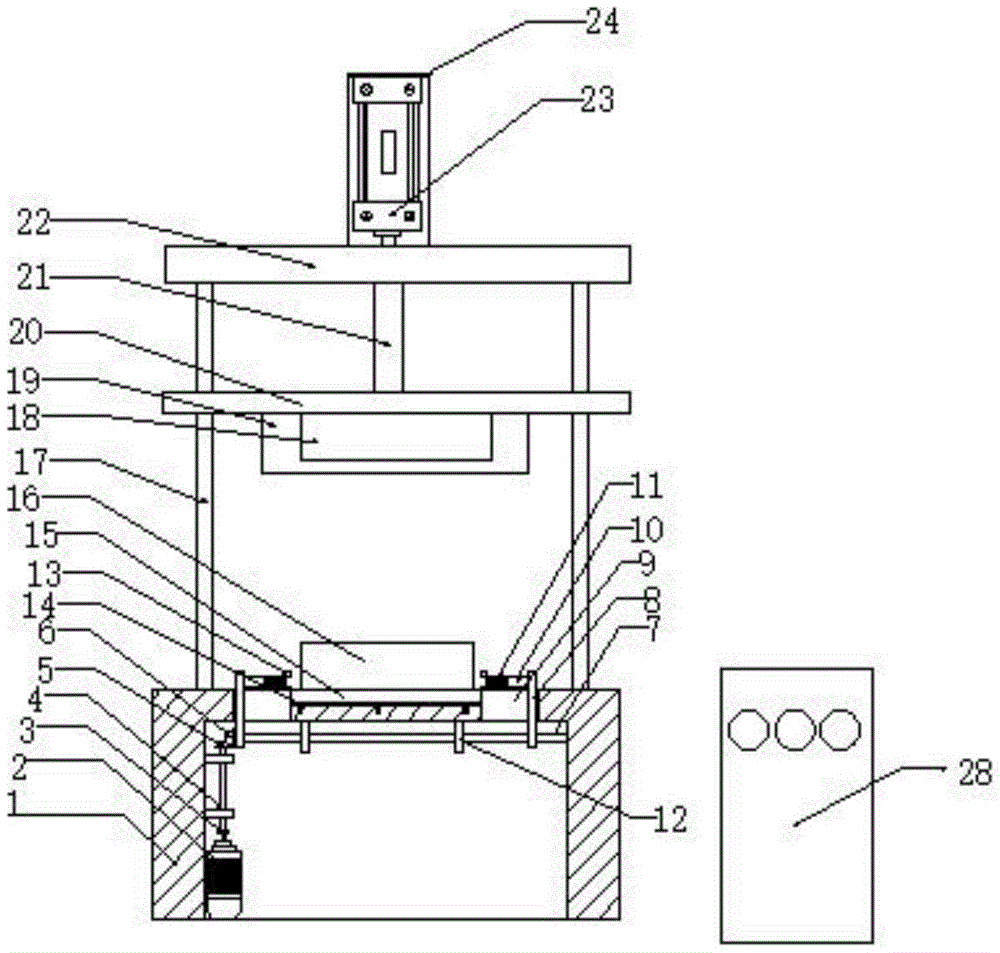

Fig. 1 is a schematic view of the overall structure of the punching integrated machine of the present invention;
fig. 2 is a schematic view of a partial structure of the punching integrated machine of the present invention;
fig. 3 is a schematic top view of the upper portion of the working table of the integrated punching machine of the present invention;
in the figure: 1. a work table; 2. a motor; 3. a connector; 4. a shaft lever; 5. a first bevel gear; 6. a second bevel gear; 7. a screw rod; 8. a slide plate; 9. a chute; 10. a telescopic rod; 11. a first spring; 12. a bearing seat; 13. a fixed block; 14. a second spring; 15. a lower template; 16. pushing the plate; 17. fixing the rod; 18. mounting a template; 19. a blade; 20. a first pressing plate; 21. a pressure lever; 22. a transverse plate; 23. a first cylinder; 24. an inverted L-shaped fixing frame; 25. a push rod; 26. pressing plates II; 27. a second cylinder; 28. a control box; 29. and a scrap collecting box.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Examples
As shown in fig. 1-3, a die-cut all-in-one machine, including workstation 1, fixed surface installs dead lever 17 on workstation 1, ann has lower bolster 15 in the middle of the workstation 1 upper surface, 1 upper surface both sides movable mounting fixed block 13 of workstation, 1 upper surface of workstation still movable mounting has push pedal 16, dead lever 17 top fixed mounting diaphragm 22, a fixed surface installs cylinder 23 on diaphragm 22, a cylinder 23 output and depression bar 21 upper end fixed connection, depression bar 21 lower extreme and a clamp plate 20 fixed connection, a clamp plate 20 lower surface mounting has cope match-plate pattern 18 and blade 19, control box 28 has been put to workstation 1 next door, workstation 1 bottom movable mounting sweeps collecting box 29.
Through the technical scheme, the lower template 15 is movably mounted on the upper surface of the workbench 1, the scrap collecting box 29 can contain waste materials at any time and is convenient to clean, the first air cylinder 23 is mounted on the upper surface of the transverse plate 22, the transverse plate 22 is fixed at the top end of the fixing rod 17, the upper template 18 and the blade 19 are movably mounted on the lower surface of the first pressing plate 20, the template and the blade can be replaced at any time, and the blade 19 is mounted in front of the upper template 18.
In this embodiment, the fixing rods 17 are provided with four fixing rods 17 which are parallel to each other and are installed on the upper surface of the workbench 1, and the fixing rods 17 movably penetrate through the first pressing plate 20. The force is uniformly kept balanced when the first pressing plate is pressed down.
It should be noted that the motor 2 is fixedly installed below the workbench 1, the output end of the motor 2 is fixedly connected with the shaft lever 4 through the connector 3, the first helical gear 5 is fixedly connected above the shaft lever 4, the first helical gear 5 is meshed with the second helical gear 6, the second helical gear 6 is fixedly connected with the lead screw 7, and the lead screw 7 is installed below the workbench 1 through the bearing seat 12. The output end of the motor 2 drives the shaft rod 4 to rotate through the connector, the shaft rod 4 drives the first bevel gear 5, the first bevel gear 5 is meshed with the second bevel gear 6 to be connected and starts to rotate, and the second bevel gear 6 drives the screw rod to rotate.
When specifically setting up, install slide 8 through the screw thread on the lead screw 7, slide 8 installs on spout 9, spout 9 sets up on 1 surface of workstation, 8 upper portion fixed mounting telescopic links 10 of slide, telescopic links 10 and fixed block 13 fixed connection, install spring 11 between telescopic links 10 and the fixed block 13. The lead screw 7 rotates to drive the sliding plate 8 to move, the sliding plate 8 moves towards the center of the lower template 15, the sliding plate 8 drives the telescopic rod 10 to move inwards, the telescopic rod 10 drives the fixed block 13 to clamp raw materials inwards, and a first spring 11 is arranged between the telescopic rod 10 and the fixed block 13 to enable the telescopic rod 10 and the fixed block 13 to recover to the original position when the work is finished.
When the device is specifically arranged, the first air cylinder 23 is fixedly arranged on the upper surface of the transverse plate 22 through an inverted L-shaped fixing frame 24, a cutter groove is formed in the workbench 1 below the blade 19, the upper template 18 is parallel to the lower template 15, a second spring 14 is arranged between the lower template 15 and the upper surface of the workbench 1, and five second springs 14 are arranged in grooves of the workbench 1. The first cylinder 23 is further provided with an inverted L-shaped fixing frame 24 which is fixedly arranged on the upper surface of the transverse plate 22 to keep the stability of the first cylinder 23, cutter grooves are arranged below the cutter blades 19 and are parallel to each other to protect the cutter blades, a second spring 14 is arranged between the lower template 15 and the workbench 1, the second spring 14 can enable the lower template 15 to be horizontal to the workbench 1, and the second spring 14 is arranged in a groove of the workbench 1 and is pressed into the groove by the workbench 1 when the upper template 18 and the lower template 15 are punched.
When the device is specifically arranged, the push plate 16 is fixedly connected with the push rod 25, the push rod 25 is provided with two mutually parallel pressing plates 26 fixedly connected with the second pressing plate 26, the second pressing plate 26 is fixedly connected with the output end of the second air cylinder 27, and the second air cylinder 27 is fixedly arranged behind the workbench 1. The output end of the second air cylinder 27 drives the second pressing plate 26 to move forwards, the second pressing plate 26 drives the push rod 25, the push rod 25 drives the push plate 16 to form a push-pull effect, and the finished product is automatically pushed out when the raw materials are punched.
The working principle of the punching all-in-one machine is as follows:
when the device is used, firstly, a switch is started to put in raw materials, the output end of a motor 2 drives a shaft rod 4 to rotate through a connector, the shaft rod 4 drives a first bevel gear 5, the first bevel gear 5 and a second bevel gear 6 are meshed and connected to start rotating, the second bevel gear 6 drives a lead screw to rotate, a lead screw 7 rotates to drive a sliding plate 8 to move, the sliding plate 8 moves towards the center of a lower template 15, the sliding plate 8 drives an expansion link 10 to move inwards, the expansion link 10 drives a fixing block 13 to clamp the raw materials inwards, the output end of a first air cylinder 23 drives a first pressing plate 20 to press downwards, the pressing plate 20 drives an upper template 18 and a blade 19 to press downwards, the blade 19 cuts the raw materials into a cutter groove, the upper template 18 and the lower template 15 complete stamping, a second spring 14 bounces the lower template 14 to be horizontally aligned with a workbench, the output end of a second air cylinder 27 drives a second pressing plate 26 to move forwards, the second pressing plate 26 drives a push rod 25, and the push rod 25 drives a push plate 16 to complete pushing forwards.
It should be noted that the specific model specification of the motor 2 needs to be determined by model selection according to the actual specification of the device, and the specific model selection calculation method adopts the prior art in the field, so detailed description is omitted.
The specific model specification of the first cylinder 23 and the second cylinder 27 needs to be determined according to the actual specification of the device, and the specific model selection calculation method adopts the prior art, so detailed description is omitted.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. A punching integrated machine comprises a workbench (1), and is characterized in that: fixed surface installs dead lever (17) on workstation (1), ann has lower bolster (15) in the middle of workstation (1) upper surface, workstation (1) upper surface both sides movable mounting fixed block (13), workstation (1) upper surface still movable mounting has push pedal (16), dead lever (17) top fixed mounting diaphragm (22), a fixed surface installs cylinder (23) on diaphragm (22), cylinder (23) output and depression bar (21) upper end fixed connection, depression bar (21) lower extreme and clamp plate (20) fixed connection, clamp plate (20) lower surface mounting has cope match-plate pattern (18) and blade (19), control box (28) have been put to workstation (1) next door, workstation (1) bottom movable mounting sweeps collecting box (29).
2. An all-in-one die cutting machine as claimed in claim 1, characterized in that: the fixing rod (17) is provided with four mutually parallel fixing rods which are arranged on the upper surface of the workbench (1), and the fixing rod (17) movably penetrates through the first pressing plate (20).
3. An all-in-one die cutting machine as claimed in claim 1, characterized in that: the motor (2) is fixedly installed below the workbench (1), the output end of the motor (2) is fixedly connected with the shaft lever (4) through the connector (3), the first helical gear (5) is fixedly connected to the upper portion of the shaft lever (4), the first helical gear (5) is meshed with the second helical gear (6), the second helical gear (6) is fixedly connected with the lead screw (7), and the lead screw (7) is installed below the workbench (1) through the bearing seat (12).
4. An all-in-one die cutting machine as claimed in claim 3, characterized in that: install slide (8) through the screw thread on lead screw (7), install on spout (9) slide (8), spout (9) set up on workstation (1) surface, slide (8) upper portion fixed mounting telescopic link (10), telescopic link (10) and fixed block (13) fixed connection, install spring (11) between telescopic link (10) and fixed block (13).
5. An all-in-one die cutting machine as claimed in claim 1, characterized in that: the first cylinder (23) is fixedly installed on the upper surface of the transverse plate (22) through an inverted L-shaped fixing frame (24), a cutter groove is formed in the workbench (1) below the blade (19), the upper template (18) is parallel to the lower template (15), a second spring (14) is installed between the lower template (15) and the upper surface of the workbench (1), and five springs (14) are installed in grooves of the workbench (1).
6. An all-in-one die cutting machine as claimed in claim 1, characterized in that: the push plate (16) is fixedly connected with the push rod (25), the push rod (25) is provided with two mutually parallel pressing plates (26) which are fixedly connected with each other, the pressing plates (26) are fixedly connected with the output end of the air cylinder (27), and the air cylinder (27) is fixedly arranged behind the workbench (1).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202022227480.9U CN213915661U (en) | 2020-10-09 | 2020-10-09 | Punching all-in-one machine |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202022227480.9U CN213915661U (en) | 2020-10-09 | 2020-10-09 | Punching all-in-one machine |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN213915661U true CN213915661U (en) | 2021-08-10 |
Family
ID=77161754
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202022227480.9U Active CN213915661U (en) | 2020-10-09 | 2020-10-09 | Punching all-in-one machine |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN213915661U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114472740A (en) * | 2022-03-01 | 2022-05-13 | 深圳市常丰激光刀模有限公司 | Intelligent stripping cutting die and method thereof |
-
