Abstract
The utility model discloses a mechanical engineering cleaning equipment, including brace table and two backup pads, two the backup pad symmetry sets up the lateral wall both ends on the brace table, the fixed driving motor that is provided with of lateral wall center department on the brace table, driving motor output shaft top fixedly connected with revolving stage, the lateral wall symmetry is provided with the fixed plate on the revolving stage, every equal threaded connection has a first adjusting bolt on the fixed plate, the one end that backup pad was kept away from to a first adjusting bolt runs through the fixed plate and rotates and be connected with the arc pinch-off blades, the symmetry is provided with spacing telescopic link between arc pinch-off blades lateral wall and the fixed plate. The utility model discloses abluent in-process can be difficult to abluent greasy dirt to cylindricality spare part surface and carry out the automation and erase, has improved cleaning performance and cleaning efficiency, can clean to the cylindricality spare part of different diameters, different length simultaneously, need not to make a round trip to change anchor clamps and wiping arrangement.
Description
Technical Field
The utility model relates to a mechanical engineering washs technical field, especially relates to a mechanical engineering cleaning equipment.
Background
In the technical field of mechanical engineering, cylindrical parts are very common engineering parts, and after long-term use, dust and oil stains are accumulated on the surfaces of the cylindrical parts, and mechanical engineering cleaning equipment is often needed to clean the cylindrical parts.
The existing mechanical engineering cleaning equipment is mostly formed by a spray head, a water tank and a placing plate, the structure is simple, in fact, oil stains are attached to the surface of the cylindrical part only by adopting a washing mode, the oil stains on the surface of the cylindrical part cannot be removed, the cleaning effect is not ideal, and in the prior art, the water stains after cleaning are attached to the surface of the cylindrical part, and the cylindrical part is easy to corrode.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the water stain after unsatisfactory, the washing of cleaning performance among the prior art adheres to the easy corrosion cylindricality spare part surface of cylindricality spare part to a mechanical engineering cleaning equipment is provided.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a mechanical engineering cleaning device comprises a supporting table and two supporting plates, wherein the two supporting plates are symmetrically arranged at two ends of the side wall of the supporting table, a driving motor is fixedly arranged at the center of the side wall of the supporting table, the top end of an output shaft of the driving motor is fixedly connected with a rotating table, the side wall of the rotating table is symmetrically provided with a fixed plate, each fixed plate is in threaded connection with a first adjusting bolt, one end, away from the supporting plate, of each first adjusting bolt penetrates through the fixed plate and is rotatably connected with an arc-shaped clamping plate, limiting telescopic rods are symmetrically arranged between the outer side wall of the arc-shaped clamping plate and the fixed plate, a plurality of cylindrical parts are clamped between the arc-shaped clamping plates together, one end, away from the cylindrical parts, of each supporting plate is fixedly provided with a water tank, spraying plates are symmetrically arranged obliquely above the cylindrical parts, and are provided with a plurality of groups of uniformly distributed spraying heads, and every spray plate and water tank all communicate through the outlet pipe that corresponds, the backup pad lateral wall is provided with the water pump with the outlet pipe intercommunication, two the common fixedly connected with roof in backup pad top, the roof downside is provided with the regulation brushing device who corresponds with cylindricality spare part.
Preferably, the adjusting and scrubbing device comprises an air cylinder fixedly arranged at the center of the lower side wall of the top plate, two end walls of the air cylinder are in threaded connection with corresponding second adjusting bolts, each second adjusting bolt penetrates through the end wall of the air cylinder inwards and is rotatably connected with a corresponding sliding block, strip-shaped openings communicated with the inside of the air cylinder are symmetrically arranged on the lower side wall of the air cylinder, the width of each strip-shaped opening is smaller than the inner diameter of the air cylinder, an electric telescopic rod is fixedly connected to the lower side wall of each sliding block through a connecting block, each connecting block penetrates through the corresponding strip-shaped opening, and a wiping strip is fixedly connected to the lower end of each electric telescopic rod.
Preferably, the lateral wall is provided with the retaining ware on the brace table, and the retaining ware is located between two backup pads, the fixed collection box that is provided with of lateral wall under the brace table, the collection box lateral wall is provided with the outlet, through the mouth intercommunication that falls into water of multiunit evenly distributed, every between retaining ware and the collection box the mouth that falls into water all runs through brace table and collection box and goes up the lateral wall setting.
Preferably, each water falling port is arranged in an inverted truncated cone shape with a large upper end opening and a small lower end opening.
Preferably, each inner wall of the arc-shaped clamping plate is provided with a layer of grid grain silica gel pad with uniform thickness.
The utility model has the advantages that: through the retaining ware, the setting of mouth and collection box fall into water, can collect the sewage that the washing produced, so as to carry out secondary utilization, avoid sewage scattering everywhere, be difficult to clear up, through set up regulation brushing device directly over cylindricality spare part, can be at abluent in-process, be difficult to wash clean greasy dirt and oil stain to cylindricality spare part surface, with spraying the board cooperation together, the cleaning performance to cylindricality spare part has been improved, through hollow cylinder, second adjusting bolt, electric telescopic handle and the cooperation of cleaning strip are used, can clean interval between the strip and the height of cleaning strip to the diameter of cylindricality spare part and highly corresponding regulation, thereby be applicable to different diameters, the cylindricality spare part of co-altitude not cleans.
Drawings

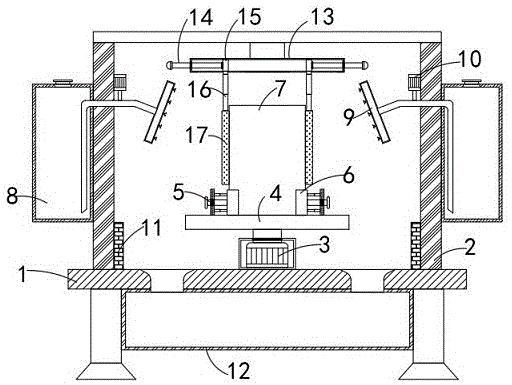

Fig. 1 is a schematic structural view of a mechanical engineering cleaning apparatus provided by the present invention;
fig. 2 is the utility model provides an arc clamping plate and cylindricality spare part cooperation schematic structure of mechanical engineering cleaning equipment.
In the figure: the device comprises a supporting table 1, a supporting plate 2, a driving motor 3, a rotating table 4, a first adjusting bolt 5, an arc-shaped clamping plate 6, a cylindrical part 7, a water tank 8, a spraying plate 9, a water pump 10, a water storage vessel 11, a recycling bin 12, a hollow cylinder 13, a second adjusting bolt 14, a sliding block 15, an electric telescopic rod 16 and a wiping strip 17.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, a mechanical engineering cleaning device comprises a supporting table 1 and two supporting plates 2, wherein the two supporting plates 2 are symmetrically arranged at two ends of the upper side wall of the supporting table 1, a driving motor 3 is fixedly arranged at the center of the upper side wall of the supporting table 1, the top end of an output shaft of the driving motor 3 is fixedly connected with a rotating table 4, the upper side wall of the rotating table 4 is symmetrically provided with fixing plates, each fixing plate is in threaded connection with a first adjusting bolt 5, one end of each first adjusting bolt 5, far away from the supporting plate 2, penetrates through the fixing plate and is rotatably connected with an arc-shaped clamping plate 6, the inner wall of each arc-shaped clamping plate 6 is provided with a layer of grid-pattern silica gel pad with uniform thickness, the inner wall of each arc-shaped clamping plate 6 is provided with the grid-pattern silica gel pad, not only can be well fixed on a cylindrical part, a cylindrical part 7 is clamped between the arc-shaped clamping plates 6, a water tank 8 is fixedly arranged at one end of each supporting plate 2 far away from the cylindrical part 7, spraying plates 9 are symmetrically arranged obliquely above the cylindrical part 7, a plurality of groups of uniformly distributed spraying heads are arranged on the spraying plates 9, each spraying plate 9 is communicated with the water tank 8 through a corresponding water outlet pipe, and a water pump 10 communicated with the water outlet pipe is arranged on the side wall of each supporting plate 2;
the upper side wall of the supporting table 1 is provided with a water storage vessel 11, the water storage vessel 11 is positioned between the two supporting plates 2, the lower side wall of the supporting table 1 is fixedly provided with a recovery box 12, the side wall of the recovery box 12 is provided with a water outlet, sewage generated by cleaning can be collected through the arrangement of the water storage vessel 11, a water falling port and the recovery box 12 so as to carry out secondary utilization, the sewage is prevented from scattering everywhere and is difficult to clean, the water storage vessel 11 is communicated with the recovery box 12 through a plurality of groups of water falling ports which are uniformly distributed, each water falling port penetrates through the upper side walls of the supporting table 1 and the recovery box 12, each water falling port is arranged into an inverted frustum shape with a large upper end opening and a small lower end opening, the water falling port is arranged into an inverted frustum shape, the water falling rate of the water falling port is improved, the excessive water accumulation in the water storage vessel 11 is avoided, the top ends of the two supporting plates 2 are fixedly connected with a top plate together, the lower side of the top plate is provided with an adjusting and brushing device corresponding to the cylindrical part 7, by arranging the adjusting and brushing device right above the cylindrical part 7, oil stains and oil spots which are difficult to clean on the surface of the cylindrical part 7 can be wiped in the cleaning process, and the adjusting and brushing device is matched with the spraying plate 9, so that the cleaning effect on the cylindrical part 7 is improved;
the adjusting and scrubbing device comprises a hollow cylinder 13 fixedly arranged at the center of the lower side wall of the top plate, two end walls of the hollow cylinder 13 are in threaded connection with corresponding second adjusting bolts 14, each second adjusting bolt 14 penetrates through the end wall of the hollow cylinder 13 inwards and is rotatably connected with a corresponding sliding block 15, strip-shaped openings communicated with the inside of the hollow cylinder 13 are symmetrically arranged on the lower side wall of the hollow cylinder 13, the width of each strip-shaped opening is smaller than the inner diameter of the hollow cylinder 13, an electric telescopic rod 16 is fixedly connected to the lower side wall of each sliding block 15 through a connecting block, the connecting block penetrates through the strip-shaped openings, a wiping strip 17 is fixedly connected to the lower end of each electric telescopic rod 16, and the distance between the wiping strips 17 and the height of the wiping strips 17 can be adjusted correspondingly according to the diameter and the height of the cylindrical part 7 through the matching use of the hollow cylinder 13, the second adjusting bolts 14, the electric telescopic rods 16 and the wiping strips 17, thereby being suitable for wiping cylindrical parts 7 with different diameters and different heights.
In the utility model, firstly, sufficient water is flushed into the water tank 8, then the cylindrical part 7 to be cleaned is placed between the two arc-shaped clamping plates 6, the first adjusting bolt 5 is screwed, under the limiting action of the limiting telescopic rod, the two arc-shaped clamping plates 6 clamp the cylindrical part 7, the water pump 10 communicated with the water outlet pipe is started, under the action of the water pump 10, the water in the water tank 8 enters the spraying plate 9 to clean the cylindrical part 7 through the spraying head on the spraying plate 9, the driving motor 3 is started, the output shaft of the driving motor 3 drives the rotating platform 4 and the cylindrical part 7 to rotate, so that the cylindrical part 7 is uniformly cleaned, when oil stains on the surface of the cylindrical part 7 are cleaned, the second adjusting bolt 14 is screwed, the second adjusting bolt 14 drives the slider 15 to move towards the middle part of the hollow cylinder 13, the electric telescopic rod 16 fixedly arranged at the lower end of the slider 15 drives the cleaning strip 17 to be close therewith, when the distance between the wiping strips 17 corresponds to the distance between the cylindrical parts 7, the electric telescopic rod 16 is started, and when the wiping strips 17 are abutted against the side walls of the cylindrical parts 7, the surface of the cylindrical parts 7 can be wiped.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The mechanical engineering cleaning equipment comprises a supporting table (1) and two supporting plates (2), wherein the two supporting plates (2) are symmetrically arranged at two ends of the side wall of the supporting table (1), the mechanical engineering cleaning equipment is characterized in that a driving motor (3) is fixedly arranged at the center of the side wall of the supporting table (1), the top end of an output shaft of the driving motor (3) is fixedly connected with a rotating table (4), fixed plates are symmetrically arranged on the side wall of the rotating table (4), each fixed plate is connected with a first adjusting bolt (5) through threads, one end, far away from the supporting plates (2), of each first adjusting bolt (5) penetrates through the fixed plate and is rotatably connected with an arc-shaped clamping plate (6), limiting telescopic rods are symmetrically arranged between the outer side wall of each arc-shaped clamping plate (6) and the fixed plate, and cylindrical parts (7) are clamped between the arc-shaped clamping plates (6) together, every the one end that cylindricality spare part (7) were kept away from in backup pad (2) is all fixed and is provided with water tank (8), cylindricality spare part (7) oblique top symmetry is provided with sprays board (9), be provided with multiunit evenly distributed's sprinkler head on spraying board (9), and every sprays board (9) and water tank (8) and all communicate through the outlet pipe that corresponds, backup pad (2) lateral wall is provided with water pump (10) with the outlet pipe intercommunication, two the common fixedly connected with roof in backup pad (2) top, the roof downside is provided with the regulation brushing device who corresponds with cylindricality spare part (7).
2. The mechanical engineering cleaning equipment according to claim 1, wherein the adjusting and brushing device comprises a hollow cylinder (13) fixedly arranged at the center of the lower side wall of the top plate, two end walls of the hollow cylinder (13) are respectively in threaded connection with corresponding second adjusting bolts (14), each second adjusting bolt (14) penetrates through the end wall of the hollow cylinder (13) inwards to be rotatably connected with a corresponding sliding block (15), strip-shaped openings communicated with the inside of the hollow cylinder (13) are symmetrically arranged on the lower side wall of the hollow cylinder (13), the width of each strip-shaped opening is smaller than the inner diameter of the hollow cylinder (13), an electric telescopic rod (16) is fixedly connected to the lower side wall of each sliding block (15) through a connecting block, the connecting blocks are arranged through the strip-shaped openings, and a wiping strip (17) is fixedly connected to the lower end of each electric telescopic rod (16).
3. The mechanical engineering cleaning equipment according to claim 1, characterized in that the supporting table (1) is provided with a water storage vessel (11) on the upper side wall, the water storage vessel (11) is located between the two supporting plates (2), the supporting table (1) is fixedly provided with a recycling box (12) on the lower side wall, the recycling box (12) is provided with a water outlet on the side wall, the water storage vessel (11) and the recycling box (12) are communicated through a plurality of groups of uniformly distributed water outlets, and each water outlet is arranged through the supporting table (1) and the recycling box (12) on the upper side wall.
4. The mechanical engineering cleaning equipment as claimed in claim 3, wherein each of the water falling ports is provided in an inverted truncated cone shape with a large upper end opening and a small lower end opening.
5. The mechanical engineering cleaning equipment as claimed in claim 1, wherein a layer of grid-grain silica gel pad with uniform thickness is arranged on the inner wall of each arc-shaped clamping plate (6).
