CN213882240U

CN213882240U - Dormitory upper berth desk capable of being changed into stool

Info

Publication number: CN213882240U
Application number: CN202022820917.XU
Authority: CN
Inventors: 程诚; 朱云峰
Original assignee: Nanjing Vocational University of Industry Technology NUIT
Current assignee: Nanjing Vocational University of Industry Technology NUIT
Priority date: 2020-11-30
Filing date: 2020-11-30
Publication date: 2021-08-06
Anticipated expiration: 2030-11-30

Abstract

The utility model discloses a dormitory upper berth desk of variable formation stool relates to furniture technical field. Including the desk main part, the desk main part includes left side desktop, right side desktop, table leg and support frame, and the bottom of left side desktop one side is provided with two table legs, is provided with first hinge between left side desktop and the right side desktop, and the hole site has all been seted up on the right side of both sides around the left side desktop, and the left side of both sides all is provided with the couple strip around the right side desktop. This variably form dormitory upper berth desk of stool, through setting up support frame, couple strip and hole site, under the cooperation of first hinge and second hinge is used, through withdrawing the support frame, put down right side desktop and table leg and become parallel state, rotatory couple strip is fixed to the hole site of left side desktop, alright warp into the stool, simple structure and using-way are various, can freely switch the use form as required to reach the effect of saving space, low in production cost and device are light and handy.

Description

Dormitory upper berth desk capable of being changed into stool

Technical Field

The utility model relates to the technical field of furniture, specifically be a dormitory upper berth desk of variable formation stool.

Background

The existing beds in university dormitories are mostly upper beds and lower tables, the existing upper bed computer tables are few and few in the market, some upper bed computer tables are relatively large in size, space is not saved, a user wants to take a rest in a holiday period without taking the bed to process files through a computer, the user can lie down to rest on the bed, or the user can warm the bed to process files to run away in the late autumn and night, and the user needs one upper bed computer table which can be conveniently used.

The dormitory upper berth computer desk is less on the market, some are inconvenient accomodating, are a form more, only possess the function of computer desk, in the relatively less space of dormitory, can not accomplish through the deformation and accomodate and then realize saving space to do not have the multifunctionality more, for this reason, we have proposed the dormitory upper berth computer desk of a variable formation stool to solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

The utility model provides a to prior art not enough, the utility model provides a dormitory upper berth desk of variable formation stool possesses the desk that upper berth desk accessible rotation deformation becomes using on the level land, perhaps warp into the stool and can save space, can put and place article such as clothing and accomplish better accomodating on dormitory desk side, and the conversion is convenient, can freely switch advantages such as use form as required, has solved the general problem of current dormitory upper berth desk result of use.

For realizing that above-mentioned upper berth desk accessible rotation is out of shape becomes the desk that uses on the level land, perhaps warp into the stool and can save space, can put and place article such as clothing and accomplish better accomodating on the dormitory desk side, and the conversion is convenient, can freely switch the purpose of use form as required, the utility model provides a following technical scheme: the utility model provides a dormitory upper berth desk of variably forming stool, includes the desk main part, the desk main part includes left side desktop, right side desktop, table leg and support frame, the bottom of left side desktop one side is provided with two table legs, be provided with first hinge between left side desktop and the right side desktop, the hole site has all been seted up on the right side of both sides around the left side desktop, the left side of both sides all is provided with the couple strip around the right side desktop, is provided with the pivot between the middle part of two table legs, the bottom in the left side desktop is connected in the pivot, and the outside of every table leg bottom all is provided with scalable plank, the bottom of left side desktop is provided with the support frame, the support frame distributes on the right side of table leg, the left side of support frame is provided.

As an optimized technical proposal of the utility model, the one end activity that the right side desktop was kept away from to the couple strip sets up in the inside of hole site.

As a preferred technical scheme of the utility model, two the standing groove with scalable plank looks adaptation is all seted up to the bottom of table leg, and the activity of scalable plank sets up the inside at the standing groove.

As a preferred technical scheme of the utility model, both sides the flexible length of scalable plank is less than the width of both sides table leg bottom.

As an optimal technical scheme of the utility model, the quantity of first hinge is two, articulate each other through first hinge between left side desktop and the right side desktop.

Compared with the prior art, the utility model provides a dormitory upper berth desk of variable formation stool possesses following beneficial effect:

1. this convertible dormitory upper berth desk that forms stool through setting up desk main part, left side desktop and right side desktop, uses under the cooperation of pivot, table leg, support frame and scalable plank, uses through the rotatory table leg of pivot to the scalable plank of its bottom of certain angle cooperation, alright make its steady use on the level land, convenient operation has improved the result of use of this dormitory upper berth desk.

2. This variably form dormitory upper berth desk of stool, through setting up support frame, couple strip and hole site, under the cooperation of first hinge and second hinge is used, through withdrawing the support frame, put down right side desktop and table leg and become parallel state, rotatory couple strip is fixed to the hole site of left side desktop, alright warp into the stool, simple structure and using-way are various, can freely switch the use form as required to reach the effect of saving space, low in production cost and device are light and handy.

Drawings

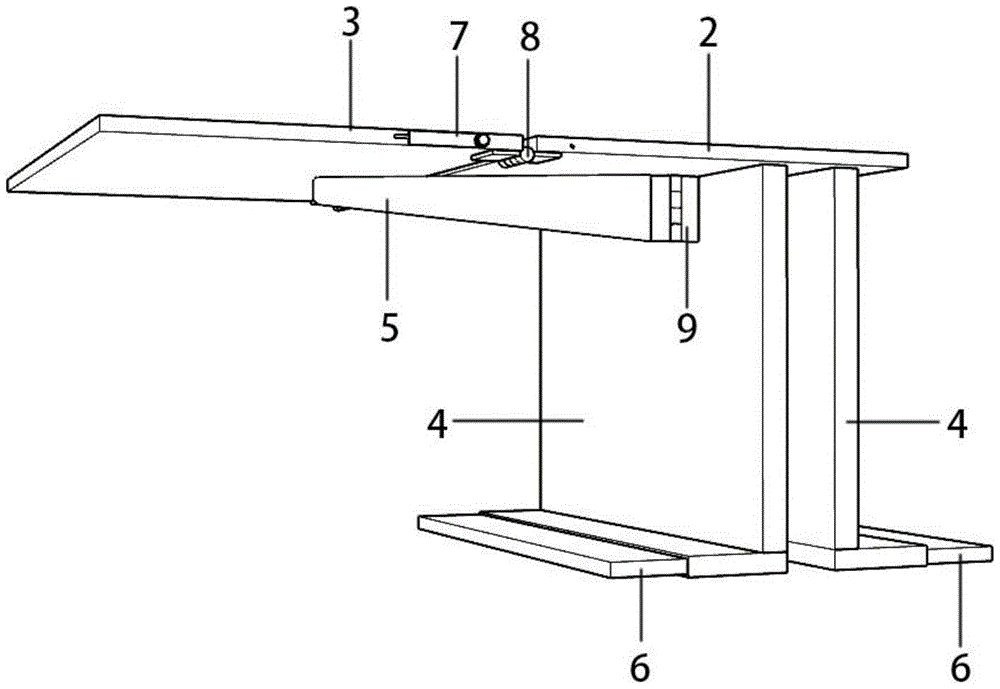

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the rear main structure of the upper computer desk of the present invention;

FIG. 3 is a front perspective view of the upper computer desk of the present invention;

FIG. 4 is a schematic view of the supporting frame of the present invention;

FIG. 5 is a schematic view of the three-dimensional structure of the utility model used on the flat ground;

fig. 6 is a schematic structural view of the retractable wood board of the present invention;

fig. 7 is a schematic view of the first hinge structure of the present invention;

FIG. 8 is a schematic view of the structure of the hook strip of the present invention;

fig. 9 is a schematic view of the three-dimensional structure of the stool transformed from the present invention;

fig. 10 is a schematic view of the hole site structure of the present invention.

In the figure: 1. a computer table main body; 2. a left side desktop; 3. a right side desktop; 4. desk legs; 5. a support frame; 6. a retractable wood board; 7. a hook strip; 8. a first hinge; 9. a second hinge; 10. a rotating shaft; 11. and (6) hole location.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1 to 10, the present invention discloses a dormitory upper berth computer desk capable of being transformed into a stool, which comprises a computer desk main body 1, the computer desk main body 1 comprises a left desktop 2, a right desktop 3, desk legs 4 and a support frame 5, the bottom of one side of the left desktop 2 is provided with two desk legs 4, a first hinge 8 is arranged between the left desktop 2 and the right desktop 3, the right sides of the front and the back sides of the left desktop 2 are both provided with hole sites 11, the left sides of the front and the back sides of the right desktop 3 are both provided with hook strips 7, a rotating shaft 10 is arranged between the middle parts of the two desk legs 4, the rotating shaft 10 is connected with the bottom of the left tabletop 2, the outer side of the bottom of each table leg 4 is provided with a telescopic wood board 6, the bottom of the left desktop 2 is provided with a support frame 5, the support frame 5 is distributed on the right side of the desk legs 4, and the left side of the support frame 5 is provided with a second hinge 9 connected with the desk legs 4.

Specifically, one end of the hook strip 7, which is far away from the right tabletop 3, is movably arranged inside the hole 11.

In this embodiment, the hook strip 7 is arranged to hook the hook strip 7 to the hole 11 formed on the left tabletop 2 when the stool is deformed, so as to support and fix the stool.

Specifically, the bottoms of the two table legs 4 are respectively provided with a placing groove matched with the telescopic wood board 6, and the telescopic wood board 6 is movably arranged in the placing grooves; the extension length of the extension wood boards 6 at the two sides is less than the width of the bottoms of the table legs 4 at the two sides.

In this embodiment, the arrangement of the retractable wood board 6 and the desk legs 4 facilitates the complete retraction of the retractable wood board 6 into the bottoms of the desk legs 4, thereby facilitating the deformation operation.

Specifically, the number of the first hinges 8 is two, and the left tabletop 2 and the right tabletop 3 are hinged to each other through the first hinges 8.

In this embodiment, the arrangement of the first hinge 8 facilitates the operation in the deformation process, thereby improving the good operation effect.

The utility model discloses a theory of operation and use flow: when the computer desk is used, when the computer desk on the bed is required to be used, the right desktop 3 and the left desktop 2 are only required to be in a parallel state, the support frame 5 is rotated until the right desktop 3 is stable, and then the desk legs 4 are supported on the guardrail of the dormitory bed, namely, the two desk legs 4 are clamped on the guardrail, so that the computer desk is convenient to use, as shown in fig. 2 and 3; when the desk is required to be converted into a desk capable of being used on flat ground, the legs 4 are rotated to a certain angle through the rotating shafts 10 to be matched with the retractable wood boards 6 at the bottoms of the legs for use, so that the desk can be stably used on the flat ground, as shown in fig. 4-6; when the stool mode needs to be converted, the support frame 5 is retracted, the right tabletop 3 is put down to be parallel to the table legs 4, the hook strips 7 on the two sides are rotated to the hole positions 11 on the left tabletop 2 for fixing, and the stool can be transformed into the stool, and is convenient to operate, as shown in fig. 7-9.

In conclusion, the dormitory upper-berth computer desk capable of being changed into the stool is characterized in that the computer desk main body 1, the left desktop 2 and the right desktop 3 are arranged, and the desk legs 4 are rotated to a certain angle through the rotating shaft 10 to be matched with the bottom telescopic wood board 6 for use under the matched use of the rotating shaft 10, the desk legs 4, the supporting frame 5 and the telescopic wood board 6, so that the dormitory upper-berth computer desk can be stably used on a flat ground, is convenient to operate and improves the use effect of the dormitory upper-berth computer desk; through setting up support frame 5, couple strip 7 and hole site 11, use under the cooperation of first hinge 8 and second hinge 9, through withdrawing support frame 5, put down right side desktop 3 and table leg 4 and become parallel state, rotatory couple strip 7 is fixed to the hole site 11 of left side desktop 2, alright deformation becomes the stool, and simple structure and using-way are various, can freely switch the use form as required to reach the effect of saving space, low in production cost and device are light and handy.

It should be noted that, in this document, terms such as "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a dormitory upper berth desk of variable formation stool, includes desk main part (1), its characterized in that: the computer desk comprises a computer desk main body (1) and is characterized in that the computer desk main body (1) comprises a left desktop (2), a right desktop (3), desk legs (4) and supporting frames (5), two desk legs (4) are arranged at the bottom of one side of the left desktop (2), a first hinge (8) is arranged between the left desktop (2) and the right desktop (3), hole sites (11) are respectively arranged at the right sides of the front side and the rear side of the left desktop (2), hook strips (7) are respectively arranged at the left sides of the front side and the rear side of the right desktop (3), a rotating shaft (10) is arranged between the middle parts of the two desk legs (4), the rotating shaft (10) is connected to the bottom of the left desktop (2), a telescopic wood board (6) is arranged at the outer side of the bottom of each desk leg (4), the supporting frames (5) are arranged at the bottom of the left desktop (2), and the supporting frames (5) are distributed at the right sides of the desk legs (4), and a second hinge (9) connected with the table legs (4) is arranged on the left side of the support frame (5).

2. The dormitory upper berth computer desk capable of being transformed into a stool according to claim 1, which is characterized in that: one end of the hook strip (7) far away from the right desktop (3) is movably arranged in the hole site (11).

3. The dormitory upper berth computer desk capable of being transformed into a stool according to claim 1, which is characterized in that: two the standing groove with scalable plank (6) looks adaptation is all seted up to the bottom of table leg (4), and scalable plank (6) activity sets up the inside at the standing groove.

4. The dormitory upper berth computer desk capable of being transformed into a stool according to claim 1, which is characterized in that: the telescopic length of the telescopic wood boards (6) on the two sides is smaller than the width of the bottoms of the table legs (4) on the two sides.

5. The dormitory upper berth computer desk capable of being transformed into a stool according to claim 1, which is characterized in that: the number of the first hinges (8) is two, and the left desktop (2) and the right desktop (3) are hinged to each other through the first hinges (8).
