CN213860870U

CN213860870U - Tablet pressing device for traditional Chinese medicine decoction pieces

Info

Publication number: CN213860870U
Application number: CN202022676735.XU
Authority: CN
Inventors: 梁海莉; 马英建; 宋高举; 尹曌星
Original assignee: Yuzhou Houshengtang Traditional Chinese Medicine Co ltd
Current assignee: Yuzhou Houshengtang Traditional Chinese Medicine Co ltd
Priority date: 2020-11-18
Filing date: 2020-11-18
Publication date: 2021-08-03
Anticipated expiration: 2030-11-18

Abstract

The utility model discloses a tablet pressing device for traditional Chinese medicine pieces. There is a chute on the surface of the sliding plate, and the protrusion at the bottom of the sliding plate is engaged with the sliding groove on the surface of the bed body, and a lower pressing die is fixedly installed on the upper part of the sliding plate, and there are multiple lower pressing die dies, and the two sides of the bed body are fixed. There are rollers fixedly installed on the side, and the rollers are provided with multiple rollers and the two sides of the slide plate are attached together. One end of the bed body is fixedly installed with a controller, and the bottom of the bed body is fixedly installed with support legs by welding. The tablet pressing device of the new type of Chinese herbal medicine has a high degree of automation and a relatively low manufacturing cost, which can realize large-scale and rapid production, reduce the cost to the enterprise and increase the economic benefit of the enterprise. To achieve large-scale tableting, greatly improve the overall work efficiency.

Description

Tablet pressing device for traditional Chinese medicine decoction pieces

Technical Field

The utility model relates to the technical field of traditional Chinese medicine processing production, in particular to a tabletting device for traditional Chinese medicine decoction pieces.

Background

The traditional Chinese medicine mainly comprises plant medicines, animal medicines and mineral medicines, the plant medicines account for most of the traditional Chinese medicines, so the traditional Chinese medicines are also called as traditional Chinese medicines, the traditional Chinese medicines are unique medicines used for preventing and treating diseases in the traditional Chinese medicine and are also important marks for distinguishing the traditional Chinese medicines from other medicines, the traditional Chinese medicines used in various places of China reach about 5000 kinds, various medicinal materials are matched to form a prescription which is many-number-surpass, through thousands of years of research, an independent science-materia medica is formed, nowadays, more and more families step into a well-being family, and meanwhile, more and more attention is paid to body health, and the traditional Chinese medicines are common in daily life of people and have good effects for body conditioning and treatment. However, common traditional Chinese medicines are required to be decocted for a long time, and are heated before being taken, so that the traditional Chinese medicines are inconvenient to carry, time-consuming and labor-consuming, and completely contrary to the existing fast-paced life, but with the development of science and technology, the traditional Chinese medicines are also modernized, and the traditional Chinese medicine decoction pieces also become the first choice of daily health care of people, most of the existing decoction pieces are just raw materials which are primarily processed, and the dosage of the traditional Chinese medicine decoction pieces is not easy to grasp by a user when the traditional Chinese medicine decoction pieces are used, so that the traditional Chinese medicine tabletting device is suitable for transportation.

Although a series of traditional Chinese medicine tabletting devices are available on the market at the present stage, the existing tabletting device has low production efficiency and is not suitable for large-scale production, and therefore, a tabletting device for traditional Chinese medicine decoction pieces is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a preforming device of herbal pieces-to propose the lower unsuitable large-scale production of preforming device production efficiency in solving above-mentioned background art, we propose a preforming device's of herbal pieces-problem for this.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a herbal pieces-tabletting device, a bed body, the slide is installed to the top of the bed body, and the upper surface of slide laminating and the bed body, and the bottom of slide is equipped with the lug, the surface of the bed body is equipped with the spout, and the lug block of slide bottom in the spout on bed body surface, and the top fixed mounting of slide has the bed die mould, and the bed die mould is equipped with a plurality ofly down, and the both sides fixed mounting of the bed body has the gyro wheel, the gyro wheel is equipped with a plurality ofly and the gyro wheel pastes mutually with the both sides of slide together, and the one end fixed mounting of the bed body has the controller, and the bottom of the bed body has the supporting leg through welded mode fixed mounting, and the supporting leg is equipped with a plurality ofly, equal fixed mounting is in the bottom of the bed body.

Preferably, the outside of the bed body is equipped with the frame, and the frame is "Jiong" font, and the top below fixed mounting of frame has the base, and the below fixed mounting of base has the hydraulic stem, the one end fixedly connected with clamp plate of hydraulic stem, and the clamp plate is equipped with two, and installs the inlet pipe on the clamp plate of one side, and the below of inlet pipe is connected with the pan feeding mouth, and the clamp plate below fixed mounting of opposite side has last moulding-die mould.

Preferably, the sliding plate is slidably mounted on the upper surface of the bed body, and the projection at the bottom of the sliding plate is just clamped with the chute on the bed body.

Preferably, the inner part of the lower pressing die is of a hollow structure and is fixedly arranged above the sliding plate, the inner part of the lower pressing die can just be clamped with the upper pressing die, and the inner structure of the upper pressing die is of a solid structure.

Preferably, the inlet pipe fixed mounting is on the clamp plate, and the inlet pipe sees through the clamp plate, and the inside of inlet pipe is hollow structure, and its bottom has the pan feeding mouth through welded mode fixed mounting.

Compared with the prior art, the beneficial effects of the utility model are that: this novel herbal pieces-preforming device, degree of automation is higher, manufacturing cost is lower, can realize large-scale rapid production, also increase the economic benefits of enterprise when giving the less cost of enterprise, realize large-scale preforming with the extrusion of excessive pressure board and grinding apparatus, holistic work efficiency has been improved greatly, and feeding tube can feed in raw material to the mould of below on the clamp plate, the loaded down with trivial details of artifical reinforced having been reduced, and can remove whole mould through the gyro wheel after reinforced accomplishing, make the hydraulic press of top carry out the preforming to the material and handle.

Drawings

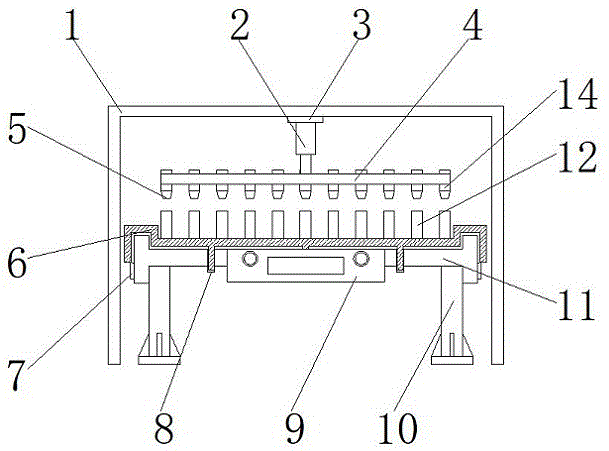

FIG. 1 is a front view of the structure of the tablet press for Chinese herbal pieces of the present invention;

FIG. 2 is a side view of the structure of the tablet press for herbal pieces of the present invention;

FIG. 3 is a top view of the tablet press device for herbal pieces of the present invention;

fig. 4 is a schematic view of the structure of the pressing plate of the tabletting device for herbal pieces of the present invention.

In the figure: 1. the device comprises a frame, 2, a hydraulic rod, 3, a base, 4, a pressing plate, 5, a feeding port, 6, a sliding plate, 7, rollers, 8, a sliding groove, 9, a controller, 10, supporting legs, 11, a bed body, 12, a lower die pressing mold, 13, an upper die pressing mold, 14 and a feeding pipe.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a tabletting device for traditional Chinese medicine decoction pieces comprises a bed body 11, wherein a frame 1 is arranged on the outer side of the bed body 11, the frame 1 is shaped like Jiong, a base 3 is fixedly arranged below the top of the frame 1, a hydraulic rod 2 is fixedly arranged below the base 3, one end of the hydraulic rod 2 is fixedly connected with a pressing plate 4, the pressing plate 4 can be extruded downwards under the action of the hydraulic rod 2, the number of the pressing plate 4 is two, a feeding pipe 14 is arranged on the pressing plate 4 on one side, materials to be tabletted can be placed into a mold through the feeding pipe 14, the feeding pipe 14 is fixedly arranged on the pressing plate 4, the feeding pipe 14 penetrates through the pressing plate 4, the interior of the feeding pipe 14 is of a hollow structure, a feeding port 5 is fixedly arranged at the bottom of the feeding pipe 14, a feeding port 5 is connected below the feeding pipe 14, an upper pressing mold 13 is fixedly arranged below the pressing plate 4 on the other side, a sliding plate 6 is arranged above the bed body 11, the slide plate 6 can slide on the bed body 11 to adjust the position of the whole slide plate 6 to facilitate the tabletting of the whole material, the slide plate 6 is slidably mounted on the upper surface of the bed body 11, the convex block at the bottom of the slide plate 6 is just clamped in the sliding groove 8 on the bed body 11, the slide plate 6 is attached to the upper surface of the bed body 11, the bottom of the slide plate 6 is provided with the convex block, the surface of the bed body 11 is provided with the sliding groove 8, the convex block at the bottom of the slide plate 6 is clamped in the sliding groove 8 on the surface of the bed body 11, the upper part of the slide plate 6 is fixedly provided with the lower pressing die 12, the lower pressing die 12 can be filled with materials to facilitate the tabletting treatment of the upper pressing die 13, the inner part of the lower pressing die 12 is of a hollow structure and is fixedly mounted above the slide plate 6, the inner part of the lower pressing die 12 can be just clamped with the upper pressing die 13, the inner structure of the upper pressing die 13 is of a solid structure, and the lower pressing die 12 is provided with a plurality of lower dies, and the both sides fixed mounting of the bed body 11 has gyro wheel 7, and gyro wheel 7 is equipped with a plurality ofly and gyro wheel 7 and slide 6's both sides are laminated mutually together, and the one end fixed mounting of the bed body 11 has controller 9, and the bottom of the bed body 11 has supporting leg 10 through welded mode fixed mounting, and supporting leg 10 is equipped with a plurality ofly, equal fixed mounting in the bottom of the bed body 11.

The working principle is as follows: when the novel tabletting device for the traditional Chinese medicine decoction pieces is used, the structure of the device is simply known firstly, materials needing tabletting are poured into the feeding pipe 14 firstly, then the whole pressing plate 4 is extruded downwards through the hydraulic rod 2, then the materials inside the feeding pipe 14 are placed into the die through the discharging port when entering the inside of the lower pressing die 12, then the lower pressing die 12 filled with one side of the materials is moved to the lower part of the upper pressing die 13 through the sliding plate 6, then the hydraulic rod 2 starts to be extruded downwards through the controller 9 at one end of the bed body 11, then the upper pressing die 13 below the pressing plate 4 starts to extrude the materials inside the lower pressing die 12, after the whole materials are tabletted, the whole sliding plate 6 can be taken down through the sliding groove 8 on the bed body 11, and then the materials with the inner tabletted parts can be taken out, the working principle of the novel tabletting device for the traditional Chinese medicine decoction pieces is shown.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a preforming device of herbal pieces-including bed body (11), its characterized in that: a sliding plate (6) is arranged above the bed body (11), the sliding plate (6) is attached to the upper surface of the bed body (11), the bottom of the sliding plate (6) is provided with a convex block, the surface of the bed body (11) is provided with a sliding chute (8), and the convex block at the bottom of the sliding plate (6) is clamped in the sliding groove (8) on the surface of the bed body (11), a plurality of lower pressing die molds (12) are fixedly arranged above the sliding plate (6), and the lower pressing die molds (12) are arranged, the two sides of the bed body (11) are fixedly provided with a plurality of rollers (7), the rollers (7) are attached to the two sides of the sliding plate (6), one end of the bed body (11) is fixedly provided with a controller (9), the bottom of the bed body (11) is fixedly provided with supporting legs (10) in a welding way, and a plurality of supporting legs (10) are arranged and are fixedly arranged at the bottom of the bed body (11).

2. The tabletting device for herbal pieces of chinese traditional medicine according to claim 1, wherein: the outside of the bed body (11) is equipped with frame (1), and frame (1) is "Jiong" font, and the top below fixed mounting of frame (1) has base (3), and the below fixed mounting of base (3) has hydraulic stem (2), the one end fixedly connected with clamp plate (4) of hydraulic stem (2), clamp plate (4) are equipped with two, and install inlet pipe (14) on clamp plate (4) of one side, the below of inlet pipe (14) is connected with pan feeding mouth (5), and clamp plate (4) below fixed mounting of opposite side has last compression mold (13).

3. The tabletting device for herbal pieces of chinese traditional medicine according to claim 1, wherein: the sliding plate (6) is slidably arranged on the upper surface of the bed body (11), and the convex block at the bottom of the sliding plate (6) is just clamped with the sliding groove (8) on the bed body (11).

4. The tabletting device for herbal pieces of chinese traditional medicine according to claim 1, wherein: the inside of lower moulding die (12) is hollow structure, and its fixed mounting is in the top of slide (6), and the inside of lower moulding die (12) just can block go up moulding die (13), and the inner structure of going up moulding die (13) is solid construction.

5. The tabletting device for herbal pieces of chinese traditional medicine according to claim 2, wherein: the feeding pipe (14) is fixedly installed on the pressing plate (4), the feeding pipe (14) penetrates through the pressing plate (4), the interior of the feeding pipe (14) is of a hollow structure, and a feeding port (5) is fixedly installed at the bottom of the feeding pipe.
