CN213795614U

CN213795614U - Bearing machining equipment

Info

Publication number: CN213795614U
Application number: CN202022304757.3U
Authority: CN
Inventors: 邱宪民
Original assignee: Shandong Wantong Ocean Engineering Co ltd
Current assignee: Shandong Wantong Ocean Engineering Co ltd
Priority date: 2020-10-16
Filing date: 2020-10-16
Publication date: 2021-07-27
Anticipated expiration: 2030-10-16

Abstract

The utility model discloses a bearing processing equipment, including processing platform and frame, the last fixed surface of processing platform is connected with the frame, one side that the upper surface of processing platform is located the frame is provided with piece recovery unit, the inside that the upper surface of processing platform is located the frame is provided with fixed establishment, the water transmission hole has been seted up to the upper surface of processing platform, the inside in water transmission hole is provided with the filter screen, the inside of processing platform is provided with the storage water tank. This bearing processing equipment, through piece recovery unit's setting, can collect the recovery with metal piece, through height adjusting mechanism's setting, can freely adjust burnishing and polishing's height, the stopper can avoid mill and processing platform contact simultaneously, through the shower nozzle, the water transmission hole, the setting of filter screen and storage water tank, can cool down bearing and mill, avoid burnishing and polishing high temperature to damage bearing and mill, the water transmission hole introduces the storage water tank after the filter screen filters with the water on processing platform surface.

Description

Bearing machining equipment

Technical Field

The utility model relates to a bearing processing technology field specifically is a bearing processing equipment.

Background

The bearing is an important part in modern mechanical equipment, and has the main functions of supporting a mechanical rotating body, reducing the friction coefficient in the movement process of the mechanical rotating body and ensuring the rotation precision of the mechanical rotating body.

Need carry out burnishing and polishing when bearing processing, can produce metal piece and high temperature when burnishing and polishing, metal piece can splash out and accidentally injure the staff, and the high temperature can damage the mill, influences the life of equipment.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a bearing processing equipment has solved the problem of proposing among the above-mentioned background art.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a bearing processing equipment, includes processing platform and frame, the last fixed surface of processing platform is connected with the frame, one side that the upper surface of processing platform is located the frame is provided with piece recovery unit, the inside that the upper surface of processing platform is located the frame is provided with fixed establishment, the water transmission hole has been seted up to the upper surface of processing platform, the inside in water transmission hole is provided with the filter screen, the inside of processing platform is provided with the storage water tank, the wash port has been seted up to one side of storage water tank, the inside of frame is provided with height adjusting mechanism, height adjusting mechanism's below is provided with the control box, the inside of control box is provided with the motor, the output fixedly connected with pivot of motor, the lower fixed surface of pivot is connected with the mill, one side of frame is provided with the shower nozzle, be provided with transparent protection window around the frame.

Optionally, a protective door is arranged on the front side of the frame, and a door handle is fixedly connected to the front side of the protective door.

Optionally, the debris recovery device includes a collection box, a suction pump, a dust collection hose and a heat dissipation cover, the suction pump is fixedly connected to one side of the collection box, the heat dissipation cover is arranged on the other side of the collection box, and the dust collection hose is fixedly connected to one side of the suction pump away from the collection box.

Optionally, the fixing mechanism comprises a fixing plate, a U-shaped fixing block, a threaded rod and a bearing, the upper surface of the fixing plate is fixedly connected with the U-shaped fixing block, one side of the U-shaped fixing block is in threaded connection with the threaded rod, and the bearing is arranged inside the U-shaped fixing block.

Optionally, the height adjusting mechanism comprises a guide rod, an electric telescopic rod, a movable plate and a limiting block, the inner top wall of the frame is fixedly connected with the guide rod and the electric telescopic rod, the lower surface of the electric telescopic rod is fixedly connected with the movable plate, the movable plate is connected with the guide rod in a sliding mode, and the lower surface of the guide rod is fixedly connected with the limiting block.

Optionally, the upper surface of the operation box is fixedly connected with a sliding block, the lower surface of the moving plate is provided with a sliding groove, and the operation box is connected with the moving plate in a sliding manner.

(III) advantageous effects

The utility model provides a bearing processing equipment possesses following beneficial effect:

1. this bearing processing equipment, through piece recovery unit's setting, can collect the metal piece that produces when polishing the bearing and retrieve, the cover that dispels the heat simultaneously can dispel the metal piece's waste heat, through fixed establishment's setting, can fix the bearing completely, avoid polishing in-process bearing to remove, cause the damage, through height adjustment mechanism's setting, can freely adjust polishing's height, the stopper can play limiting displacement simultaneously, avoid mill and processing platform contact.

2. This bearing processing equipment, through the setting of shower nozzle, water transmission hole, filter screen and storage water tank, can utilize the shower nozzle to cool down bearing and mill, avoid the burnishing and polishing high temperature to damage bearing and mill, the water transmission hole introduces the storage water tank with the water on processing platform surface, the filter screen can filter, avoids metal debris to get into the storage water tank, through the setting of transparent protection window, can ensure staff's safety, avoids the metal debris departure of high temperature to accidentally injure the staff.

Drawings

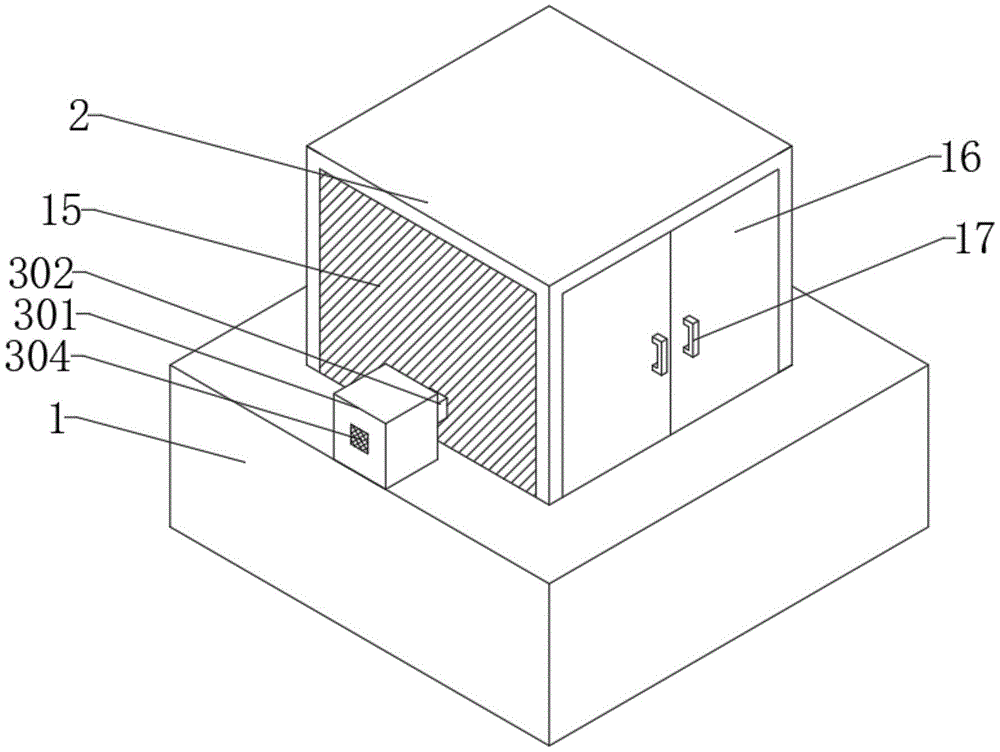

FIG. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic view of the cross-sectional structure of the present invention;

FIG. 3 is a schematic top view of the fixing mechanism of the present invention;

fig. 4 is an enlarged schematic view of a portion a in fig. 2 according to the present invention.

In the figure: 1. a processing table; 2. a frame; 3. a scrap recovery device; 301. a collection box; 302. a suction pump; 303. a dust collection hose; 304. a heat dissipation cover; 4. a fixing mechanism; 401. a fixing plate; 402. a U-shaped fixing block; 403. a threaded rod; 404. a bearing; 5. a water delivery hole; 6. filtering with a screen; 7. a water storage tank; 8. a drain hole; 9. a height adjustment mechanism; 901. a guide bar; 902. an electric telescopic rod; 903. moving the plate; 904. A limiting block; 10. an operation box; 11. a motor; 12. a rotating shaft; 13. a grinding disc; 14. a spray head; 15. a transparent protective window; 16. a protective door; 17. a door handle; 18. a slider; 19. a chute.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 4, the present invention provides a technical solution: a bearing processing device comprises a processing table 1 and a frame 2, wherein the upper surface of the processing table 1 is fixedly connected with the frame 2, the front surface of the frame 2 is provided with a protective door 16, the front surface of the protective door 16 is fixedly connected with a door handle 17, one side of the upper surface of the processing table 1, which is positioned on the frame 2, is provided with a debris recovery device 3, the debris recovery device 3 comprises a collection box 301, a suction pump 302, a dust suction hose 303 and a heat dissipation cover 304, one side of the collection box 301 is fixedly connected with the suction pump 302, the other side of the collection box 301 is provided with the heat dissipation cover 304, one side of the suction pump 302, which is far away from the collection box 301, is fixedly connected with the dust suction hose 303, through the arrangement of the debris recovery device 3, metal debris generated during grinding and polishing of a bearing 404 can be collected and recovered, meanwhile, the heat dissipation cover 304 can dissipate the residual heat of the metal debris, a fixing mechanism 4 is arranged on the upper surface of the processing table 1, which is positioned inside the frame 2, the fixing mechanism 4 comprises a fixing plate 401, a U-shaped fixing block 402, a threaded rod 403 and a bearing 404, the upper surface of the fixing plate 401 is fixedly connected with the U-shaped fixing block 402, one side of the U-shaped fixing block 402 is in threaded connection with the threaded rod 403, the bearing 404 is arranged inside the U-shaped fixing block 402, the bearing 404 can be completely fixed through the arrangement of the fixing mechanism 4, the damage caused by the movement of the bearing 404 in the polishing process is avoided, the upper surface of the processing table 1 is provided with a water conveying hole 5, a filter screen 6 is arranged inside the water conveying hole 5, a water storage tank 7 is arranged inside the processing table 1, one side of the water storage tank 7 is provided with a water drainage hole 8, the inside of the frame 2 is provided with a height adjusting mechanism 9, the height adjusting mechanism 9 comprises a guide rod 901, an electric telescopic rod 902, a movable plate 903 and a limiting block 904, the inner top wall of the frame 2 is fixedly connected with the guide rod 901 and the electric telescopic rod 904, the lower surface of the electric telescopic rod 902 is fixedly connected with a movable plate 903, the movable plate 903 is connected with a guide rod 901 in a sliding manner, the lower surface of the guide rod 901 is fixedly connected with a limiting block 904, the height of grinding and polishing can be freely adjusted through the arrangement of a height adjusting mechanism 9, meanwhile, the limiting block 904 can play a limiting role to prevent a grinding disc 13 from contacting with a processing table 1, an operation box 10 is arranged below the height adjusting mechanism 9, a slider 18 is fixedly connected with the upper surface of the operation box 10, a sliding groove 19 is arranged on the lower surface of the movable plate 903, the operation box 10 is connected with the movable plate 903 in a sliding manner, a motor 11 is arranged inside the operation box 10, an output end of the motor 11 is fixedly connected with a rotating shaft 12, the lower surface of the rotating shaft 12 is fixedly connected with the grinding disc 13, a spray head 14 is arranged on one side of the frame 2, and the bearing 404 and the grinding disc 13 can be cooled by the spray head 14 through the arrangement of the spray head 14, a water delivery hole 5, a filter screen 6 and a water storage tank 7, avoid the burnishing and polishing high temperature to damage bearing 404 and mill 13, water storage tank 7 is introduced with the water on processing platform 1 surface to water delivery hole 5, and filter screen 6 can filter, avoids the metal piece to get into storage tank 7, and frame 2 is provided with transparent protection window 15 all around, through the setting of transparent protection window 15, can ensure staff's safety, avoids the metal piece departure of high temperature to accidentally injure the staff.

In conclusion, when the bearing processing equipment is used, the metal scraps generated during grinding and polishing of the bearing 404 can be collected and recovered through the arrangement of the scrap recovery device 3, meanwhile, the heat dissipation cover 304 can dissipate the residual heat of the metal scraps, the bearing 404 can be completely fixed through the arrangement of the fixing mechanism 4, the bearing 404 is prevented from moving and being damaged during grinding and polishing, the grinding and polishing height can be freely adjusted through the arrangement of the height adjusting mechanism 9, meanwhile, the limiting block 904 can play a limiting role, the grinding disc 13 is prevented from being in contact with the processing table 1, the bearing 404 and the grinding disc 13 can be cooled through the spray head 14 through the arrangement of the spray head 14, the water conveying hole 5, the filter screen 6 and the water storage tank 7, the bearing 404 and the grinding disc 13 are prevented from being damaged due to overhigh grinding and polishing temperature, the water on the surface of the processing table 1 is prevented from being introduced into the water storage tank 7 through the water conveying hole 5, and the filter screen 6 can be filtered, avoid the metal debris to get into storage water tank 7, through the setting of transparent protection window 15, can ensure staff's safety, avoid the metal debris departure of high temperature to accidentally injure the staff.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. A bearing machining apparatus includes a machining table (1) and a frame (2), characterized in that: the upper surface of the processing table (1) is fixedly connected with a frame (2), one side of the upper surface of the processing table (1), which is positioned on the frame (2), is provided with a scrap recovery device (3), the inside of the upper surface of the processing table (1), which is positioned on the frame (2), is provided with a fixing mechanism (4), the upper surface of the processing table (1) is provided with a water conveying hole (5), the inside of the water conveying hole (5) is provided with a filter screen (6), the inside of the processing table (1) is provided with a water storage tank (7), one side of the water storage tank (7) is provided with a water drainage hole (8), the inside of the frame (2) is provided with a height adjusting mechanism (9), an operation box (10) is arranged below the height adjusting mechanism (9), the inside of the operation box (10) is provided with a motor (11), and the output end of the motor (11) is fixedly connected with a rotating shaft (12), the lower surface of the rotating shaft (12) is fixedly connected with a grinding disc (13), one side of the frame (2) is provided with a spray head (14), and transparent protective windows (15) are arranged around the frame (2).

2. The bearing processing apparatus according to claim 1, wherein: the front surface of the frame (2) is provided with a protective door (16), and the front surface of the protective door (16) is fixedly connected with a door handle (17).

3. The bearing processing apparatus according to claim 1, wherein: the debris recovery device (3) comprises a collection box (301), a suction pump (302), a dust collection hose (303) and a heat dissipation cover (304), wherein the suction pump (302) is fixedly connected to one side of the collection box (301), the heat dissipation cover (304) is arranged on the other side of the collection box (301), and the dust collection hose (303) is fixedly connected to one side, far away from the collection box (301), of the suction pump (302).

4. The bearing processing apparatus according to claim 1, wherein: the fixing mechanism (4) comprises a fixing plate (401), a U-shaped fixing block (402), a threaded rod (403) and a bearing (404), the upper surface of the fixing plate (401) is fixedly connected with the U-shaped fixing block (402), one side of the U-shaped fixing block (402) is in threaded connection with the threaded rod (403), and the bearing (404) is arranged inside the U-shaped fixing block (402).

5. The bearing processing apparatus according to claim 1, wherein: the height adjusting mechanism (9) comprises a guide rod (901), an electric telescopic rod (902), a movable plate (903) and a limiting block (904), the inner top wall of the frame (2) is fixedly connected with the guide rod (901) and the electric telescopic rod (902), the lower surface of the electric telescopic rod (902) is fixedly connected with the movable plate (903), the movable plate (903) is slidably connected with the guide rod (901), and the lower surface of the guide rod (901) is fixedly connected with the limiting block (904).

6. The bearing processing apparatus according to claim 5, wherein: the upper surface of the operation box (10) is fixedly connected with a sliding block (18), the lower surface of the moving plate (903) is provided with a sliding groove (19), and the operation box (10) is in sliding connection with the moving plate (903).
