CN213782592U - High-safety electric power high-voltage cabinet - Google Patents
High-safety electric power high-voltage cabinet Download PDFInfo
- Publication number
- CN213782592U CN213782592U CN202022875673.5U CN202022875673U CN213782592U CN 213782592 U CN213782592 U CN 213782592U CN 202022875673 U CN202022875673 U CN 202022875673U CN 213782592 U CN213782592 U CN 213782592U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- voltage
- sides
- voltage board
- cabinet body
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model relates to an electric power high-voltage board technical field just discloses a high electric power high-voltage board of security, the on-line screen storage device comprises a base, the top fixedly connected with high-voltage board body of base, the louvre has all been seted up to the both sides at high-voltage board body top, the top of high-voltage board body is located the fixed frame of top fixedly connected with of louvre. This high electric power high-voltage board of security, improve the inside radiating effect of high-voltage board body through louvre and heat dissipation fan, avoid its inside overheated components and parts damage that causes, replace the inside air of high-voltage board body through the pore of taking a breath simultaneously, avoid its inside pressure too big, produce great potential safety hazard, then through the blotter, guard plate and cushion ball protect the side of high-voltage board body, cushion when its side receives the impact, avoid the side of high-voltage board body to take place great deformation, cause its damage, thereby better purpose of radiating effect has been reached.
Description
Technical Field
The utility model relates to an electric power high-voltage board technical field specifically is a high electric power high-voltage board of security.
Background
The high-voltage power distribution cabinet is an electrical product which is used for power generation, power transmission, power distribution, electric energy conversion and consumption of a power system and plays roles of on-off, control or protection and the like, the voltage level is 3.6kV-550kV, the high-voltage power distribution cabinet mainly comprises a high-voltage circuit breaker, a high-voltage isolating switch, a grounding switch, a high-voltage load switch, a high-voltage automatic reclosing and sectionalizing device, a high-voltage operating mechanism, a high-voltage explosion-proof power distribution device, a high-voltage switch cabinet and the like, and the high-voltage switch manufacturing industry is an important component of the power transmission and transformation equipment manufacturing industry and plays.
Electric power high-voltage board among the prior art security performance is relatively poor when using, and its lateral wall is thinner, and this just leads to its side to take place great deformation easily when receiving the striking, causes great economic loss, and its installation is firm inadequately simultaneously, easily receives external force to lead to it to rock when using, influences the result of use, and its radiating effect is not enough, and its inside is overheated easily and leads to components and parts to damage, so the electric power high-voltage board who proposes a security height now solves above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a high electric power high-voltage board of security possesses that the radiating effect is better, installs more firm and higher advantage of security performance, has solved the problem of proposing among the above-mentioned background art.
(II) technical scheme
For realizing that above-mentioned radiating effect is better, install more firm and the higher purpose of security performance, the utility model provides a following technical scheme: a high-safety electric power high-voltage cabinet comprises a base, wherein a high-voltage cabinet body is fixedly connected to the top of the base, heat dissipation holes are formed in two sides of the top of the high-voltage cabinet body, a fixed frame is fixedly connected to the top of the high-voltage cabinet body and positioned above the heat dissipation holes, a heat dissipation fan is fixedly connected to the inside of the fixed frame, a main baffle is fixedly connected to the top of the high-voltage cabinet body and positioned above the fixed frame, side baffles are fixedly connected to two sides of the bottom of the main baffle, protection plates are movably connected to two sides of the high-voltage cabinet body, limit grooves which are uniformly distributed are formed in the inner sides of the protection plates, limit blocks are slidably connected to the inside of the limit grooves, fixed rods are fixedly connected to the inner sides of the limit blocks, one ends of the fixed rods are fixedly connected to the outer sides of the high-voltage cabinet body, and uniformly distributed buffer balls are placed in the limit grooves and positioned on the outer sides of the limit blocks, the outer side fixedly connected with blotter of guard plate, evenly distributed's draught hole has been seted up to the both sides of high-voltage board body and the inboard that is located the dead lever, the equal fixedly connected with mounting panel in bottom of base both sides, the top threaded connection of mounting panel has second fixing bolt, the equal fixedly connected with installation piece in bottom of high-voltage board body both sides, the top threaded connection of installation piece has first fixing bolt, through first fixing bolt fixed connection between high-voltage board body and the base, the bottom fixedly connected with evenly distributed's of base fixed cone.
Preferably, the both sides of high-voltage board body bottom all fixedly connected with locating piece, the constant head tank that corresponds with the locating piece is seted up at the top of base, the locating piece is pegged graft in the inside of constant head tank.
Preferably, the two sides of the high-voltage cabinet body are fixedly connected with air springs which are uniformly distributed, and one ends of the air springs are fixedly connected with the protection plate.
Preferably, the inside fixedly connected with first filter screen of louvre, the inside fixedly connected with second filter screen of draught hole.
Preferably, the two sides of the bottom of the main baffle plate are positioned on the inner sides of the side baffle plates and are fixedly connected with connecting rods, and the bottom ends of the connecting rods are fixedly connected with the top of the high-voltage cabinet body.
Preferably, the two sides of the bottom of the fixed frame are fixedly connected with connecting blocks, and the bottom of each connecting block is fixedly connected with the top of the high-voltage cabinet body.
(III) advantageous effects
Compared with the prior art, the utility model provides a high electric power high-voltage board of security possesses following beneficial effect:
1. this high electric power high-voltage board of security, improve the inside radiating effect of high-voltage board body through louvre and heat dissipation fan, avoid its inside overheated components and parts damage that causes, replace the inside air of high-voltage board body through the pore of taking a breath simultaneously, avoid its inside pressure too big, produce great potential safety hazard, then through the blotter, guard plate and cushion ball protect the side of high-voltage board body, cushion when its side receives the impact, avoid the side of high-voltage board body to take place great deformation, cause its damage, first fixing bolt of rethread, second fixing bolt and fixed cone make the installation of high-voltage board body more firm, avoid it to take place great rocking when receiving the impact, influence its use, thereby it is better to have reached the radiating effect, the installation is more firm and the higher purpose of security performance.
2. This high electric power high-voltage board of security, fix a position the high-voltage board body through locating piece and constant head tank, it is more convenient and firm to make its installation, further improve the safeguard effect of guard plate through air spring, improve its security, filter the air through first filter screen and second filter screen, avoid impurity such as too much dust to get into the inside of high-voltage board body, then fix main baffle through the connecting rod, make its installation more firm, fix fixed frame through the connecting block, make its installation more firm.
Drawings

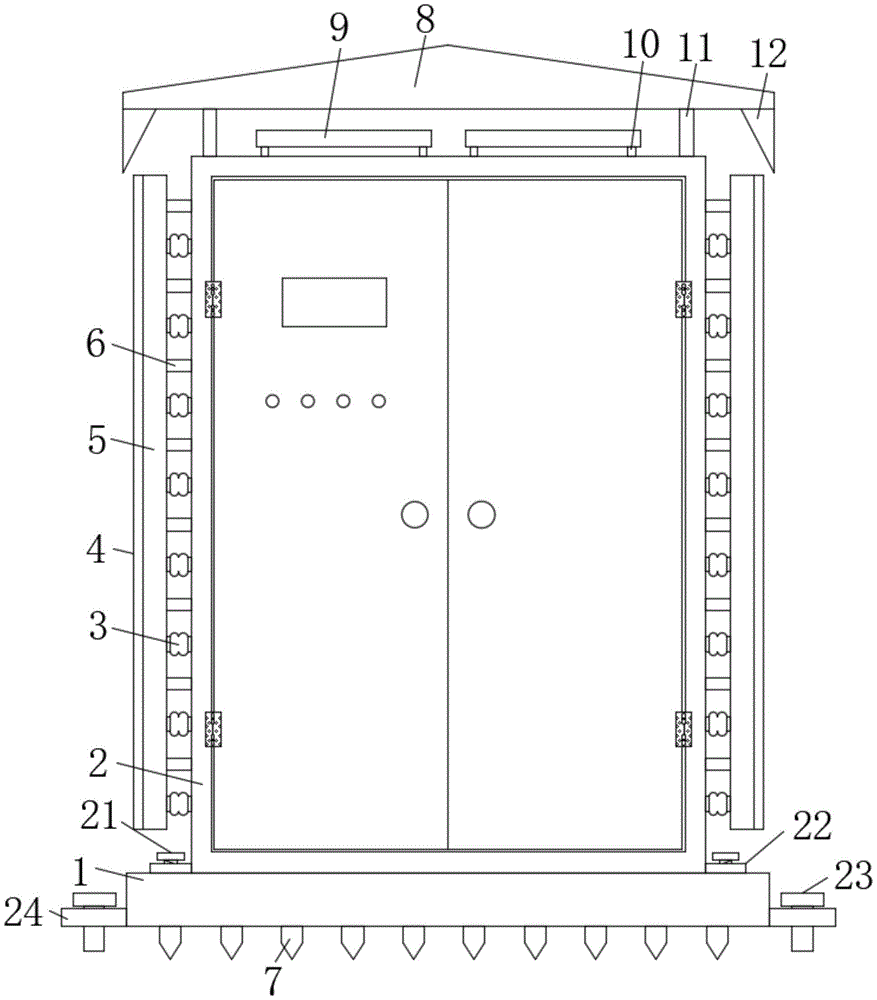

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a front sectional view of the overall structure of the present invention;
FIG. 3 is a perspective view of the main baffle of the present invention;
FIG. 4 is an enlarged view of the portion A of FIG. 2 according to the present invention;
fig. 5 is the utility model discloses the front cut-away view is connected with fixed frame to the high-voltage board body.
In the figure: 1. a base; 2. a high-voltage cabinet body; 3. an air spring; 4. a cushion pad; 5. a protection plate; 6. fixing the rod; 7. a fixed cone; 8. a main baffle; 9. a fixing frame; 10. connecting blocks; 11. a connecting rod; 12. a side dam; 13. a heat dissipation fan; 14. a first filter screen; 15. heat dissipation holes; 16. a limiting groove; 17. a limiting block; 18. a buffer ball; 19. a second filter screen; 20. a ventilation hole; 21. a first fixing bolt; 22. mounting blocks; 23. mounting a plate; 24. a second fixing bolt; 25. positioning blocks; 26. and (6) positioning a groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, an electric high-voltage cabinet with high safety comprises a base 1, a high-voltage cabinet body 2 is fixedly connected to the top of the base 1, heat dissipation holes 15 are formed in both sides of the top of the high-voltage cabinet body 2, a fixed frame 9 is fixedly connected to the top of the high-voltage cabinet body 2 and above the heat dissipation holes 15, a heat dissipation fan 13 is fixedly connected to the inside of the fixed frame 9, a main baffle 8 is fixedly connected to the top of the high-voltage cabinet body 2 and above the fixed frame 9, side baffles 12 are fixedly connected to both sides of the bottom of the main baffle 8, protection plates 5 are movably connected to both sides of the high-voltage cabinet body 2, evenly distributed limiting grooves 16 are formed in the inner sides of the protection plates 5, limiting blocks 17 are slidably connected to the inner parts of the limiting grooves 16, fixing rods 6 are fixedly connected to the inner sides of the limiting blocks 17, and one ends of the fixing rods 6 are fixedly connected to the outer sides of the high-voltage cabinet body 2, the inside of the limiting groove 16 and the outside of the limiting block 17 are placed with evenly distributed buffering balls 18, the outside of the protection plate 5 is fixedly connected with a buffering pad 4, the two sides of the high-voltage cabinet body 2 and the inside of the fixing rod 6 are provided with evenly distributed ventilation holes 20, the bottoms of the two sides of the base 1 are fixedly connected with mounting plates 23, the top of the mounting plates 23 are in threaded connection with second fixing bolts 24, the bottoms of the two sides of the high-voltage cabinet body 2 are fixedly connected with mounting blocks 22, the top of the mounting blocks 22 are in threaded connection with first fixing bolts 21, the high-voltage cabinet body 2 is fixedly connected with the base 1 through the first fixing bolts 21, the bottom of the base 1 is fixedly connected with evenly distributed fixing cones 7, when in use, the heat dissipation effect inside the high-voltage cabinet body 2 is improved through the heat dissipation holes 15 and the heat dissipation fan 13, the damage of internal overheating components is avoided, meanwhile, the air inside the high-voltage cabinet body 2 is replaced through the ventilation holes 20, avoid its inside pressure too big, produce great potential safety hazard, then through blotter 4, guard plate 5 and buffering ball 18 protect the side of high-voltage board body 2, cushion when its side receives the impact, avoid the side of high-voltage board body 2 to take place great deformation, cause its damage, rethread first fixing bolt 21, second fixing bolt 24 and fixed awl 7 make the installation of high-voltage board body 2 more firm, avoid it to take place great rocking when receiving the impact, influence its use, thereby it is better to have reached the radiating effect, the installation is more firm and the higher purpose of security performance.
Specifically, the equal fixedly connected with locating piece 25 in both sides of 2 bottoms of high-voltage board body, the constant head tank 26 that corresponds with locating piece 25 is seted up at base 1's top, and locating piece 25 pegs graft in the inside of constant head tank 26, fixes a position high-voltage board body 2 through locating piece 25 and constant head tank 26, makes its installation more convenient and firm.
Specifically, the air springs 3 which are uniformly distributed are fixedly connected to the two sides of the high-voltage cabinet body 2, one ends of the air springs 3 are fixedly connected with the protection plate 5, the protection effect of the protection plate 5 is further improved through the air springs 3, and the safety of the protection plate is improved.
Specifically, the inside fixedly connected with first filter screen 14 of louvre 15, the inside fixedly connected with second filter screen 19 of scavenge hole 20 filters the air through first filter screen 14 and second filter screen 19, avoids impurity such as too much dust to get into the inside of high-voltage board body 2.
Specifically, the both sides of main baffle 8 bottom are located the equal fixedly connected with connecting rod 11 in inboard of side shield 12, and the bottom of connecting rod 11 and the top fixed connection of high-voltage board body 2 fix main baffle 8 through connecting rod 11, make its installation more firm.
Specifically, the equal fixedly connected with connecting block 10 in both sides of fixed frame 9 bottom, the bottom of connecting block 10 and the top fixed connection of high-voltage board body 2 fix fixed frame 9 through connecting block 10, make its installation more firm.
The working principle is as follows: when in use, the heat dissipation effect inside the high-voltage cabinet body 2 is improved through the heat dissipation holes 15 and the heat dissipation fan 13, the damage of components caused by internal overheating is avoided, meanwhile, the air in the high-voltage cabinet body 2 is replaced through the ventilating holes 20, so that the phenomenon that the internal pressure intensity is too high to generate larger potential safety hazard is avoided, then the side surface of the high-voltage cabinet body 2 is protected by the buffer cushion 4, the protection plate 5 and the buffer ball 18, the side surface of the high-voltage cabinet is buffered when being impacted, so that the side surface of the high-voltage cabinet body 2 is prevented from being greatly deformed to damage the side surface, the high-voltage cabinet body 2 is more stably installed through the first fixing bolt 21, the second fixing bolt 24 and the fixing cone 7, the phenomenon that the side surface of the high-voltage cabinet body greatly shakes to influence the use of the high-voltage cabinet body when being impacted is avoided, thereby reached the radiating effect better, installed more firm and the higher purpose of security performance.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a high electric power high-voltage board of security, includes base (1), its characterized in that: the top of the base (1) is fixedly connected with a high-voltage cabinet body (2), heat dissipation holes (15) are formed in two sides of the top of the high-voltage cabinet body (2), a fixed frame (9) is fixedly connected to the top of the high-voltage cabinet body (2) and is positioned above the heat dissipation holes (15), a heat dissipation fan (13) is fixedly connected to the inside of the fixed frame (9), a main baffle (8) is fixedly connected to the top of the high-voltage cabinet body (2) and is positioned above the fixed frame (9), side baffles (12) are fixedly connected to two sides of the bottom of the main baffle (8), protection plates (5) are movably connected to two sides of the high-voltage cabinet body (2), limit grooves (16) which are uniformly distributed are formed in the inner sides of the protection plates (5), limit blocks (17) are slidably connected to the inside of the limit grooves (16), and fixing rods (6) are fixedly connected to the inner sides of the limit blocks (17), one end of the fixed rod (6) is fixedly connected with the outer side of the high-voltage cabinet body (2), evenly distributed buffer balls (18) are placed inside the limit groove (16) and positioned on the outer side of the limit block (17), the outer side of the protection plate (5) is fixedly connected with the buffer pad (4), evenly distributed ventilation holes (20) are formed in the two sides of the high-voltage cabinet body (2) and positioned on the inner side of the fixed rod (6), the bottoms of the two sides of the base (1) are fixedly connected with the mounting plate (23), the top of the mounting plate (23) is in threaded connection with the second fixing bolt (24), the bottoms of the two sides of the high-voltage cabinet body (2) are fixedly connected with the mounting block (22), the top of the mounting block (22) is in threaded connection with the first fixing bolt (21), and the high-voltage cabinet body (2) is fixedly connected with the base (1) through the first fixing bolt (21), the bottom of the base (1) is fixedly connected with fixing cones (7) which are uniformly distributed.
2. The high-voltage electric cabinet with high safety as claimed in claim 1, characterized in that: the high-voltage board is characterized in that positioning blocks (25) are fixedly connected to two sides of the bottom of the high-voltage board body (2), positioning grooves (26) corresponding to the positioning blocks (25) are formed in the top of the base (1), and the positioning blocks (25) are inserted into the positioning grooves (26).
3. The high-voltage electric cabinet with high safety as claimed in claim 1, characterized in that: the high-voltage board is characterized in that air springs (3) are uniformly distributed and fixedly connected to two sides of the high-voltage board body (2), and one ends of the air springs (3) are fixedly connected with the protection plate (5).
4. The high-voltage electric cabinet with high safety as claimed in claim 1, characterized in that: the inside fixedly connected with first filter screen (14) of louvre (15), the inside fixedly connected with second filter screen (19) of breather hole (20).
5. The high-voltage electric cabinet with high safety as claimed in claim 1, characterized in that: the double-layer high-voltage cabinet is characterized in that connecting rods (11) are fixedly connected to the two sides of the bottom of the main baffle plate (8) and located on the inner sides of the side baffle plates (12), and the bottom ends of the connecting rods (11) are fixedly connected with the top of the high-voltage cabinet body (2).
6. The high-voltage electric cabinet with high safety as claimed in claim 1, characterized in that: the two sides of the bottom of the fixing frame (9) are fixedly connected with connecting blocks (10), and the bottom of each connecting block (10) is fixedly connected with the top of the high-voltage cabinet body (2).
