Abstract
The utility model discloses a high accuracy four-axis burnishing machine, including bottom plate and support frame, the support frame is fixed in the top of bottom plate, the bottom plate top be provided with fixed platform, the equal fixedly connected with electric telescopic handle in both sides at support frame inner wall top to electric telescopic handle's bottom fixedly connected with lifter plate, the bottom of lifter plate is provided with plane moving mechanism to plane moving mechanism's bottom fixedly connected with mounting panel, the bottom fixedly connected with polishing motor of mounting panel to polishing motor's output shaft fixedly connected with bull stick, the bottom fixedly connected with polishing tool of bull stick, the utility model relates to a polishing equipment technical field. This high accuracy four-axis burnishing machine has solved that current equipment is difficult to the continuation carries out the curved surface processing to the work piece, needs a lot of to carry out clamping and procedure setting to the work piece, influences work efficiency's problem.
Description
Technical Field
The utility model relates to a polishing equipment technical field specifically is a high accuracy four-axis burnishing machine.
Background
Polishing refers to a process of reducing the roughness of a workpiece surface by mechanical, chemical, or electrochemical actions to obtain a bright, flat surface. During polishing, the polishing wheel rotating at high speed presses the workpiece to roll and cut the workpiece surface in a trace manner by the abrasive, so that a bright processed surface is obtained.
Traditional burnishing machine can not polish the different surfaces of part simultaneously because traditional burnishing machine adopts the unable continuous curved surface processing to the work piece of three axis of motion, needs a lot of to carry out clamping and procedure setting to the work piece, and is unsatisfactory in the aspect of processing, has wasted a large amount of man-hours, has influenced work efficiency.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a high accuracy four-axis burnishing machine has solved that current equipment is difficult to carrying out the curved surface processing to the work piece that lasts, needs a lot of to carry out clamping and procedure setting to the work piece, influences work efficiency's problem.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a high accuracy four-axis burnishing machine, includes bottom plate and support frame, the support frame is fixed in the top of bottom plate, the bottom plate top be provided with fixed platform, the equal fixedly connected with electric telescopic handle in both sides at support frame inner wall top to electric telescopic handle's bottom fixedly connected with lifter plate, the bottom of lifter plate is provided with plane moving mechanism to plane moving mechanism's bottom fixedly connected with mounting panel, the bottom fixedly connected with polishing motor of mounting panel to polishing motor's output shaft fixedly connected with bull stick, the bottom fixedly connected with burnishing tool of bull stick.
Preferably: the plane moving mechanism comprises a mounting groove, the mounting groove is formed in the bottom of the lifting plate, a first motor is fixedly connected to one side of the inner wall of the mounting groove, and a first lead screw is fixedly connected to an output shaft of the first motor.
Preferably: the surface cover of first lead screw is equipped with first slider to the top of first slider and the top fixed connection of mounting groove inner wall, the bottom of first slider is through connecting plate fixedly connected with slide rail, the right side of slide rail bottom is through installation piece fixedly connected with second motor.
Preferably: the output shaft of the second motor is fixedly connected with a second lead screw, the left end of the second lead screw is rotatably connected with the left side of the bottom of the sliding rail through a connecting piece, a second sliding block is sleeved on the surface of the second lead screw, the top of the second sliding block is slidably connected with the sliding rail, and a mounting plate is fixedly connected with the bottom of the second sliding block.
Preferably: the both sides of lifter plate all are through the inner wall sliding connection of slider with the support frame to the perpendicular spout with slider looks adaptation is all seted up to the both sides of support frame inner wall.
Preferably: the surface of the polishing motor is provided with a hood, and the hood is fixedly connected with the bottom of the mounting plate.
Advantageous effects
The utility model provides a high accuracy four-axis burnishing machine. The method has the following beneficial effects:
(1) this high accuracy four-axis burnishing machine, in the working process can be through controlling first motor, second motor and electric telescopic handle, the position of adjustment mounting panel and polishing tool ensures to accomplish the meticulous polishing on the irregular surface of work piece, and current equipment is difficult to carry out the curved surface processing to the work piece continuously, needs a lot of to carry out clamping and procedure setting to the work piece, influences work efficiency's problem.
(2) This high accuracy four-axis burnishing machine, simple structure, convenient to use, when polishing the curved surface, need not carry out a lot of centre gripping, avoids causing the damage to the work piece.
Drawings

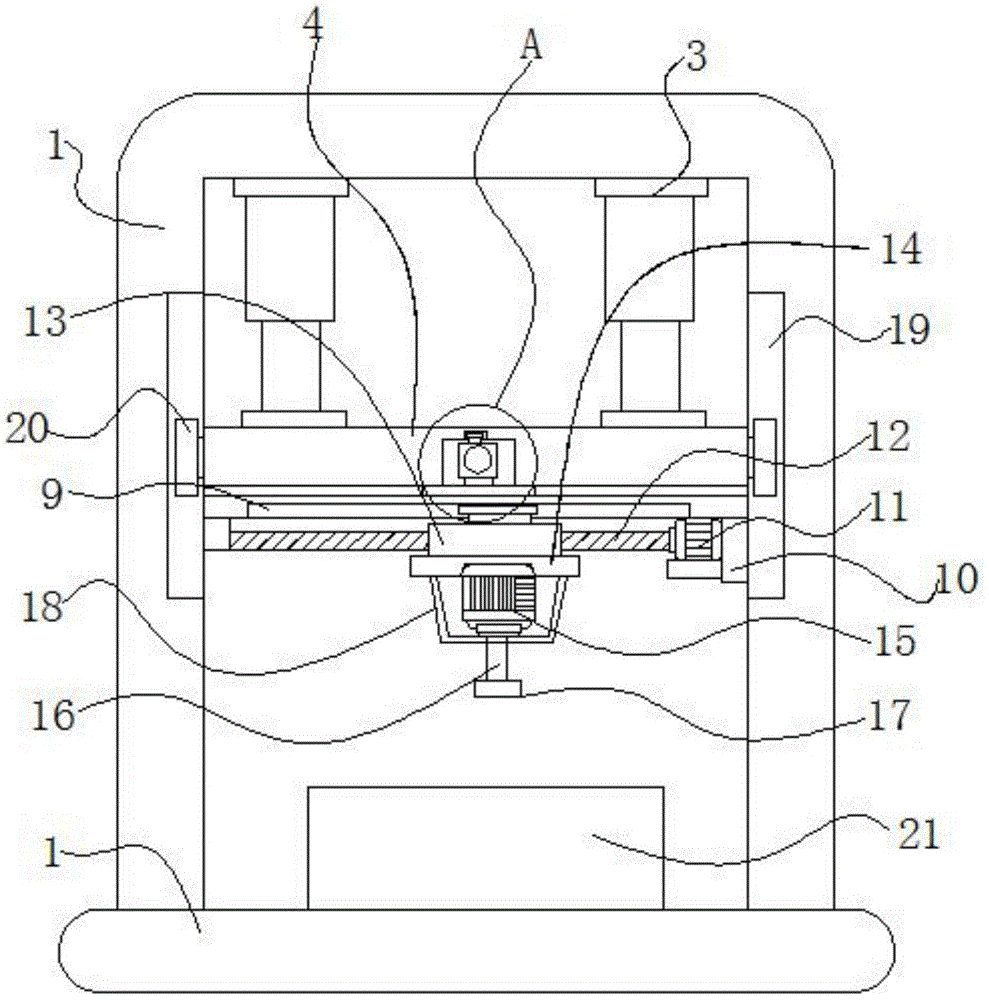

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged view of a portion A of FIG. 1;
fig. 3 is a schematic structural view of the lifting plate and the mounting groove of the present invention.
In the figure: the polishing machine comprises a base plate 1, a supporting frame 2, an electric telescopic rod 3, a lifting plate 4, a mounting groove 5, a first motor 6, a first screw rod 7, a first sliding block 8, a sliding rail 9, a mounting block 10, a second motor 11, a second screw rod 12, a second sliding block 13, a mounting plate 14, a polishing motor 15, a rotating rod 16, a polishing tool 17, a machine cover 18, a vertical sliding groove 19, a sliding part 20 and a fixed platform 21.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: the utility model provides a high accuracy four-axis burnishing machine, including bottom plate 1 and support frame 2, support frame 2 is fixed in bottom plate 1's top, the fixed platform 21 that is provided with at 1 top of bottom plate, the equal fixedly connected with electric telescopic handle 3 in both sides at 2 inner wall tops of support frame, and the bottom fixedly connected with lifter plate 4 of electric telescopic handle 3, the bottom of lifter plate 4 is provided with plane moving mechanism, and plane moving mechanism's bottom fixedly connected with mounting panel 14, the bottom fixedly connected with polishing motor 15 of mounting panel 14, and the output shaft fixedly connected with bull stick 16 of polishing motor 15, the bottom fixedly connected with burnishing tool 17 of bull stick 16.
Further: the plane moving mechanism comprises a mounting groove 5, the mounting groove 5 is arranged at the bottom of the lifting plate 4, a first motor 6 is fixedly connected to one side of the inner wall of the mounting groove 5, and a first lead screw 7 is fixedly connected to an output shaft of the first motor 6.
Further: the surface cover of first lead screw 7 is equipped with first slider 8 to the top of first slider 8 and the top fixed connection of the 5 inner walls of mounting groove, connecting plate fixedly connected with slide rail 9 is passed through to the bottom of first slider 8, and the right side of slide rail 9 bottom is passed through installation piece 10 fixedly connected with second motor 11.
Further: the output shaft of the second motor 11 is fixedly connected with a second screw rod 12, the left end of the second screw rod 12 is rotatably connected with the left side of the bottom of the slide rail 9 through a connecting piece, a second sliding block 13 is sleeved on the surface of the second screw rod 12, the top of the second sliding block 13 is slidably connected with the slide rail 9, and a mounting plate 14 is fixedly connected with the bottom of the second sliding block 13.
Further: both sides of the lifting plate 4 are connected with the inner wall of the support frame 2 through the sliding piece 20 in a sliding manner, and the vertical sliding grooves 19 matched with the sliding piece 20 are formed in both sides of the inner wall of the support frame 2.
Further: the surface of the polishing motor 15 is provided with a hood 18, and the hood 18 is fixedly connected to the bottom of the mounting plate 14.
During the use, at first will treat that the work piece of processing is fixed in the top of fixed platform 21, then start polishing motor 15 and begin to polish the work piece, can adjust the position of mounting panel 14 and polishing tool 17 through controlling first motor 6, second motor 11 and electric telescopic handle 3 in the course of the work, ensure to accomplish the meticulous polishing of work piece irregular surface.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a high accuracy four-axis burnishing machine, includes bottom plate (1) and support frame (2), its characterized in that: the utility model discloses a polishing machine, including support frame (2), bottom plate (1), the equal fixedly connected with electric telescopic handle in both sides at support frame (2) inner wall top (3), and the bottom fixedly connected with lifter plate (4) of electric telescopic handle (3), the bottom of lifter plate (4) is provided with plane moving mechanism to plane moving mechanism's bottom fixedly connected with mounting panel (14), the bottom fixedly connected with polishing motor (15) of mounting panel (14) to the output shaft fixedly connected with bull stick (16) of polishing motor (15), the bottom fixedly connected with polishing tool (17) of bull stick (16).
2. The high-precision four-axis polishing machine according to claim 1, characterized in that: the plane moving mechanism comprises a mounting groove (5), the mounting groove (5) is arranged at the bottom of the lifting plate (4), a first motor (6) is fixedly connected to one side of the inner wall of the mounting groove (5), and a first lead screw (7) is fixedly connected to an output shaft of the first motor (6).
3. The high-precision four-axis polishing machine according to claim 2, characterized in that: the surface cover of first lead screw (7) is equipped with first slider (8) to the top of first slider (8) and the top fixed connection of mounting groove (5) inner wall, connecting plate fixedly connected with slide rail (9) are passed through to the bottom of first slider (8), the right side of slide rail (9) bottom is through installation piece (10) fixedly connected with second motor (11).
4. A high accuracy four-axis polisher in accordance with claim 3 with the following features: the output shaft of the second motor (11) is fixedly connected with a second screw rod (12), the left end of the second screw rod (12) is rotatably connected with the left side of the bottom of the sliding rail (9) through a connecting piece, a second sliding block (13) is sleeved on the surface of the second screw rod (12), the top of the second sliding block (13) is slidably connected with the sliding rail (9), and the bottom of the second sliding block (13) is fixedly connected with a mounting plate (14).
5. The high-precision four-axis polishing machine according to claim 1, characterized in that: the both sides of lifter plate (4) all are through slider (20) and the inner wall sliding connection of support frame (2) to perpendicular spout (19) with slider (20) looks adaptation are all seted up to the both sides of support frame (2) inner wall.
6. The high-precision four-axis polishing machine according to claim 1, characterized in that: the surface of the polishing motor (15) is provided with a hood (18), and the hood (18) is fixedly connected with the bottom of the mounting plate (14).
