Abstract
本实用新型公开了一种LED吊顶灯的连接结构，包括主体和连接板，所述主体的两侧均固定连接有固定片，所述固定片的顶部均开设有螺纹孔，所述固定片在螺纹孔内螺纹连接有固定钉，所述主体的底部两侧均设有两个弹性板，所述连接板的顶部两侧均固定连接有固定板，所述固定板的两侧均设有卡块，两个所述弹性板的一侧均开设有卡槽，所述卡块与所述弹性板的卡槽相适配，所述弹性板的一侧固定连接有拨杆。相较现有装置而言，本实用新型通过设置固定钉、固定片、固定板、卡块、弹性板、连接板、磁块、吊板、卡板、拨杆、垫片、滑动杆、固定杆、吸管、排管、集废盒，使用本装置时，本装置连接方式稳固，操作简单，作业效果好，便捷性高，稳定实用。
The utility model discloses a connection structure of an LED ceiling lamp, which comprises a main body and a connecting plate. Both sides of the main body are fixedly connected with fixing pieces, and the tops of the fixing pieces are all provided with threaded holes. Fixing nails are threadedly connected in the threaded holes, two elastic plates are arranged on both sides of the bottom of the main body, fixing plates are fixedly connected on both sides of the top of the connecting plate, and clamps are arranged on both sides of the fixing plate One side of the two elastic plates is provided with a clamping slot, the clamping block is adapted to the clamping slot of the elastic plate, and a lever is fixedly connected to one side of the elastic plate. Compared with the existing device, the present invention is provided with a fixing nail, a fixing sheet, a fixing plate, a clamping block, an elastic plate, a connecting plate, a magnetic block, a hanging plate, a clamping plate, a lever, a gasket, a sliding rod, a fixing When using this device, the device has a stable connection method, simple operation, good operation effect, high convenience, stability and practicality.
Description
Technical Field
The utility model relates to the technical field of lighting fixtures, especially, relate to a connection structure of LED ceiling lamp.
Background
With the continuous improvement of the living standard of people, people pursue living quality more and more, the requirements for people for indoor decoration are more and more, perfect decoration is closely combined with the functions of objects, the manufacturing process is adapted, the performance of material is exerted, and good artistic effect is achieved.
Through the retrieval, chinese patent publication is CN 209196683U's patent, discloses a ceiling lamp and ceiling lamp connection structure thereof, and it includes floor top surface, lamps and lanterns link, the lamps and lanterns link includes support ring, go-between, connecting piece, the diameter of support ring is greater than the diameter of go-between, the connecting piece is connected between support ring and go-between, be equipped with the mounting hole on the floor top surface, the pore wall butt of mounting hole is on the connecting piece lateral wall, and the go-between is used for connecting the device of ceiling lamp bulb.
A ceiling lamp and ceiling lamp connection structure thereof in above-mentioned patent exist following not enough: when the device is used, the problem that the connection is not stable enough exists in the device, so that potential safety hazards exist.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a connecting structure of a LED ceiling lamp.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a connection structure of LED furred ceiling lamp, includes main part and connecting plate, the equal fixedly connected with stationary blade in both sides of main part, the screw hole has all been seted up at the top of stationary blade, the stationary blade has the staple at screw hole internal thread connection, the bottom both sides of main part all are equipped with two elastic plates, the equal fixedly connected with fixed plate in top both sides of connecting plate, the both sides of fixed plate all are equipped with the fixture block, two the draw-in groove has all been seted up to one side of elastic plate, the fixture block with the draw-in groove looks adaptation of elastic plate, one side fixedly connected with driving lever of elastic plate, the bottom of connecting plate is equipped with installation mechanism.
Further, the installation mechanism comprises a plurality of clamping pieces, the bottom of the connecting plate is fixedly connected with a hanging bracket, and the clamping pieces are fixedly connected with the bottom of the hanging bracket.
Furthermore, the bottom of the connecting plate is provided with a connecting ring, one side of the bottom of the connecting plate is fixedly connected with a hanging plate, one side of the top of the connecting ring is fixedly connected with a clamping plate, the hanging plate is matched with the clamping plate, and one side of the top of the connecting ring and one side of the bottom of the connecting plate are both provided with two magnetic blocks matched with each other.
Furthermore, a lampshade is arranged at the bottom of the connecting ring.
Further, two circular through holes have all been seted up to the top both sides of main part, the main part is in the equal fixedly connected with dead lever in the inside of four circular through holes, four the spout has all been seted up to the inside of dead lever, four the dead lever all has a slide bar, two in the inside sliding connection of spout the same gasket of top fixedly connected with of slide bar, the bottom fixedly connected with spring of gasket, the other end of spring with the top fixed connection of main part.
Further, the top of connecting plate is equipped with air pump and collection useless box respectively, the air inlet and the gas outlet of air pump are equipped with straw and calandria respectively, the one end of straw runs through the inside of connecting plate to lamp shade, the one end of calandria with collection useless box looks adaptation.
The utility model has the advantages that:
1. by arranging the fixing nail, the fixing sheet, the fixing plate, the fixture blocks, the elastic plates and the connecting plate, when the device is used, the main body is fixed at a designated position through the fixing nail on the fixing sheet, the fixture blocks on the fixing plate are pushed into the space between the two elastic plates at the bottom of the main body through the connecting plate, the fixture blocks on two sides of the fixing plate are respectively embedded into the clamping grooves of the two elastic plates, at the moment, the connecting plate is fixed, and when the connecting plate needs to be taken down, the driving lever on one side of the elastic plates is upwards stirred, so that the gap between the two elastic plates is enlarged, the connecting plate can be taken down, the connecting mode is stable, the dismounting operation is simple, and the operation effect is good;
2. by arranging the magnetic blocks, the hanging plate, the clamping plates, the shifting rod, the hanging bracket, the clamping pieces and the lampshade, when the device is used, the lamp tube can be arranged on the clamping pieces of the hanging bracket and is clamped with the hanging plate through the clamping plates on the connecting ring and is connected with the two magnetic blocks in an attracting mode, the device is simple in lamp tube replacement mode, and the convenience of the device is improved;
3. by arranging the gasket, the spring, the sliding rod and the fixed rod, when the device is used, the gasket can be pushed upwards by the spring to be contacted with a mounting wall, and the gasket drives the sliding rod to slide in the fixed rod when the spring is extruded or loosened, so that the connection stability of the main body is further improved;
4. through setting up straw, calandria, collection useless box, when using this device, the air pump passes through the straw and inhales the inside dust of lamp shade or other impurity to through the leading-in useless box of collection of calandria, increased the practicality of device.
Through setting up staple, stationary blade, fixed plate, fixture block, elastic plate, connecting plate, magnetic path, hanger plate, cardboard, driving lever, gallows, clamping piece, lamp shade, gasket, spring, slide bar, dead lever, straw, calandria, collection waste box, when using this device, this device connected mode is firm, easy operation, and the operation is effectual, and the convenience is high, and is stable practical.
Drawings

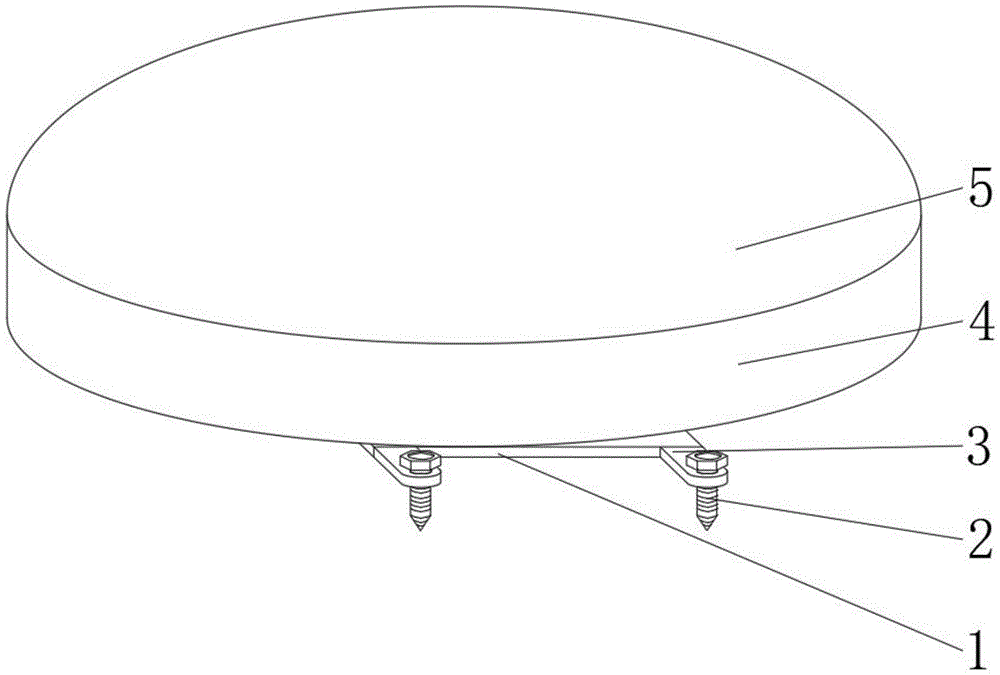

Fig. 1 is a schematic perspective view of a connection structure of an LED ceiling lamp according to embodiment 1;
fig. 2 is a schematic cross-sectional view of a connection structure of an LED ceiling lamp according to embodiment 1;
fig. 3 is a schematic structural diagram of a suction pipe and a discharge pipe of the connection structure of the LED ceiling lamp in embodiment 2.
In the figure: the lamp comprises a main body 1, fixing nails 2, fixing pieces 3, connecting rings 4, a lampshade 5, a fixing plate 6, a clamping block 7, a poking rod 8, an elastic plate 9, a connecting plate 10, a magnetic block 11, a hanging bracket 12, clamping pieces 13, a hanging plate 14, a clamping plate 15, a fixing rod 16, a spring 17, a sliding rod 18, a gasket 19, a suction pipe 20, a discharge pipe 21 and a waste collecting box 22.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.
In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
Example 1
Referring to fig. 1-2, a connecting structure of an LED ceiling lamp comprises a main body 1 and a connecting plate 10, wherein both sides of the main body 1 are fixedly connected with a fixing plate 3, the top of the fixing plate 3 is provided with a threaded hole, the fixing plate 3 is in threaded connection with a fixing nail 2 in the threaded hole, both sides of the bottom of the main body 1 are provided with two elastic plates 9, both sides of the top of the connecting plate 10 are fixedly connected with a fixing plate 6, both sides of the fixing plate 6 are provided with a clamping block 7, one side of each elastic plate 9 is provided with a clamping groove, the clamping block 7 is matched with the clamping groove of the elastic plate 9, one side of each elastic plate 9 is fixedly connected with a shift lever 8, the bottom of the connecting plate 10 is provided with an installing mechanism, after the main body 1 is fixed at a designated position by the fixing nail 2 on the fixing plate 3, the clamping block 7 on the fixing plate 6 is pushed into the space between the two elastic plates 9 at the bottom of the main body 1 by the connecting plate 10, the clamping blocks 7 at both sides of the fixing plate 6 are respectively embedded into the clamping grooves of the two elastic plates 9, at the moment, the connecting plate 10 is fixed, and when the connecting plate is required to be taken down, the deflector rod 8 on one side of the elastic plates 9 is pulled upwards to enlarge the gap between the two elastic plates 9, so that the connecting plate 10 can be taken down, the connecting mode is stable, the dismounting operation is simple, and the operation effect is good;
the mounting mechanism comprises a plurality of clamping pieces 13, the bottom of the connecting plate 10 is fixedly connected with a hanging bracket 12, and the clamping pieces 13 are fixedly connected with the bottom of the hanging bracket 12.
Wherein, the bottom of connecting plate 10 is equipped with clamping ring 4, and bottom one side fixedly connected with hanger plate 14 of connecting plate 10, top one side fixedly connected with cardboard 15 of connecting ring 4, hanger plate 14 and 15 looks adaptations of cardboard, top one side of connecting ring 4 and bottom one side of connecting plate 10 all are equipped with magnetic path 11, two magnetic path 11 looks adaptations.
The lamp shade 5 is arranged at the bottom of the connecting ring 4, the lamp tube can be installed on the clamping piece 13 of the hanger 12, and the clamping plate 15 and the hanging plate 14 on the connecting ring 4 are clamped and connected with the two magnetic blocks 11 in an attracting mode, so that the lamp tube replacing mode of the device is simple, and the convenience of the device is improved;
wherein, two circular through-holes have all been seted up to the top both sides of main part 1, main part 1 is at the equal fixedly connected with dead lever 16 in the inside of four circular through-holes, the spout has all been seted up to the inside of four dead levers 16, four dead levers 16 all have slide bar 18 at the inside sliding connection of spout, the same gasket 19 of top fixedly connected with of two slide bar 18, the bottom fixedly connected with spring 17 of gasket 19, the other end of spring 17 and the top fixed connection of main part 1, accessible spring 17 upwards pushes up gasket 19 and contacts with the installation wall, when spring 17 is extrudeed or relaxs, gasket 19 drives slide bar 18 and slides in dead lever 16 is inside, further improve the steadiness that main part 1 connects.
The working principle is as follows: when the device is used, the main body 1 is fixed at a designated position through the fixing nails 2 on the fixing plates 3, then the fixture blocks 7 on the fixing plates 6 are pushed into the space between the two elastic plates 9 at the bottom of the main body 1 through the connecting plates 10, the fixture blocks 7 on the two sides of the fixing plates 6 are respectively embedded into the clamping grooves of the two elastic plates 9, at the moment, the connecting plates 10 are fixed, and when the fixing device needs to be taken down, the deflector rod 8 on one side of each elastic plate 9 is pulled upwards to enlarge the gap between the two elastic plates 9, so that the connecting plates 10 can be taken down, the connecting mode is stable, the dismounting operation is simple, and the operation effect is good;
the lamp tube can be arranged on the clamping piece 13 of the hanger 12, and is clamped with the hanging plate 14 through the clamping plate 15 on the connecting ring 4 and is connected with the two magnetic blocks 11 in an attracting way, so that the lamp tube replacing mode of the device is simple, and the convenience of the device is improved;
the gasket 19 can be pressed upwards by the spring 17 to contact with the installation wall, and the gasket 19 drives the sliding rod 18 to slide in the fixing rod 16 while the spring 17 is pressed or loosened, so that the stability of the connection of the main body 1 is further improved.
Example 2
Referring to fig. 3, in order to increase the practicability of the device, in this embodiment, compared with embodiment 1, an air pump and a waste collection box 22 are respectively disposed at the top of a connection plate 10, an air inlet and an air outlet of the air pump are respectively provided with a suction pipe 20 and a discharge pipe 21, one end of the suction pipe 20 penetrates through the connection plate 10 to the inside of the lampshade 5, one end of the discharge pipe 21 is adapted to the waste collection box 22, and an AD5DC12V type air pump sucks dust or other impurities inside the lampshade 4 through the suction pipe 20 and introduces the dust or other impurities into the waste collection box 22 through the discharge pipe 21, thereby increasing the practicability of the device.
The working principle is as follows: when the device is used, the main body 1 is fixed at a designated position through the fixing nails 2 on the fixing plates 3, then the fixture blocks 7 on the fixing plates 6 are pushed into the space between the two elastic plates 9 at the bottom of the main body 1 through the connecting plates 10, the fixture blocks 7 on the two sides of the fixing plates 6 are respectively embedded into the clamping grooves of the two elastic plates 9, at the moment, the connecting plates 10 are fixed, and when the fixing device needs to be taken down, the deflector rod 8 on one side of each elastic plate 9 is pulled upwards to enlarge the gap between the two elastic plates 9, so that the connecting plates 10 can be taken down, the connecting mode is stable, the dismounting operation is simple, and the operation;
the lamp tube can be arranged on the clamping piece 13 of the hanger 12, and is clamped with the hanging plate 14 through the clamping plate 15 on the connecting ring 4 and is connected with the two magnetic blocks 11 in an attracting way, so that the lamp tube replacing mode of the device is simple, and the convenience of the device is improved;
the gasket 19 can be pressed upwards by the spring 17 to contact with the installation wall, and the gasket 19 drives the sliding rod 18 to slide in the fixing rod 16 while the spring 17 is pressed or loosened, so that the stability of the connection of the main body 1 is further improved.
When the device is used, the air pump sucks dust or other impurities in the lampshade 4 through the suction pipe 20 and leads the dust or other impurities into the waste collecting box 22 through the discharge pipe 21, so that the practicability of the device is improved.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a connection structure of LED ceiling lamp, includes main part (1) and connecting plate (10), its characterized in that, the both sides of main part (1) all are equipped with stationary blade (3), threaded hole has all been seted up at the top of stationary blade (3), stationary blade (3) are equipped with staple (2) at threaded hole, the bottom both sides of main part (1) all are equipped with two elastic plate (9), the top both sides of connecting plate (10) all are equipped with fixed plate (6), the both sides of fixed plate (6) all are equipped with fixture block (7), two the draw-in groove has all been seted up to one side of elastic plate (9), fixture block (7) with the draw-in groove looks adaptation of elastic plate (9), one side of elastic plate (9) is equipped with driving lever (8), the bottom of connecting plate (10) is equipped with installation mechanism.
2. The connecting structure of the LED ceiling lamp as claimed in claim 1, wherein the mounting mechanism comprises a plurality of clamping pieces (13), a hanging bracket (12) is arranged at the bottom of the connecting plate (10), and the plurality of clamping pieces (13) are fixedly connected with the bottom of the hanging bracket (12).
3. The connecting structure of the LED ceiling lamp as claimed in claim 2, wherein a connecting ring (4) is arranged at the bottom of the connecting plate (10), a hanging plate (14) is arranged on one side of the bottom of the connecting plate (10), a clamping plate (15) is arranged on one side of the top of the connecting ring (4), the hanging plate (14) is matched with the clamping plate (15), magnetic blocks (11) are arranged on one side of the top of the connecting ring (4) and one side of the bottom of the connecting plate (10), and the two magnetic blocks (11) are matched.
4. The connecting structure of the LED ceiling lamp according to claim 3, wherein the bottom of the connecting ring (4) is provided with a lampshade (5).
5. The connecting structure of the LED ceiling lamp according to claim 1, wherein two circular through holes are formed in both sides of the top of the main body (1), the main body (1) is provided with fixing rods (16) inside the four circular through holes, sliding grooves are formed inside the four fixing rods (16), sliding rods (18) are arranged inside the sliding grooves of the four fixing rods (16), the same gasket (19) is arranged on the tops of the two sliding rods (18), a spring (17) is arranged at the bottom of the gasket (19), and the other end of the spring (17) is fixedly connected with the top of the main body (1).
6. The connecting structure of the LED ceiling lamp according to claim 4, wherein an air pump and a waste collecting box (22) are respectively arranged at the top of the connecting plate (10), a suction pipe (20) and a discharge pipe (21) are respectively arranged at an air inlet and an air outlet of the air pump, one end of the suction pipe (20) penetrates through the connecting plate (10) to the inside of the lampshade (5), and one end of the discharge pipe (21) is matched with the waste collecting box (22).
