Abstract
The utility model relates to a prevent blockking up pipeline technical field, especially relate to an industrial waste water treatment is with preventing blockking up pipeline. The to-be-solved technical problem of the utility model is to utilize the pressure of waste water to clear up the jam pipeline. In order to solve the technical problem, the utility model provides an industrial waste water treatment is with preventing blockking up pipeline, the sleeve pipe has been cup jointed at the top in the body outside, the top sliding connection of body inner wall has the function board, the both sides sliding connection of function board has the elevator, the bottom fixedly connected with extrusion spring of elevator, the bottom and the sleeve pipe fixed connection of extrusion spring, the middle part fixedly connected with lifter of function board bottom, the bottom cover of lifter is equipped with the loop bar, the bearing has been cup jointed in the outside at loop bar middle part, the equal fixedly connected with bracing piece of interference fit is passed through in the outside of bearing, one side through connection at bracing piece top has the screw thread piece, the both sides of function board all through connection have the slide bar.
Description
Technical Field
The utility model relates to a prevent blockking up pipeline technical field specifically is an industrial waste water treatment is with preventing blockking up pipeline.
Background
The industrial wastewater comprises production wastewater, production sewage and cooling water, and refers to wastewater and waste liquid generated in the industrial production process, wherein the wastewater and the waste liquid contain industrial production materials, intermediate products, byproducts and pollutants generated in the production process, which are lost along with water. The industrial wastewater has various types and complex components. For example, the waste water from electrolytic salt industry contains mercury, the waste water from heavy metal smelting industry contains various metals such as lead and cadmium, the waste water from electroplating industry contains various heavy metals such as cyanide and chromium, the waste water from petroleum refining industry contains phenol, and the waste water from pesticide manufacturing industry contains various pesticides. Because industrial wastewater contains various toxic substances and pollutes the environment, the environment is harmful to human health, so that the industrial wastewater is developed to be comprehensively utilized and turn the harmful into the beneficial, and can be discharged after being treated by adopting corresponding purification measures according to the components and the concentration of pollutants in the wastewater. The industrial wastewater refers to wastewater, sewage and waste liquid generated in the industrial production process, and contains industrial production materials, intermediate products and products which are lost along with water, and pollutants generated in the production process. With the rapid development of industry, the variety and quantity of waste water are rapidly increased, the pollution to water bodies is more and more extensive and serious, and the health and the safety of human beings are threatened. Therefore, the treatment of industrial wastewater is more important than the treatment of municipal sewage for environmental protection. However, when the existing industrial wastewater discharge pipe discharges wastewater, the industrial wastewater contains a large amount of particle impurities and metal scraps, and the inside of the pipeline is blocked due to long-term accumulation, so that the problem of inconvenience in wastewater discharge is caused.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides an industrial waste water treatment is with preventing blockking up pipeline has solved and has utilized the pressure of waste water to carry out the problem of clearing up to blockking up the pipeline.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: an anti-blocking pipeline for industrial wastewater treatment comprises a pipe body, wherein a sleeve is sleeved at the top of the outer side of the pipe body, a function board is slidably connected to the top of the inner wall of the pipe body, lifting blocks are slidably connected to the two sides of the function board, an extrusion spring is fixedly connected to the bottom of the lifting block, the bottom of the extrusion spring is fixedly connected with the sleeve, a lifting rod is fixedly connected to the middle of the bottom of the function board, a sleeve rod is sleeved at the bottom of the lifting rod, a bearing is sleeved on the outer side of the middle of the sleeve rod, a support rod is fixedly connected to the outer side of the bearing through interference fit, a threaded block is connected to one side of the top of the support rod in a penetrating manner, sliding rods are respectively connected to the two sides of the function board in a penetrating manner, the bottoms of the sliding rods are connected with the threaded blocks in a penetrating manner, threaded rods are fixedly connected to the bottoms of the sliding rods, and a connecting plate is movably connected to the tops of the sliding rods, one side of the sliding rod is fixedly connected with a movable plate.
Further preferably, the sliding grooves are formed in two sides of the pipe body, and the sliding grooves are connected with the lifting block in a sliding mode.
Further preferably, the middle parts of the two sides inside the pipe body are provided with fixing holes, and the inner wall of each fixing hole is fixedly connected with one end of each supporting rod.
Further preferably, the both sides at function board top are all fixedly connected with filter screen, the top and the fly leaf sliding connection of filter screen, and two filter screens are parallel to each other.
Preferably, the top of the outer side of the sliding rod is sleeved with a rotating ring, and the bottom of the rotating ring is fixedly connected with the movable plate.
Further preferably, the two sides of the top of the function board are provided with rotating holes, and the inner parts of the rotating holes are in through connection with the sliding rods.
(III) advantageous effects
The utility model provides an industrial waste water treatment is with preventing blockking up pipeline possesses following beneficial effect:
(1) industrial waste water treatment is with preventing blockking up the pipeline, sort from the top of filter screen when sewage, the top at the filter screen is all just left over to the dregs of sewage, utilize the elasticity of extrusion spring just to sleep when not having sewage entering pipeline and promote the elevator, function board and slide bar rise, threaded rod will mesh with the thread block when the slide bar rises to a certain position, make the rotatory ring of also driving of slide bar and fly leaf rotatory simultaneously to clear up the dregs on filter screen surface.
(2) Industrial waste water treatment will make the function board descend when sewage gets into from the pipeline, descends elevator and extrusion spring simultaneously to reach the effect of storing hydraulic power, when sewage stops flowing, owing to do not have the hydraulic extrusion of sewage, make the extrusion spring kick-back, thereby reach the effect of release power.
Drawings

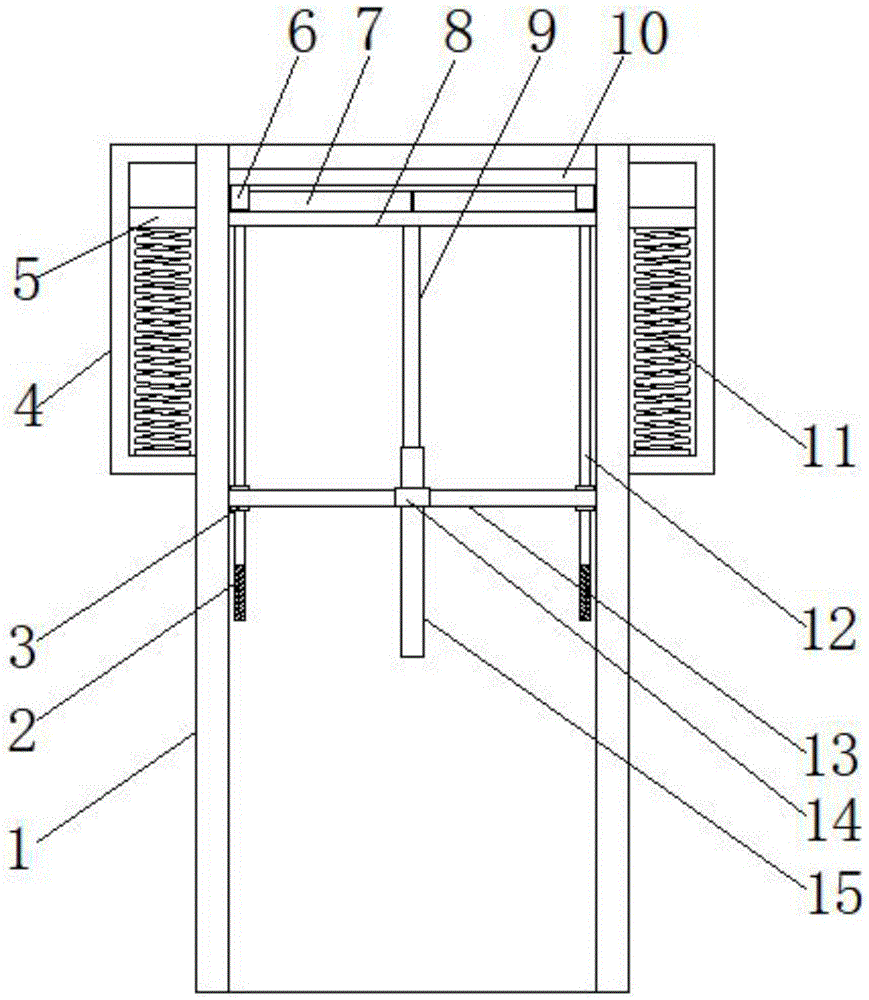

FIG. 1 is a view showing the structure of the present invention;
FIG. 2 is a top structural view of the functional board of the present invention;
fig. 3 is a top structural view of the tube body of the present invention.
In the figure: the device comprises a pipe body 1, a threaded rod 2, a thread block 3, a sleeve 4, a lifting block 5, a rotating ring 6, a movable plate 7, a functional plate 8, a lifting rod 9, a connecting plate 10, an extrusion spring 11, a sliding rod 12, a supporting rod 13, a bearing 14, a loop bar 15 and a filter screen 16.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: an anti-blocking pipeline for industrial wastewater treatment comprises a pipe body 1, a sleeve 4 is sleeved at the top of the outer side of the pipe body 1, a function board 8 is slidably connected to the top of the inner wall of the pipe body 1, lifting blocks 5 are slidably connected to the two sides of the function board 8, an extrusion spring 11 is fixedly connected to the bottom of each lifting block 5, the bottom of each extrusion spring 11 is fixedly connected with the sleeve 4, a lifting rod 9 is fixedly connected to the middle of the bottom of the function board 8, a sleeve rod 15 is sleeved at the bottom of each lifting rod 9, a bearing 14 is sleeved at the outer side of the middle of each sleeve rod 15, supporting rods 13 are fixedly connected to the outer sides of the bearings 14 through interference fit, a threaded block 3 is connected to one side of the top of each supporting rod 13 in a penetrating manner, sliding rods 12 are respectively connected to the two sides of the function board 8 in a penetrating manner, the bottoms of the sliding rods 12 are connected with the threaded blocks 3 in a penetrating manner, threaded rods 2 are fixedly connected to the bottoms of the sliding rods 12, a connecting plate 10 is movably connected to the top of the sliding rods 12, one side fixedly connected with fly leaf 7 of slide bar 12, the spout has been seted up to the both sides of body 1, the inside and the 5 sliding connection of lifter block of spout, the fixed orifices has all been seted up at the middle part of the inside both sides of body 1, the inner wall of fixed orifices and the one end fixed connection of bracing piece 13, the equal fixedly connected with filter screen 16 in both sides at 8 tops of function board, the top and the 7 sliding connection of fly leaf of filter screen 16, and two filter screens 16 are parallel to each other, rotatory ring 6 has been cup jointed at the top in the slide bar 12 outside, rotatory ring 6's bottom and fly leaf 7 fixed connection, rotatory hole has been seted up to the both sides at 8 tops of function board, the inside and the slide bar 12 through connection in rotatory hole.
The working principle is as follows: when sewage from the top letter sorting of filter screen 16, the dregs of sewage all just leave over the top at filter screen 16, utilize extrusion spring 11's elasticity just to sleep when not having sewage entering pipeline and promote elevator 5, function board 8 and slide bar 12 and rise, threaded rod 2 will mesh with thread block 3 when slide bar 12 rises to a certain position, make slide bar 12 rise rotatory ring 6 and fly leaf 7 of also driving simultaneously, thereby clear up the dregs on filter screen 16 surface.
Claims (6)
1. The utility model provides an industrial waste water treatment is with preventing blockking up pipeline, includes body (1), its characterized in that: the pipe is characterized in that a sleeve (4) is sleeved at the top of the outer side of the pipe body (1), a function board (8) is slidably connected to the top of the inner wall of the pipe body (1), lifting blocks (5) are slidably connected to the two sides of the function board (8), an extrusion spring (11) is fixedly connected to the bottom of each lifting block (5), the bottom of each extrusion spring (11) is fixedly connected with the sleeve (4), a lifting rod (9) is fixedly connected to the middle of the bottom of the function board (8), a sleeve rod (15) is sleeved at the bottom of each lifting rod (9), a bearing (14) is sleeved on the outer side of the middle of each sleeve rod (15), supporting rods (13) are fixedly connected to the outer sides of the bearings (14) through interference fit, threaded blocks (3) are connected to one side of the top of each supporting rod (13), and sliding rods (12) are connected to the two sides of the function board (8) through fit, the bottom and the screw thread piece (3) through connection of slide bar (12), the bottom fixedly connected with threaded rod (2) of slide bar (12), the top swing joint of slide bar (12) has connecting plate (10), one side fixedly connected with fly leaf (7) of slide bar (12).
2. The anti-clogging pipe for industrial wastewater treatment according to claim 1, characterized in that: the two sides of the pipe body (1) are provided with sliding grooves, and the insides of the sliding grooves are connected with the lifting blocks (5) in a sliding mode.
3. The anti-clogging pipe for industrial wastewater treatment according to claim 1, characterized in that: the fixing holes are formed in the middle of two sides of the inner portion of the pipe body (1), and the inner walls of the fixing holes are fixedly connected with one ends of the supporting rods (13).
4. The anti-clogging pipe for industrial wastewater treatment according to claim 1, characterized in that: the filter screen (16) is fixedly connected to the two sides of the top of the function board (8), the top of the filter screen (16) is connected with the movable board (7) in a sliding mode, and the two filter screens (16) are parallel to each other.
5. The anti-clogging pipe for industrial wastewater treatment according to claim 1, characterized in that: the top of the outer side of the sliding rod (12) is sleeved with a rotating ring (6), and the bottom of the rotating ring (6) is fixedly connected with a movable plate (7).
6. The anti-clogging pipe for industrial wastewater treatment according to claim 1, characterized in that: the two sides of the top of the function board (8) are provided with rotating holes, and the inner parts of the rotating holes are in through connection with the sliding rods (12).
