CN213725050U

CN213725050U - Circulating water impurity removal device

Info

Publication number: CN213725050U
Application number: CN202022074339.XU
Authority: CN
Inventors: 余春华; 颜崇威
Original assignee: Anhui Changshuo Environmental Protection Equipment Co ltd
Current assignee: Anhui Changshuo Environmental Protection Equipment Co ltd
Priority date: 2020-09-21
Filing date: 2020-09-21
Publication date: 2021-07-20
Anticipated expiration: 2030-09-21

Abstract

A circulating water impurity removal device comprises two groups of water pipes and a circulating water pump, wherein an impurity removal pipe body is arranged between the two groups of water pipes, and the impurity removal pipe body comprises a primary filter pipe, a secondary filter pipe and a through pipe which are mutually communicated; a filter screen is inserted in the primary filter pipe; the surface of the secondary filter pipe is provided with a filter cylinder, the surface of the filter cylinder is provided with a tooth cylinder and a drain valve, and the interior of the filter cylinder is provided with a filter element; the cleaning device is technically characterized in that a transmission rod is designed, a cleaning brush and an impeller are connected in a meshing transmission mode and are used in combination with an electric valve, a cleaning motor used in the prior art can be replaced, and the purchase cost and the use cost of the whole device are greatly reduced; use two filter tubes, can carry out twice filtration edulcoration to sewage and handle, wherein the filter screen in the one-level filter tube can carry out nimble dismantlement, realizes the prefilter to sewage, combines the sucking disc of installing on the apron, can ensure filter screen itself remain stable in the use, avoids using other fixed parts such as screw.

Description

Circulating water impurity removal device

Technical Field

The utility model belongs to the technical field of the water treatment, specifically a circulating water edulcoration device.

Background

Water treatment: the sewage is purified to reach the water quality requirement of being discharged into a certain water body or being reused. Sewage treatment is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and is increasingly used in daily life of common people.

When carrying out the edulcoration to circulating flow's rivers, need use filter equipment, however following technical problem can appear when using in current filtration edulcoration device: it is necessary to install a washing motor for driving the washing brush at one end of the filter cartridge in the filter cartridge, thereby increasing purchase cost and use cost of the entire device.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to overcome prior art's defect, provide a circulating water edulcoration device.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a circulating water impurity removal device comprises two groups of water pipes and a circulating water pump, wherein an impurity removal pipe body is arranged between the two groups of water pipes, and the impurity removal pipe body comprises a primary filter pipe, a secondary filter pipe and a through pipe which are mutually communicated;

a filter screen is inserted in the primary filter pipe;

a filter cylinder is arranged on the surface of the secondary filter pipe, a tooth cylinder and a drain valve are assembled on the surface of the filter cylinder, a filter element is arranged in the filter cylinder, and a rotatable cleaning brush is arranged in the filter element;

the inner wall welding of siphunculus has logical groove pipe, and leads to the internally mounted of groove pipe and have the impeller, the supporting core wheel of impeller extends to the one end of siphunculus outer wall and is equipped with the ring gear No. one, is connected through setting up the transfer line transmission between this ring gear and the tooth section of thick bamboo.

Preferably, the cross-section of one-level filtering pipe is isosceles trapezoid, and the one-level filtering pipe top is equipped with the apron that can overturn, the sucking disc that can inhale mutually with the filter screen outer wall is installed to the apron inner wall.

Preferably, the included angle formed between the filter cartridge and the secondary filter pipe is 30-45 degrees.

Preferably, gears are welded at one end of the brush rod and one end of the transmission rod which are matched with the cleaning brush to form a gear set meshed with each other, and the gears are arranged in the tooth cylinder.

Preferably, an electric valve is arranged at the position of one end opening of the through groove pipe facing the secondary filtering pipe.

Preferably, one end of the transmission rod, which faces the through pipe, is welded with a second gear ring which is in mutual meshing transmission with the first gear ring.

Compared with the prior art, the utility model provides a circulating water edulcoration device has following beneficial effect:

firstly, the cleaning brush and the impeller are connected in a meshing transmission mode by designing the transmission rod, and the transmission rod is used in combination with the electric valve, so that the cleaning motor used in the prior art can be replaced, and the purchase cost and the use cost of the whole device are greatly reduced;

secondly, two filter pipes are used, so that the sewage can be filtered and impurity-removed twice, a filter screen in one filter pipe can be flexibly disassembled, the sewage is preliminarily filtered, and the filter screen can be ensured to be stable in the using process by combining with a sucker arranged on a cover plate, so that other fixed parts such as screws are avoided;

thirdly, adopt the syllogic installation with edulcoration water pipe department, the primary filter pipe, secondary filter pipe and the siphunculus of formation can dismantle alone and maintain, when avoiding using traditional integral type edulcoration water pipe, the inconvenient condition of maintenance that appears.

Drawings

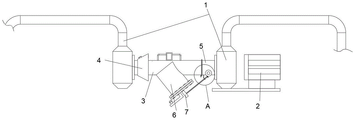

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the trash removal pipe of the present invention;

fig. 3 is an enlarged view of a partial structure a of fig. 1 according to the present invention.

Reference numerals: 1. a water pipe; 2. a water circulating pump; 3. a secondary filter pipe; 4. a primary filter pipe; 41. filtering with a screen; 42. a cover plate; 5. pipe passing; 6. a filter cartridge; 61. a filter element; 62. cleaning brushes; 7. a gear cylinder; 8. a blowoff valve; 9. a transmission rod; 10. a trough pipe; 11. an electrically operated valve; 12. an impeller.

Detailed Description

The following description will further describe a specific embodiment of the device for removing impurities from circulating water according to the present invention with reference to fig. 1. The utility model relates to a circulating water edulcoration device is not limited to the description of following embodiment.

The embodiment provides a specific structure of a circulating water impurity removal device, and as shown in fig. 1-3, the circulating water impurity removal device comprises two groups of water pipes 1 and a circulating water pump 2, an impurity removal pipe body is arranged between the two groups of water pipes 1, and the impurity removal pipe body comprises a primary filter pipe 4, a secondary filter pipe 3 and a through pipe 5 which are mutually communicated;

a filter screen 41 is inserted in the primary filter pipe 4;

the surface of the secondary filter pipe 3 is provided with a filter cartridge 6, the surface of the filter cartridge 6 is assembled with a tooth cylinder 7 and a blow-down valve 8, a filter element 61 is arranged inside the filter cartridge 6, and a rotatable cleaning brush 62 is arranged inside the filter element 61;

the inner wall welding of siphunculus 5 has logical groove pipe 10, and the internally mounted who leads to groove pipe 10 has impeller 12, and the one end that the supporting core of impeller 12 extends to siphunculus 5 outer wall is equipped with the ring gear No. one, is connected through setting up transfer line 9 transmission between this ring gear and the tooth section of thick bamboo 7.

The edulcoration water pipe adopts the syllogic installation, and the primary filter pipe 4, the second grade filter pipe 3 and the siphunculus 5 of formation can dismantle alone and maintain, when avoiding using traditional integral type edulcoration water pipe, the inconvenient condition of maintenance that appears.

As shown in FIG. 2, the cross section of the primary filtering pipe 4 is isosceles trapezoid, and the top end of the primary filtering pipe 4 is equipped with a reversible cover plate 42, and the inner wall of the cover plate 42 is equipped with a suction cup capable of sucking with the outer wall of the filter screen 41.

Above-mentioned use two filter tubes, can carry out twice filtration edulcoration to sewage and handle, wherein filter screen 41 in the one-level filter tube 4 can carry out nimble dismantlement, realizes the prefilter to sewage, combines the sucking disc of installing on the apron 42, can ensure filter screen 41 itself remain stable in the use, avoids using other fixed parts such as screw.

As shown in fig. 1 and 2, the filter cartridge 6 forms an angle of 30-45 ° with the secondary filter pipe 3.

As shown in fig. 1 and 2, gears are welded to one end of the brush 62, which is matched with the brush rod, and one end of the transmission rod 9, so as to form a gear set meshed with each other, and the gear set is arranged in the tooth cylinder 7.

As shown in fig. 1-3, an electric valve 11 is installed at a position where one end of the trough pipe 10 is opened toward the secondary filtering pipe 3; during specific use, can open electric valve 11 for rivers enter into logical buret 10, and during impeller 12, can drive impeller 12 and rotate, then utilize transmission 9 to drive cleaning brush 62 and rotate, realize the washing operation to filter core 61, the outside of the sewage accessible blowoff valve 8 exhaust of production.

As shown in fig. 3, a second gear ring which is in meshing transmission with the first gear ring is welded at one end of the transmission rod 9 facing the through pipe 5.

The cleaning motor used in the prior art can be replaced by designing the transmission rod 9, connecting the cleaning brush 62 and the impeller 12 in a meshing transmission mode and using the transmission rod in combination with the electric valve 11, so that the purchasing cost and the using cost of the whole device are greatly reduced.

The foregoing is a more detailed description of the present invention, taken in conjunction with the specific preferred embodiments thereof, and it is not intended that the invention be limited to the specific embodiments shown and described. To the utility model belongs to the technical field of ordinary technical personnel, do not deviate from the utility model discloses under the prerequisite of design, can also make a plurality of simple deductions or replacement, all should regard as belonging to the utility model discloses a protection scope.

Claims

1. The utility model provides a circulating water edulcoration device, includes two sets of water pipes (1) and circulating water pump (2), and is provided with edulcoration body, its characterized in that between two sets of water pipes (1): the impurity removing pipe body comprises a primary filtering pipe (4), a secondary filtering pipe (3) and a through pipe (5) which are communicated with each other;

a filter screen (41) is inserted in the primary filter pipe (4);

a filter cylinder (6) is arranged on the surface of the secondary filter pipe (3), a tooth cylinder (7) and a blow-down valve (8) are assembled on the surface of the filter cylinder (6), a filter element (61) is arranged inside the filter cylinder (6), and a rotatable cleaning brush (62) is arranged inside the filter element (61);

the inner wall welding of siphunculus (5) has logical groove pipe (10), and the internally mounted who leads to groove pipe (10) has impeller (12), the supporting wheel core of impeller (12) extends to the one end of siphunculus (5) outer wall and is equipped with a ring gear, is connected through setting up transfer line (9) transmission between this ring gear and tooth section of thick bamboo (7).

2. The circulating water impurity removing device as claimed in claim 1, wherein: the cross-section of one-level filter pipe (4) is isosceles trapezoid, and one-level filter pipe (4) top is equipped with apron (42) that can overturn, the sucking disc that can inhale mutually with filter screen (41) outer wall is installed to apron (42) inner wall.

3. The circulating water impurity removing device as claimed in claim 1, wherein: an included angle formed between the filter cylinder (6) and the secondary filter pipe (3) is 30-45 degrees.

4. The circulating water impurity removing device as claimed in claim 1, wherein: the supporting brush-holder stud one end of cleaning brush (62) and the one end of transfer line (9) all weld the gear, form the gear train of meshing each other, and set up in tooth section of thick bamboo (7).

5. The circulating water impurity removing device as claimed in claim 1, wherein: an electric valve (11) is arranged at the position of one end opening of the through groove pipe (10) facing the secondary filter pipe (3).

6. The circulating water impurity removing device as claimed in claim 1, wherein: one end of the transmission rod (9) facing the through pipe (5) is welded with a second gear ring which is in mutual meshing transmission with the first gear ring.
