The utility model discloses an automatic disinfection and sterilization equipment for ambulances, comprising mounting plates, four of which are arranged in a rectangular distribution and fixed on the inner top of the ambulance, and the two mounting plates are rotated through a rotating shaft A screw rod is connected, and the outside of the screw rod is fixed with an automatic sterilization component used for disinfection and sterilization in the vehicle. The utility model provides driving force through the driving member in the automatic sterilization component, so that the nozzle can spray the disinfection water cyclically and reciprocally. The ultraviolet germicidal lamp rotates 90° to realize ultraviolet irradiation and sterilization in the car, so as to disinfect and sterilize the ambulance in all aspects, without the need for manual disinfection by personnel, which greatly reduces the labor workload and the risk of infection.

Description

Automatic disinfection and sterilization equipment for ambulance

Technical Field

The utility model relates to the technical field of disinfection in ambulances, in particular to an automatic disinfection and sterilization device for ambulances.

Background

The ambulance is a vehicle for rescuing patients, and after each visit, the ambulance applies clean wet rags and wet rags to scrub the ground such as stretchers, handrails, the ground of the ambulance and the like so as to avoid infection.

The ambulance is carrying the area and having the bloodstain at the fortune, the secretion, when the patient of excrement pollution, need carry out the omnidirectional disinfection of disinfecting to the ambulance, will be earlier with the disposable article centralized processing who has contacted in the patient usually, take out the disinfection with instrument in the car again, then disinfect to the car inner wall, wherein when disinfecting the disinfection in to the car, because the space is great, personnel's manual disinfection is comparatively troublesome and infected easily, and personnel need dress complete protective apparatus when disinfecting in the car very inconvenient, for this reason, we propose an ambulance and use automatic disinfection and sterilization equipment.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a can avoid the ambulance that personnel infect with automatic disinfection and isolation equipment to solve the problem of proposing among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an automatic disinfection and sterilization equipment for ambulance, includes the mounting panel, the mounting panel is equipped with four, and is the rectangle distribution and fixes top, two in the ambulance rotate through the pivot between the mounting panel and be connected with the lead screw, the lead screw outside is fixed with the automatic subassembly that disinfects that is used for disinfection and sterilization in the car.

Preferably, the automatic sterilization assembly comprises two moving blocks, the two moving blocks are respectively sleeved outside the screw rod in a threaded manner, two bearing plates are fixed in the two moving blocks, a plurality of nozzles are equidistantly arranged at the bottoms of the bearing plates, a driving piece is fixed at the outer end of the screw rod, an auxiliary sterilization piece is fixed between the two moving blocks, and the automatic sterilization assembly is used for spraying sterilization water in the ambulance to perform ultraviolet sterilization and omnibearing sterilization treatment.

Preferably, the driving piece includes driving motor, driving motor installs at the ambulance top, and the driving motor output passes through the shaft coupling and fixes with lead screw one end, two the lead screw outside all is fixed with the gear, and two gear outside meshing cover have the toothed belt, realize the round trip circulation removal to the automatic subassembly that disinfects through the driving piece.

Preferably, supplementary disinfection spare is including rotating the motor, it installs on the movable block inner wall to rotate the motor, and rotates the motor output and pass through the fixed threaded rod of shaft coupling, the threaded rod is kept away from and is rotated motor one end and pass through the bearing and be connected with the movable block rotation, and threaded rod outside thread bush has the movable plate, movable plate outside both ends all are fixed with the backup pad, and slide in two backup pads and peg graft and have the axis of rotation, axis of rotation outside cover has the rotation platform, and axis of rotation outer end screw thread has cup jointed the cap, it is fixed with sterilamp to rotate the platform outer end, realizes carrying out ultraviolet germicidal treatment in the ambulance that sprays the disinfectant through supplementary disinfection spare.

Preferably, the sterilamp outer end is fixed with the installation piece, and corresponds installation piece position department on the loading board and be fixed with the limiting plate, it has spacing axle to slide the grafting in the limiting plate, and the installation piece slides and cup joints in spacing off-axial side, utilizes the cooperation of installation piece and spacing axle and limiting plate to the realization is fixed to the installation of sterilamp.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model discloses a driving piece in the automatic subassembly that disinfects provides drive power to make the nozzle can the cyclic and reciprocal spray disinfectant, rotate 90 with sterilamp simultaneously, realize carrying out ultraviolet irradiation sterilization in to the car, thereby the full aspect carries out disinfection and sterilization in to the ambulance handles, does not need personnel's manual disinfection, very big reduction personnel's the amount of labour and infects the risk.

Drawings

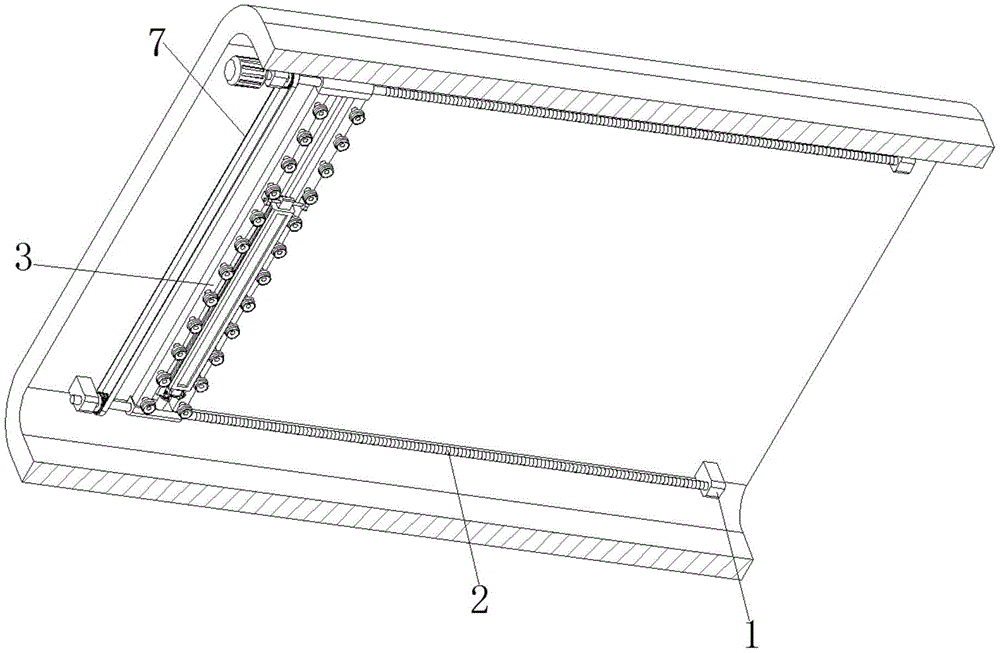

FIG. 1 is a schematic view of the overall configuration of the utility model when installed on the top of an ambulance;

FIG. 2 is a schematic view of the structure of the automatic sterilization assembly of the present invention;

FIG. 3 is a schematic view of a partial cross-sectional structure of the auxiliary sterilizing element of the present invention;

FIG. 4 is an enlarged view taken at A in FIG. 2;

fig. 5 is an enlarged view of fig. 2 at B.

In the figure: 1-mounting a plate; 2-a screw rod; 3-an automatic sterilization component; 4-moving block; 5-a bearing plate; 6-a nozzle; 7-a drive member; 8-auxiliary disinfection; 9-driving a motor; 10-a gear; 11-a toothed belt; 12-a rotating electric machine; 13-a threaded rod; 14-moving the plate; 15-a support plate; 16-a rotating shaft; 17-a rotating table; 18-tightening cap; 19-ultraviolet germicidal lamp; 20-mounting a block; 21-a limiting plate; 22-limiting shaft.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the automatic sterilization and disinfection device for the ambulance in the figures comprises four mounting plates 1, wherein the four mounting plates 1 are distributed in a rectangular shape and fixed at the top of the ambulance, the four mounting plates 1 are distributed at four ends of the top of the ambulance as much as possible, a screw rod 2 is rotatably connected between the two mounting plates 1 through a rotating shaft, and an automatic sterilization assembly 3 for sterilization and disinfection in the ambulance is fixed at the outer side of the screw rod 2.

The automatic sterilization assembly 3 comprises two moving blocks 4, the two moving blocks 4 are respectively sleeved outside the lead screw 2 in a threaded manner, two bearing plates 5 are fixed in the two moving blocks 4, a plurality of nozzles 6 are equidistantly arranged at the bottom of each bearing plate 5, the tail ends of the plurality of nozzles 6 are respectively connected with a hose, and the hoses are communicated with external disinfectant supplying equipment through the hoses, so that the nozzles 6 can spray disinfectant, a driving piece 7 is fixed at the outer end of the lead screw 2, and an auxiliary disinfectant 8 is fixed between the two moving blocks 4;

the driving piece 7 comprises a driving motor 9, the driving motor 9 is installed at the top of the ambulance, the output end of the driving motor 9 is fixed and connected with one end of the screw rod 2 through a shaft coupling, the two ends of the screw rod 2 are respectively fixed with a gear 10, the two gears 10 are meshed and sleeved with a toothed belt 11, the driving motor 9 rotates, the gears 10 and the toothed belt 11 are mutually matched, synchronous rotation of the two screw rods 2 is achieved, and therefore the automatic sterilization assembly 3 is driven to stably move.

In addition, the auxiliary sterilizing part 8 comprises a rotating motor 12, the rotating motor 12 is installed on the inner wall of the moving block 4, a threaded rod 13 is fixed at the output end of the rotating motor 12 through a coupler, one end, far away from the rotating motor 12, of the threaded rod 13 is rotatably connected with the moving block 4 through a bearing, a moving plate 14 is sleeved on the outer side of the threaded rod 13 in a threaded manner, two sides of the moving plate 14 are respectively in sliding connection with the side walls of the two bearing plates 5, and the moving plate 14 on the threaded rod 13 can reciprocate through forward and reverse rotation of the rotating motor 12;

supporting plates 15 are fixed at two ends of the outer side of the moving plate 14, rotating shafts 16 are inserted in the two supporting plates 15 in a sliding mode, rotating tables 17 are sleeved on the outer sides of the rotating shafts 16, tightening caps 18 are sleeved on the outer ends of the rotating shafts 16 in a threaded mode, the tightening caps 18 are tightened to limit the rotating tables 17, limiting of ultraviolet sterilizing lamps 19 is facilitated, and the ultraviolet sterilizing lamps 19 are fixed at the outer ends of the rotating tables 17;

the outer end of the ultraviolet germicidal lamp 19 is fixed with a mounting block 20, a limiting plate 21 is fixed on the position of the bearing plate 5 corresponding to the mounting block 20, a limiting shaft 22 is inserted in the limiting plate 21 in a sliding mode, and the mounting block 20 is sleeved on the outer side of the limiting shaft 22 in a sliding mode.

In the scheme: after the ambulance transports the crowd carrying infectious diseases, the ambulance needs to be disinfected, at the moment, the disposable props used on the ambulance are intensively treated, the equipment such as instruments and the like are moved out, then the door window of the ambulance is closed, at the moment, the limiting shaft 22 is drawn out by personnel, the tightening cap 18 is unscrewed, the ultraviolet sterilizing lamp 19 is rotated 90 degrees and vertically downwards, then the driving motor 9 is rotated to drive the screw rod 2 to rotate, the two moving blocks 4 can synchronously move through the mutual matching of the gear 10 and the toothed belt 11, then the sterilizing water supplying equipment is connected with the plurality of nozzles 6, the nozzles 6 spray sterilizing water, after the sterilizing water is sprayed, the motor 12 is rotated to drive the threaded rod 13 to rotate, so that the moving plate 14 reciprocates and drives the ultraviolet sterilizing lamp 19 to carry out irradiation sterilization treatment on the inner wall of the ambulance, and ultraviolet irradiation sterilization is realized in the ambulance, therefore, the ambulance is disinfected and sterilized in an all-round manner, manual disinfection of personnel is not needed, and the labor capacity of the personnel and the infection risk are greatly reduced.

In the scheme, the type Y80M2-2 is preferably selected for the driving motor 9, the type Y80M2-2 is preferably selected for the rotating motor 12, the motor operation circuit is a normal and reverse rotation control program of a conventional motor, the circuit operation is the conventional circuit, the circuits and the control related to the scheme are the prior art, and redundant description is not repeated herein.

In the use, according to the hard circumstances in ground, the selection is placed the heavy object and is nailed into the spud two kinds of modes and improve the stability that supports base 1, satisfies and uses under different environment, uses more in a flexible way.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an automatic disinfection and sterilization equipment for ambulance, includes mounting panel (1), mounting panel (1) is equipped with four, and is the rectangle distribution and fixes top, two in the ambulance it is connected with lead screw (2), its characterized in that to rotate through the pivot between mounting panel (1): and an automatic sterilization assembly (3) for in-vehicle sterilization is fixed on the outer side of the screw rod (2).

2. The automatic sterilization equipment for ambulance according to claim 1, wherein: the automatic sterilization assembly (3) comprises two moving blocks (4), the two moving blocks (4) are respectively sleeved on the outer side of the screw rod (2) in a threaded manner, two bearing plates (5) are fixed in the two moving blocks (4), a plurality of nozzles (6) are installed at the bottom of each bearing plate (5) at equal intervals, a driving piece (7) is fixed at the outer end of the screw rod (2), and an auxiliary sterilization piece (8) is fixed between the two moving blocks (4).

3. The automatic sterilization equipment for ambulance according to claim 2, wherein: driving piece (7) include driving motor (9), install at the ambulance top driving motor (9), and driving motor (9) output passes through the shaft coupling and fixes, two with lead screw (2) one end lead screw (2) outside all is fixed with gear (10), and two gear (10) outside meshing cover have toothed belt (11).

4. The automatic sterilization equipment for ambulance according to claim 2, wherein: supplementary disinfection piece (8) are including rotating motor (12), it installs on movable block (4) inner wall to rotate motor (12), and rotates motor (12) output and be fixed with threaded rod (13) through the shaft coupling, threaded rod (13) are kept away from and are rotated motor (12) one end and pass through bearing and movable block (4) and rotate and be connected, and threaded rod (13) outside thread bush has movable plate (14), movable plate (14) outside both ends all are fixed with backup pad (15), and slide in two backup pads (15) and peg graft and have axis of rotation (16), axis of rotation (16) outside cover has rotation platform (17), and axis of rotation (16) outer end screw thread bush has screwed cap (18), it is fixed with sterilamp (19) to rotate platform (17) outer end.

5. The automatic sterilization equipment for ambulance as claimed in claim 4, wherein: the outer end of the ultraviolet germicidal lamp (19) is fixed with a mounting block (20), a limiting plate (21) is fixed on the position of the bearing plate (5) corresponding to the mounting block (20), a limiting shaft (22) is inserted in the limiting plate (21) in a sliding mode, and the mounting block (20) is sleeved on the outer side of the limiting shaft (22) in a sliding mode.
