CN213723752U

CN213723752U - A medical timing ultraviolet lamp disinfection device

Info

Publication number: CN213723752U
Application number: CN202022795528.6U
Authority: CN
Inventors: 李艳梅
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-11-27
Filing date: 2020-11-27
Publication date: 2021-07-20
Anticipated expiration: 2030-11-27

Abstract

The utility model discloses a medical timed ultraviolet lamp disinfection device, comprising an electrical box, a battery is arranged inside the electrical box, a controller is arranged on the right side of the battery, and a timer is arranged on the front surface of the electrical box , the lower side of the timer is provided with a control switch, the upper surface of the electrical box is provided with an ultraviolet sterilization box, the interior of the ultraviolet sterilization box is provided with an ultraviolet lamp tube, and the inner upper side wall of the ultraviolet sterilization box is provided with Fluorescent lamp, the upper surface of the ultraviolet disinfection box is provided with a speaker, the front surface of the ultraviolet disinfection box is provided with a first box door through a hinge, and the outer surface of the first box door is provided with a first handle, the ultraviolet The door frame of the sterilization box is provided with a contact switch, the interior of the ultraviolet sterilization box is provided with two partitions, the utility model is provided with a battery, and the sterilization can be realized without turning on the power supply, and the utility model is provided with a timer to The disinfection time is adjusted regularly, the design is reasonable, and the use is convenient.

Description

Medical timing ultraviolet lamp disinfection device

Technical Field

The utility model relates to a degassing unit technical field, the concrete field is a medical regularly ultraviolet lamp degassing unit.

Background

The disinfection refers to a method for killing pathogenic microorganisms but not necessarily bacteria spores, the disinfection effect is usually achieved by a chemical method, a chemical medicine for disinfection is called a disinfectant, but the disinfection mode is troublesome to operate, so the ultraviolet disinfection appears on the market, the existing ultraviolet disinfection cabinet is an essential disinfection tool in the medical industry, medical departments are required to disinfect the medical instruments regularly due to the special environment of the medical departments, germs often float in the air and are easy to pollute when the medical instruments are placed, the existing disinfection cabinet mostly adopts an ultraviolet irradiation disinfection mode, but the ultraviolet rays can cause injury to the skin of people, medical staff can not be influenced when in disinfection treatment, the health can be damaged in the past, the existing ultraviolet disinfection cabinet mostly does not have a timing function, and the existing ultraviolet disinfection cabinet can only carry out single disinfection, cannot be used for storing medical appliances, so that a medical timing ultraviolet lamp disinfection device is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a medical timing ultraviolet lamp degassing unit to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a medical timing ultraviolet lamp disinfection device comprises an electrical appliance box, wherein a storage battery is arranged inside the electrical appliance box, a controller is arranged on the right side of the storage battery, a timer is arranged on the front surface of the electrical appliance box, a control switch is arranged on the lower side of the timer, an ultraviolet disinfection box is arranged on the upper surface of the electrical appliance box, ultraviolet lamp tubes are respectively arranged on the upper side wall, the lower side wall and the rear side wall of the ultraviolet disinfection box, a fluorescent lamp is arranged on the upper side wall inside the ultraviolet disinfection box, a loudspeaker is arranged on the upper surface of the ultraviolet disinfection box, a first box door is installed on the front surface of the ultraviolet disinfection box through a hinge, a first handle is arranged on the outer surface of the first box door, a contact switch is arranged on a door frame of the ultraviolet disinfection box, two partition plates are arranged inside the ultraviolet disinfection box, the two partition plates are latticed, and a first support plate is arranged on the lower surface of the electrical appliance box, the lower surface of first backup pad is equipped with the storage tank, the front surface of storage tank is through folding paper articulated install two second chamber doors, two the front surface symmetry of second chamber door is equipped with two second handles.

Preferably, the storage box is internally provided with three storage plates.

Preferably, the lower surface of storage tank is equipped with the second backup pad, the lower surface four corners of second backup pad is equipped with the universal wheel respectively.

Preferably, the upper end and the lower end of the inner side of the first box door are respectively provided with a first magnetic stripe, the upper end and the lower end of a door frame of the ultraviolet disinfection box are respectively provided with a second magnetic stripe, the second box door is provided with an observation port, and the inner side of the first box door is provided with a reflector.

Preferably, the storage battery, the timer, the loudspeaker, the ultraviolet lamp tube, the fluorescent lamp, the control switch and the contact switch are electrically connected with the controller, the control switch is provided with three control buttons, and the three control buttons respectively control the ultraviolet lamp tubes on the upper side wall, the rear side wall and the lower side wall of the ultraviolet disinfection box.

Compared with the prior art, the beneficial effects of the utility model are that: a medical timing ultraviolet lamp sterilizing device is provided with a timer, a timing function is added in the sterilizing process, the sterilizing time can be set according to the actual situation, a first magnetic strip and a second magnetic strip on a first box door are magnetically attracted, so that the ultraviolet sterilizing box is in a closed state, a viewing port is arranged on the first box door, viewing glass is arranged on the viewing port, medical personnel can observe the internal situation acutely, a reflector is arranged on the inner side of the first box door and reflects the ultraviolet rays of an ultraviolet lamp tube in the ultraviolet sterilizing box through mirror reflection, so that the ultraviolet irradiation is more comprehensive, the sterilizing effect is better, the sterilizing device has the advantages that through the matching of a controller and a contact switch, when the first box door is closed, the first box door is touched with the contact switch, the ultraviolet lamp tube is on at the moment, the fluorescent lamp and a storage battery 2 form an open circuit, the fluorescent lamp is extinguished, and the first box door is opened, the ultraviolet lamp tube is extinguished, the fluorescent lamp is lightened, the ultraviolet rays of the ultraviolet lamp tube are prevented from damaging a human body, the fluorescent lamp is lightened, medical personnel can conveniently observe the inside of the ultraviolet lamp tube, and the ultraviolet lamp tube has the advantages of humanized design, simplicity in operation and safety in use.

Drawings

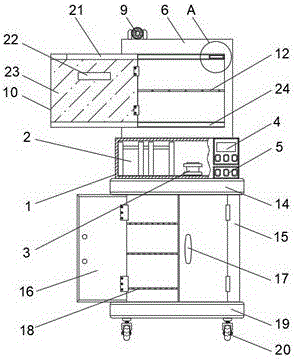

FIG. 1 is a schematic sectional view of the front view of the present invention;

fig. 2 is a schematic view of the outline structure of the present invention;

FIG. 3 is a cross-sectional view of the ultraviolet disinfection box of the present invention;

fig. 4 is an enlarged schematic view of a portion a in fig. 1.

In the figure: 1-electric appliance box, 2-storage battery, 3-controller, 4-timer, 5-control switch, 6-ultraviolet disinfection box, 7-ultraviolet lamp tube, 8-fluorescent lamp, 9-loudspeaker, 10-first box door, 11-contact switch, 12-clapboard, 13-first handle, 14-first supporting plate, 15-storage box, 16-second box door, 17-second handle, 18-storage plate, 19-second supporting plate, 20-universal wheel, 21-first magnetic stripe, 22-observation port, 23-reflector and 24-second magnetic stripe.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a medical timing ultraviolet lamp disinfection device comprises an electrical appliance box 1, wherein a storage battery 2 is arranged inside the electrical appliance box 1, a controller 3 is arranged on the right side of the storage battery 2, a timer 4 is arranged on the front surface of the electrical appliance box 1, the timer 4 can time disinfection time and is more humanized when in use, a control switch 5 is arranged on the lower side of the timer 4, an ultraviolet disinfection box 6 is arranged on the upper surface of the electrical appliance box 1, an ultraviolet lamp tube 7 is respectively arranged on the upper side wall, the lower side wall and the rear side wall of the ultraviolet disinfection box 6, the ultraviolet lamp tube 7 is directly controlled by the control switch 5, a fluorescent lamp 8 is arranged on the upper side wall inside the ultraviolet disinfection box 6, a loudspeaker 9 is arranged on the upper surface of the ultraviolet disinfection box 6, after the disinfection time reaches, the loudspeaker 9 sends sound effect to remind medical personnel of disinfection completion, a first box door 10 is arranged on the front surface of the ultraviolet disinfection box 6 through folding, when articles are conveniently stored and taken, the sealing effect of the ultraviolet disinfection box 6 is also ensured, the outer surface of the first box door 10 is provided with a first handle 13, a door frame of the ultraviolet disinfection box 6 is provided with a contact switch 11, the contact switch controls the fluorescent lamp 8 and the ultraviolet lamp tube 7 respectively, when the first box door 10 is closed, the first box door 10 is contacted with the contact switch 11, the ultraviolet lamp tube 7 is on, the fluorescent lamp 8 and the storage battery 2 form a circuit break, the fluorescent lamp 8 is off, the first box door 10 is opened, the ultraviolet lamp tube 7 is off, the fluorescent lamp 8 is on, the ultraviolet rays of the ultraviolet lamp tube 7 are prevented from damaging human bodies, the fluorescent lamp 8 is on, medical personnel can conveniently observe the inside, the inside of the ultraviolet disinfection box 6 is provided with two partition plates 12, the two partition plates 12 are latticed, the light transmittance is ensured by the latticed partition plates 12, and the ultraviolet rays are prevented from being blocked, the effect of guaranteeing the disinfection effect is realized, and the lower surface of electrical apparatus case 1 is equipped with first backup pad 14, the lower surface of first backup pad 14 is equipped with storage tank 15, can place the apparatus after the disinfection in storage tank 15's inside and store, storage tank 15's front surface is through folding paper articulated mounting have two second chamber doors 16, two the front surface symmetry of second chamber door 16 is equipped with two second handles 17.

Particularly, the inside of storage tank 15 is equipped with three thing board 18, can place the medical appliances after the disinfection on the thing board 18 is put to the inside of storage tank 15, makes things convenient for next use.

Particularly, the lower surface of storage tank 15 is equipped with second backup pad 19, the lower surface four corners of second backup pad 19 is equipped with universal wheel 20 respectively, and universal wheel 20's settlement makes the utility model discloses it is more nimble, convenient right to use the utility model discloses remove.

Particularly, both ends are equipped with first magnetic stripe 21 respectively about the inboard of first chamber door 10, both ends are equipped with second magnetic stripe 24 respectively about the door frame of ultraviolet ray disinfection case 6, close first chamber door 10, and first magnetic stripe 21 inhales with second magnetic stripe 24 magnetism mutually, make ultraviolet ray disinfection case 6 become airtight state, be equipped with viewing aperture 22 on the first chamber door 10, be equipped with observation glass on the viewing aperture 22, make things convenient for medical personnel to observe the internal conditions acutely, the inboard of first chamber door 10 is equipped with reflector panel 23, and reflector panel 23 passes through specular reflection, with ultraviolet tube 7's ultraviolet reflection in ultraviolet ray disinfection case 6's inside, makes ultraviolet irradiation more comprehensive, and the disinfection effect is better.

Particularly, battery 2, timer 4, speaker 9, ultraviolet tube 7, fluorescent lamp 8, control switch 5 and contact switch 11 all with the controller 3 between the electricity be connected, three control button has on the control switch 5, three control button controls ultraviolet tube 7 of the last lateral wall of ultraviolet disinfection case 6, back lateral wall and lower lateral wall respectively, can the selectivity open or close arbitrary ultraviolet tube 7, sets for disinfection time through timer 4, and when disinfection time reached the back, timer 4 gives controller 3 with the signal of telecommunication transmission, and controller 3 control speaker 9 sends the audio, is used for reminding medical personnel to disinfect the completion.

The working principle is as follows: when the utility model is used, the article to be disinfected is placed inside the ultraviolet disinfection box 6, then the timer 4 is used for setting time, any ultraviolet lamp tube 7 is selectively opened or closed by adjusting the control switch 5, then the first box door 10 is closed, the first box door 10 is contacted with the contact switch 11, at the moment, the ultraviolet lamp tube 7 is lighted, the fluorescent lamp 8 and the storage battery 2 form a circuit break, the fluorescent lamp is extinguished, after reaching the disinfection rated time, the timer 4 transmits an electric signal to the controller 3, the controller 3 controls the loudspeaker 9 to send out sound effect for reminding medical personnel to disinfect, in the disinfection process, if the first box door 10 is opened, the ultraviolet lamp tube 7 is extinguished, the fluorescent lamp 8 is lighted, the ultraviolet ray of the ultraviolet lamp tube 7 is prevented from damaging the human body, the fluorescent lamp 8 is lighted, the medical personnel can observe the inside conveniently and reasonably, the design is humanized.

In the description of the present invention, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model, including circuit connection adopts conventional connection mode among the prior art, does not detailed here again.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a medical timing ultraviolet lamp degassing unit, includes electrical apparatus case (1), its characterized in that: the solar energy electric appliance comprises an electric appliance box (1), a storage battery (2) is arranged in the electric appliance box (1), a controller (3) is arranged on the right side of the storage battery (2), a timer (4) is arranged on the front surface of the electric appliance box (1), a control switch (5) is arranged on the lower side of the timer (4), an ultraviolet disinfection box (6) is arranged on the upper surface of the electric appliance box (1), ultraviolet lamp tubes (7) are respectively arranged on the upper side wall, the lower side wall and the rear side wall of the ultraviolet disinfection box (6), a fluorescent lamp (8) is arranged on the upper side wall in the ultraviolet disinfection box (6), a loudspeaker (9) is arranged on the upper surface of the ultraviolet disinfection box (6), a first box door (10) is installed on the front surface of the ultraviolet disinfection box (6) through hinges, a first handle (13) is arranged on the outer surface of the first box door (10), a contact switch (11) is arranged on a door frame of the ultraviolet disinfection box (6), the inside of ultraviolet ray disinfect box (6) is equipped with two baffle (12), two baffle (12) are latticed, and the lower surface of electrical apparatus case (1) is equipped with first backup pad (14), the lower surface of first backup pad (14) is equipped with storage tank (15), two second chamber door (16), two are installed through hinge joint to the front surface of storage tank (15) the front surface symmetry of second chamber door (16) is equipped with two second handles (17).

2. The medical timing ultraviolet lamp sterilizing apparatus as set forth in claim 1, wherein: three storage plates (18) are arranged in the storage box (15).

3. The medical timing ultraviolet lamp sterilizing apparatus as set forth in claim 1, wherein: the lower surface of storage tank (15) is equipped with second backup pad (19), the lower surface four corners of second backup pad (19) is equipped with universal wheel (20) respectively.

4. The medical timing ultraviolet lamp sterilizing apparatus as set forth in claim 1, wherein: the upper end and the lower end of the inner side of the first box door (10) are respectively provided with a first magnetic strip (21), the upper end and the lower end of a door frame of the ultraviolet disinfection box (6) are respectively provided with a second magnetic strip (24), the first box door (10) is provided with an observation port (22), and the inner side of the first box door is provided with a reflector (23).

5. The medical timing ultraviolet lamp sterilizing apparatus as set forth in claim 1, wherein: the storage battery (2), the timer (4), the loudspeaker (9), the ultraviolet lamp tube (7), the fluorescent lamp (8), the control switch (5) and the contact switch (11) are all electrically connected with the controller (3), the control switch (5) is provided with three control buttons, and the three control buttons respectively control the ultraviolet lamp tubes on the upper side wall, the rear side wall and the lower side wall of the ultraviolet disinfection box (6).
